Power Steering Pump Replacement

Power Steering Pump Replacement

Removal Procedure

1. Remove the fuel injector sight shield.
2. Remove as much power steering fluid from the remote power steering fluid reservoir as possible.
3. Place drain pans under the vehicle as needed.
4. Remove the drive belt.
5. Remove the steering gear heat shield.
6. Remove the right side catalytic convertor.

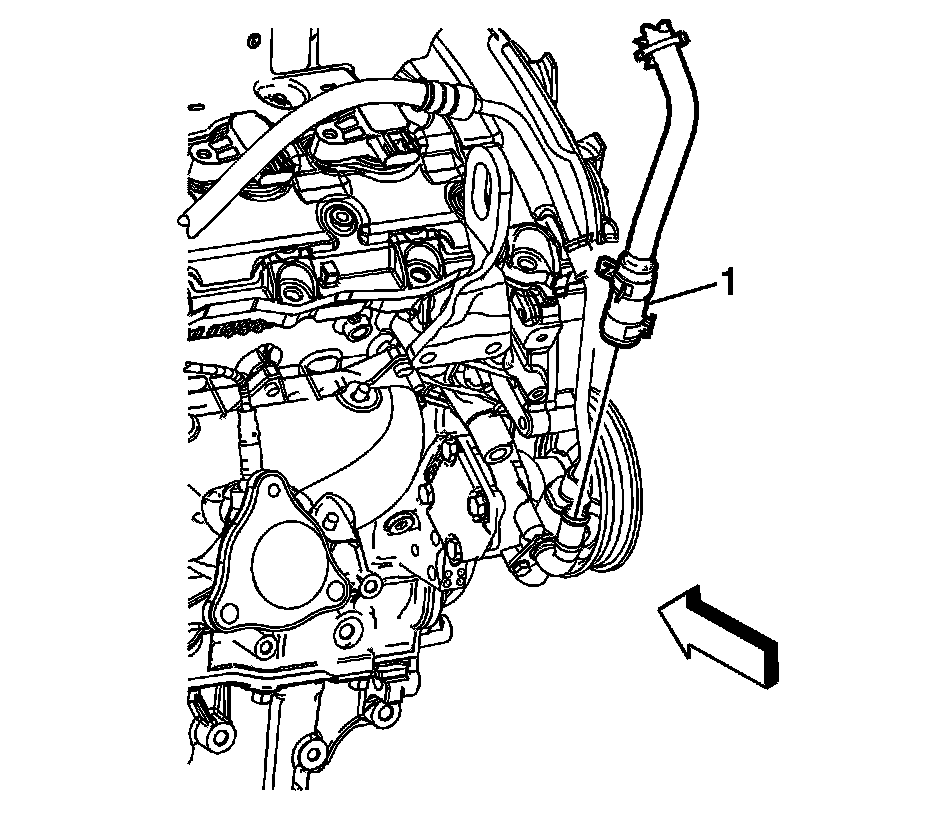

7. Disconnect the power steering fluid reservoir outlet hose (1) from the power steering pump.

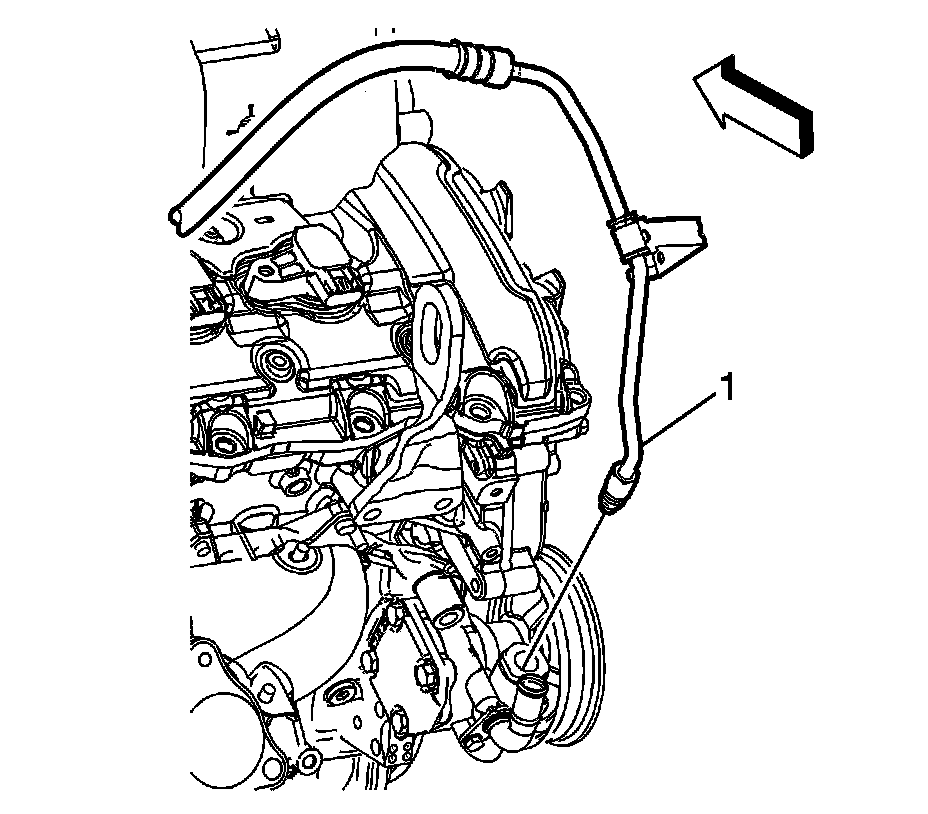

8. Disconnect the power steering gear inlet hose (1) from the power steering pump.

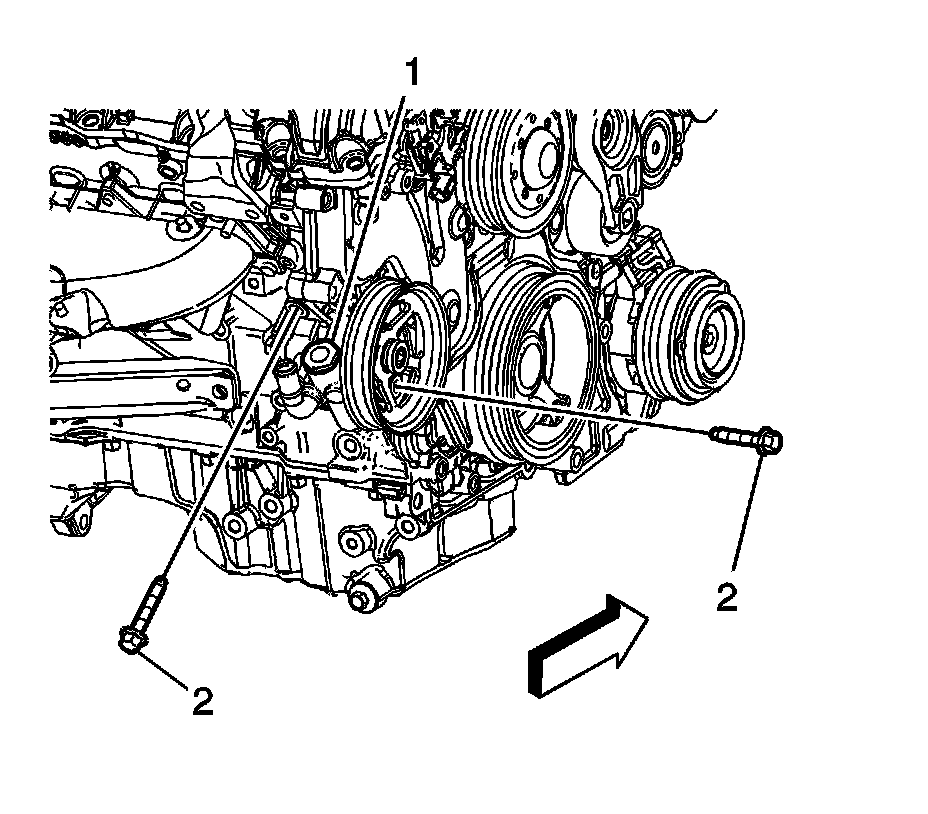

9. Remove the power steering pump bolts (2).
10. Remove the power steering pump (1) from the vehicle.

Installation Procedure




1. Install the power steering pump (1) to the vehicle.

Notice: Refer to Fastener Notice.

2. Install the power steering pump bolts (2).

Tighten the bolts to 50 N.m (37 lb ft).




3. Connect the power steering gear inlet hose fitting (1) to the power steering pump.

Tighten the fitting to 27 N.m (20 lb ft).




4. Connect the power steering fluid reservoir outlet hose (1) to the power steering pump.
5. Clean any excess fluid from the vehicle and remove the drain pans.
6. Install the right side catalytic convertor.
7. Install the steering gear heat shield.
8. Install the drive belt.
9. Fill and bleed the power steering system.
10. Install the fuel injector sight shield.
