Remote Power Steering Fluid Reservoir Replacement

Remote Power Steering Fluid Reservoir Replacement

Removal Procedure

1. Remove the fuel injector sight shield.
2. Remove as much power steering fluid from the remote power steering fluid reservoir as possible.
3. Place drain pans under the vehicle as needed.




4. Disconnect the power steering reservoir inlet hose (1).




5. Disconnect the power steering fluid reservoir outlet hose (1).




6. Remove the remote power steering fluid reservoir bolts (1).

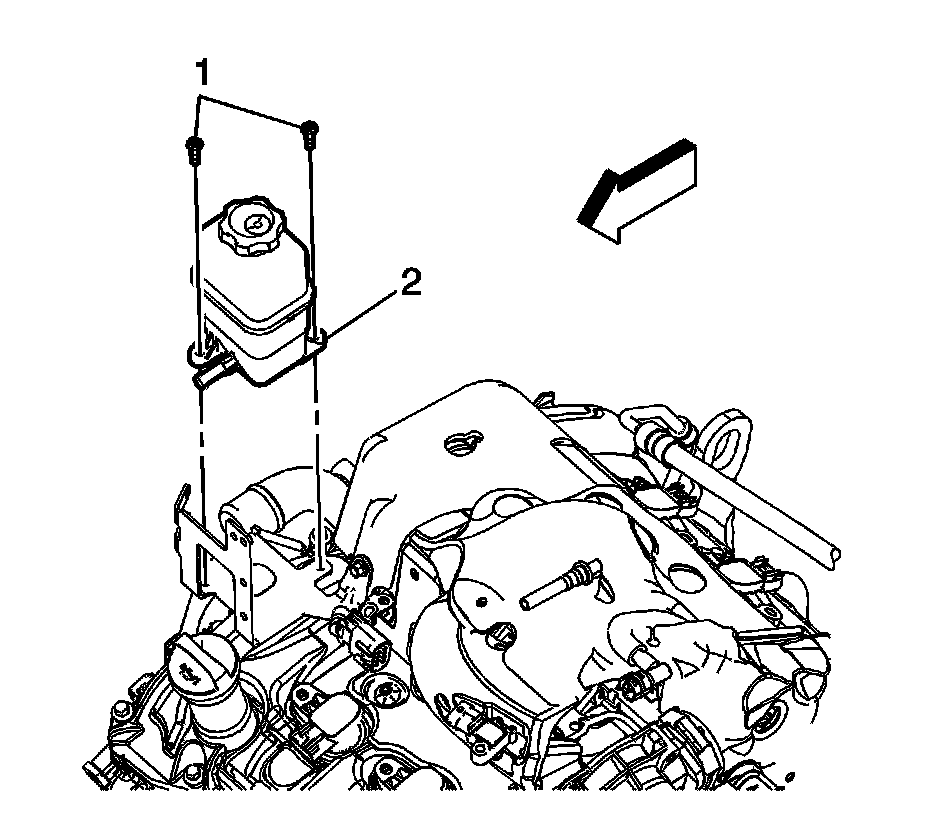

7. Remove the remote power steering fluid reservoir (2).

Installation Procedure

Notice: Refer to Fastener Notice.




1. Install the remote power steering fluid reservoir (2).
2. Install the remote power steering fluid reservoir bolts (1).

Tighten the bolts to 9 N.m (80 lb in)




3. Connect the power steering fluid reservoir outlet hose (1).




4. Connect the power steering reservoir inlet hose (1).
5. Clean all excess fluid from the vehicle and remove the drain pans.
6. Fill and bleed the power steering system.
7. Install the fuel injector sight shield.
