Remote Power Steering Fluid Reservoir Bracket Replacement

Remote Power Steering Fluid Reservoir Bracket Replacement

Removal Procedure

1. Remove the fuel injector sight shield.
2. Remove the right side engine mount strut bracket.
3. Remove as much power steering fluid from the remote power steering fluid reservoir as possible.
4. Place drain pans under the vehicle as needed.

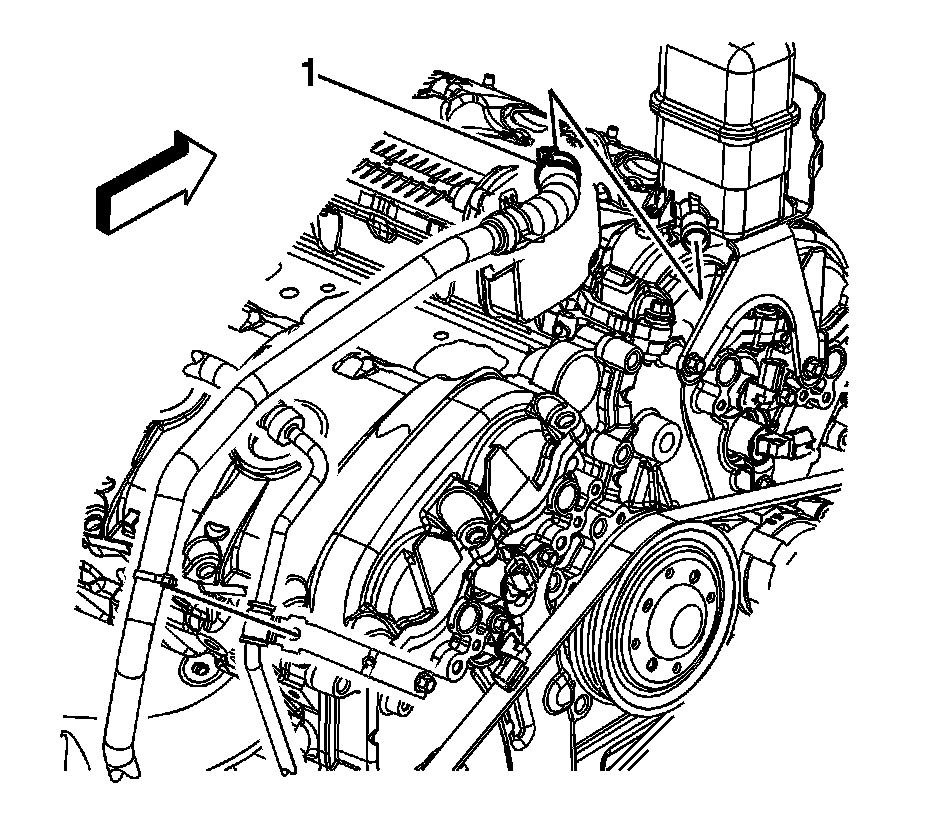

5. Disconnect the power steering reservoir inlet hose (1).

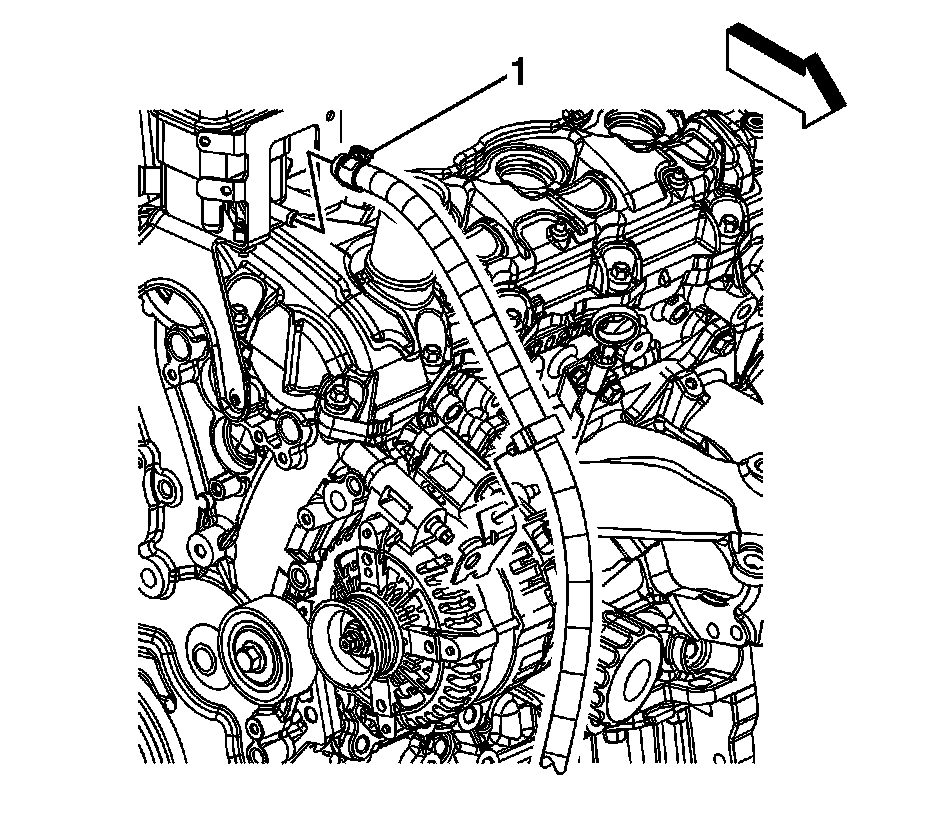

6. Disconnect the power steering fluid reservoir outlet hose (1).




7. Remove the remote power steering fluid reservoir bracket bolts (1).
8. Remove the remote power steering fluid reservoir bracket (2).
9. Transfer any parts as needed.

Installation Procedure

Notice: Refer to Fastener Notice.




1. Install the remote power steering fluid reservoir bracket (2).
2. Install the remote power steering fluid reservoir bracket bolts (1).

Tighten the bolts to 9 N.m (80 lb in)




3. Connect the power steering fluid reservoir outlet hose (1).




4. Connect the power steering reservoir inlet hose (1).
5. Clean all excess fluid from the vehicle and remove the drain pans.
6. Install the right side engine mount strut bracket.
7. Fill and bleed the power steering system.
8. Install the fuel injector sight shield.
