Shift Solenoid, A/T

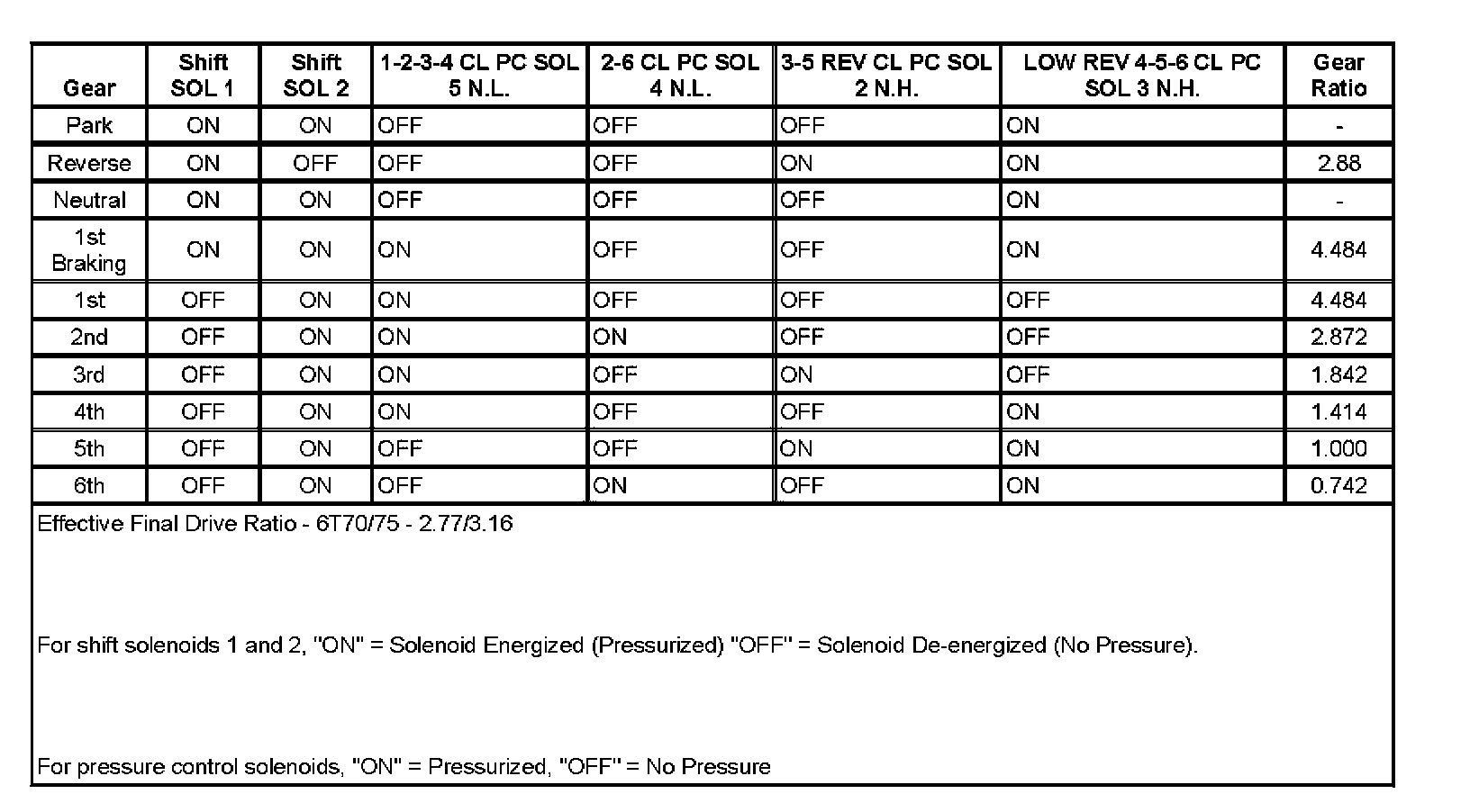

Shift Solenoid Valve State and Gear Ratio

Shift Solenoid Valve State and Gear Ratio:
