Fluid Pan, A/T

Notice: Refer to Fastener Notice.

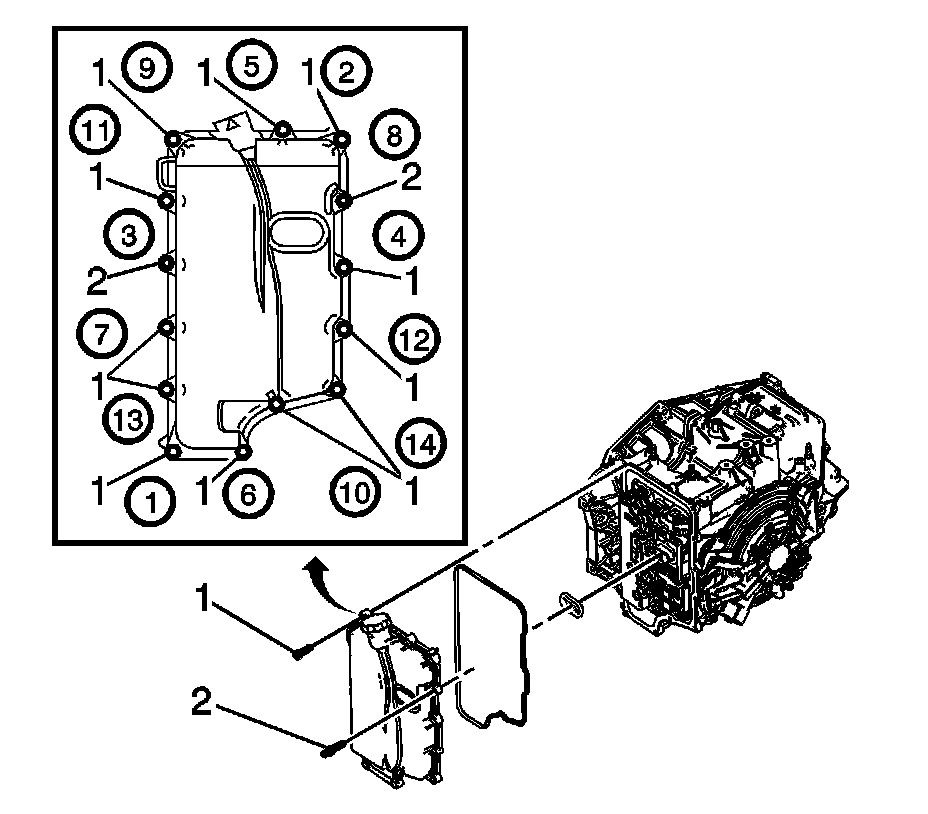

Install the 12 control valve body cover bolts (1) M6 x 30.

Tighten the bolts in sequence to 12 N.m (106 lb in).

Install the 2 control valve body cover studs (2) M6 x 30.

Tighten the studs in sequence to 12 N.m (106 lb in).
