Wheel Speed Sensor: Locations

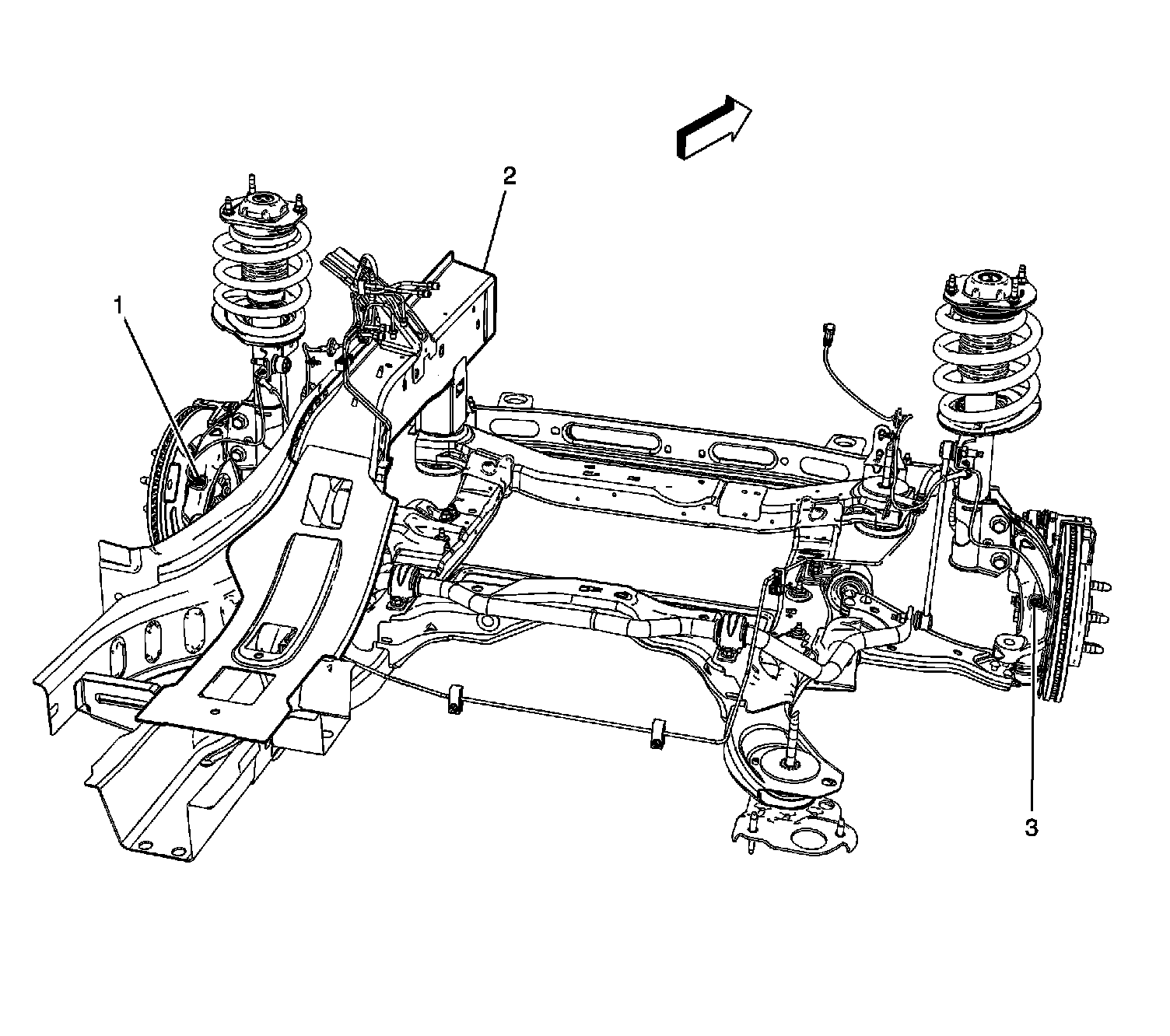

Front Wheel Speed Sensors




1 - Wheel Speed Sensor (WSS) - LF
2 - LF Frame Rail
3 - Wheel Speed Sensor (WSS) - RF

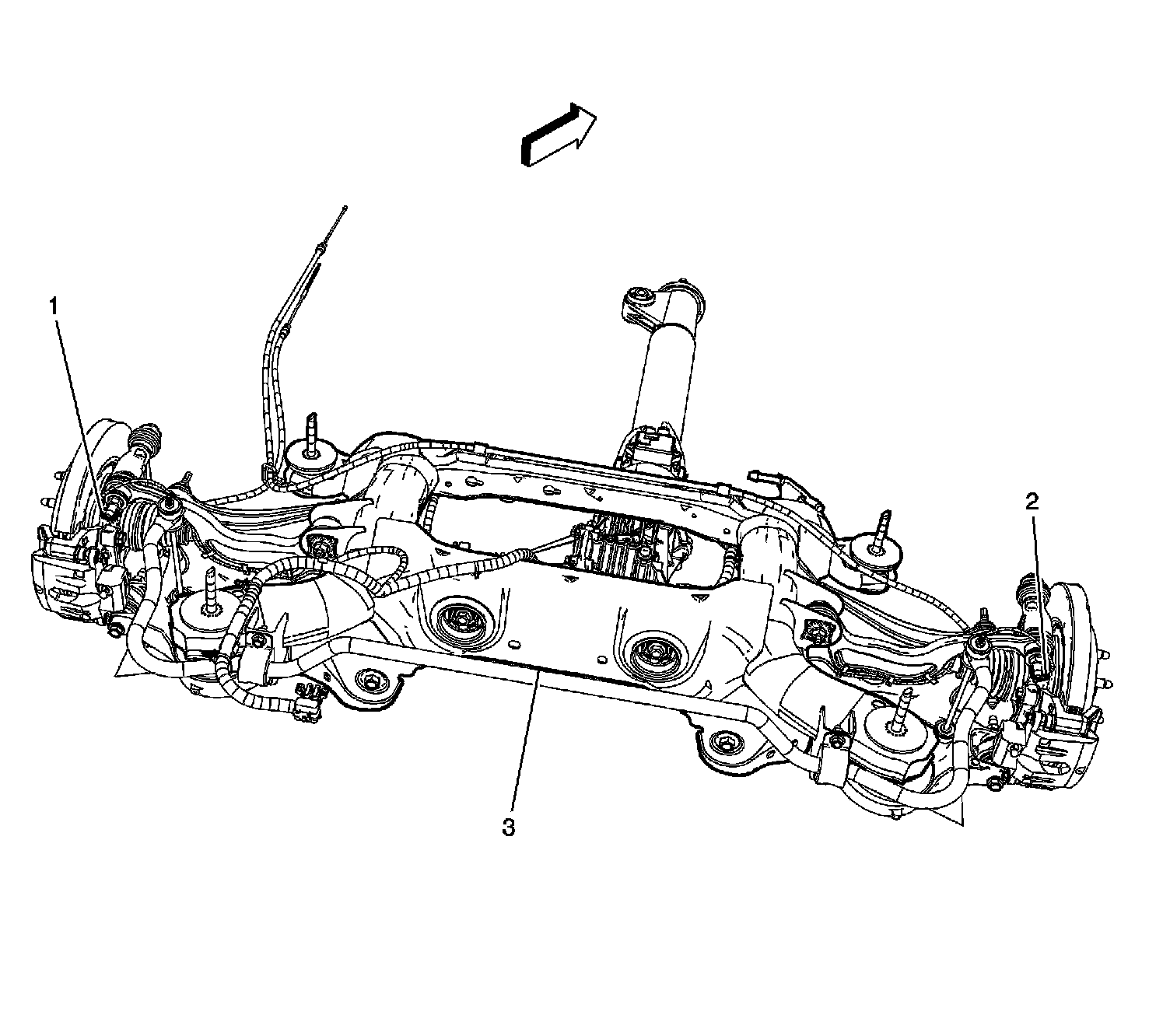

Rear Wheel Speed Sensors




1 - Wheel Speed Sensor (WSS) - LR
2 - Wheel Speed Sensor (WSS) - RR
3 - Rear Suspension Frame
