Home >> GMC >> 2007 >> Acadia AWD V6-3.6L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Body and Frame >> Power Seat Switch >> Locations

Power Seat Switch: Locations

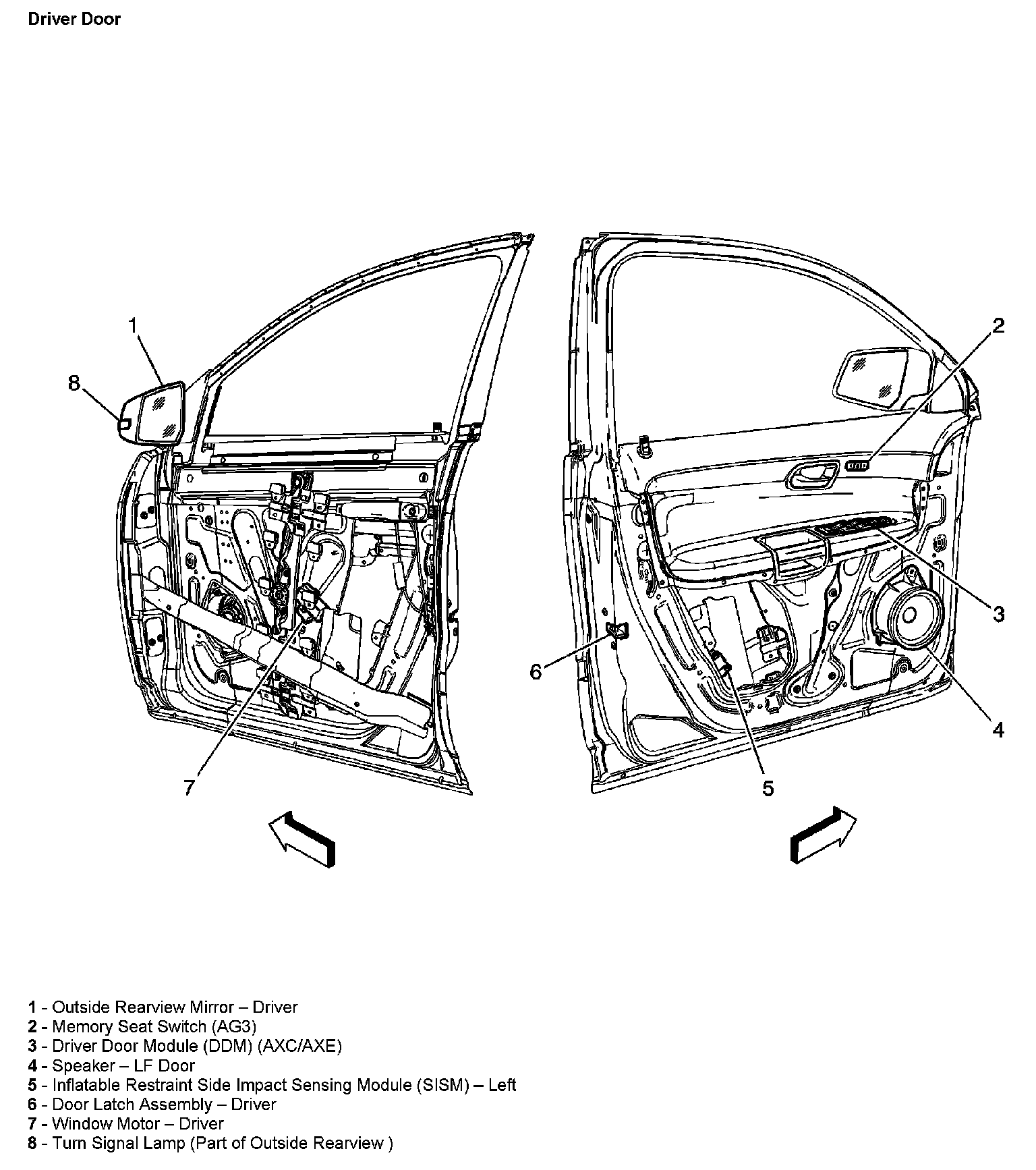

Driver Door:

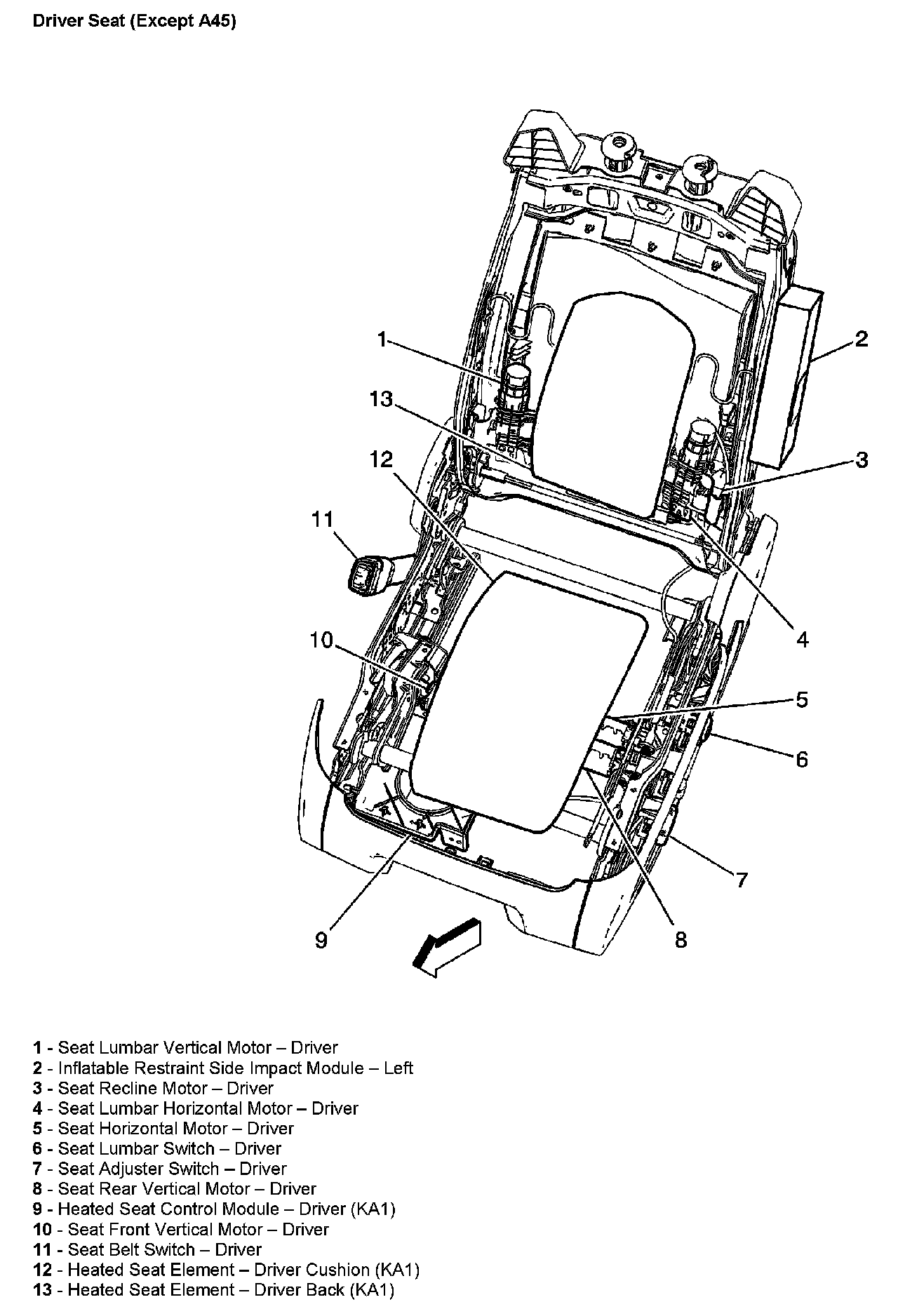

Driver Seat (Except RPO Code A45):



Driver Seat (With RPO Code AG3):

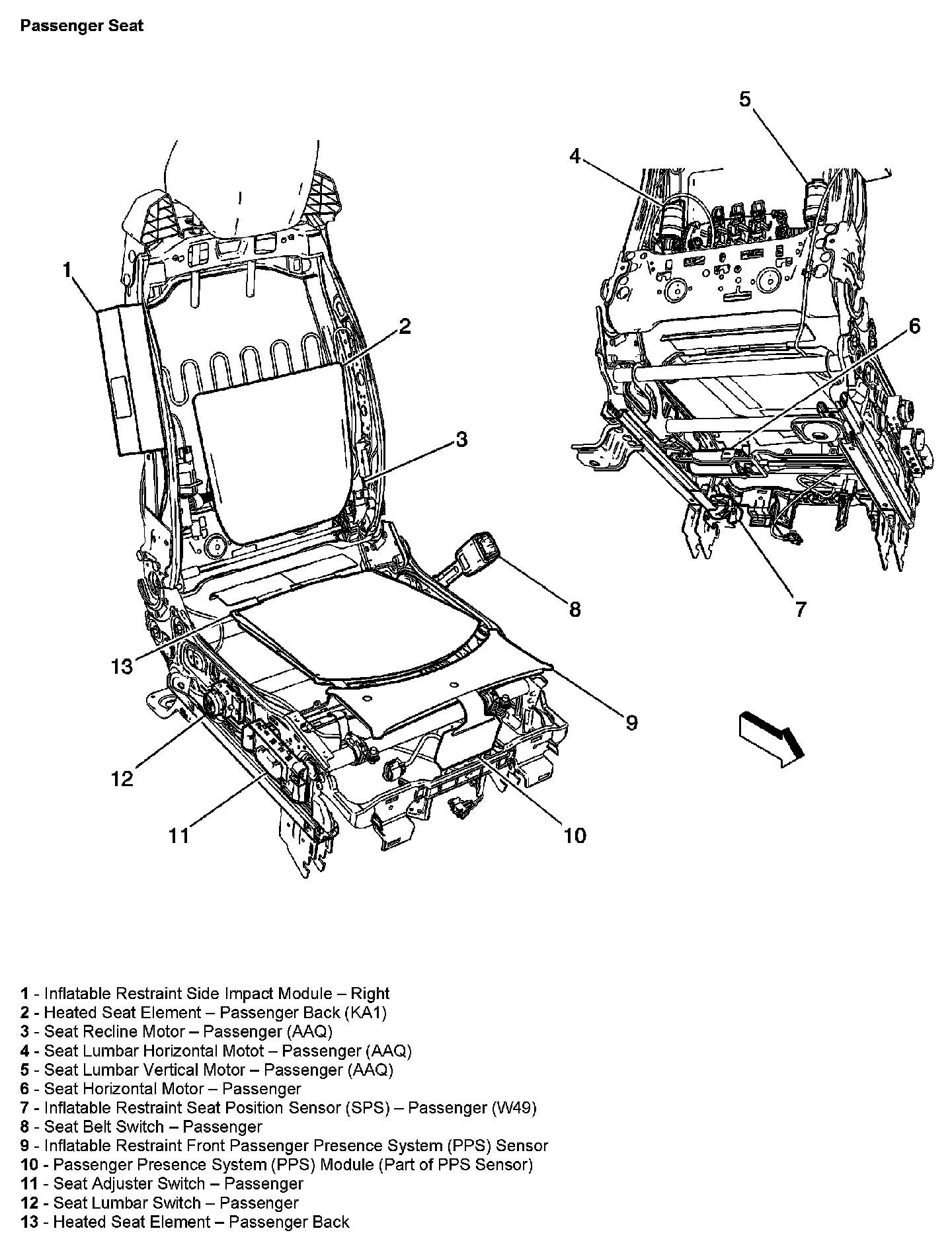

Passenger Seat:
