GMC
>>
2007
>>
Acadia AWD V6-3.6L
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
Master Connector List
Master Connector List

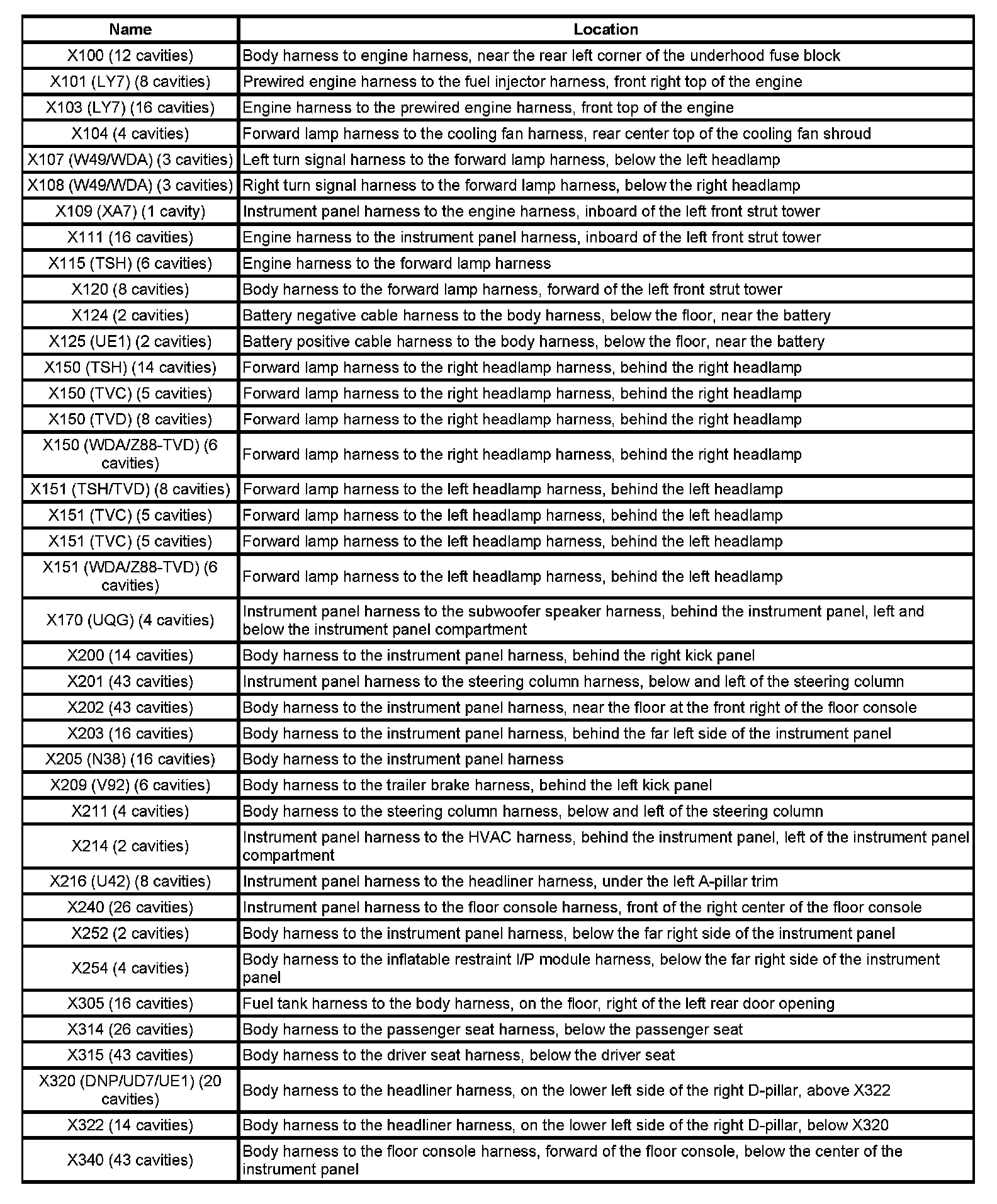

X100 - X340:

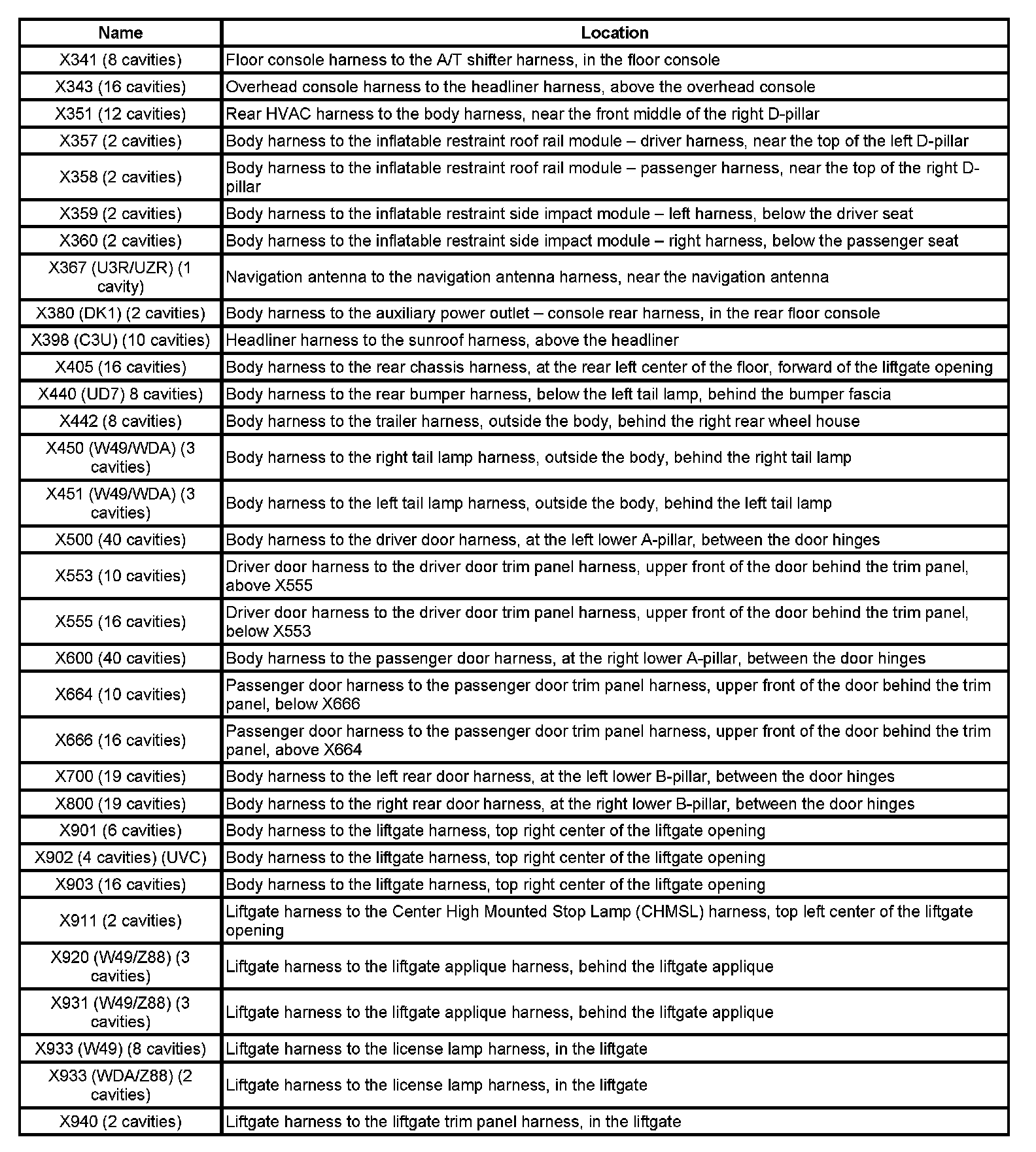

X341 - X940:
