Headlamp - Low Beam - Left (With RPO Code WDA-TVD)

Headlamp - Low Beam - Left (With RPO Code WDA-TVD):

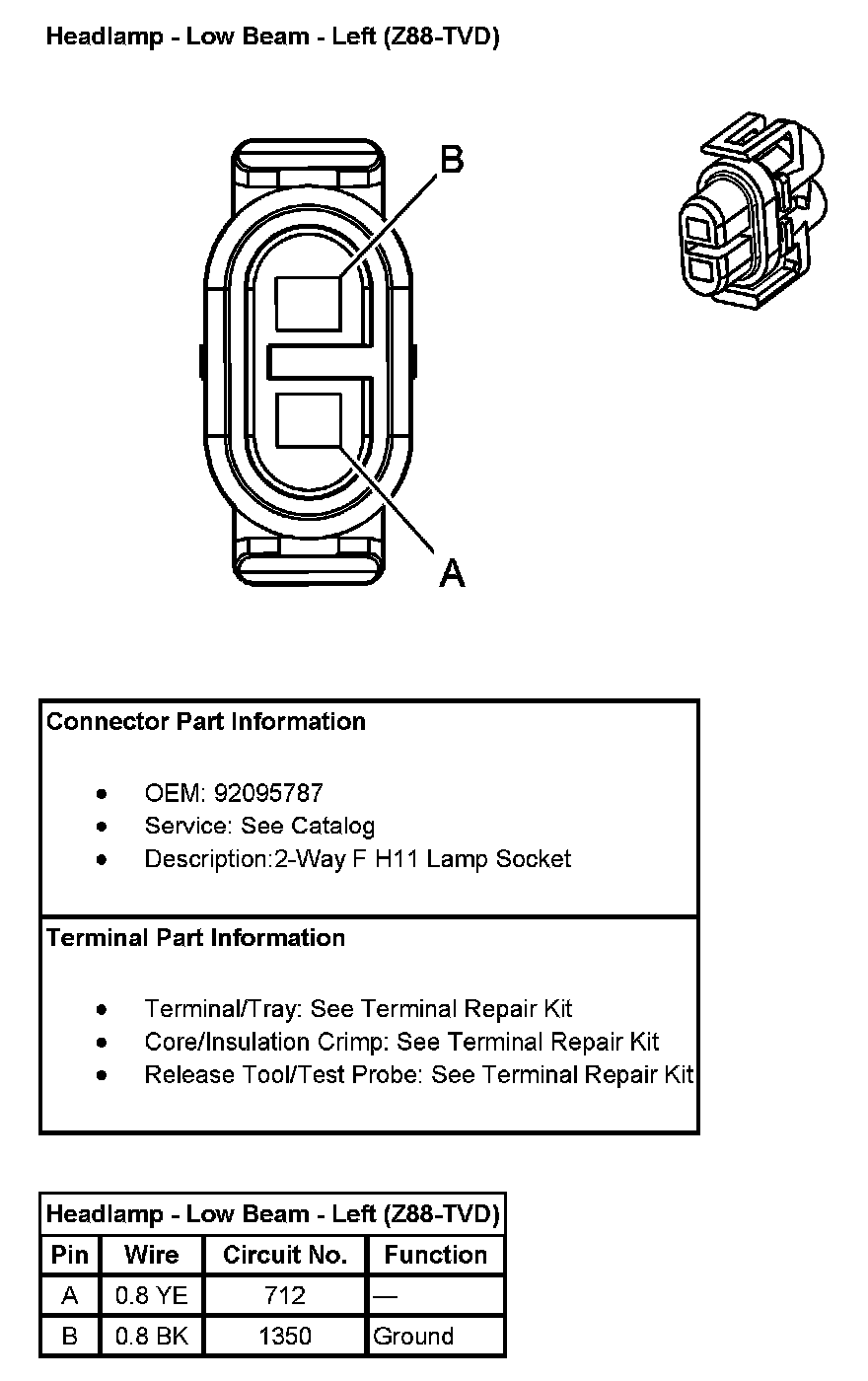

Headlamp - Low Beam - Left (With RPO Code Z88-TVD):



Headlamp - Low Beam - Right (With RPO Code WDA-TVD):



Headlamp - Low Beam - Right (With RPO Code Z88-TVD):
