Too Hot in Vehicle - Auxiliary

Too Hot in Vehicle - Auxiliary

Test Description

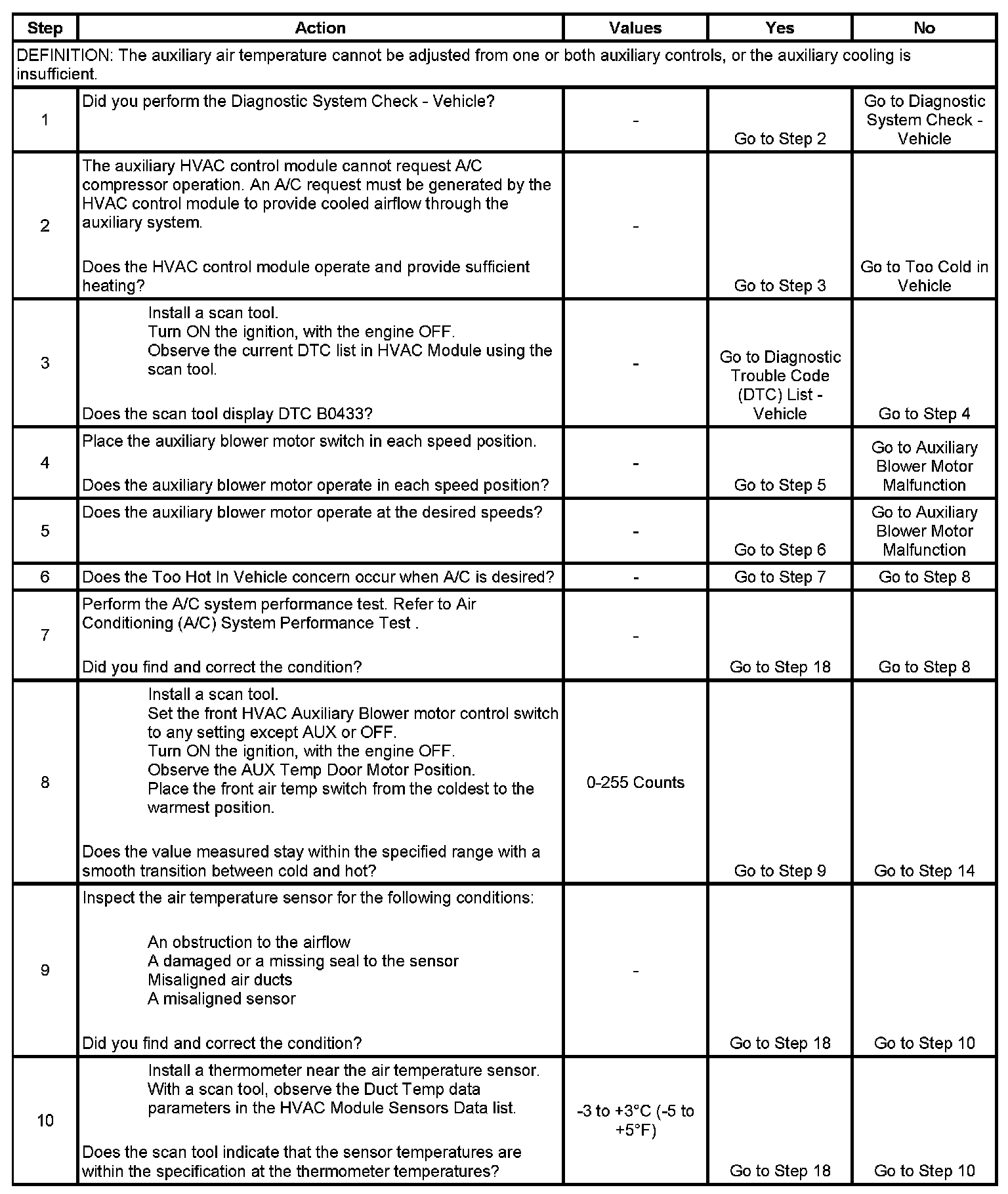

Step 1 - Step 10:

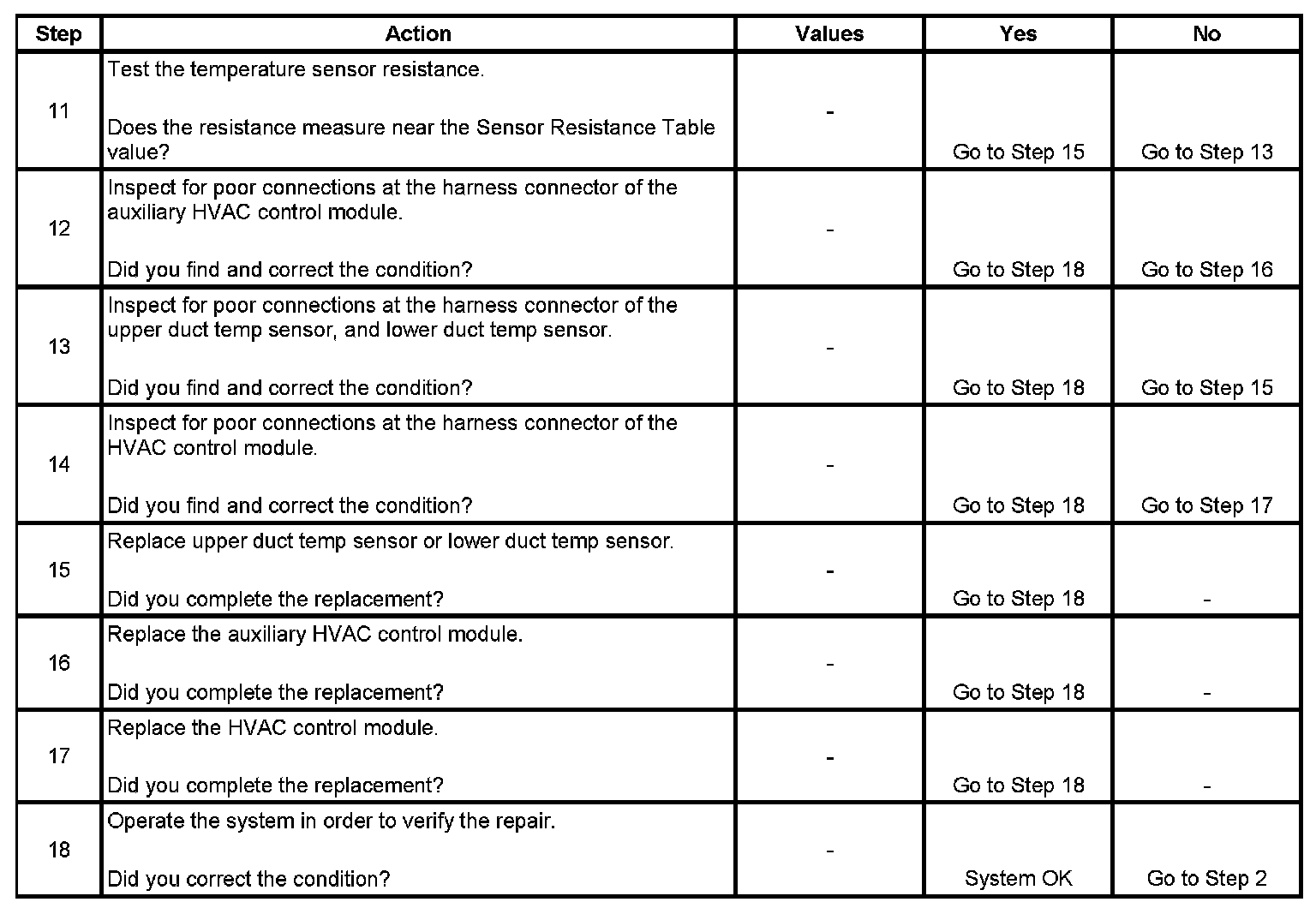

Step 11 - Step 18:

The numbers below refer to the step numbers on the diagnostic table.
3. This test resets the HVAC control module and checks for current air temperature actuator DTC.
7. The specified values are from the A/C System Performance Test.
