Exhaust Manifold Lower Heat Shield Replacement

Exhaust Manifold Lower Heat Shield Replacement

Removal Procedure

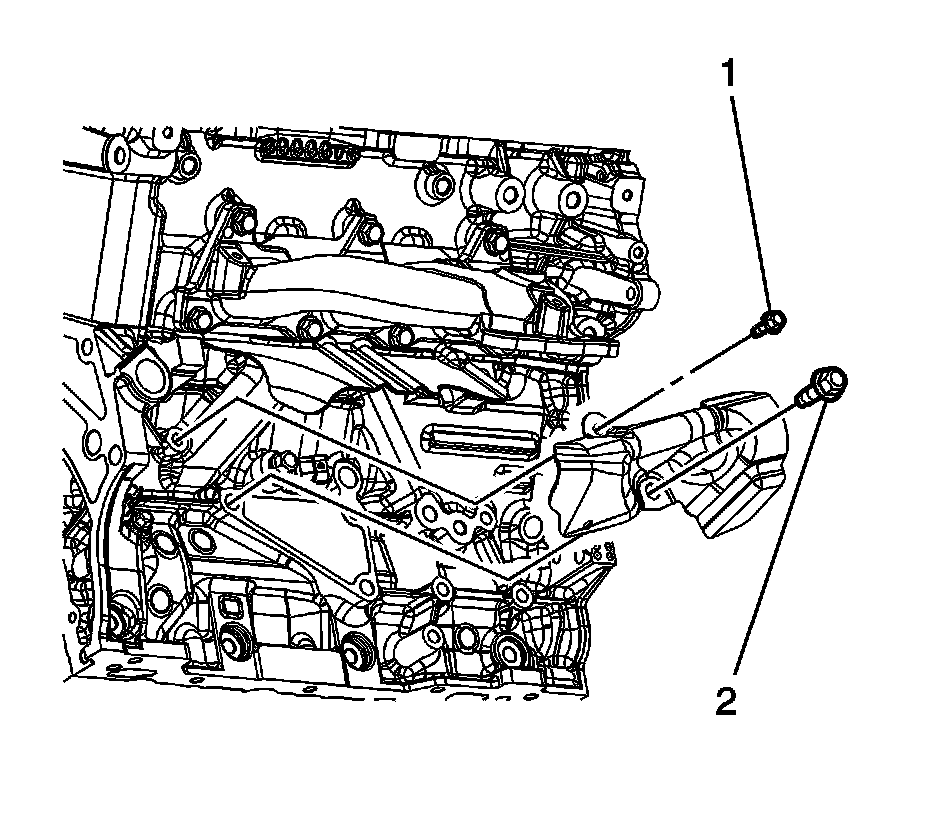

1. Remove the exhaust manifold lower heat shield bolts (1, 2).
2. Remove the exhaust manifold lower heat shield.

Installation Procedure




1. Position the exhaust manifold lower heat shield to the engine.

Notice: Refer to Fastener Notice.

2. Install the exhaust manifold lower heat shield bolts (1, 2).
^ Tighten the bolt (1) to 10 N.m (89 lb in).
^ Tighten the bolt (2) to 50 N.m (37 lb ft).
