Exhaust Manifold Replacement - Right Side

Exhaust Manifold Replacement - Right Side

Removal Procedure

Caution: Refer to Exhaust Service Caution.

Caution: Refer to Protective Goggles and Glove Caution.




1. Remove the catalytic converter.
2. Remove the exhaust manifold heat shield.

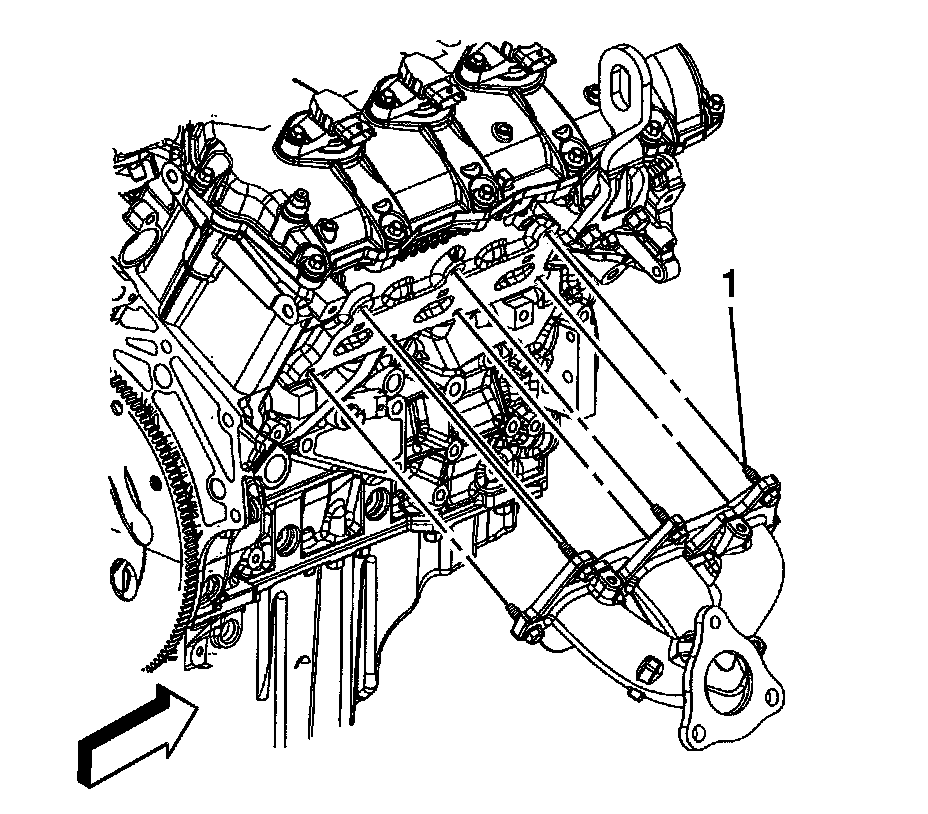

3. Remove the exhaust manifold bolts (1).

Important: Do not reuse the gasket.

4. Remove the exhaust manifold and gasket out from vehicle. Discard the gasket.

Installation Procedure




1. Install one exhaust manifold bolt (1) to the exhaust manifold.
2. Install the NEW exhaust manifold gasket onto the cylinder head and bolt.
3. Install the exhaust manifold (with gasket) to the catalytic converter and the cylinder head.

Notice: Refer to Fastener Notice.

4. Install the exhaust manifold bolts.

Tighten the bolts to 20 N.m (15 lb ft).

5. Install the exhaust manifold heat shield.
6. Install the catalytic converter.
