Secondary Timing Chain Tensioner Shoe Replacement - Right

SECONDARY TIMING CHAIN TENSIONER SHOE REPLACEMENT - RIGHT

Removal Procedure
1. Remove the engine front cover. Service and Repair

2. Remove the spark plugs in order to ease crankshaft/engine rotation. Service and Repair






3. Remove the right bank secondary camshaft drive chain tensioner. 16. Secondary Camshaft Drive Chain Tensioner Removal - Right Side

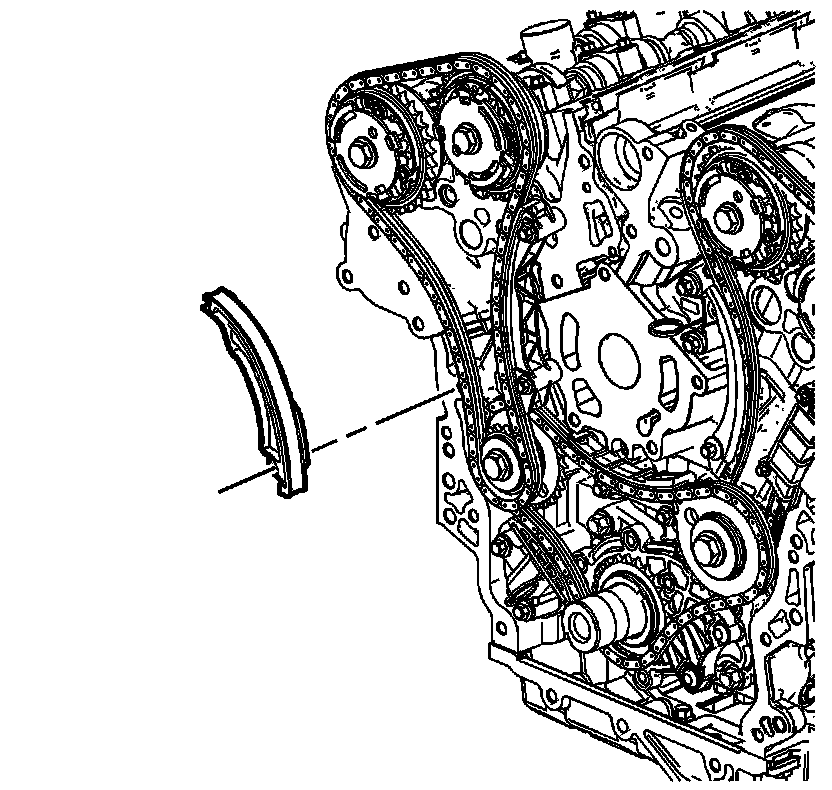

4. Remove the right bank secondary camshaft drive chain shoe. 17. Secondary Camshaft Drive Chain Shoe Removal - Right Side

Installation Procedure






1. Install the right bank secondary camshaft drive chain shoe. 120. Secondary Camshaft Drive Chain Shoe Installation - Right Side

2. Install the right bank secondary camshaft drive chain tensioner. 121. Secondary Camshaft Drive Chain Tensioner Installation - Right Side

3. Install the spark plugs. Service and Repair

4. Install the engine front cover. Service and Repair
