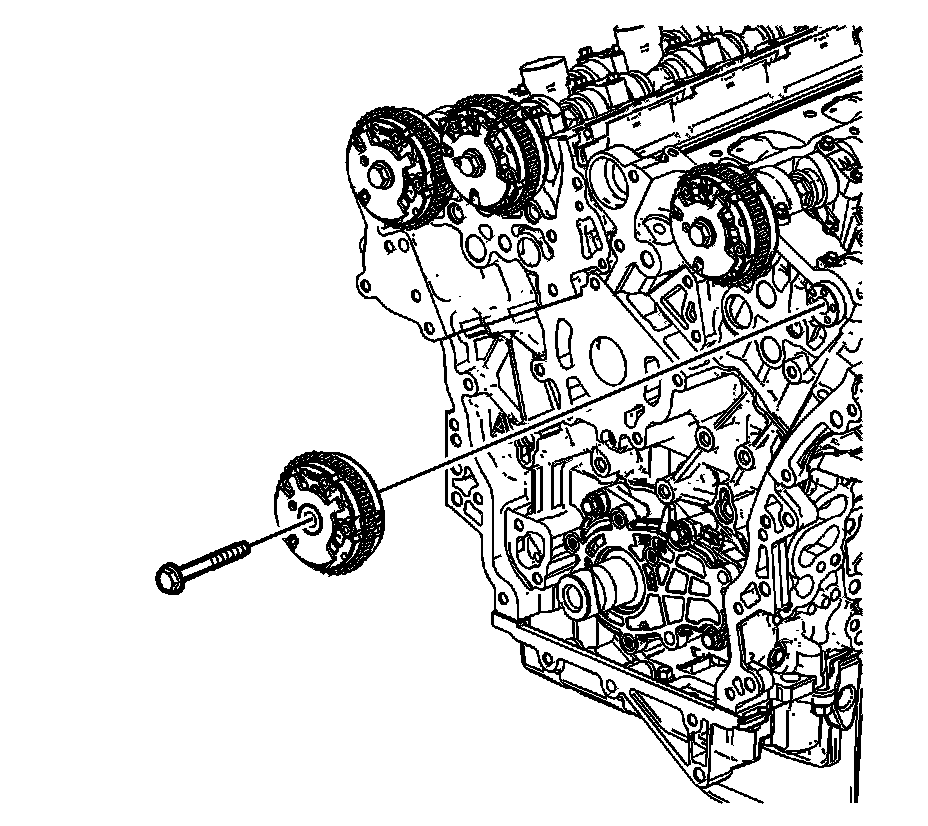

31. Camshaft Position Actuator Removal - Left Side Exhaust

Camshaft Position Actuator Removal - Left Side Exhaust





Notice: Refer to Torque Reaction Against Timing Drive Chain Notice.

1. Use an open wrench on the hex cast into the camshaft in order to prevent engine rotation when loosening the camshaft position actuator bolt.
2. Remove the left exhaust camshaft position actuator bolt.
3. Remove the left exhaust camshaft position actuator.
