Rear Crankshaft Main Bearing Seal: Service and Repair

Crankshaft Rear Oil Seal and Housing Replacement

Removal Procedure

1. Remove the engine flywheel.
2. Remove the oil pan.

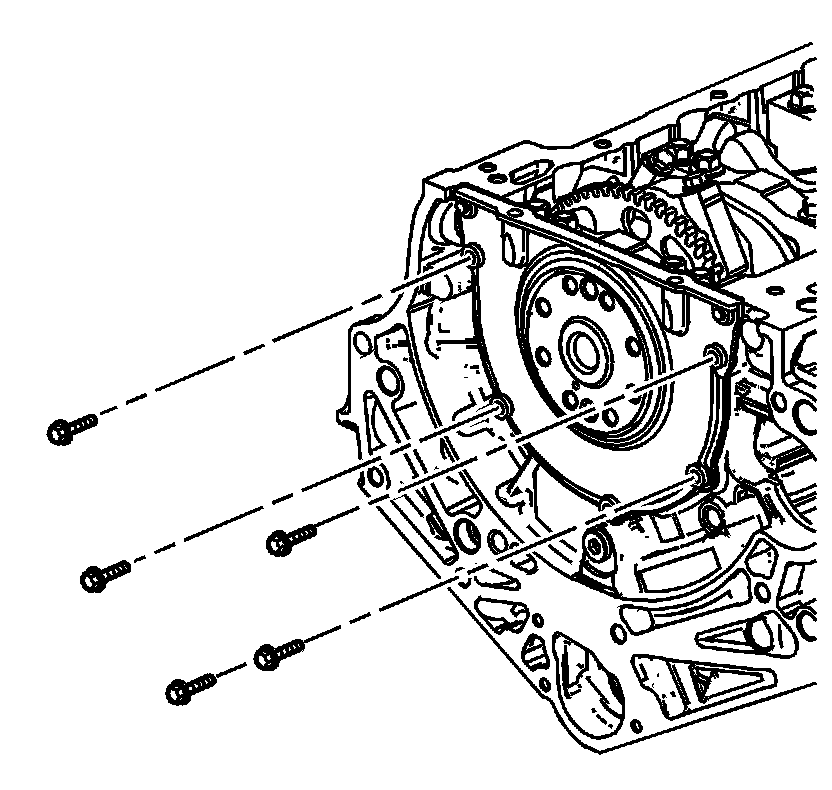

3. Remove the crankshaft rear oil seal and housing.

Installation Procedure




1. Install the crankshaft rear oil seal and housing.
2. Install the oil pan.
3. Install the engine flywheel.
