Home >> GMC >> 2007 >> Acadia AWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Harness >> Instrument Panel Views >> I/P Harness - Passenger Compartment

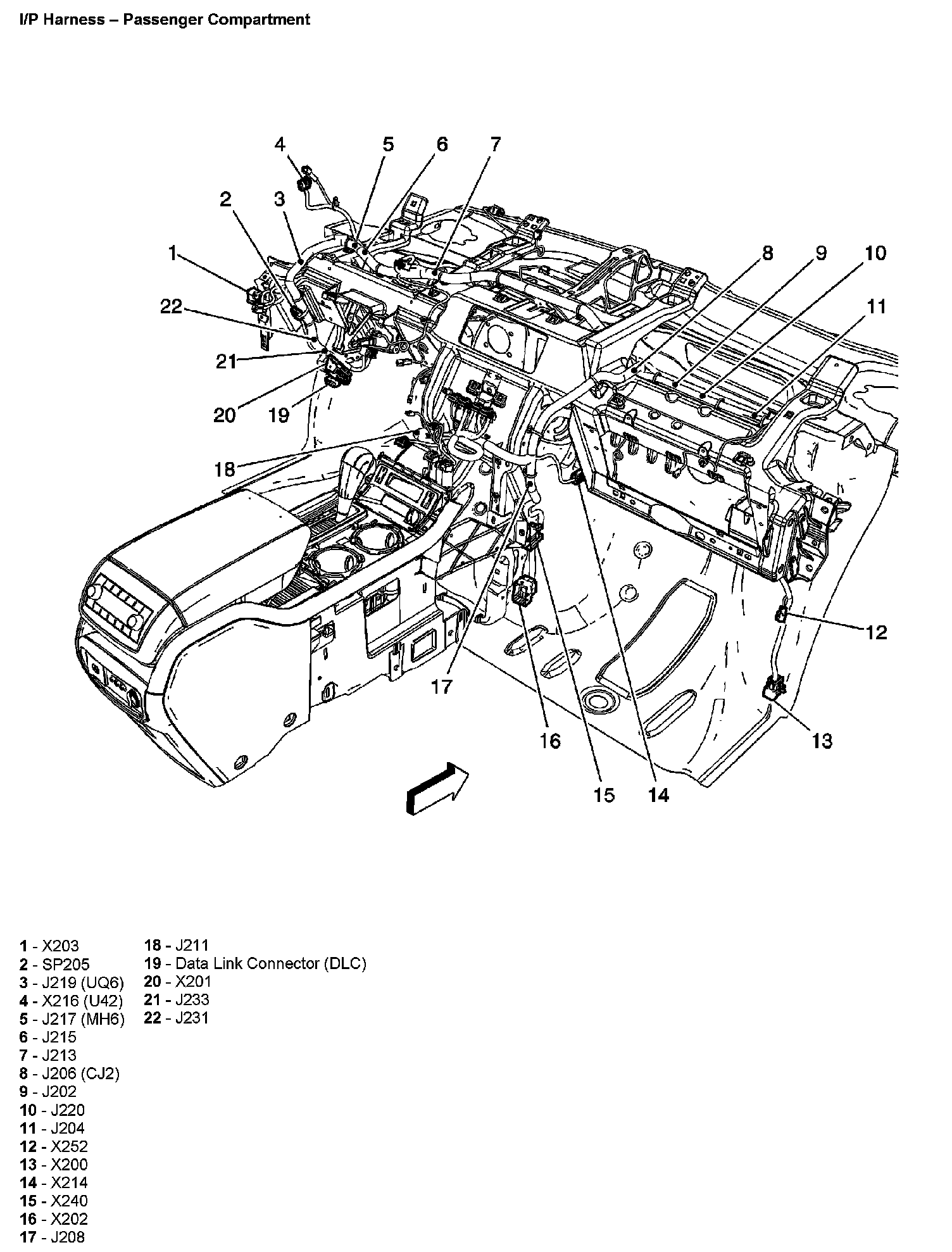

I/P Harness - Passenger Compartment

I/P Harness - Passenger Compartment:
