Home >> GMC >> 2007 >> Acadia AWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Harness >> Door Harness Views >> Passenger Door Harness

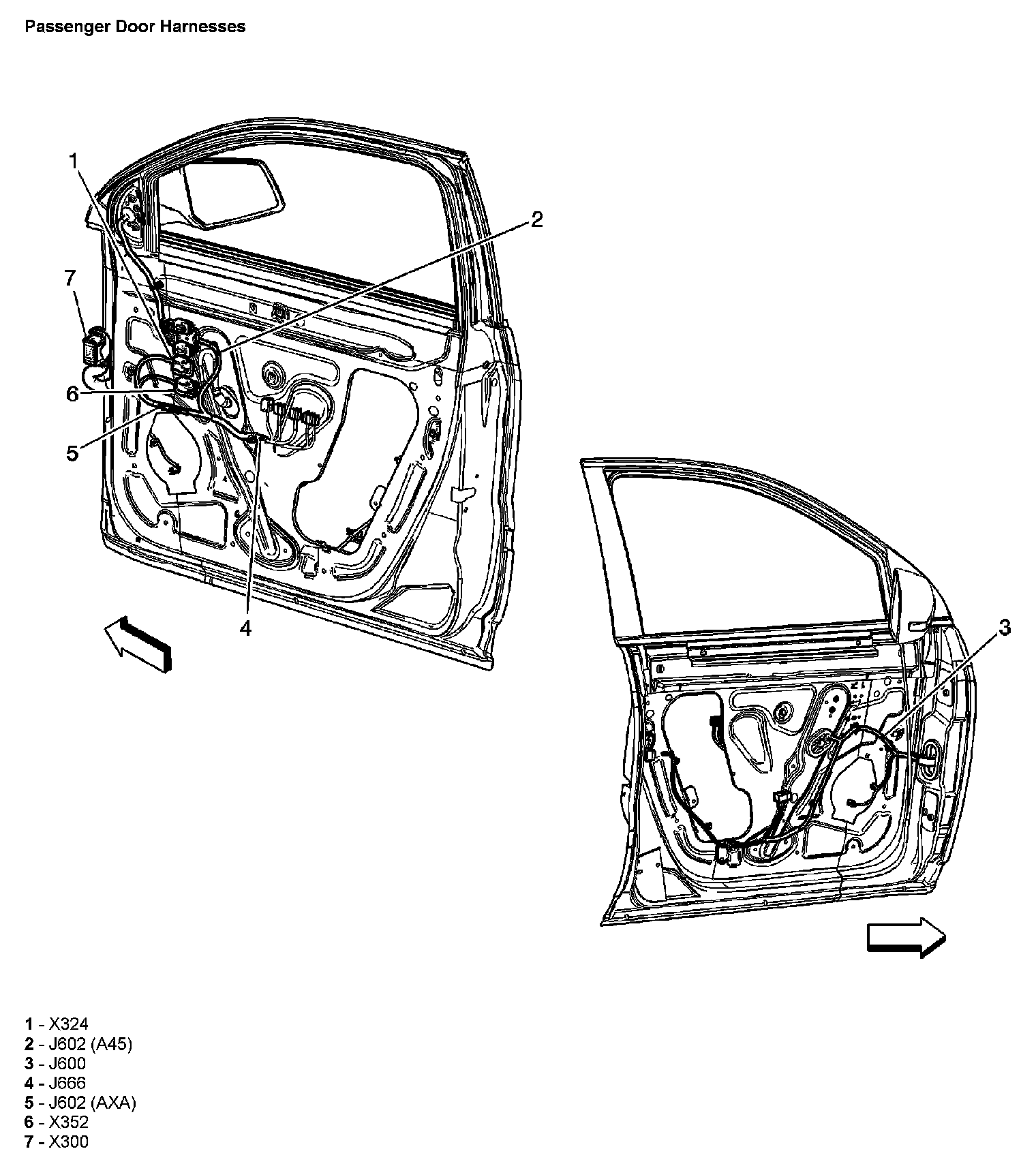

Passenger Door Harness

Passenger Door Harnesses:
