Home >> GMC >> 2007 >> Acadia AWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Harness >> Body Views >> Body Harness- Front Passenger Compartment

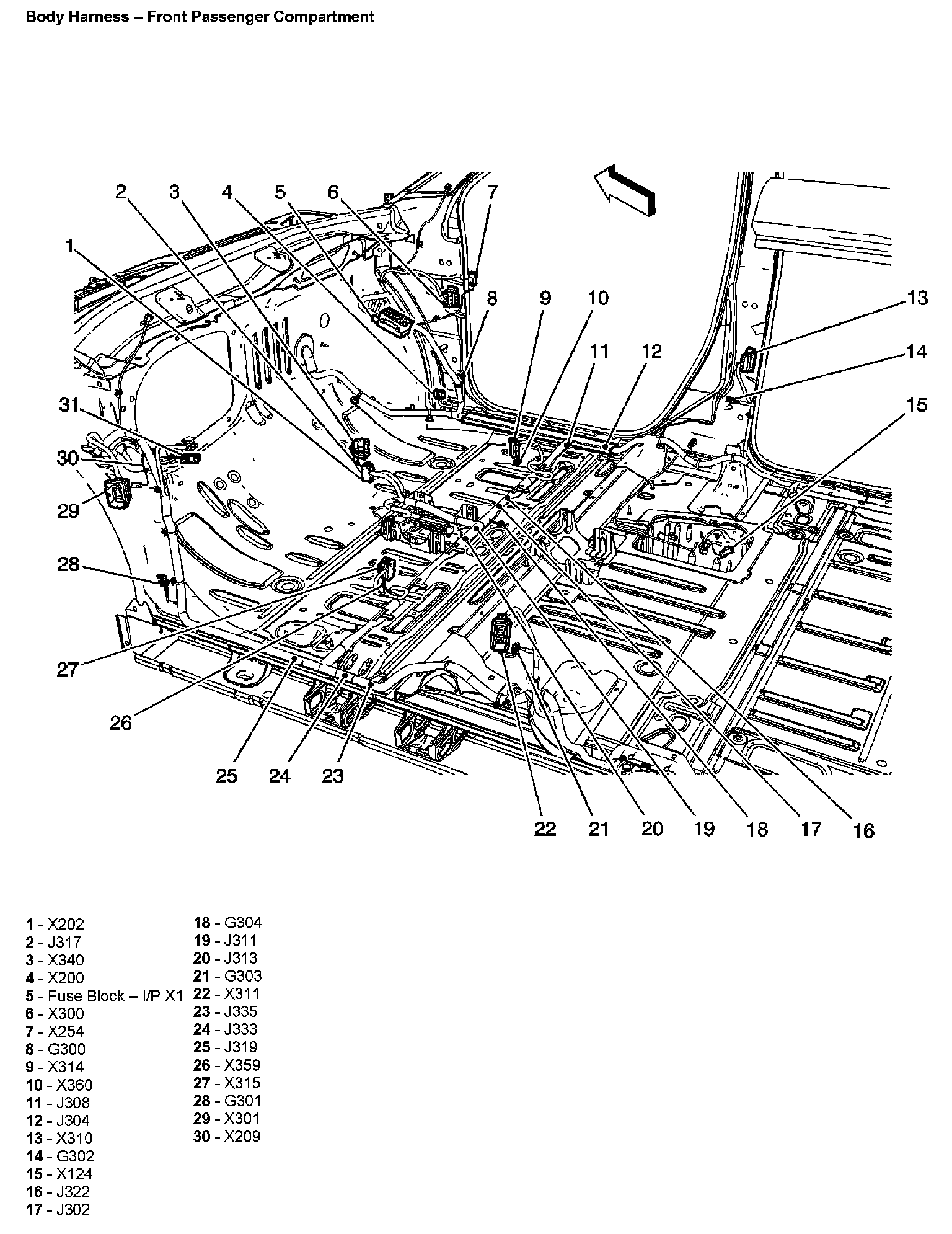

Body Harness- Front Passenger Compartment

Body Harness - Front Passenger Compartment:
