Home >> GMC >> 2007 >> Acadia AWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Harness >> Battery Views >> Body and Battery Cable Harnesses - Engine Compartment

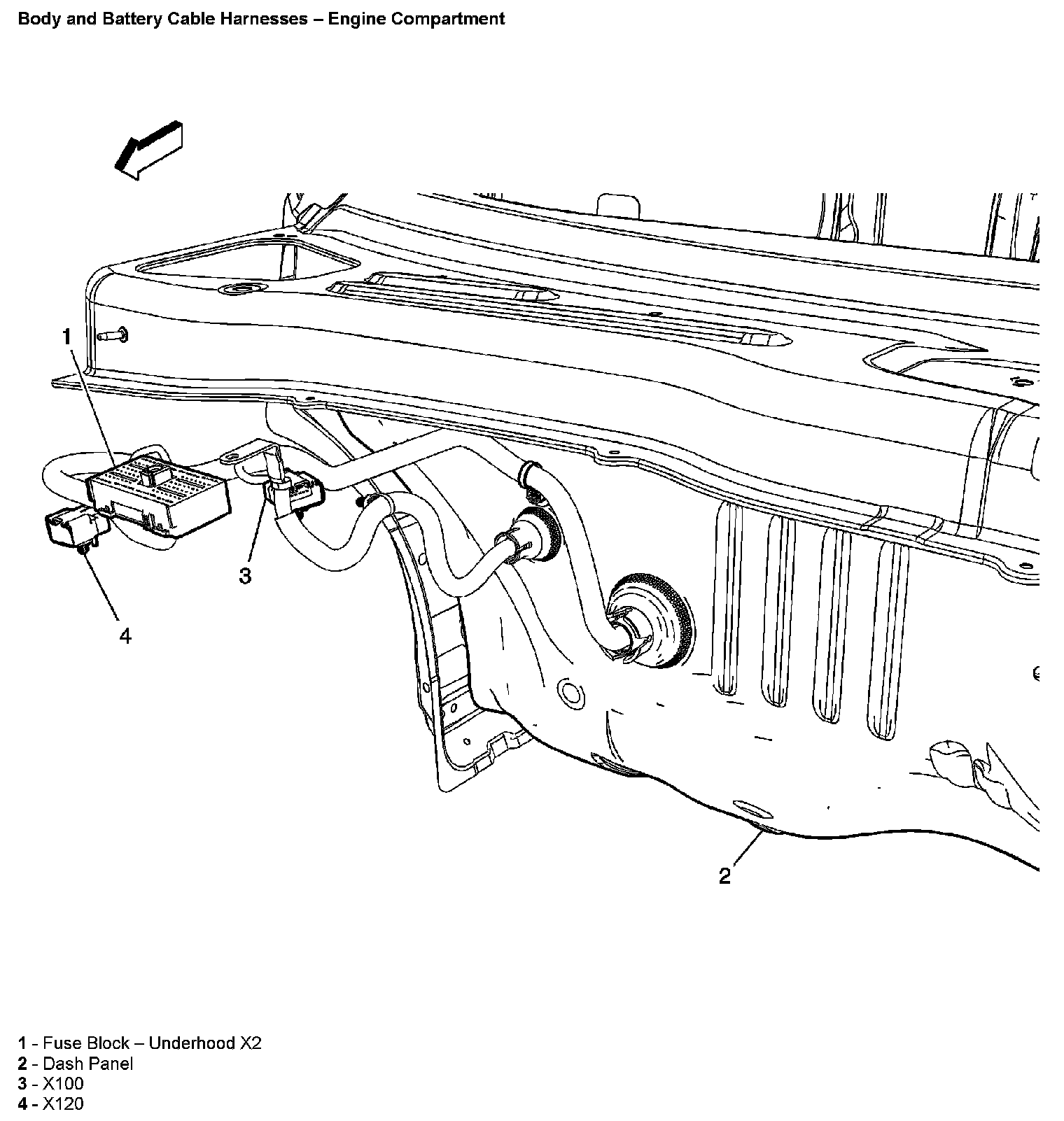

Body and Battery Cable Harnesses - Engine Compartment

Body And Battery Cable Harnesses - Engine Compartment:
