Home >> GMC >> 2007 >> Acadia AWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Grounds >> Grounds By Number >> G300 - G399 >> G303

G303

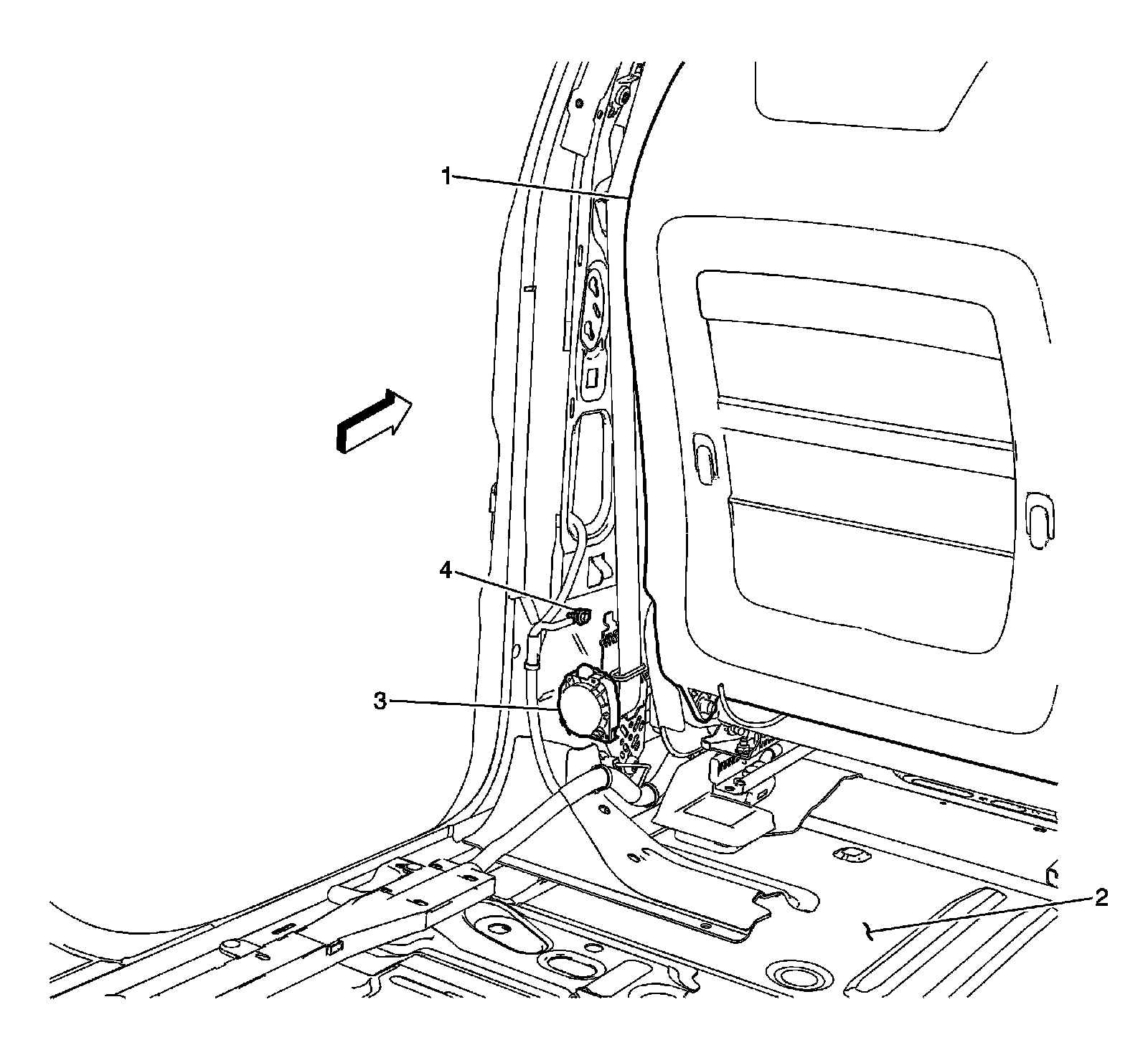

SIR Component Views

Behind the Drivers Seat




1 - Passenger Seat
2 - Floor Panel
3 - Seat Belt Pretensioner - Driver
4 - G303
