G301

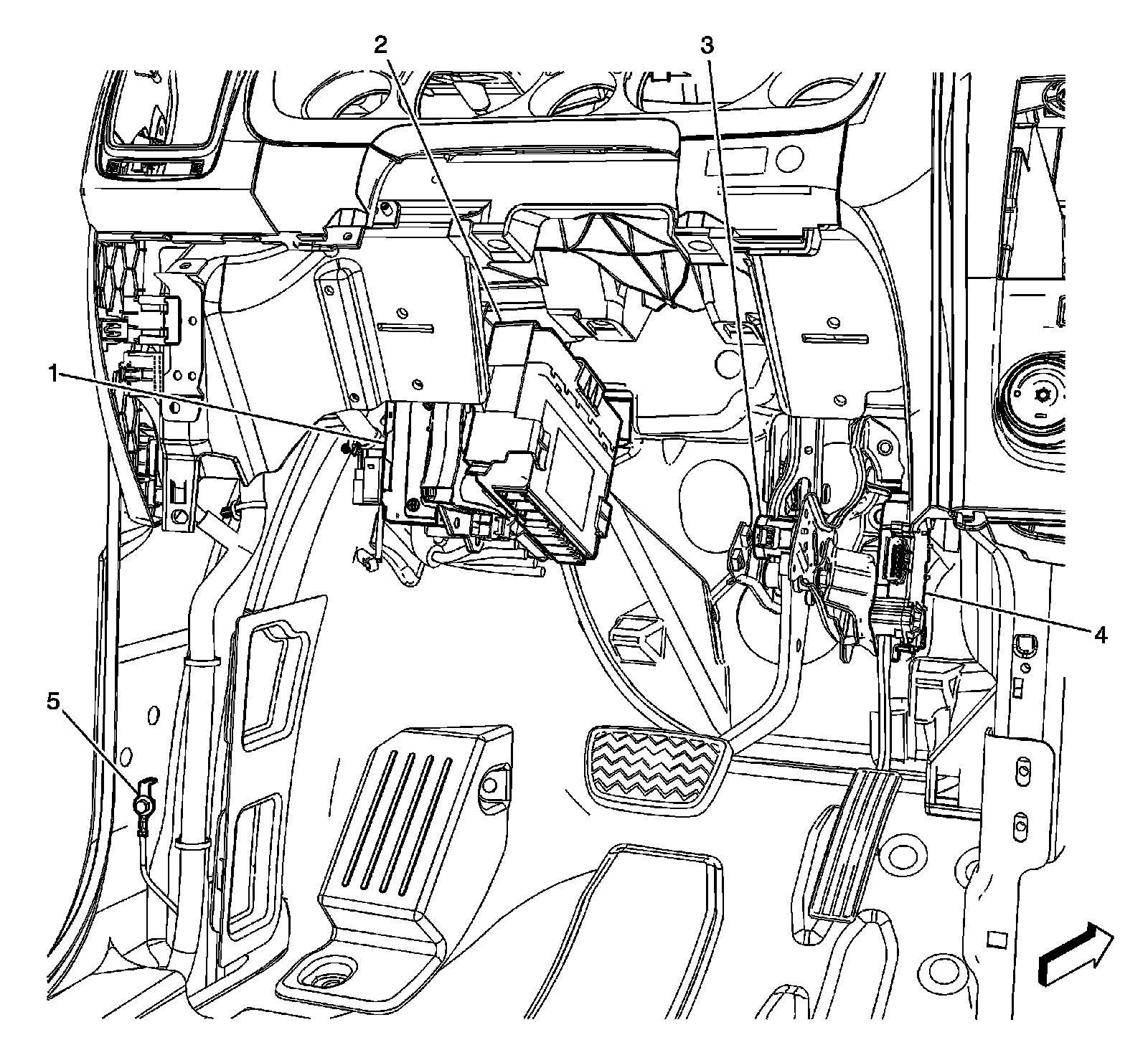

Entertainment/Communication Component Views

Below the Drivers Side I/P




1 - Audio Amplifier (UQA/UQG/UQS)
2 - Body Control Module (BCM)
3 - Brake Pedal Position Sensor
4 - Accelerator Pedal Position (APP) Sensor
5 - G301
