Flow Diagrams



Fluid Flow Diagrams

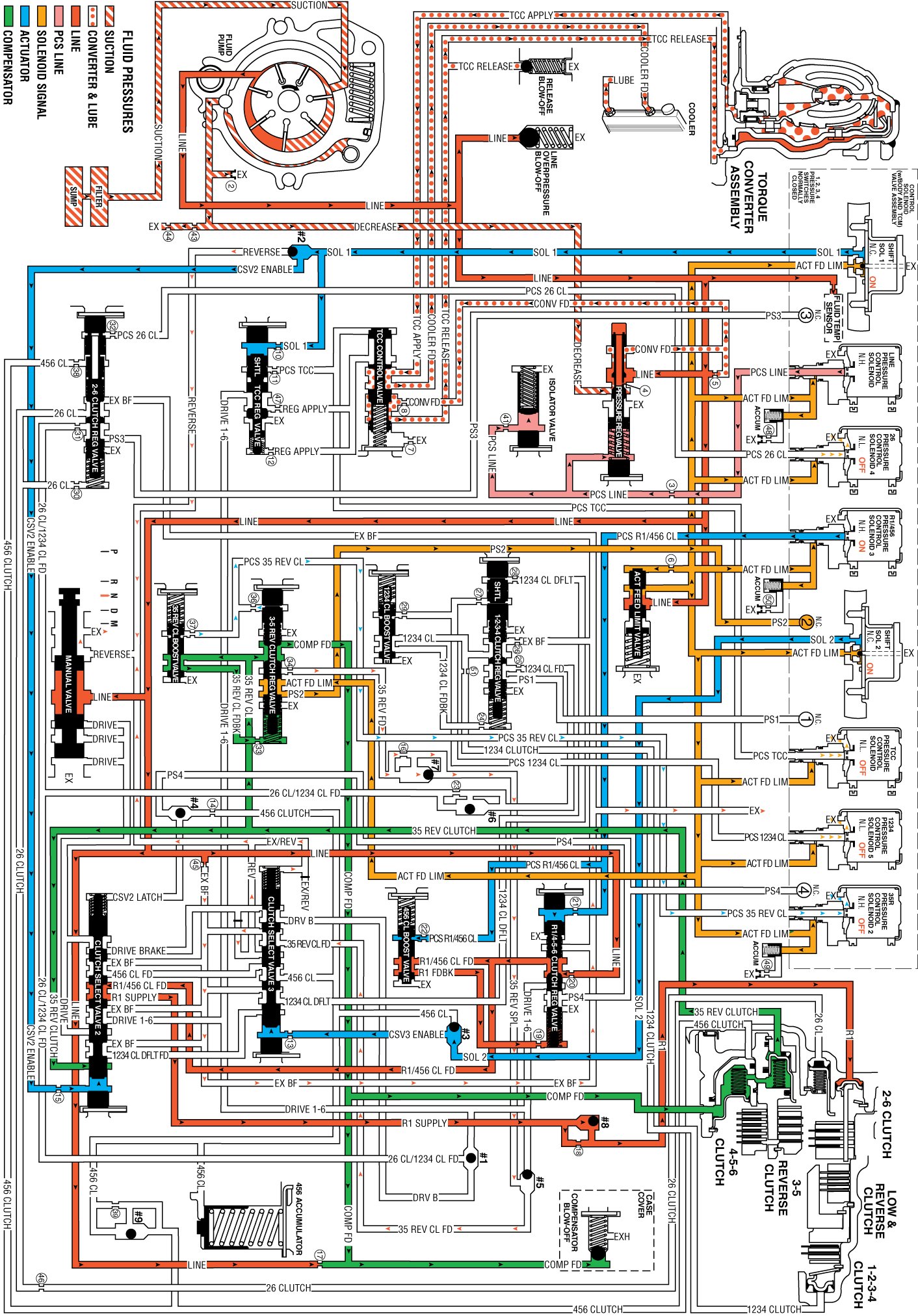

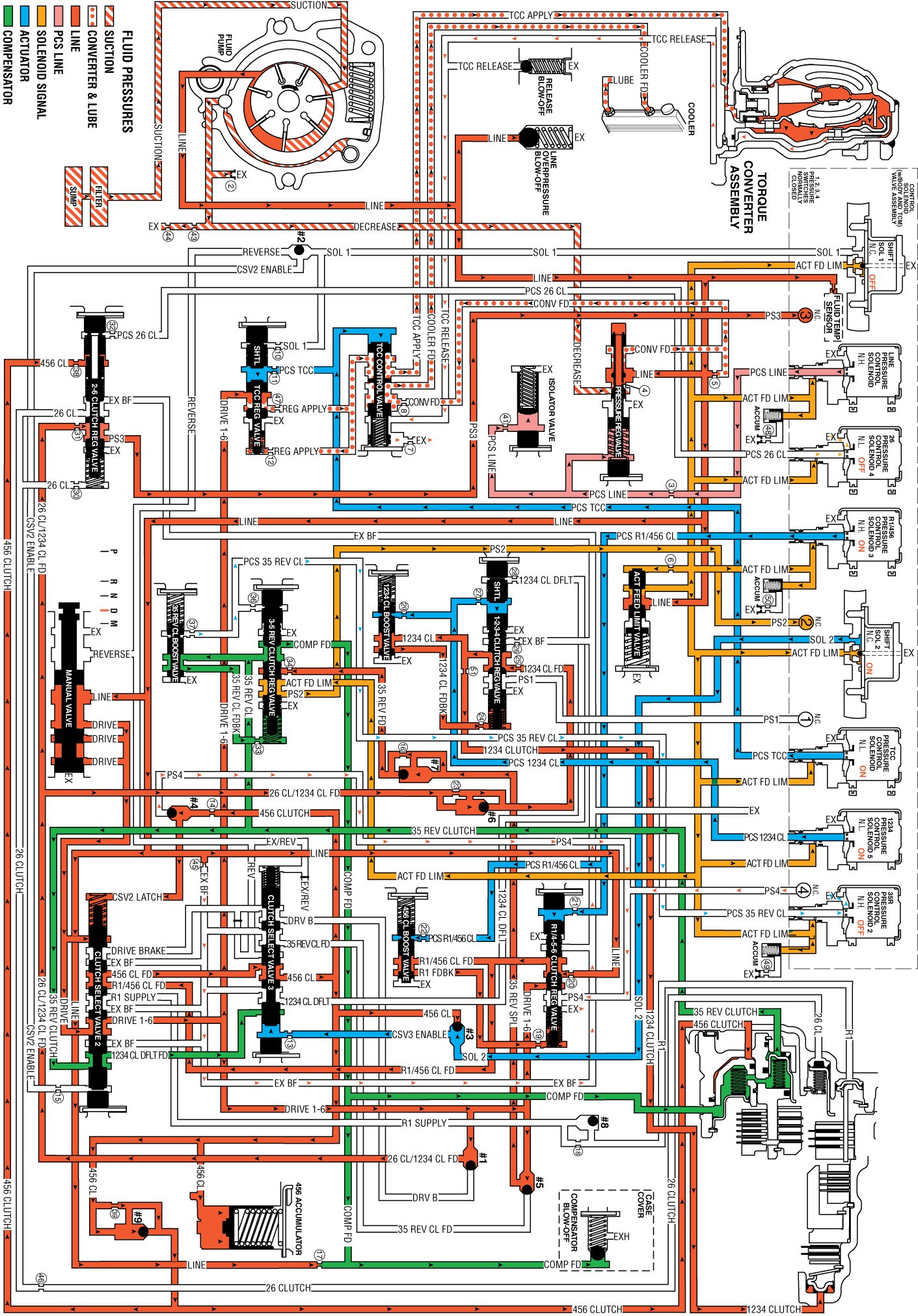

Park - Engine Running

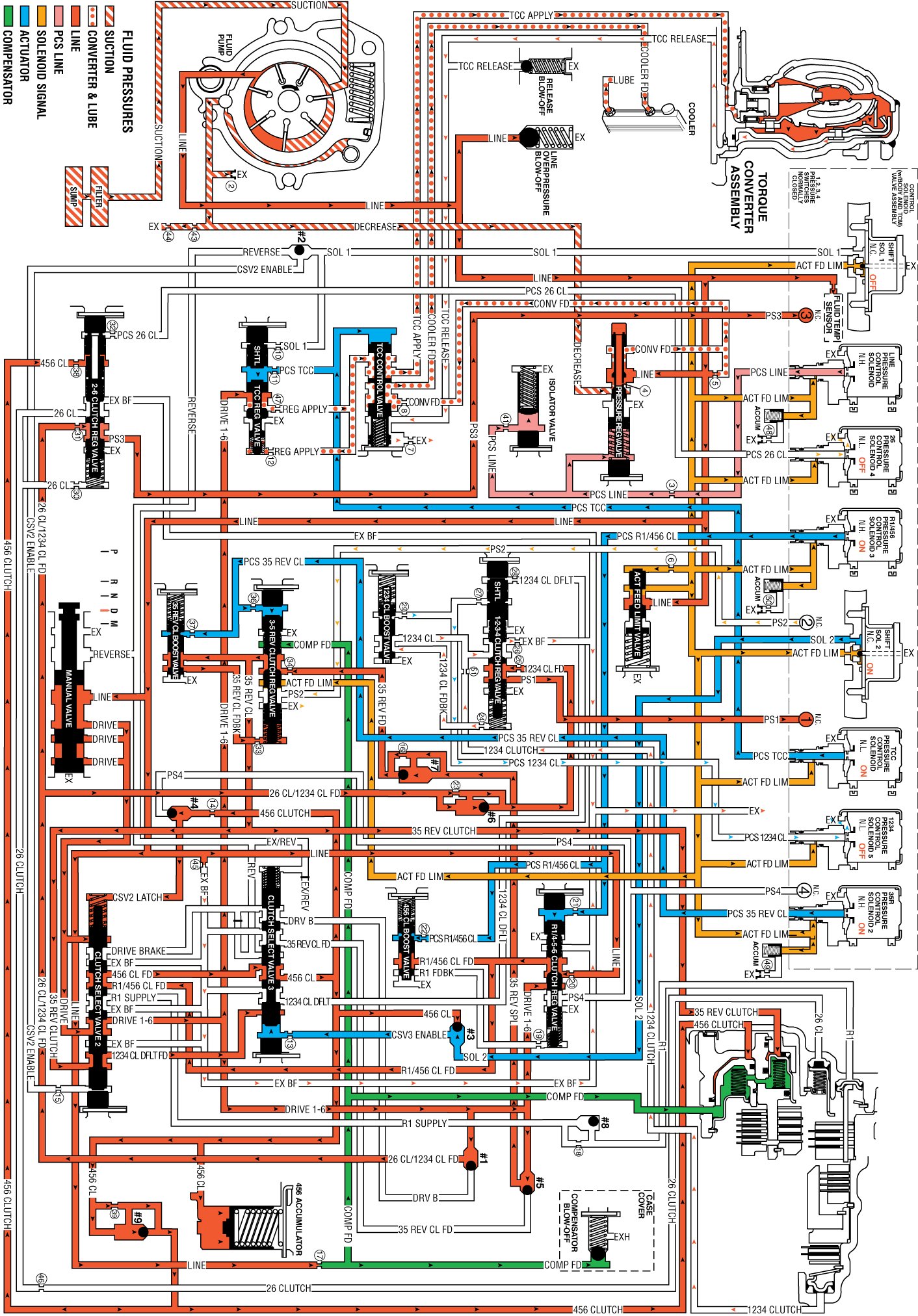

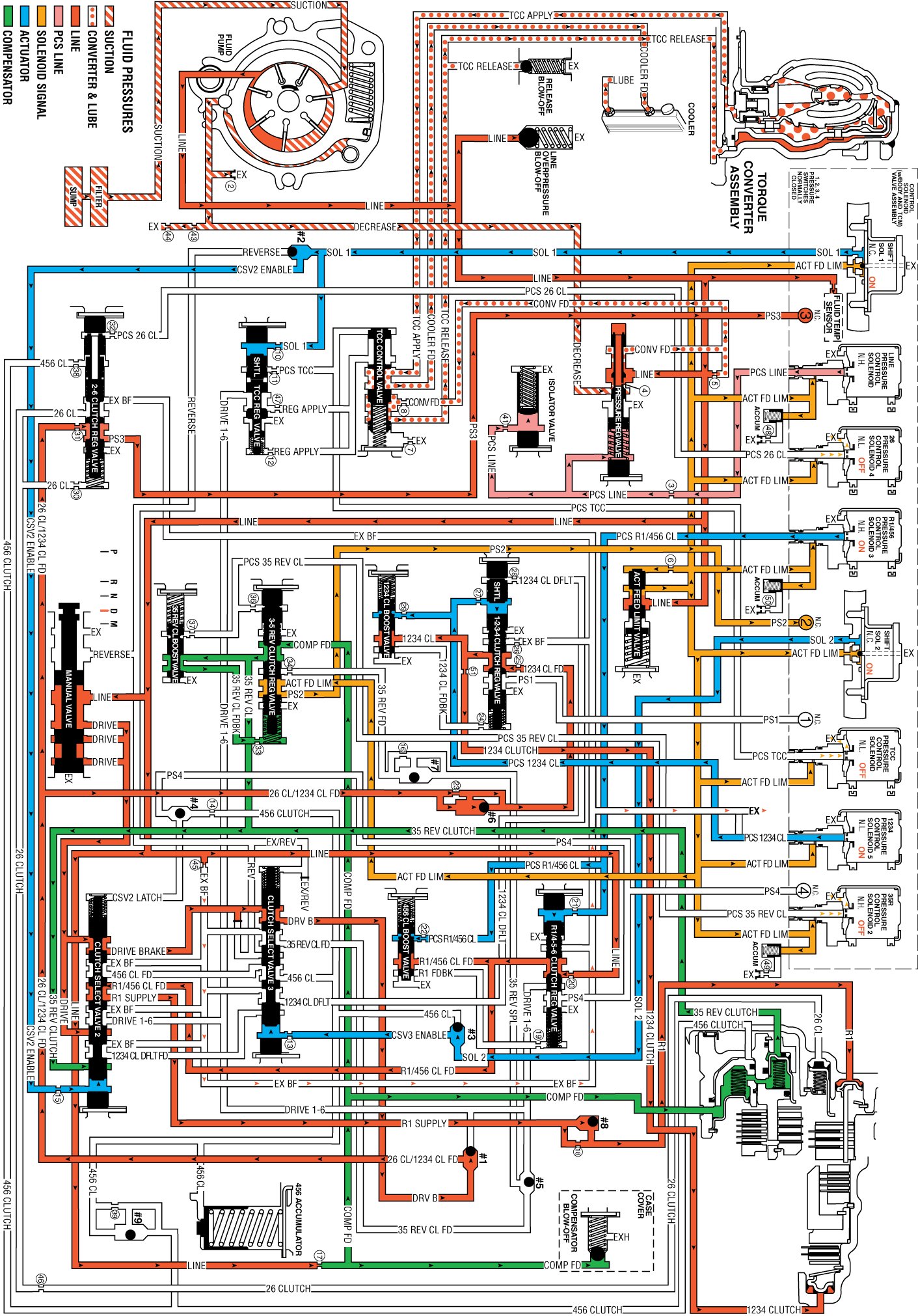

Reverse

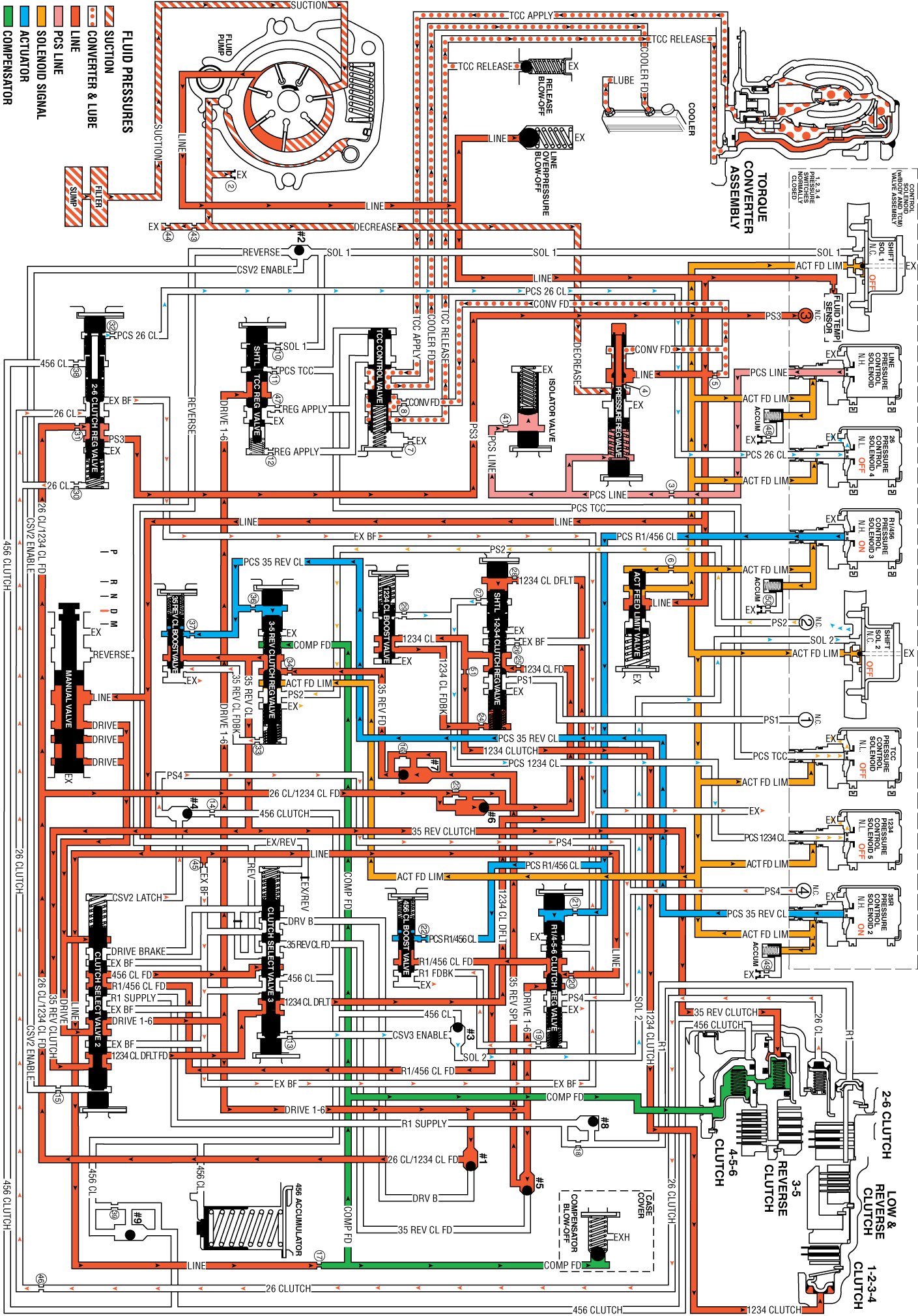

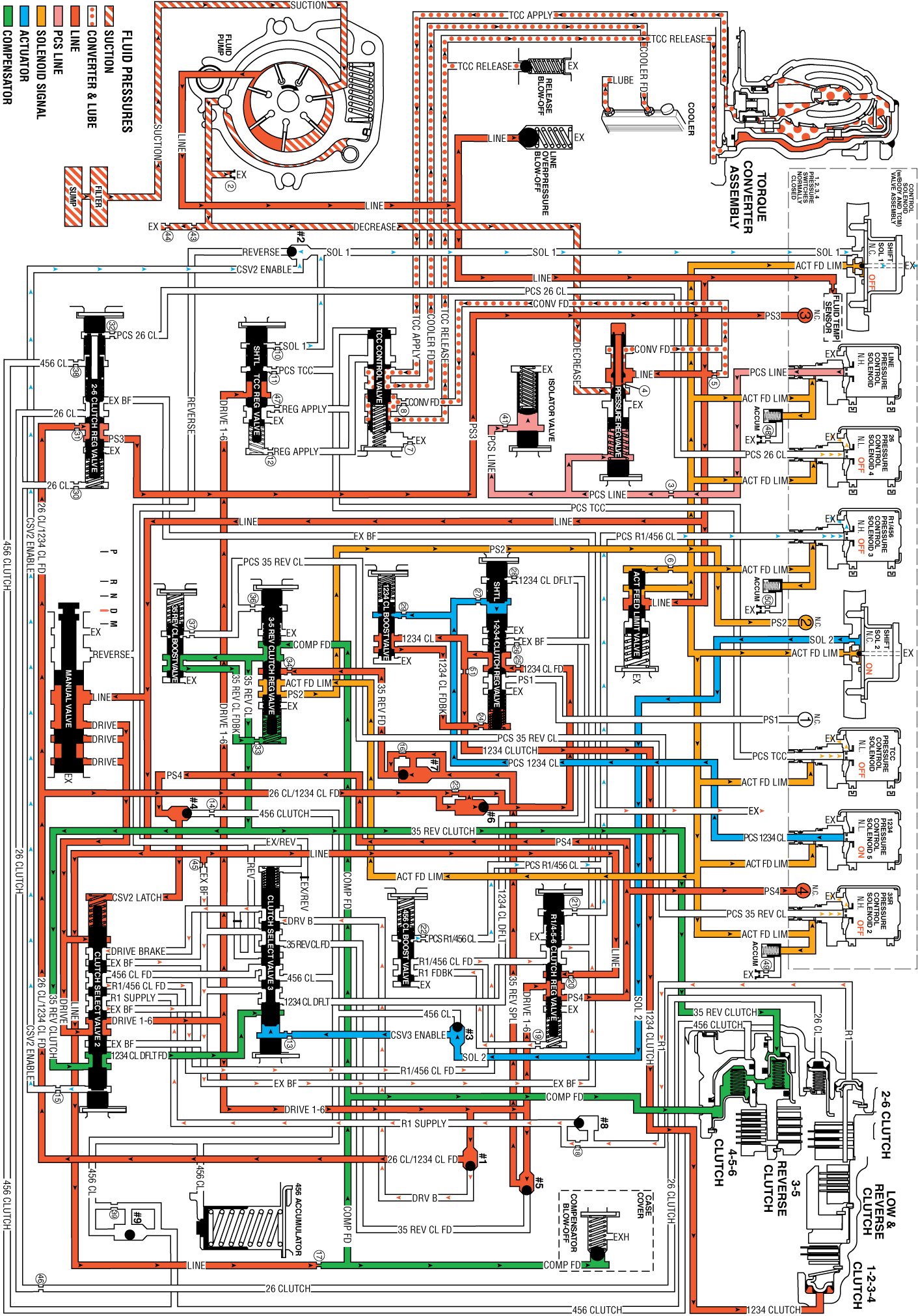

Neutral - Engine Running

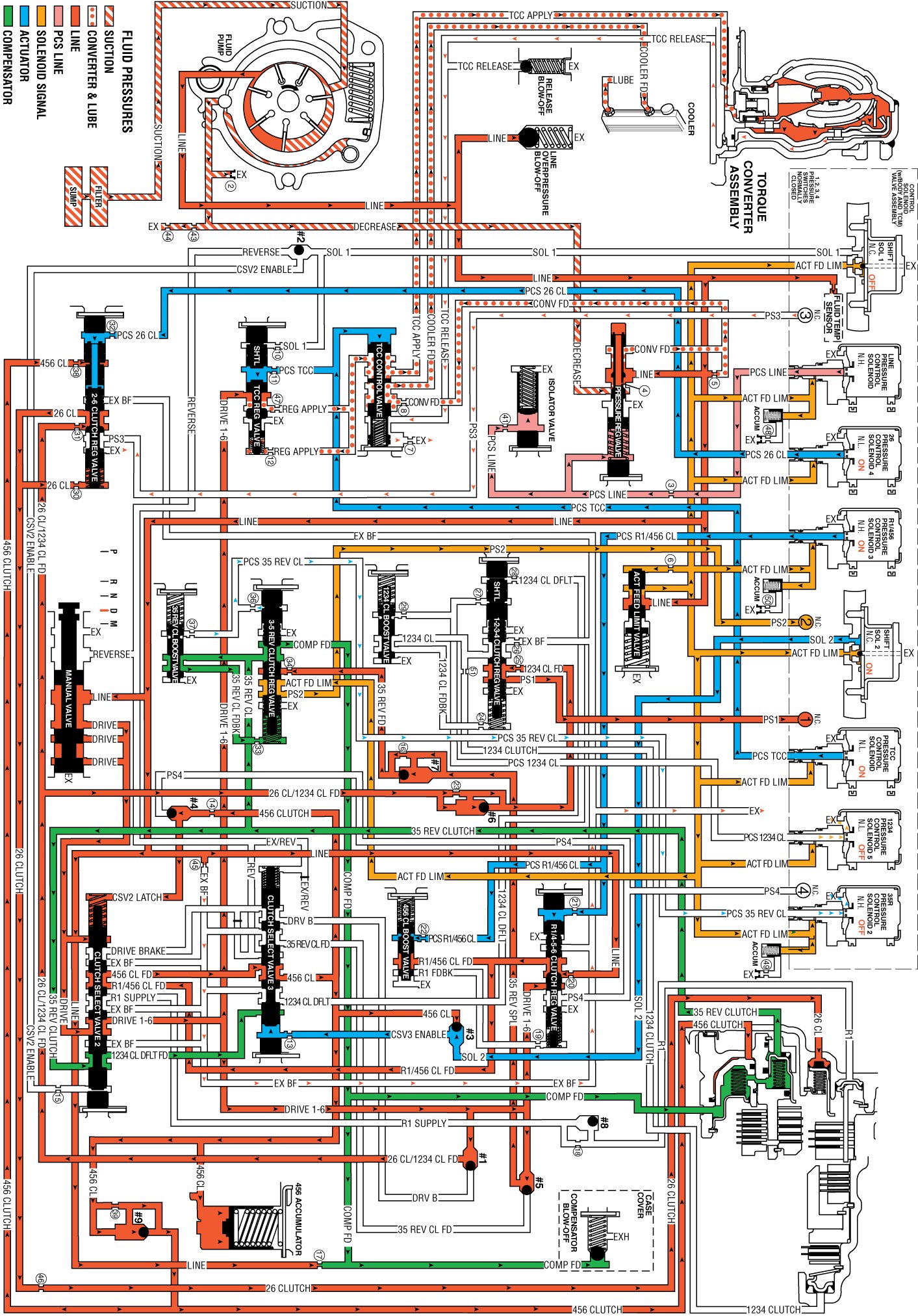

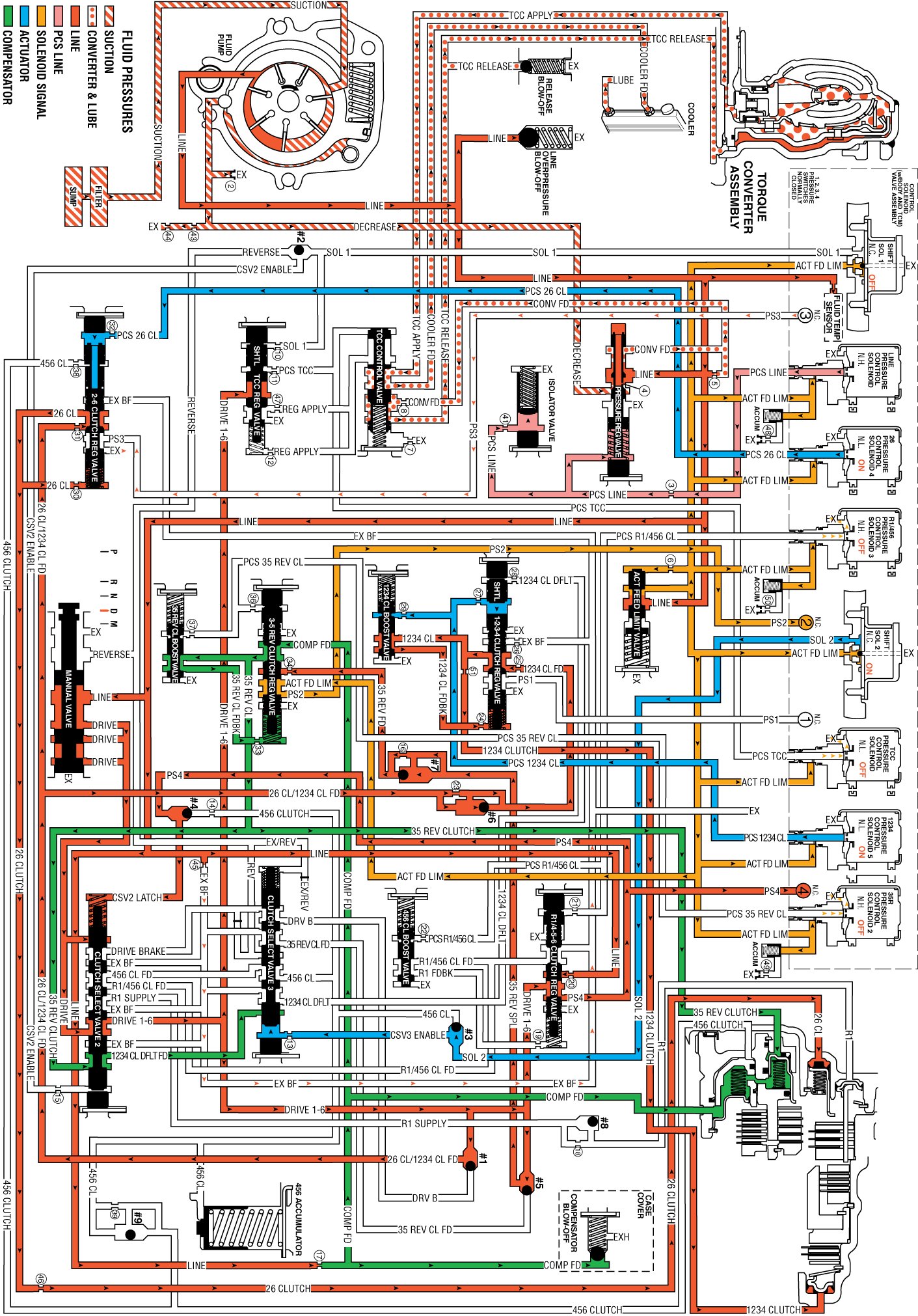

Drive Range, First Gear Engine Braking

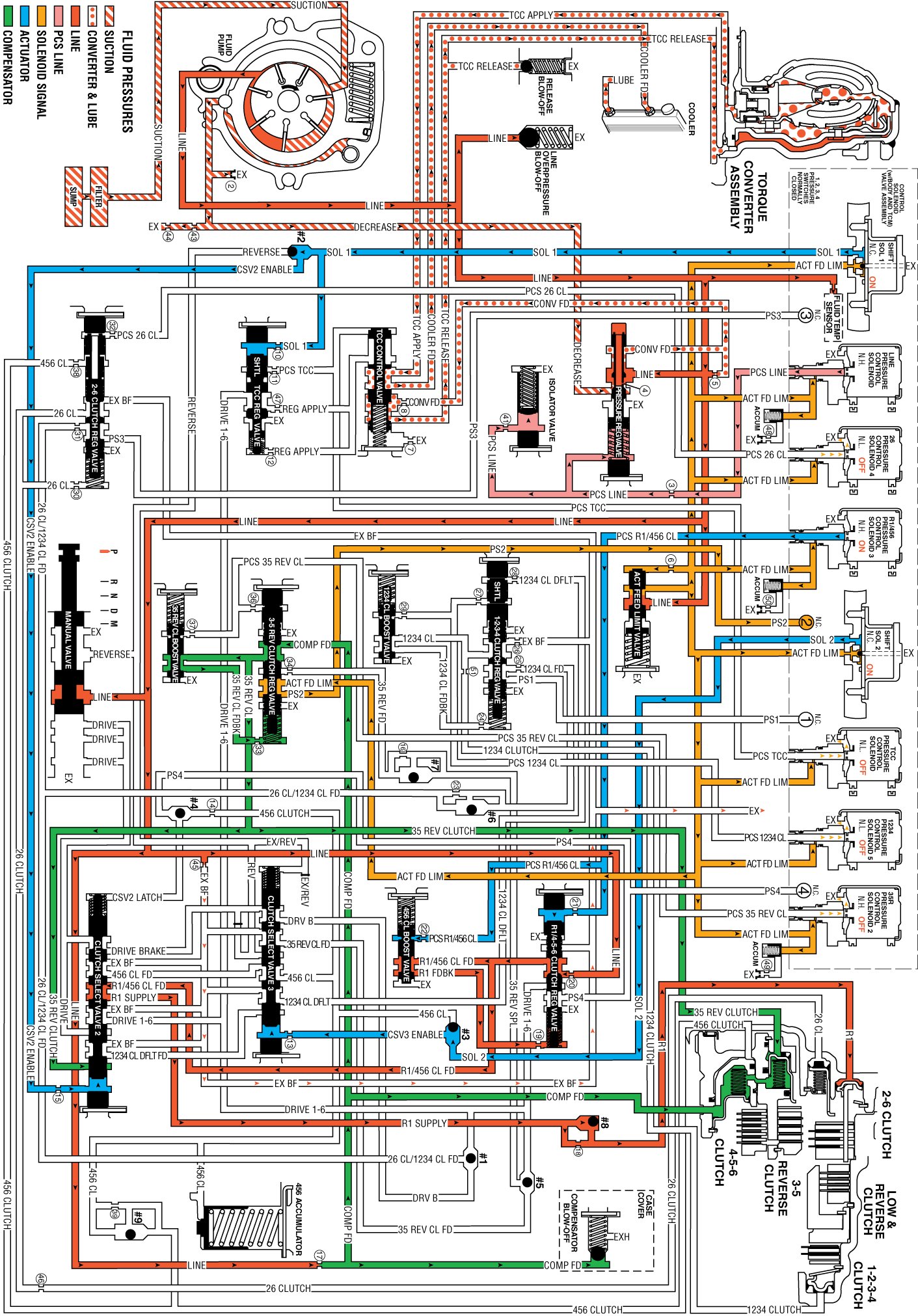

Drive Range, First Gear

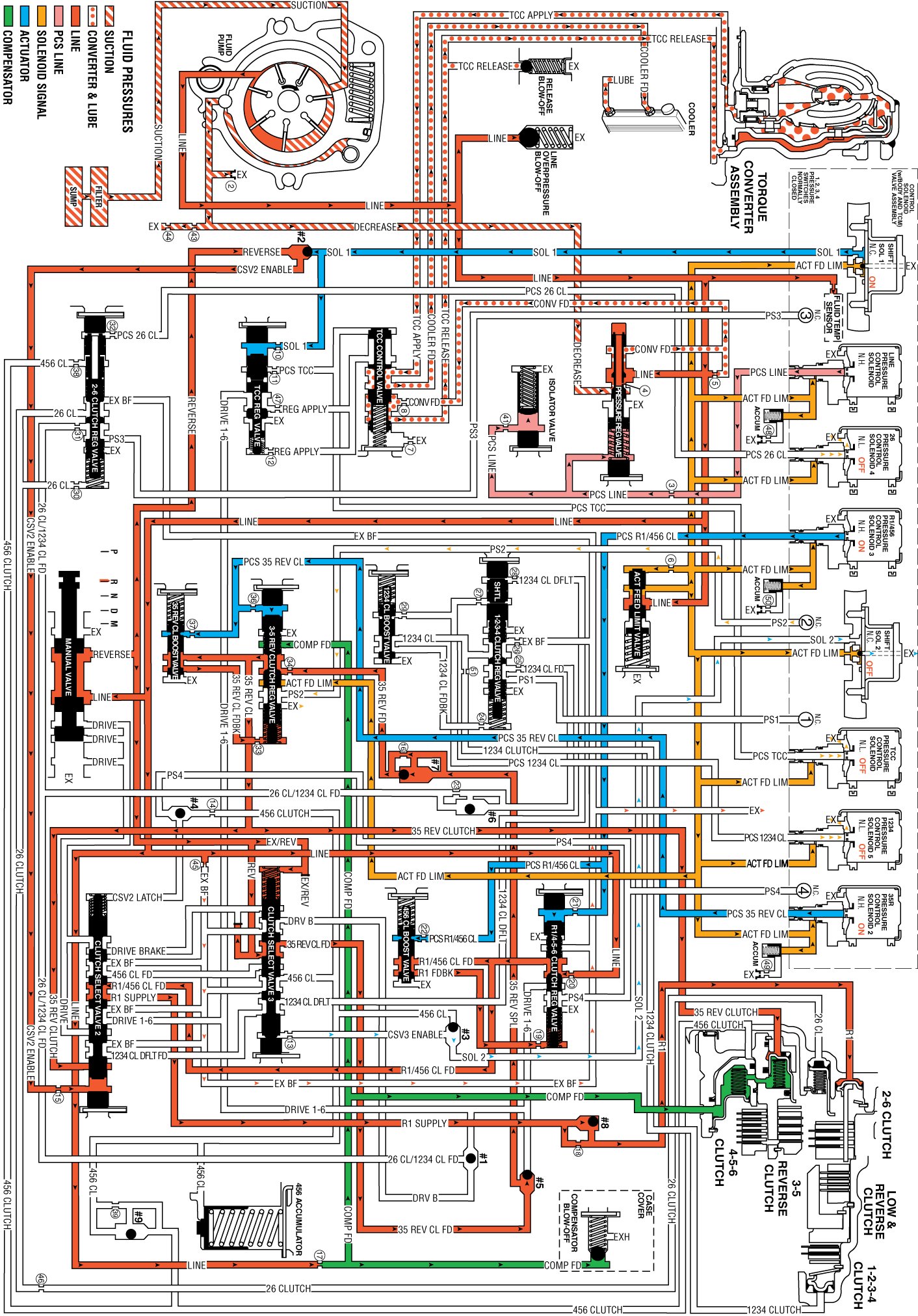

Drive Range, Second Gear

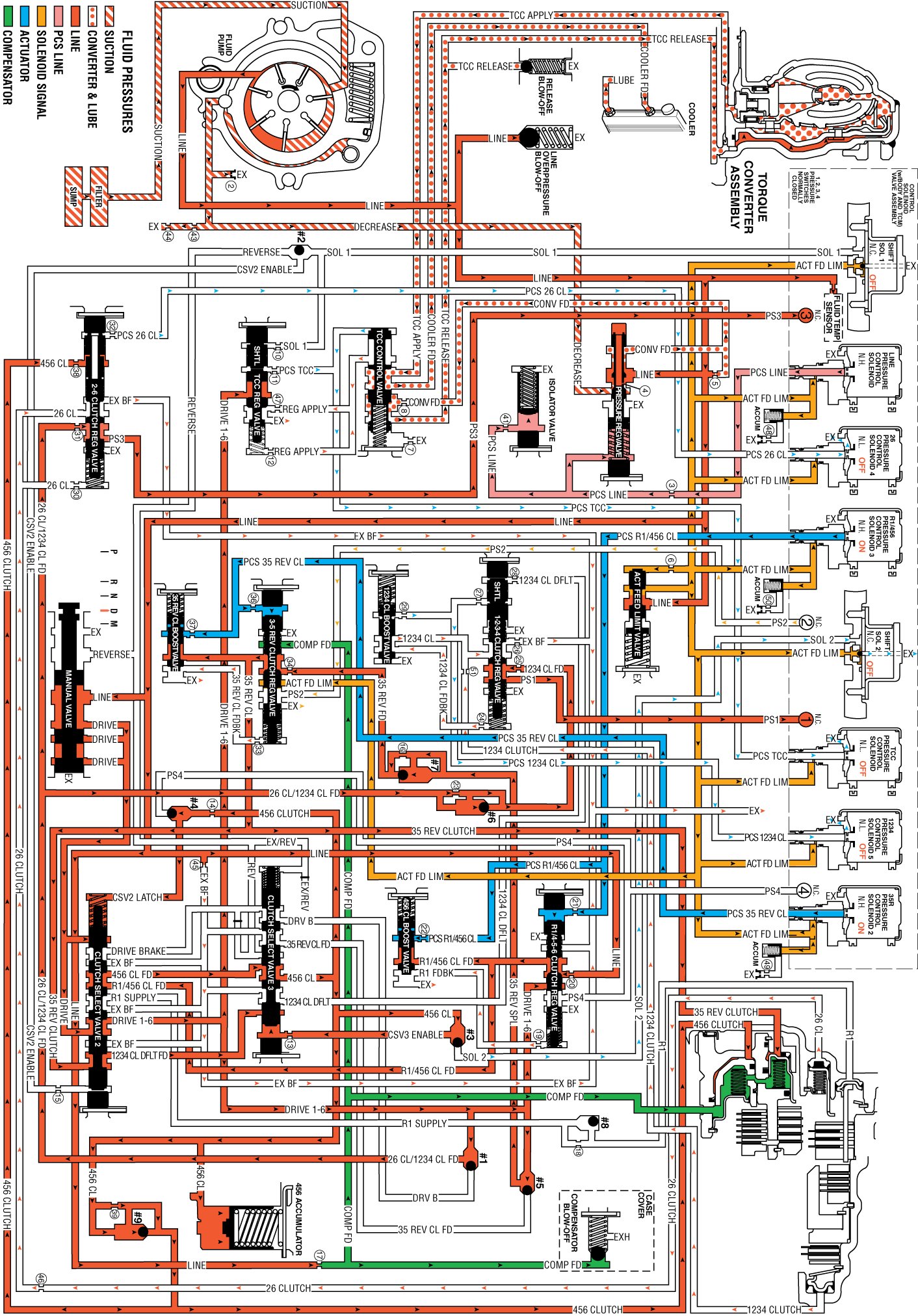

Drive Range, Third Gear

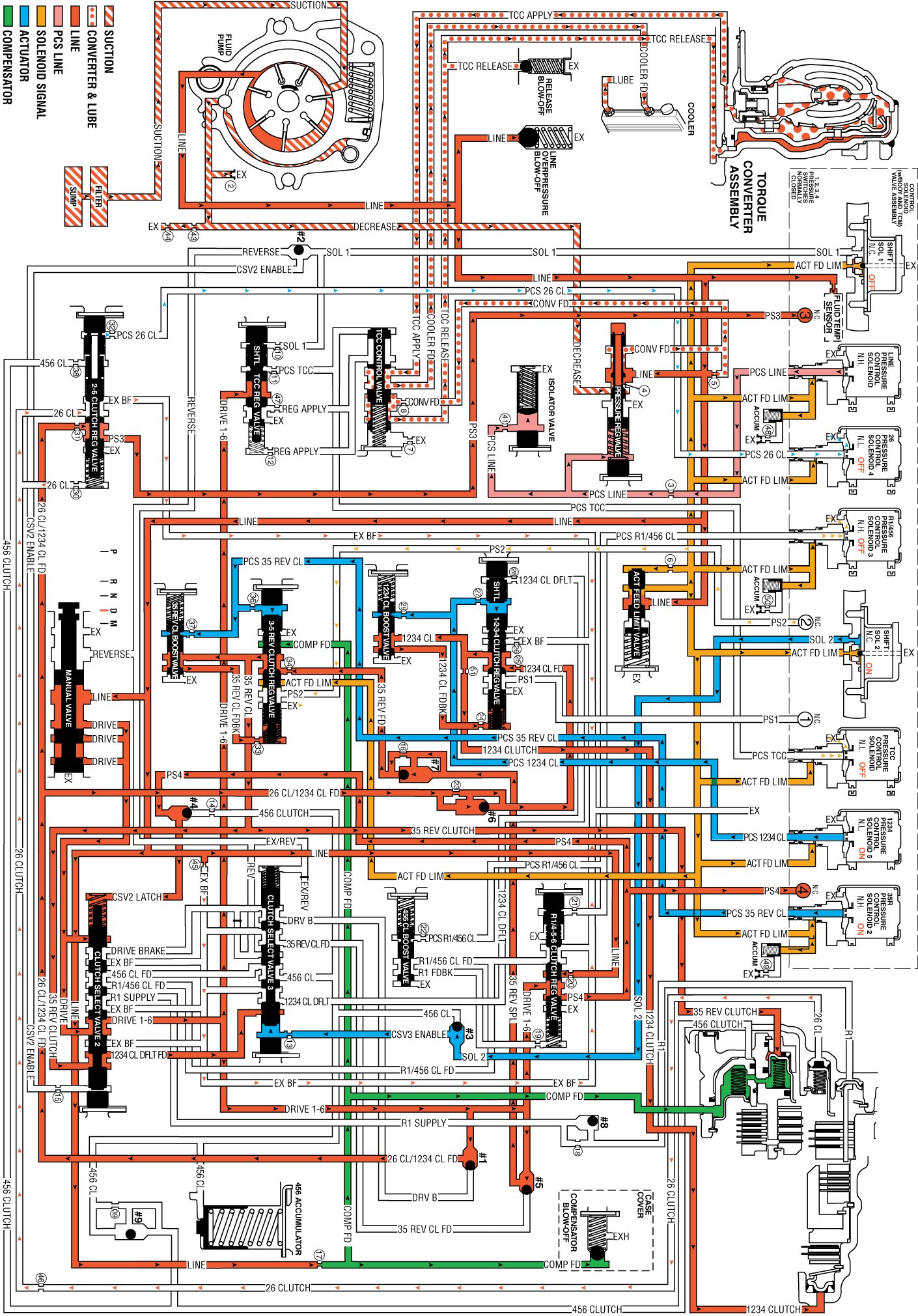

Drive Range, Third Gear Default




Drive Range - Fourth Gear




Drive Range, Fifth Gear




Drive Range, Fifth Gear Default




Drive Range, Sixth Gear
