Power Distribution Diagram Index

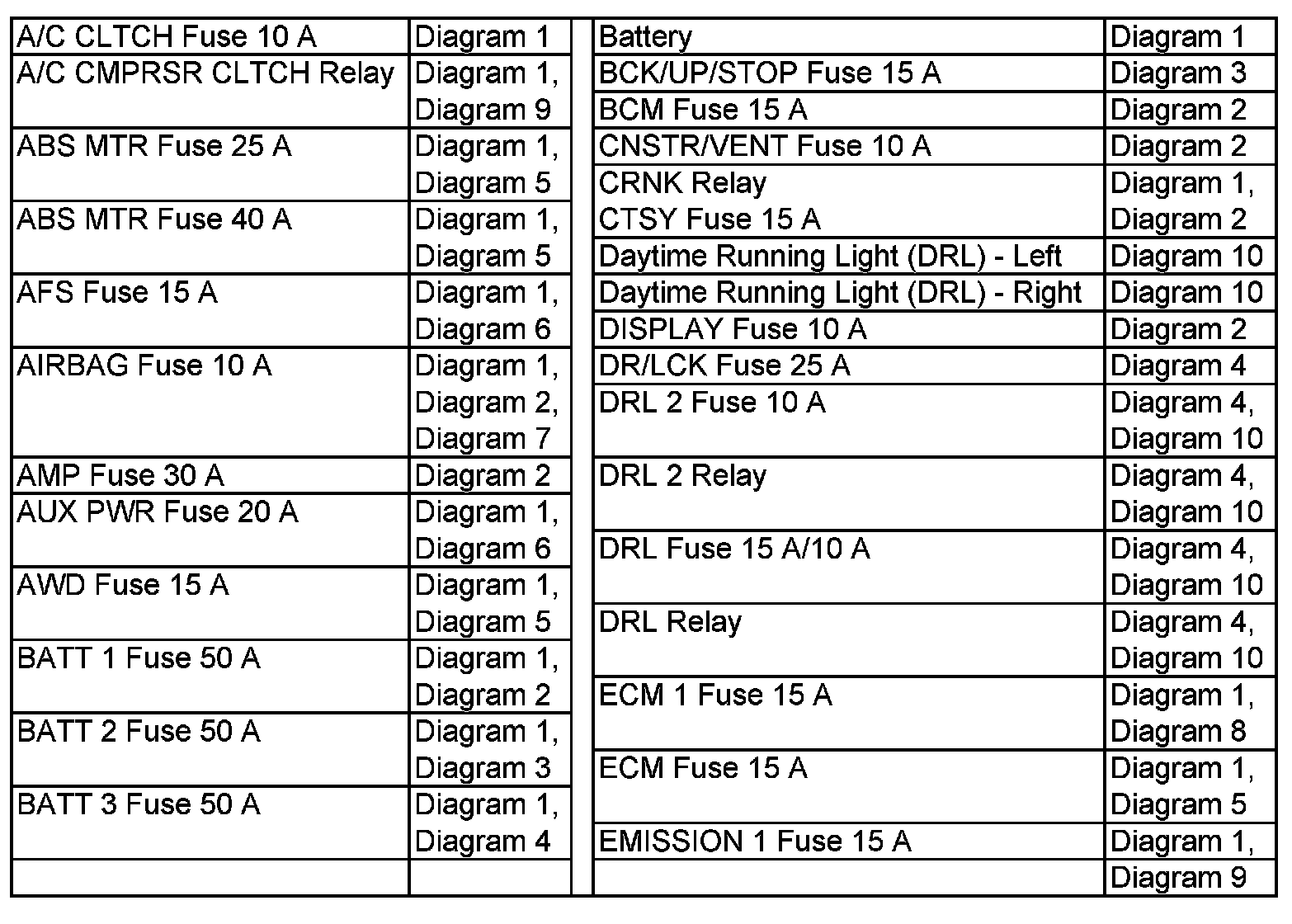

A/C CLTCH - EMISSION 1:

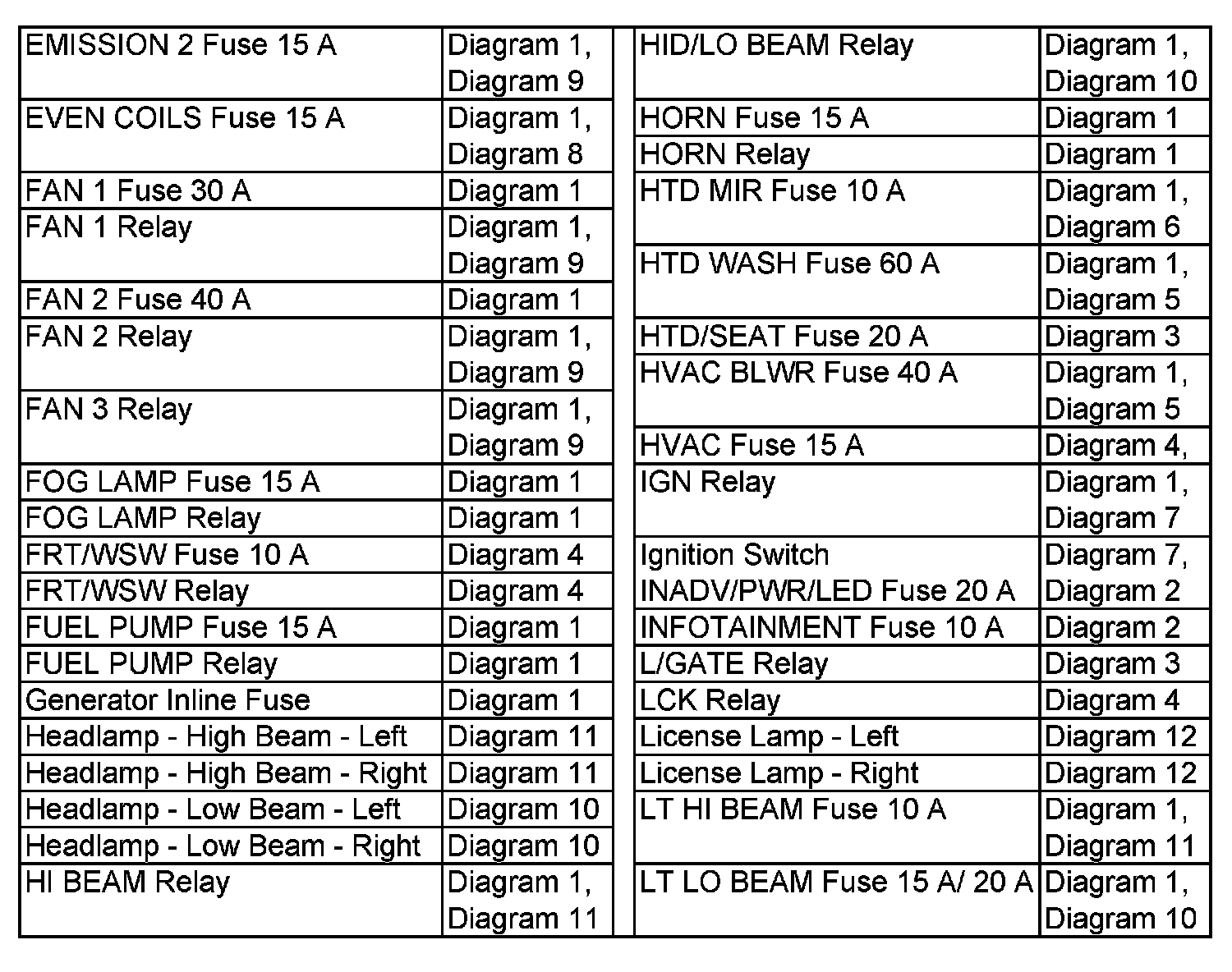

EMISSION 2 - License Lamp:

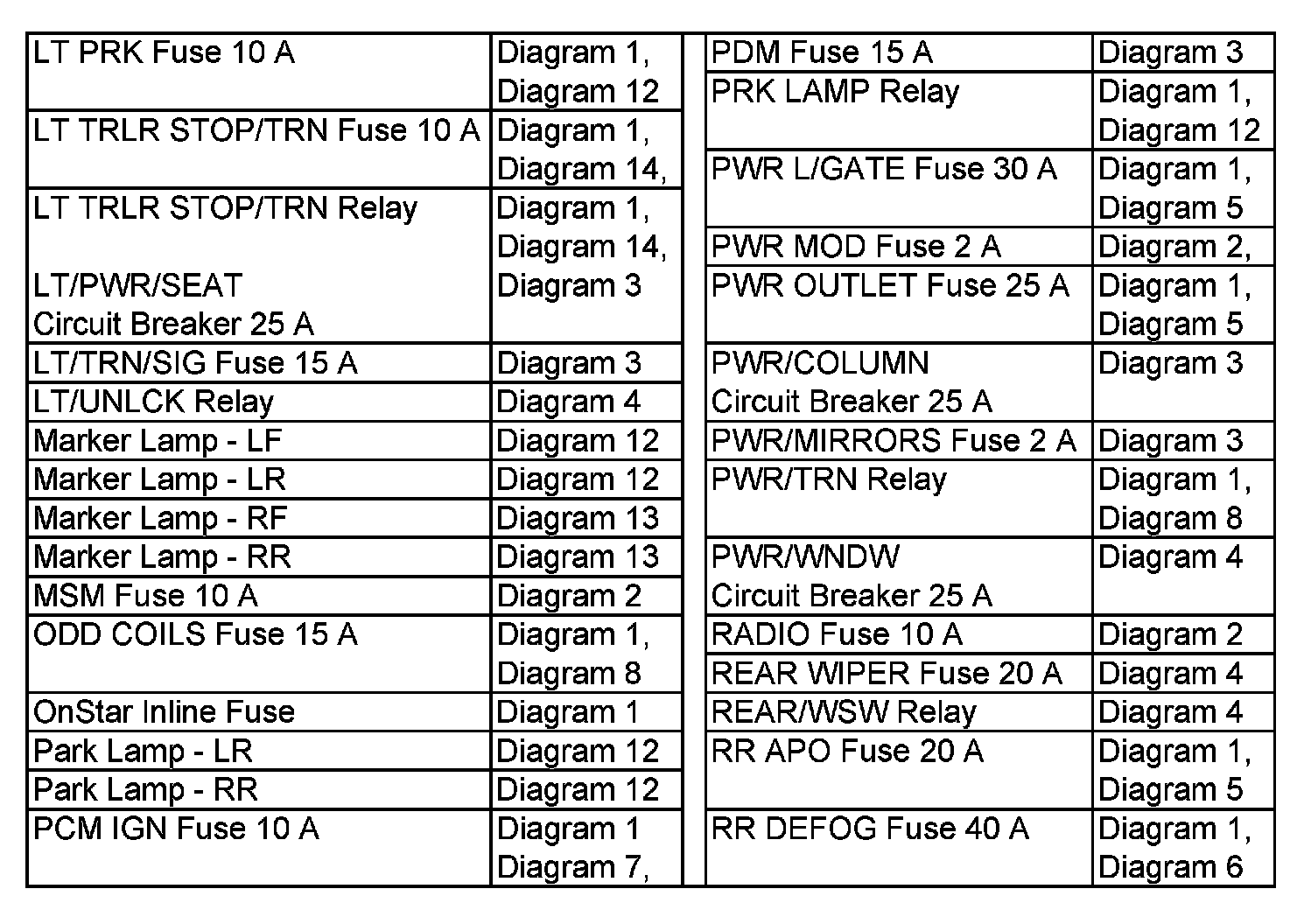

LT HI BEAM - RR DEFOG:

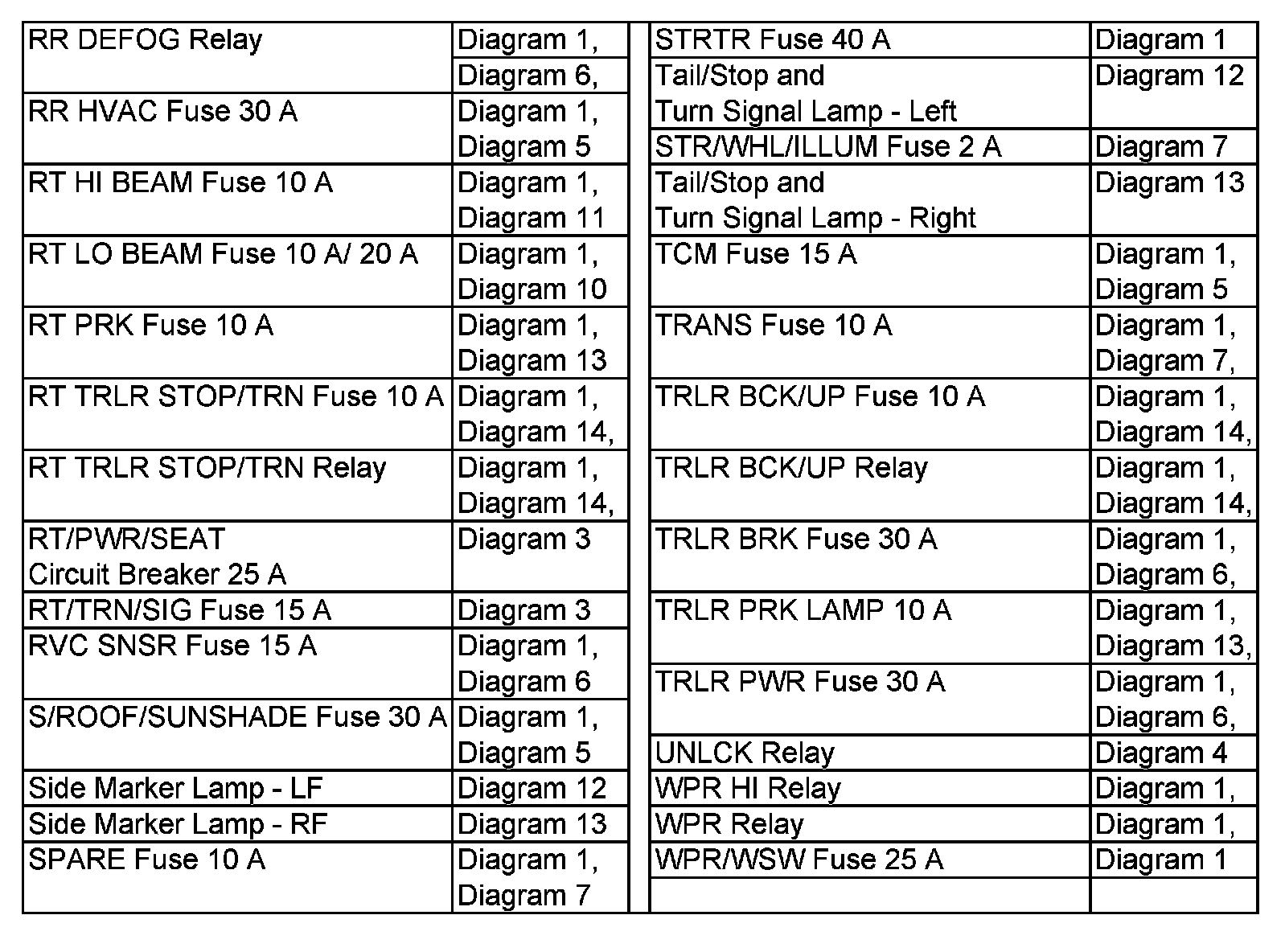

RR DEFOG - WPR/WSW:
