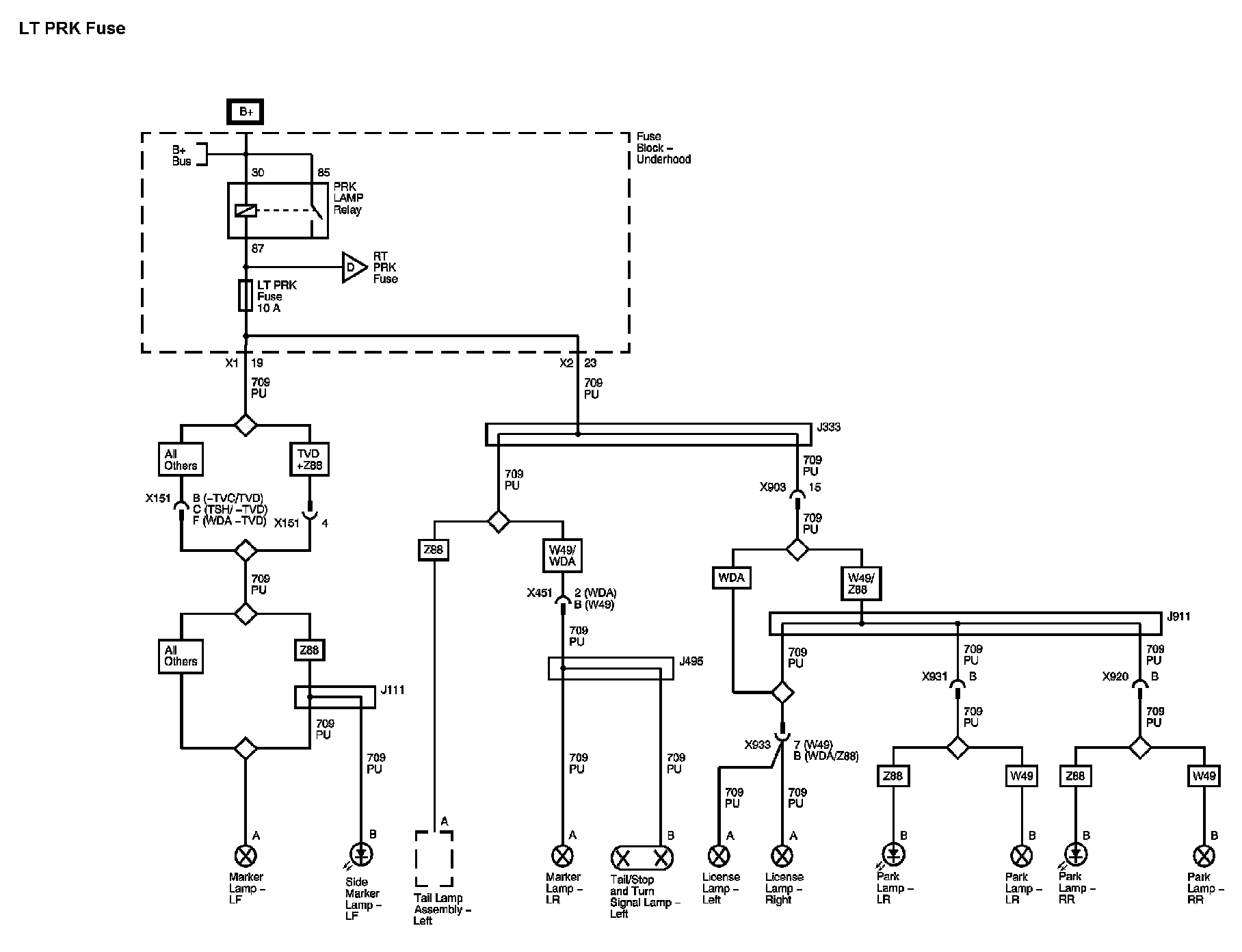

Power Distribution Diagram 12



Power Distribution Diagram 12:






Next Diagram: Power Distribution Diagram 13

Previous Diagram: Power Distribution Diagram 11

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
