Driver Seat Diagram

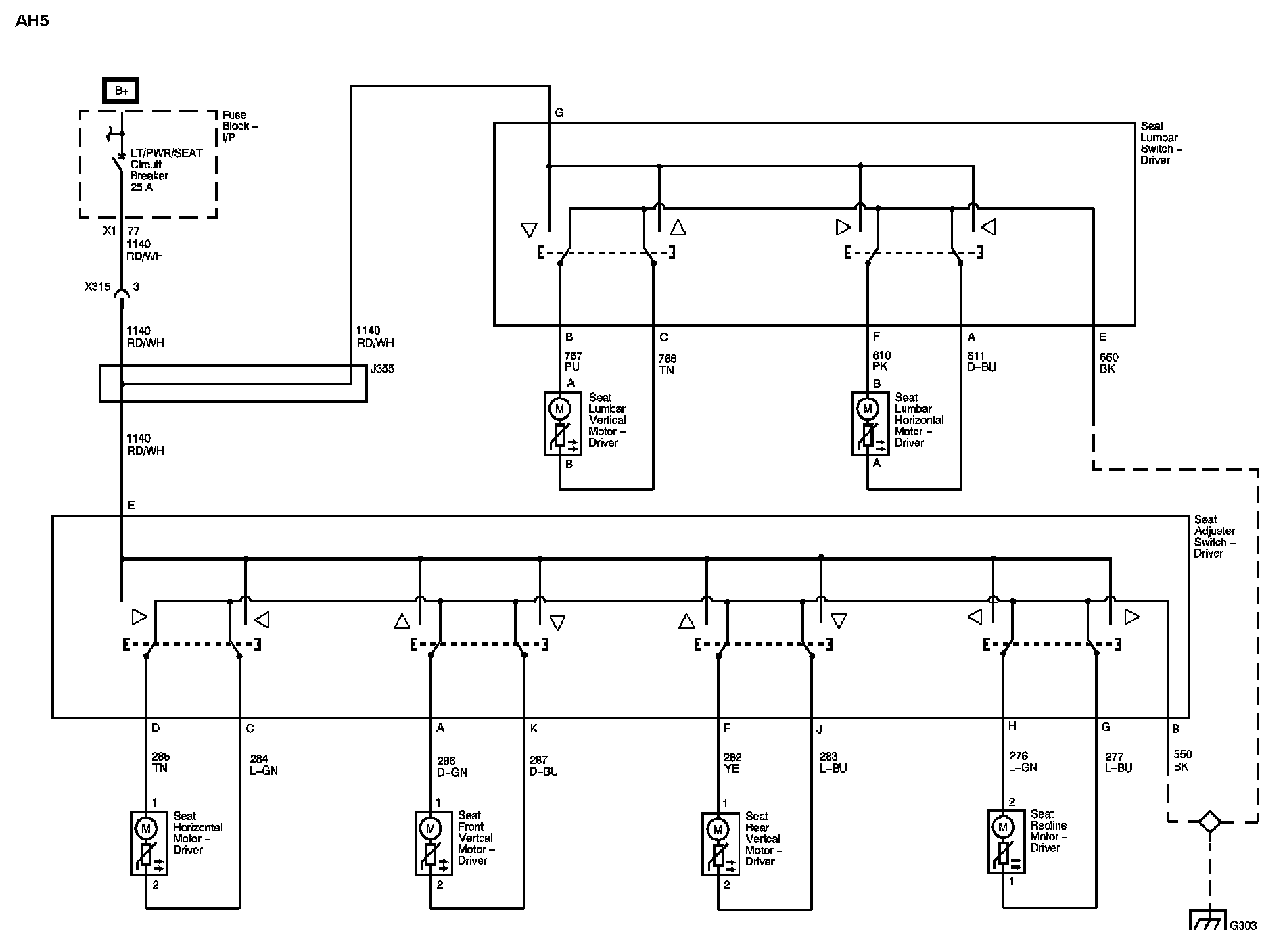

Driver Seat Diagram 1:

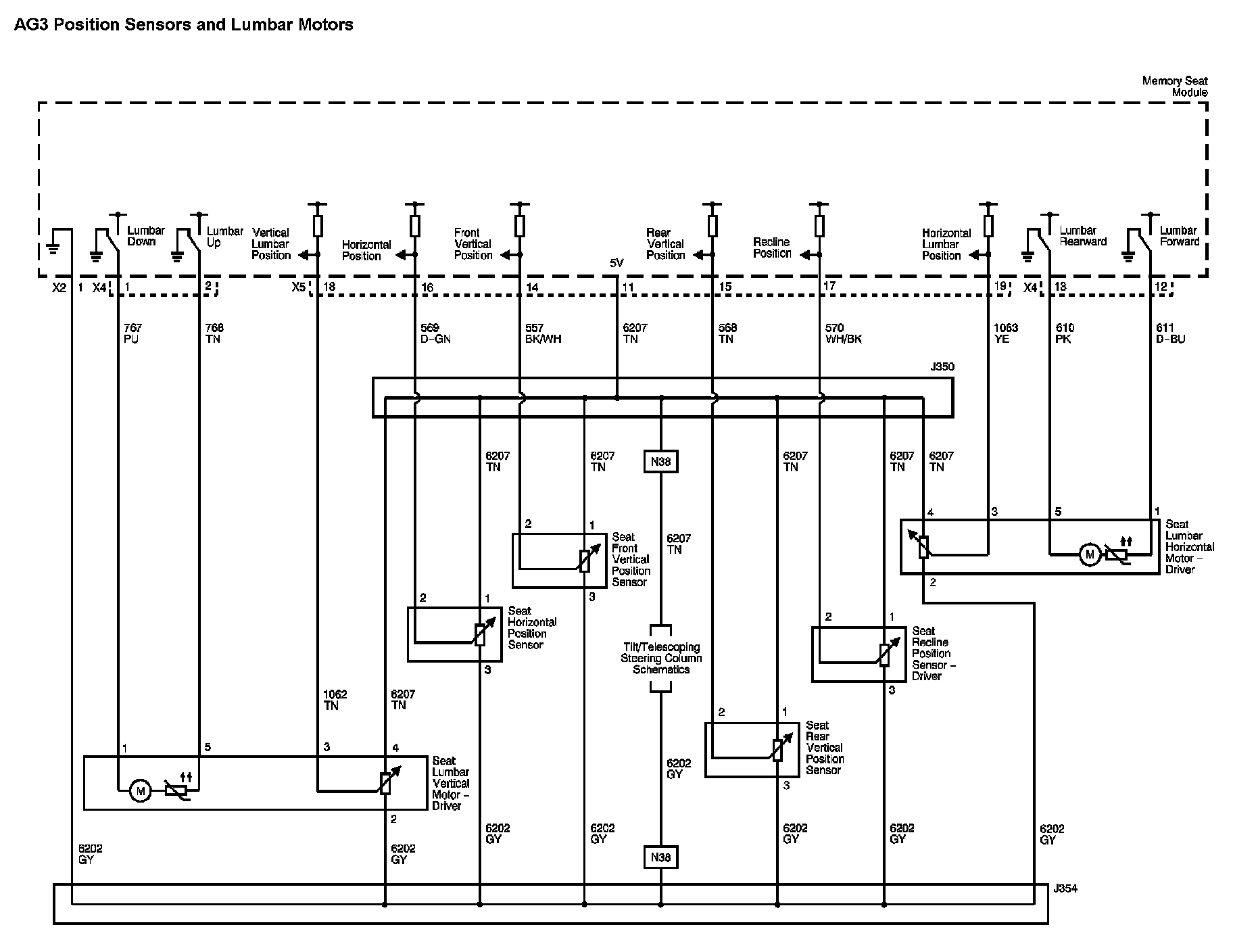

Driver Seat Diagram 2:

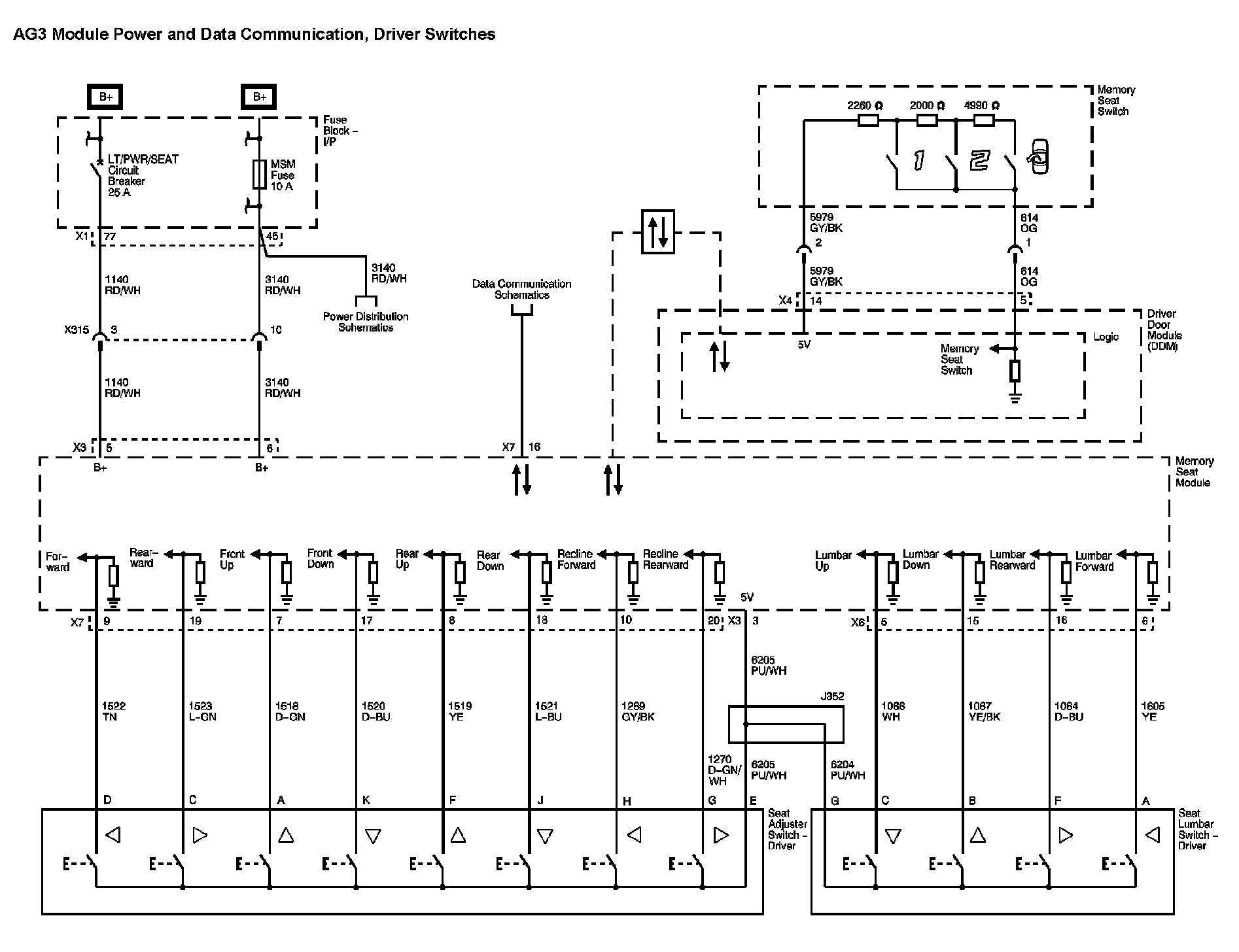

Driver Seat Diagram 3:




Driver Seat Diagram 4:




Driver Seat Diagram 5:






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
