Outside Rearview Mirror Schematics

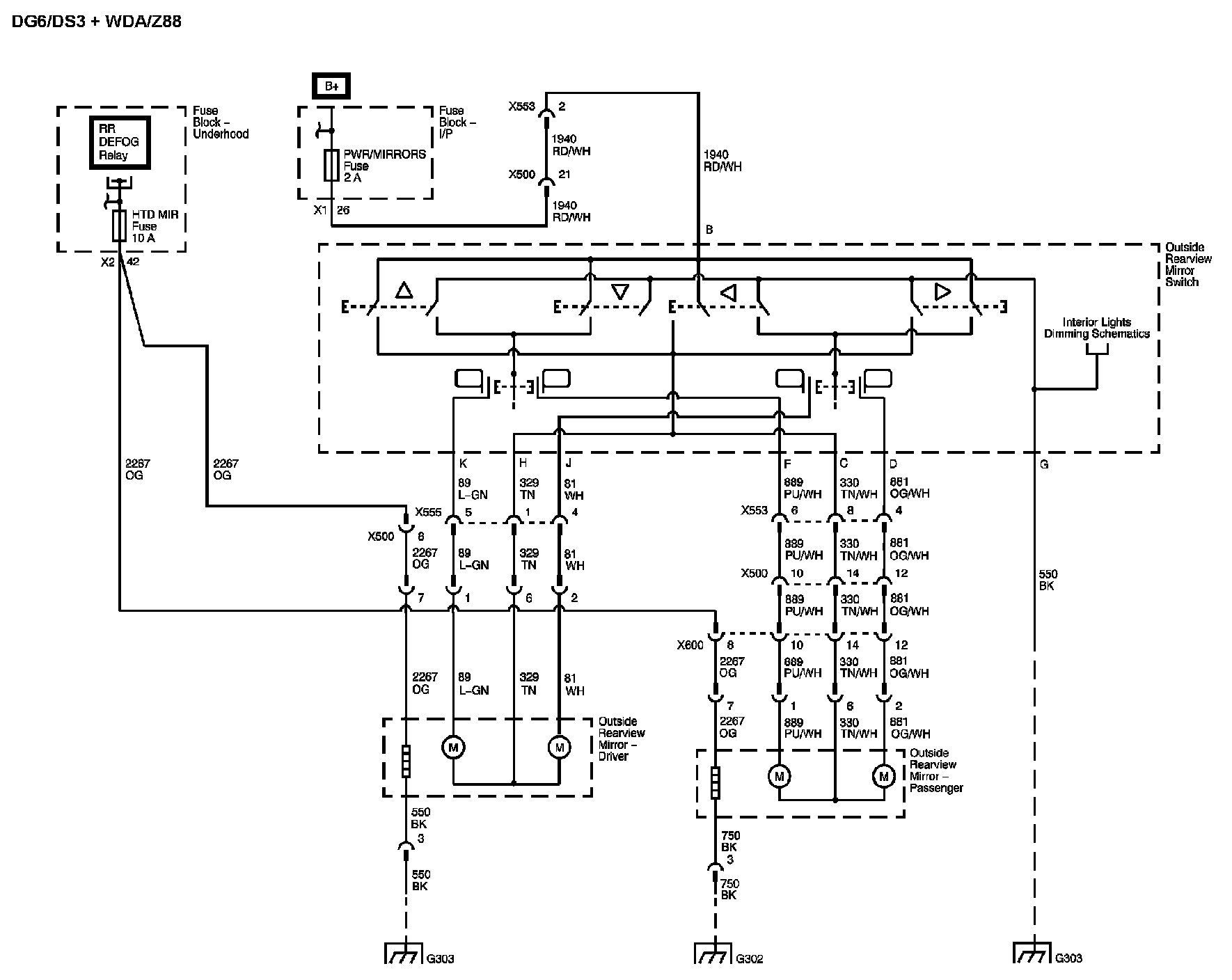

Diagram And Routing Diagrams 1:

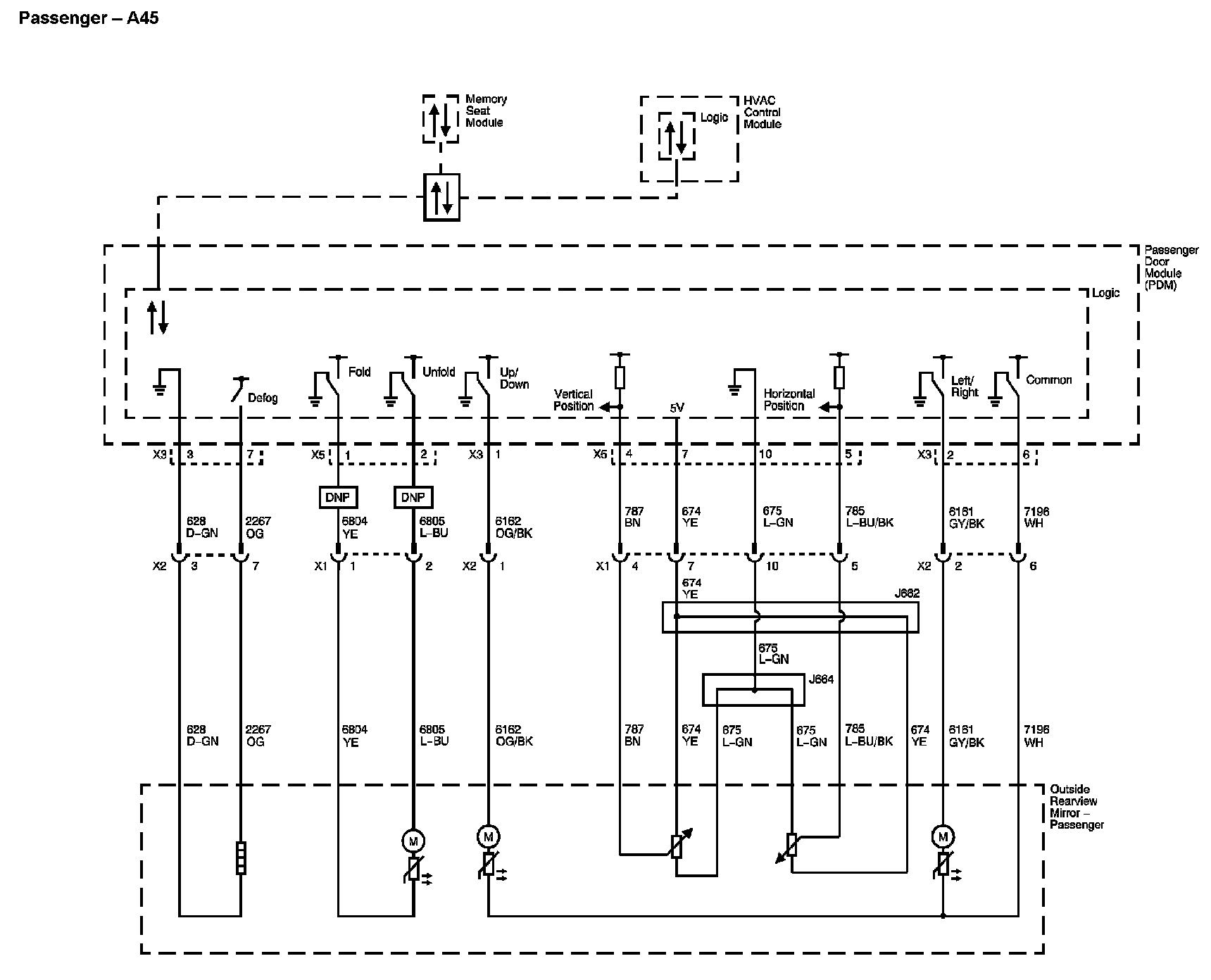

Diagram And Routing Diagrams 2:

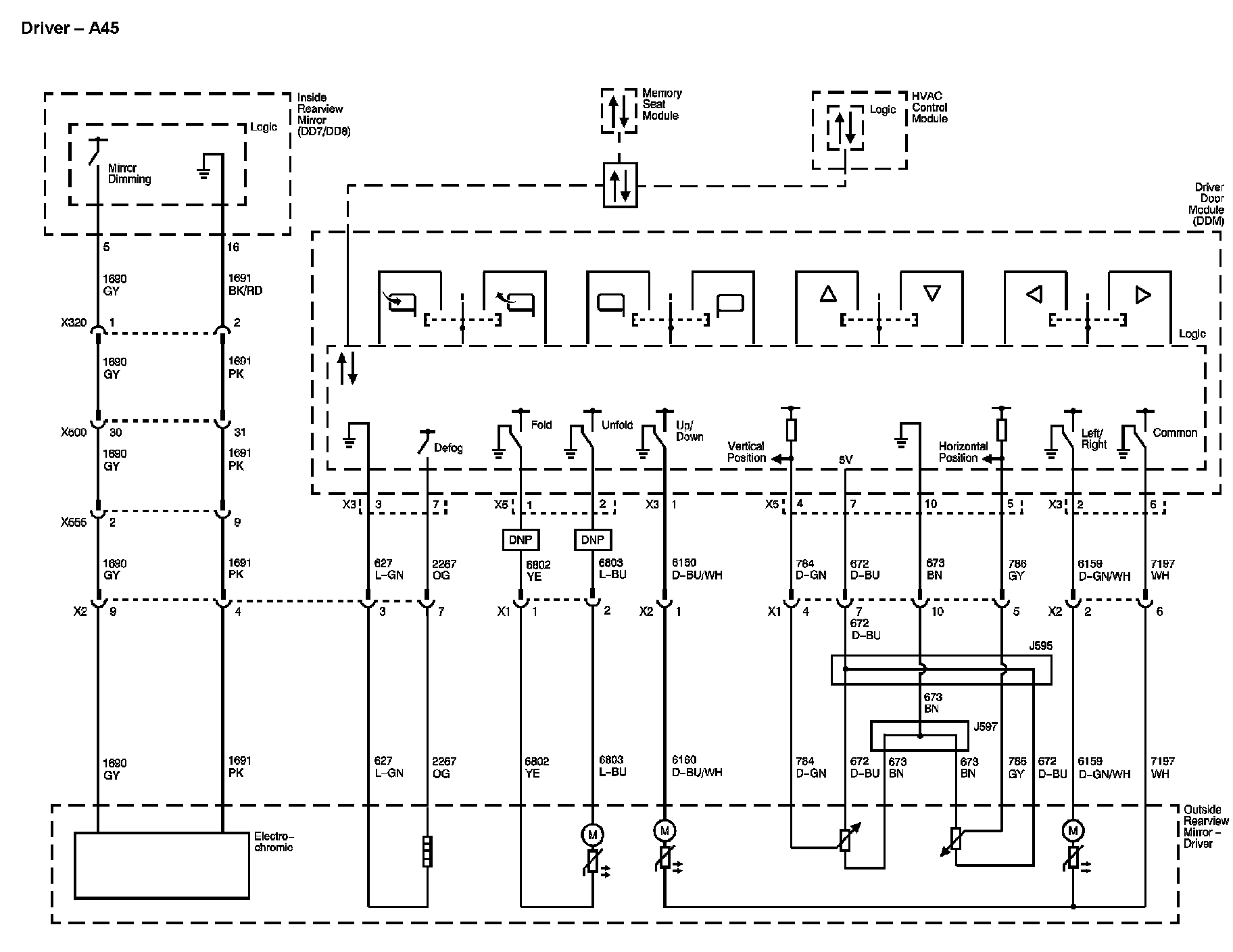

Diagram And Routing Diagrams 3:

Diagram And Routing Diagrams 4:

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
