Instrument Cluster Schematics



Instrument Cluster Schematics

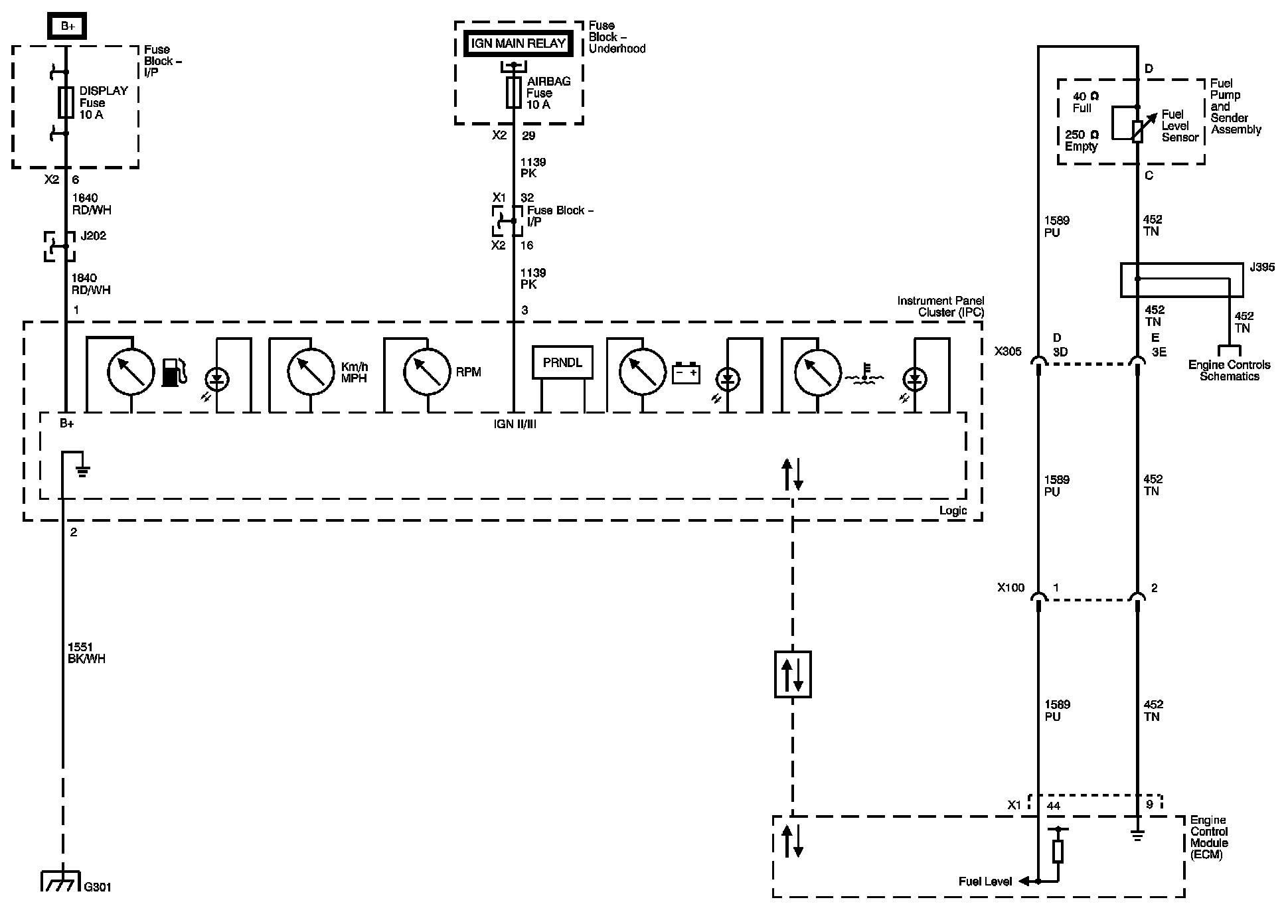

Gages, Ground, and Power

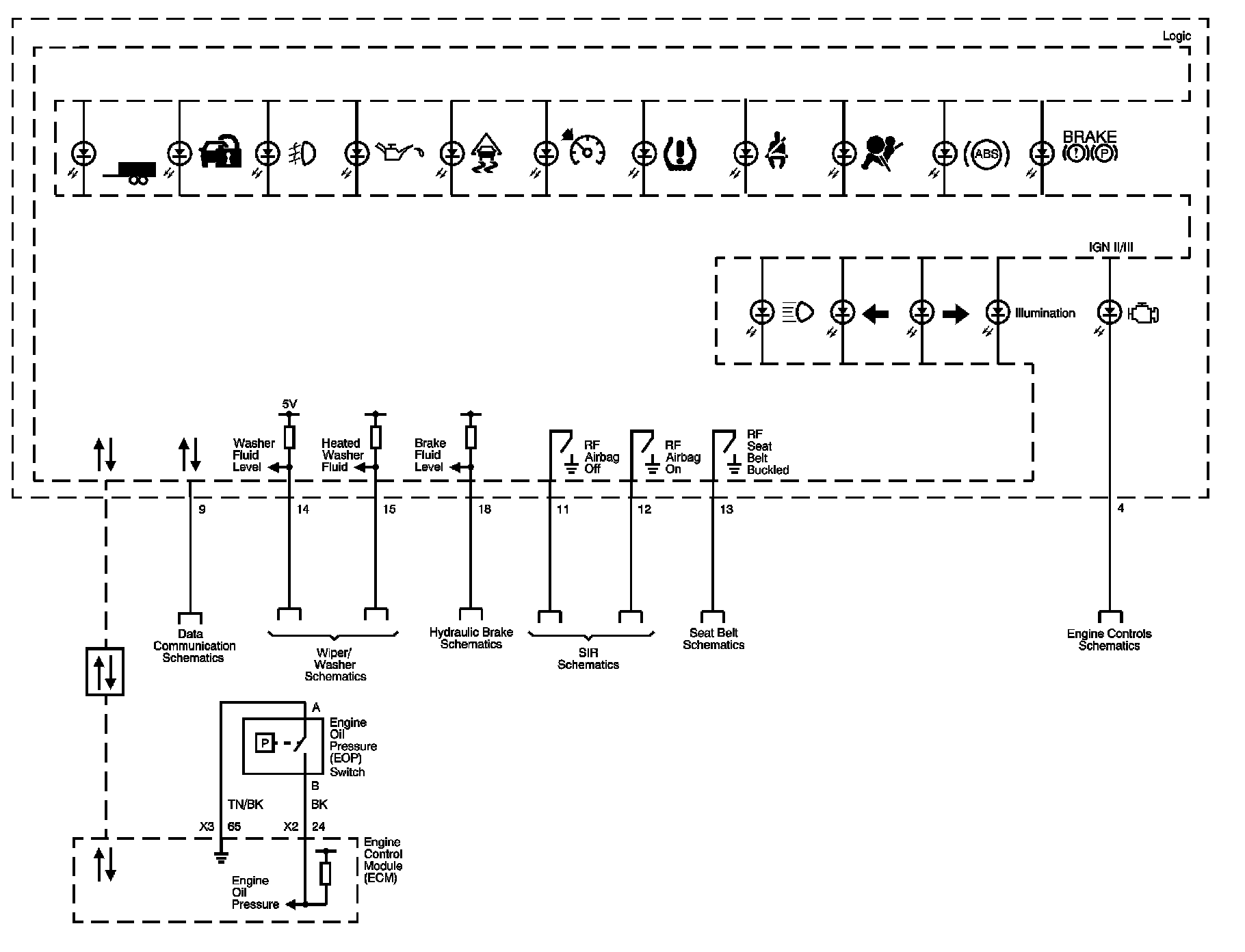

Indicators and Lighting






DIC - UH9






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
