HVAC - Manual

HVAC Schematics

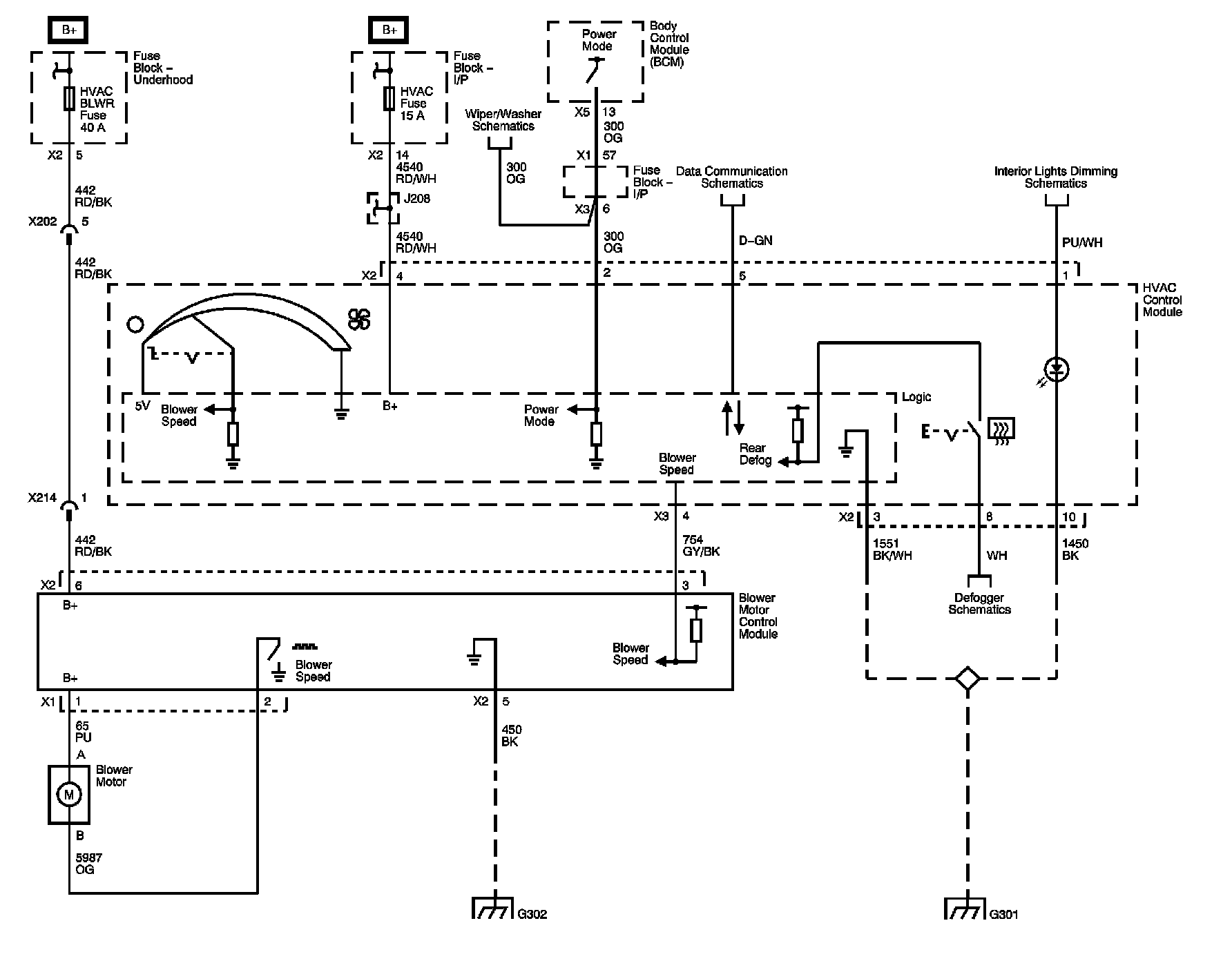

Module Power and Ground, Blower Control, and Subsystem References

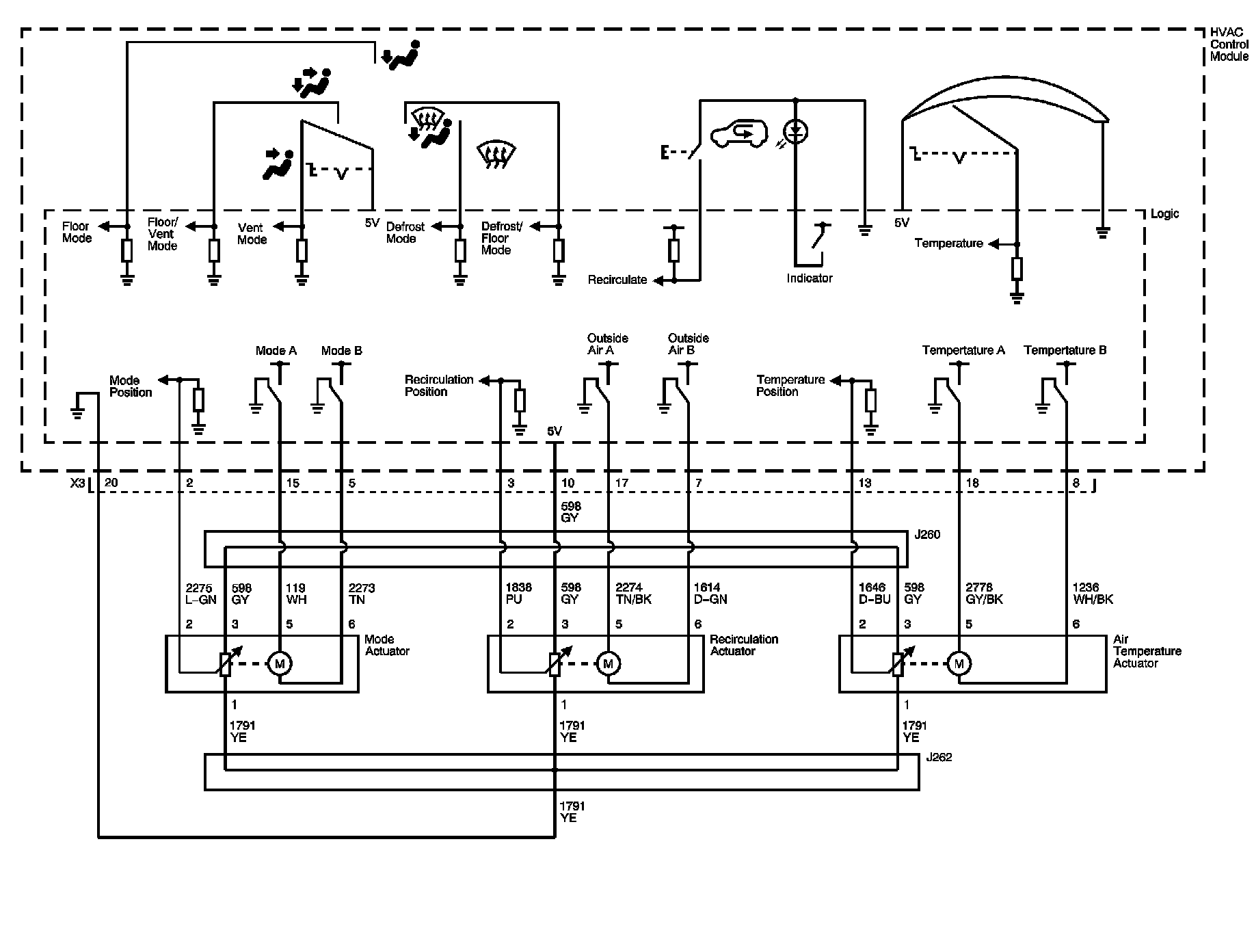

Actuators

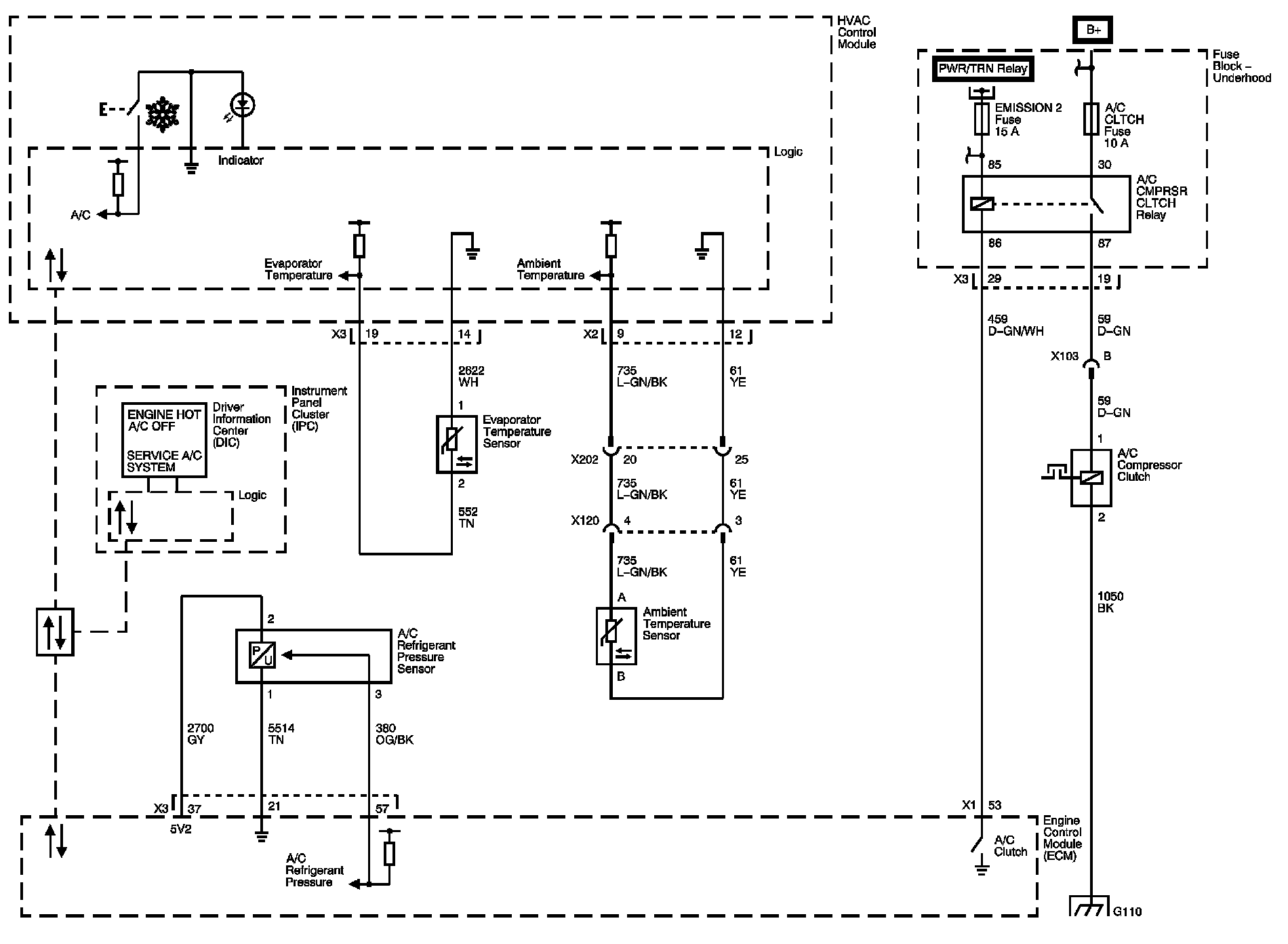

Compressor Controls

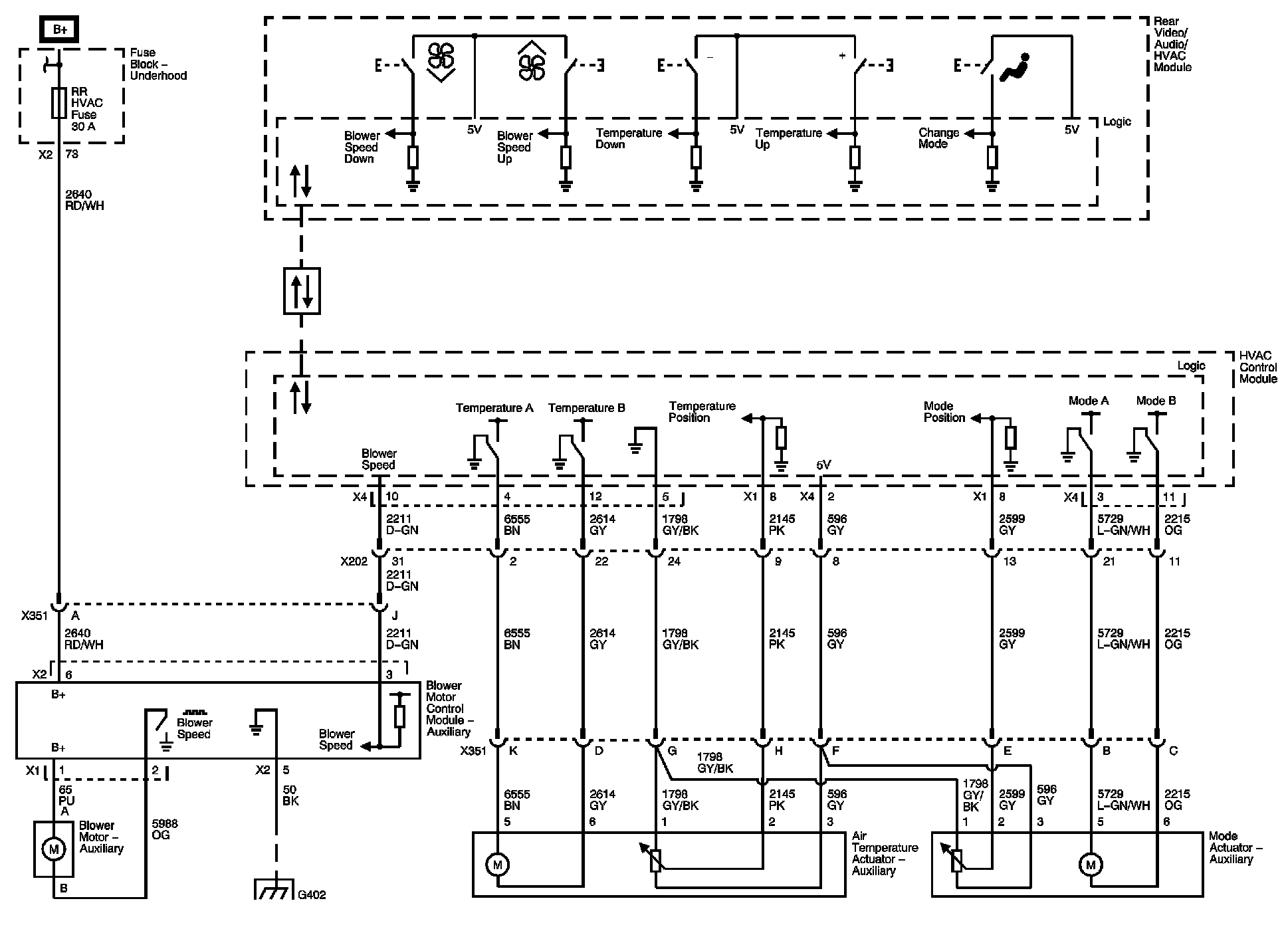

Rear HVAC -UK6

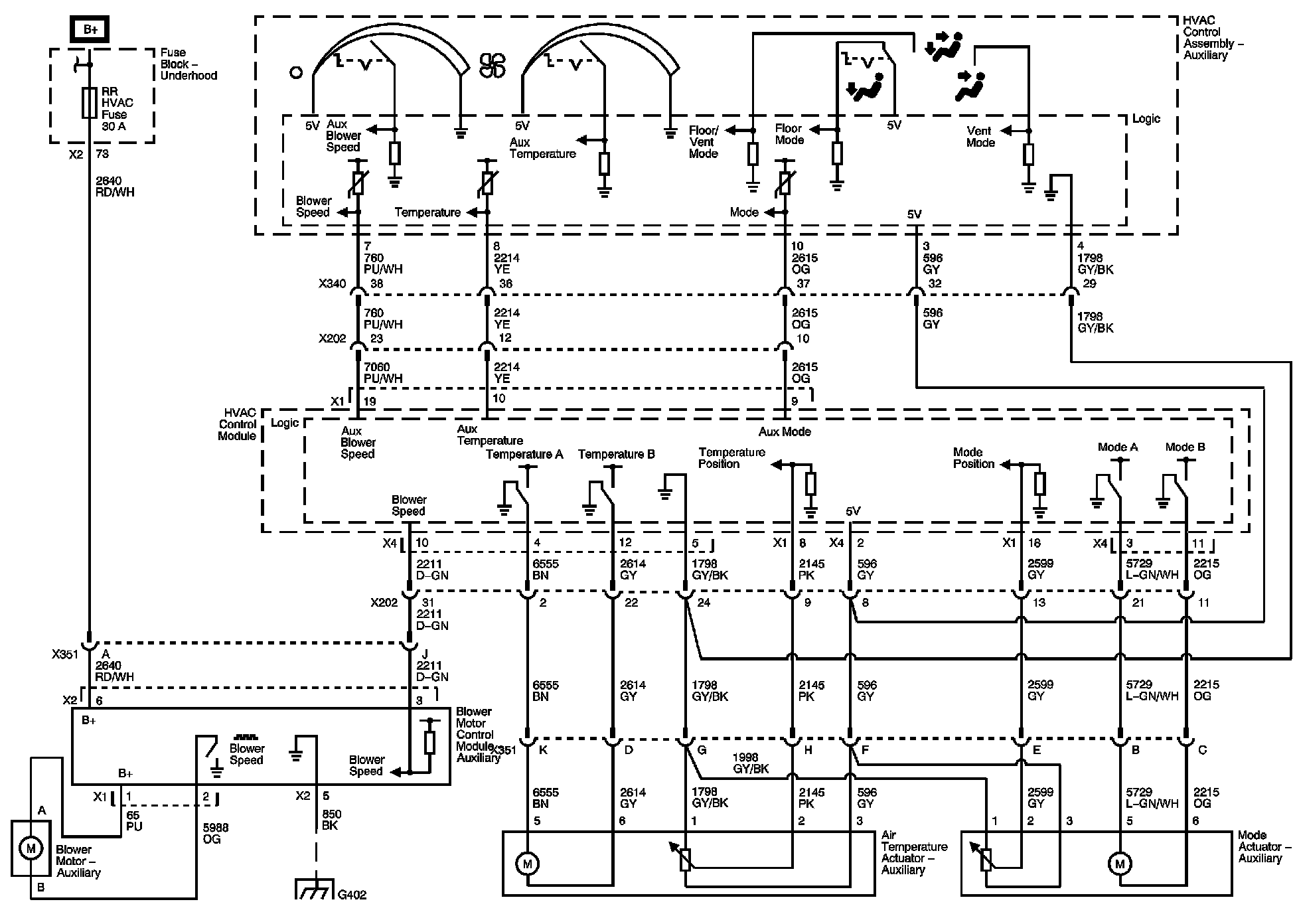

Rear HVAC UK6






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
