HVAC - Automatic

HVAC Schematics

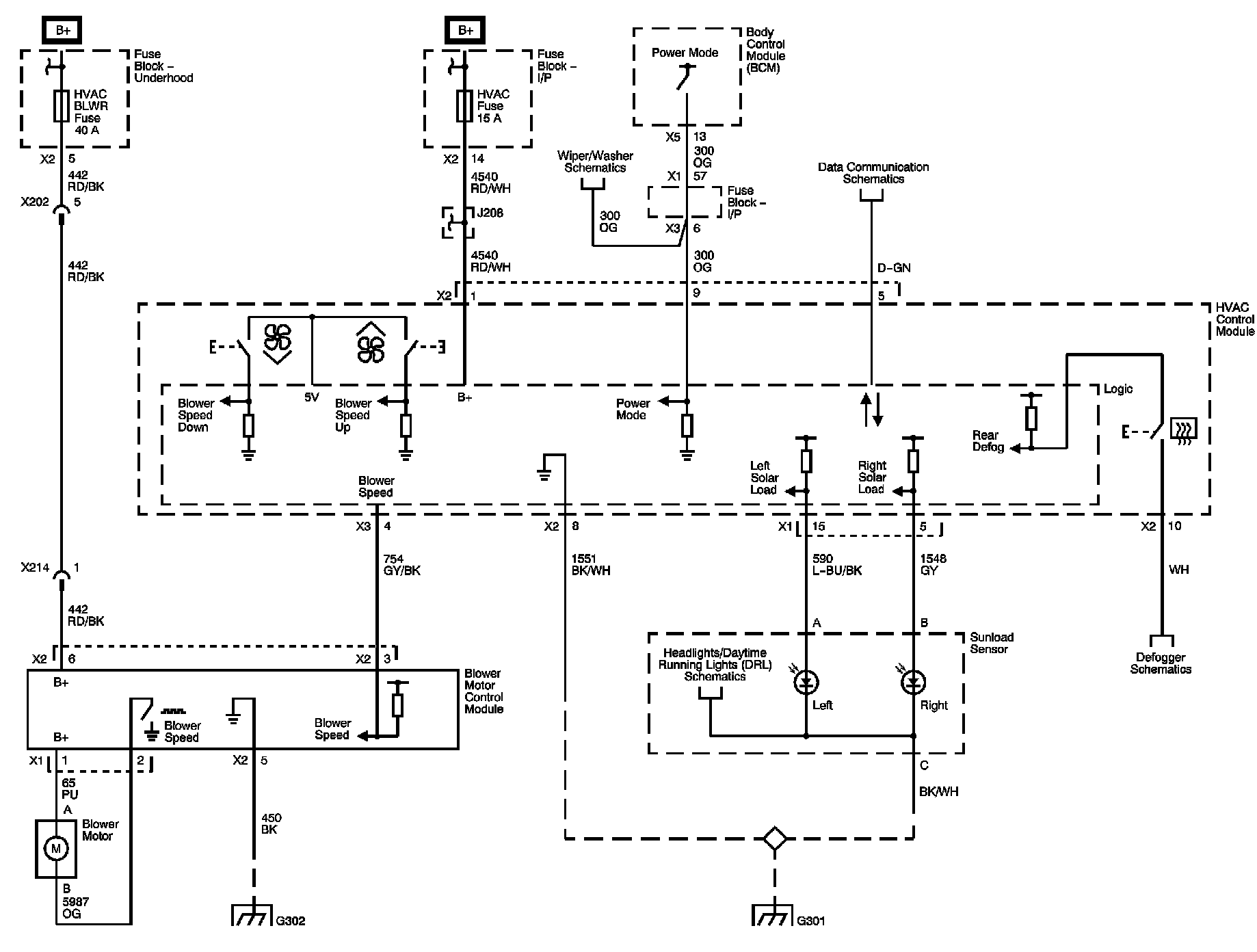

Module Power and Ground, Blower Control, Data Communication and Sunload

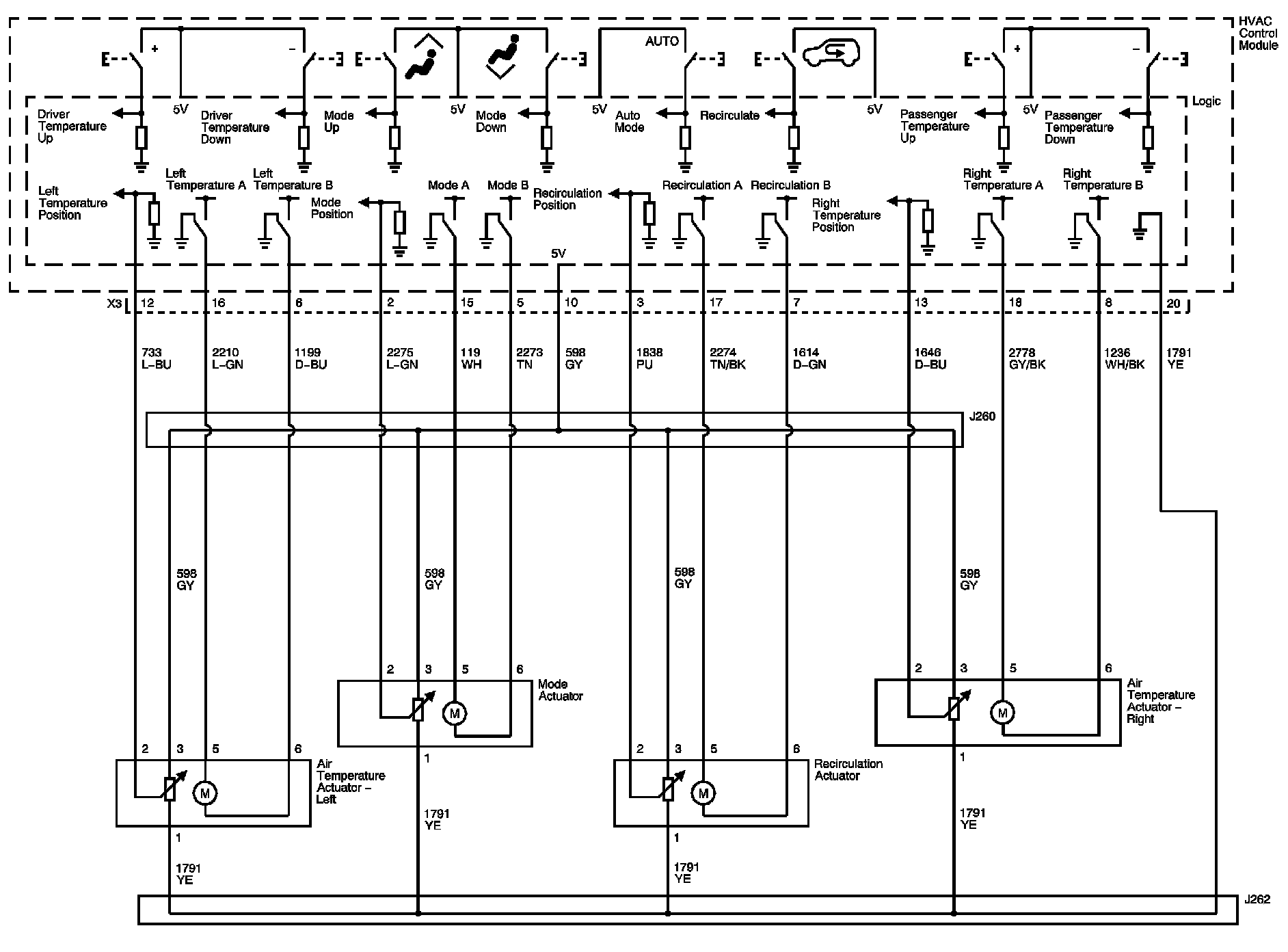

Actuators

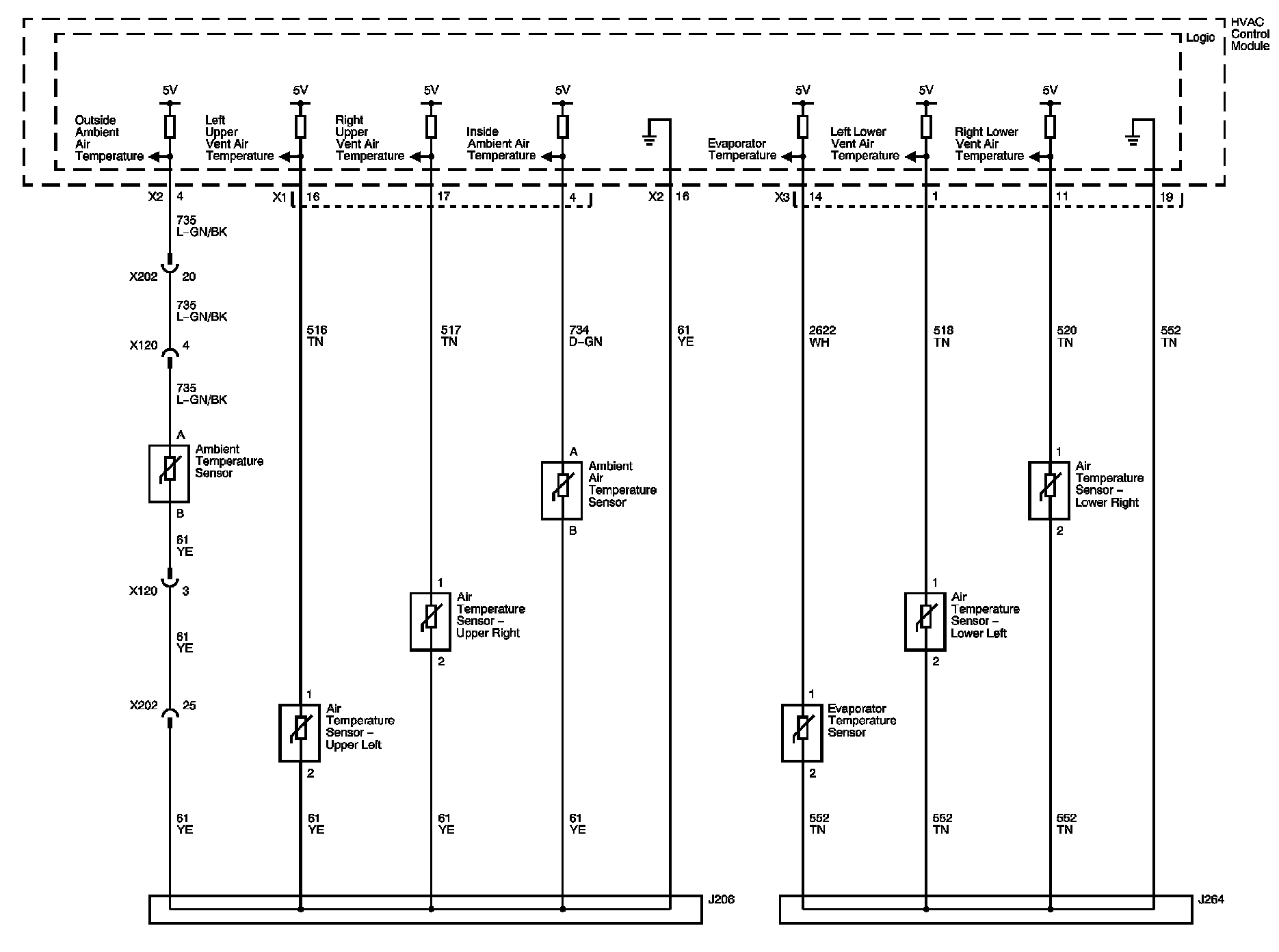

Sensors






Compressor Controls

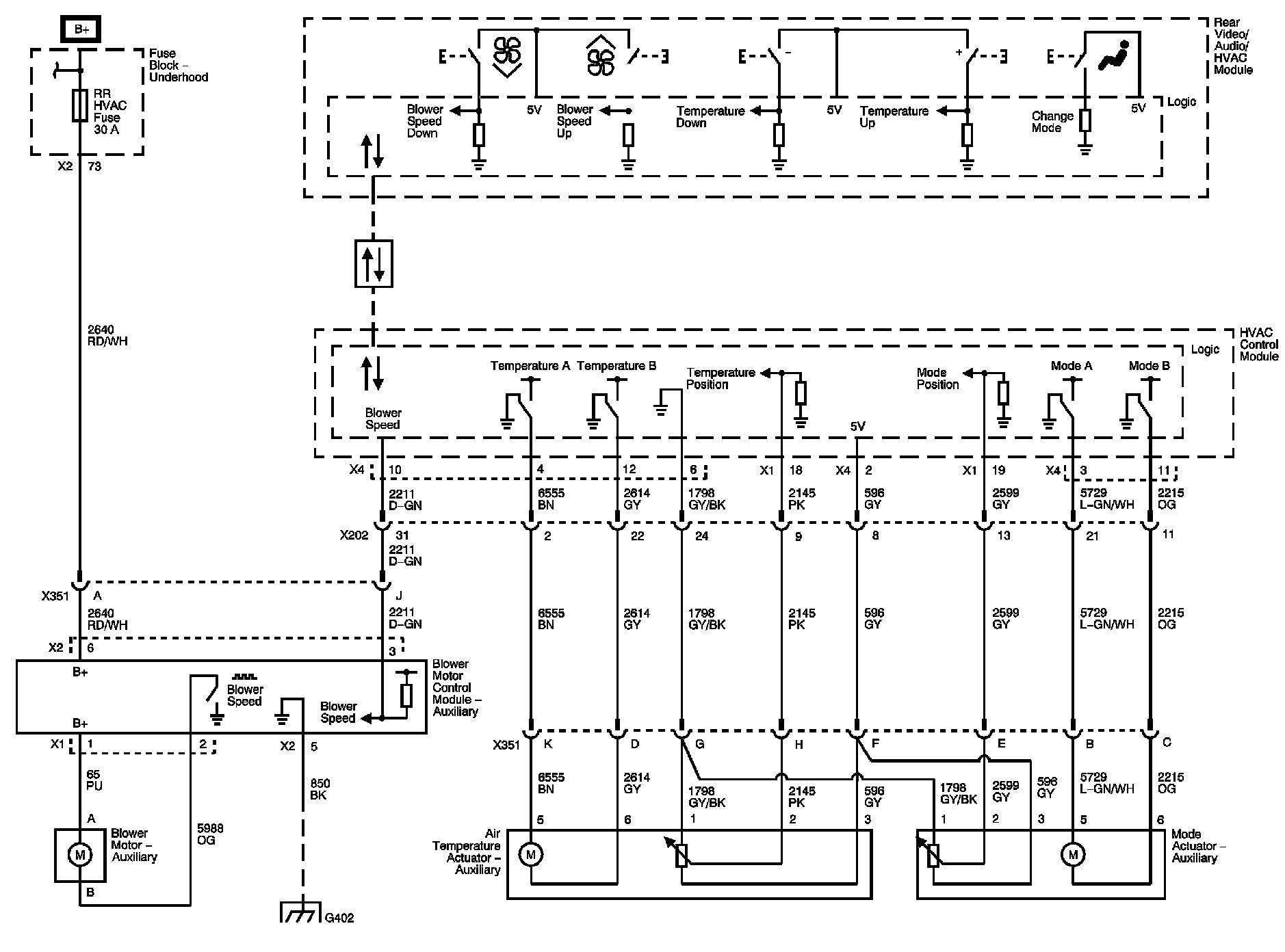

Rear HVAC -UK6

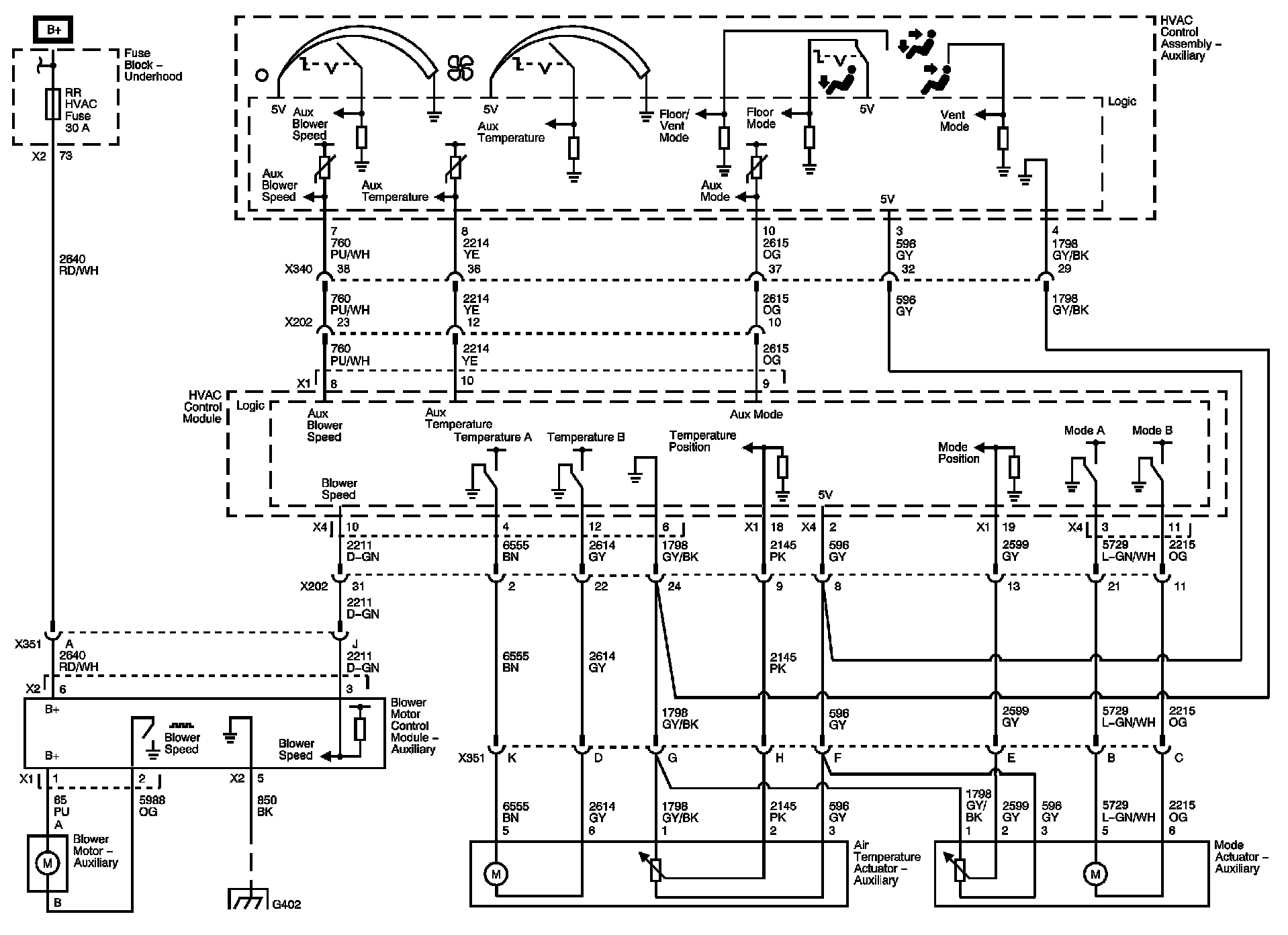

Rear HVAC UK6






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
