Air Bag Systems

SIR Schematics

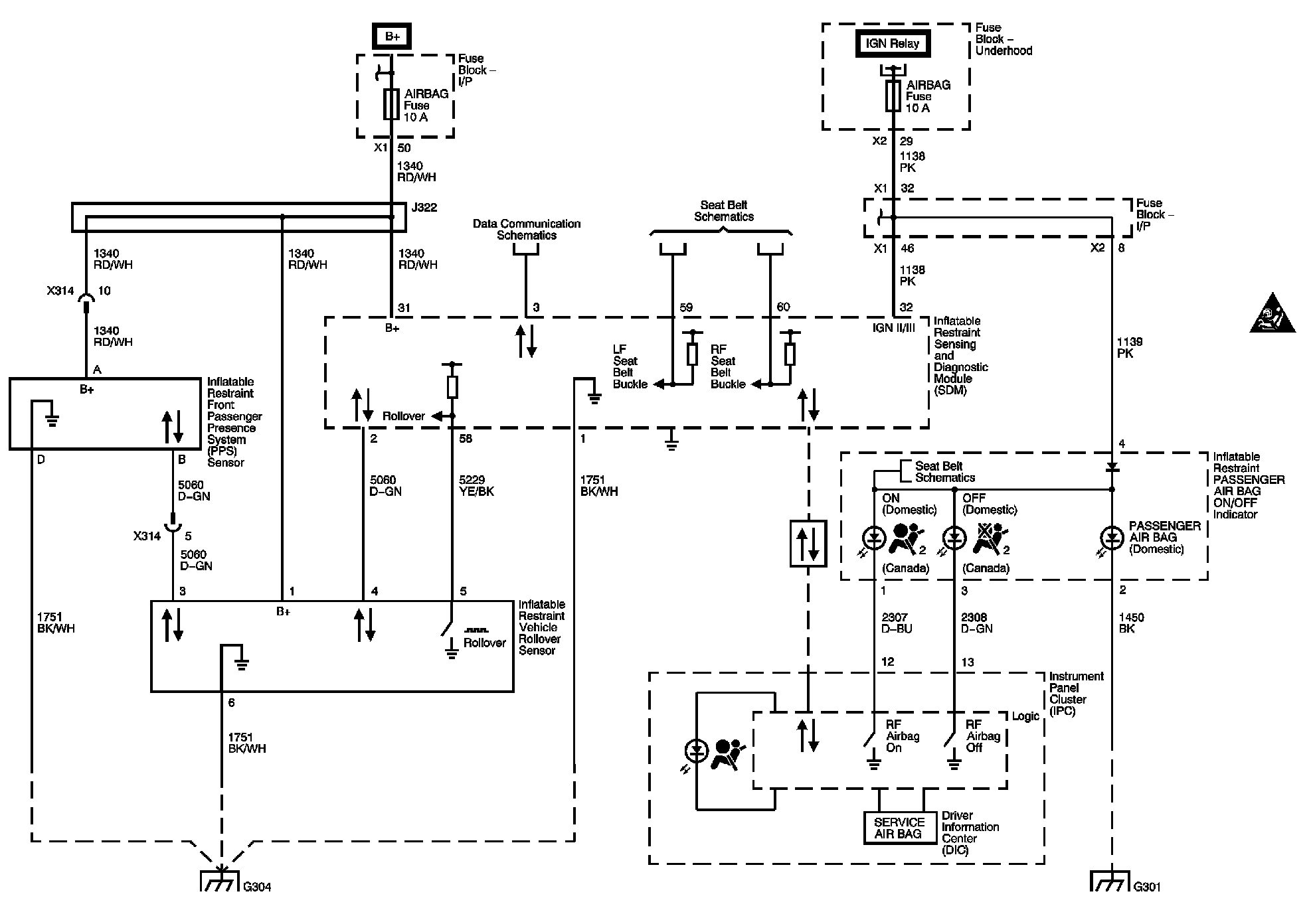

Module Power, Ground, Indicators, Rollover/Passenger Presence Sensors

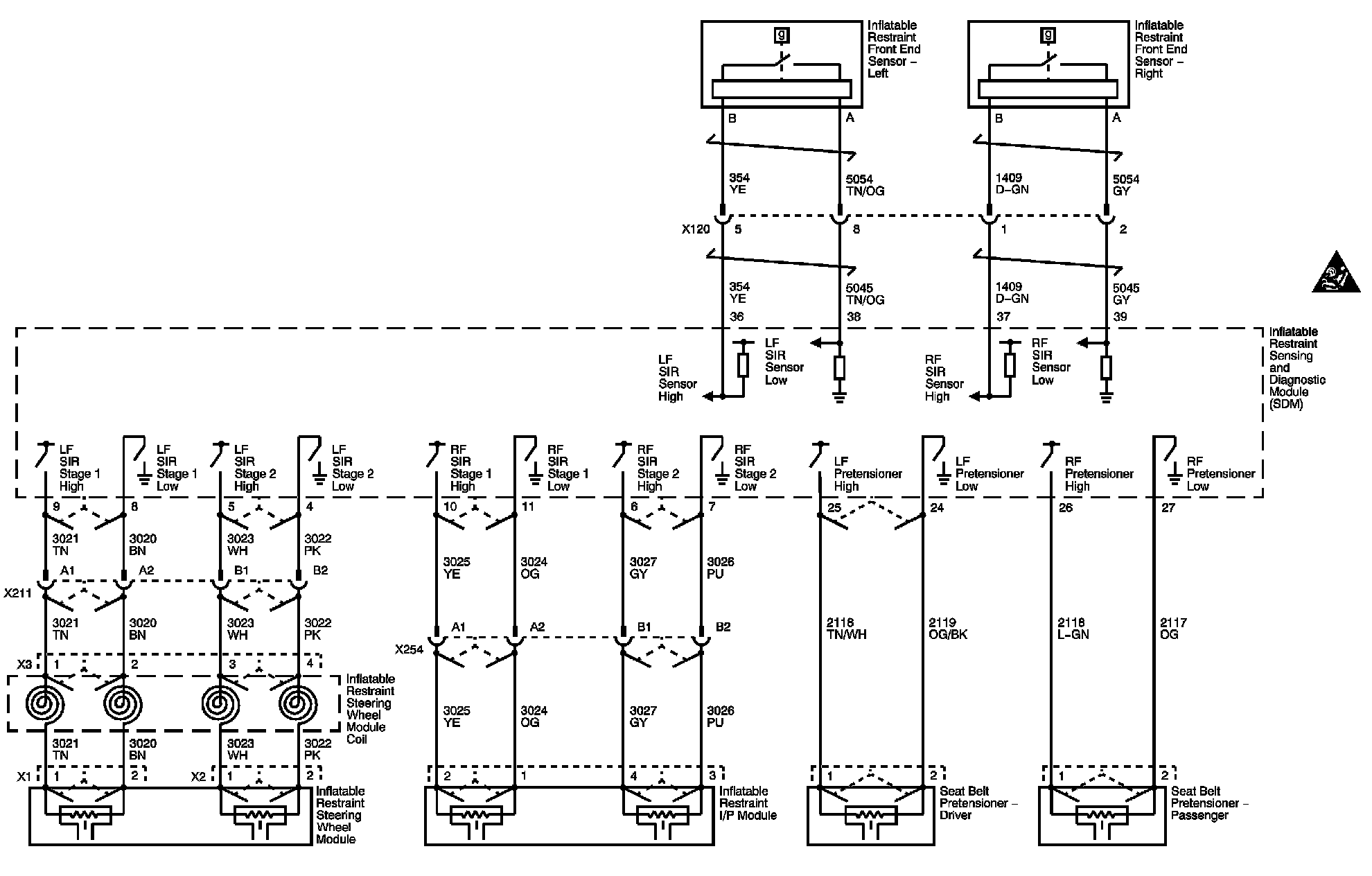

Seat Position/Front End Sensors, Seat Belt Pretentioners, and Front Air Bags

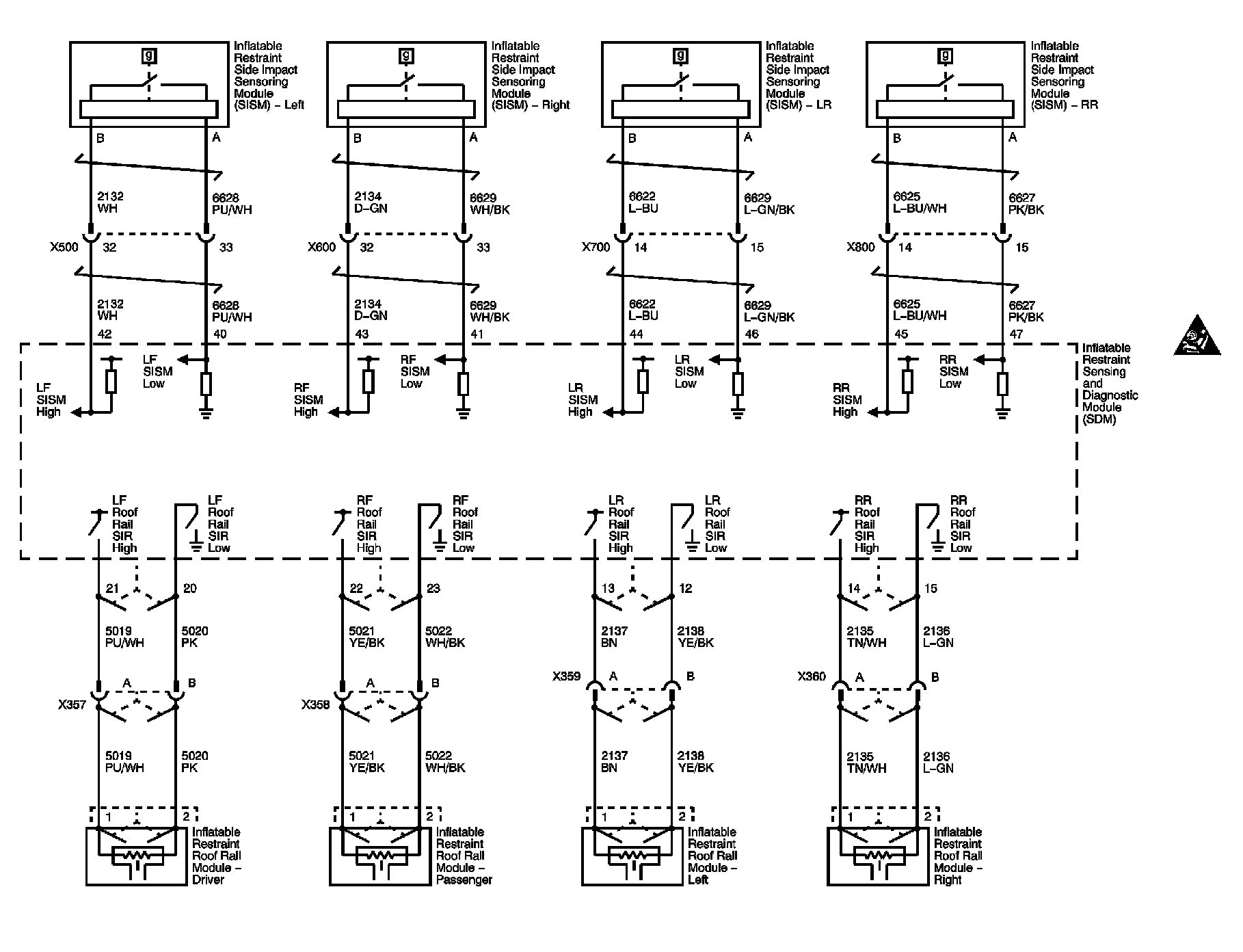

Side Impact Sensors and Roof Rail/Side Impact Air Bags






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
