Camshaft Position (CMP) Actuator Solenoid - Exhaust Bank 2 (With RPO Code LY7)

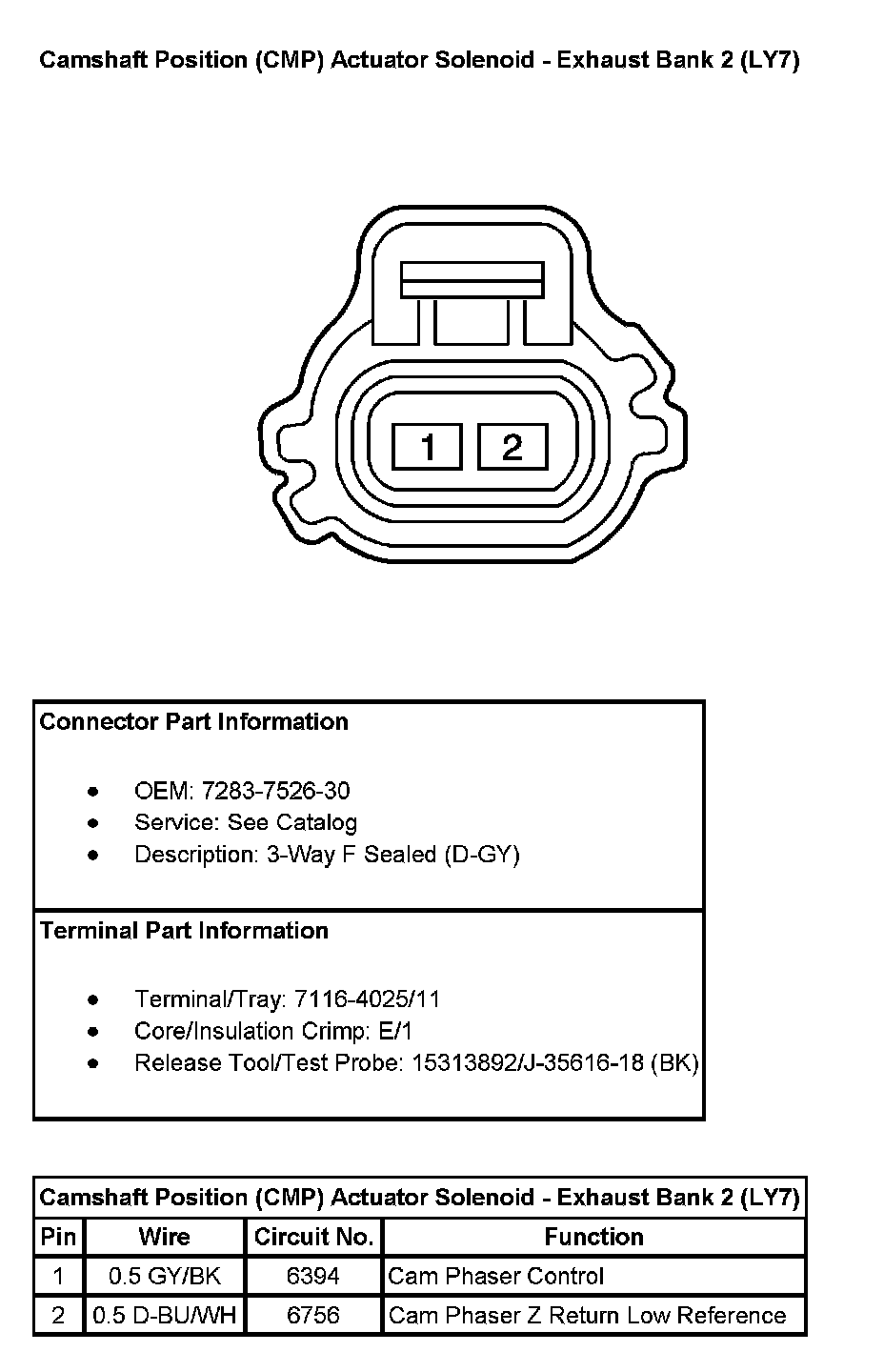

Camshaft Position (CMP) Actuator Solenoid - Exhaust Bank 2 (With RPO Code LY7):
