X933
X933

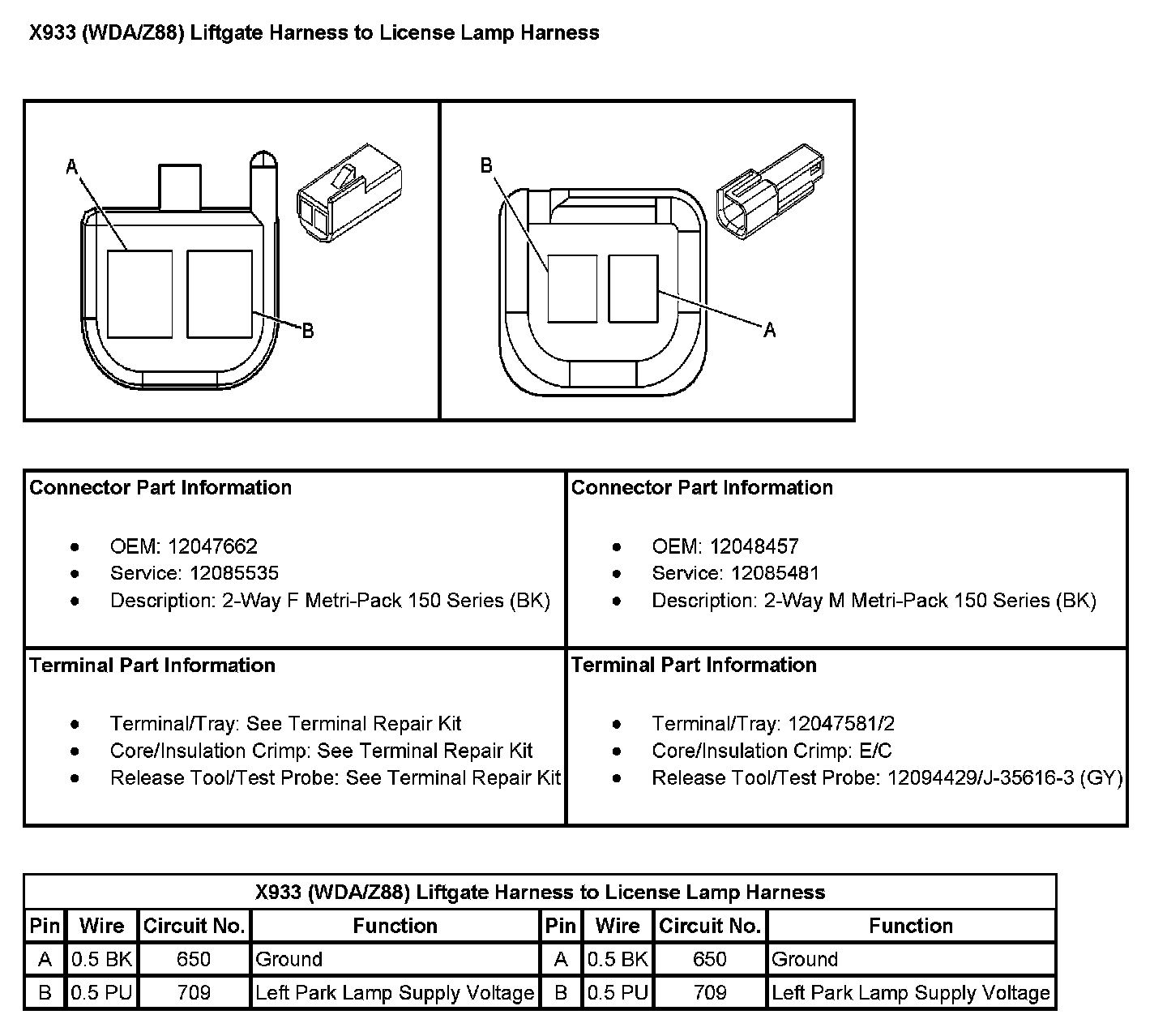

X933 (With RPO Code WDA/Z88) Liftgate Harness To License Lamp Harness (Pin A To B):

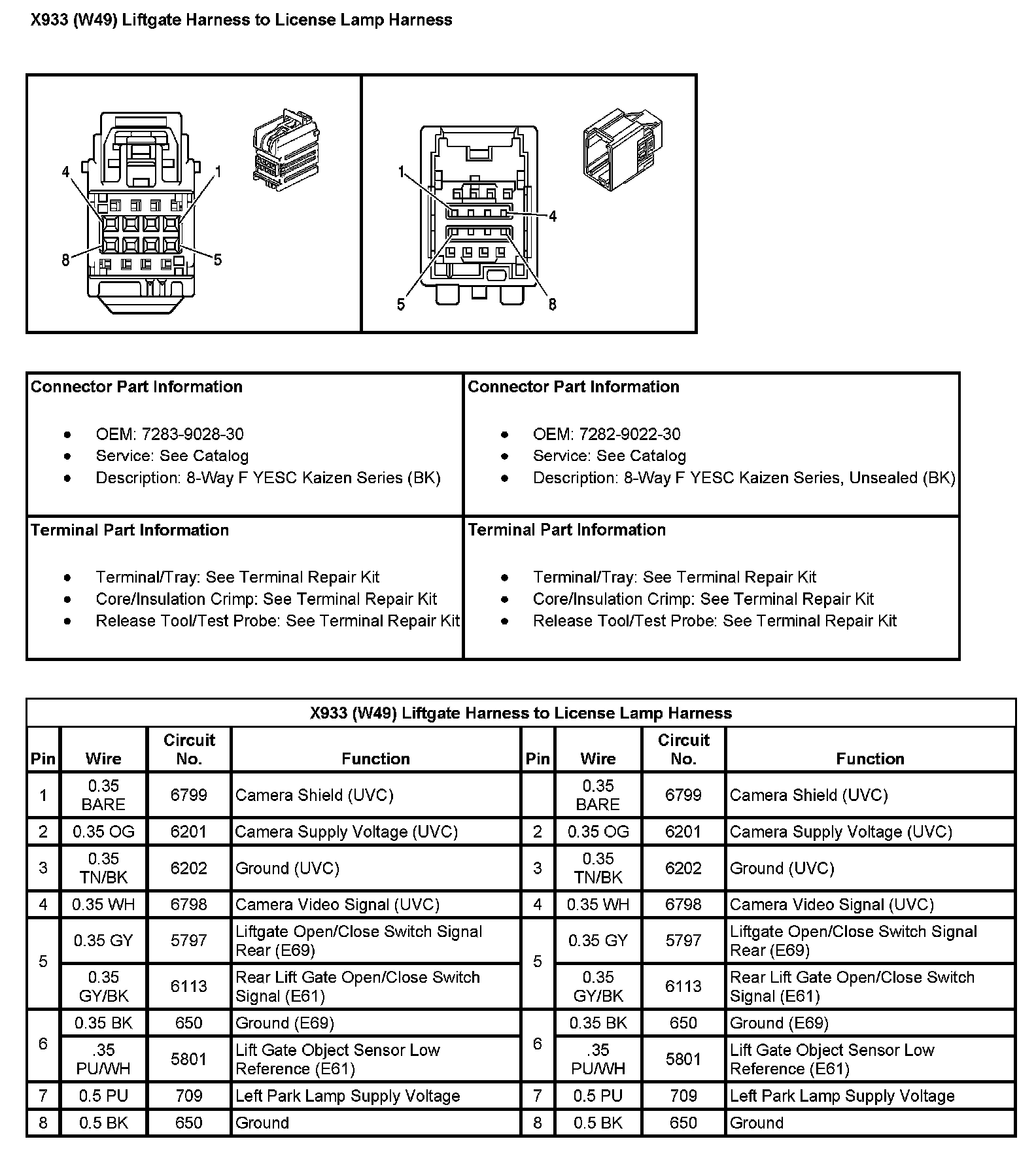

X933 (With RPO Code W49) Liftgate Harness To License Lamp Harness (Pin 1 To 8):
