X911

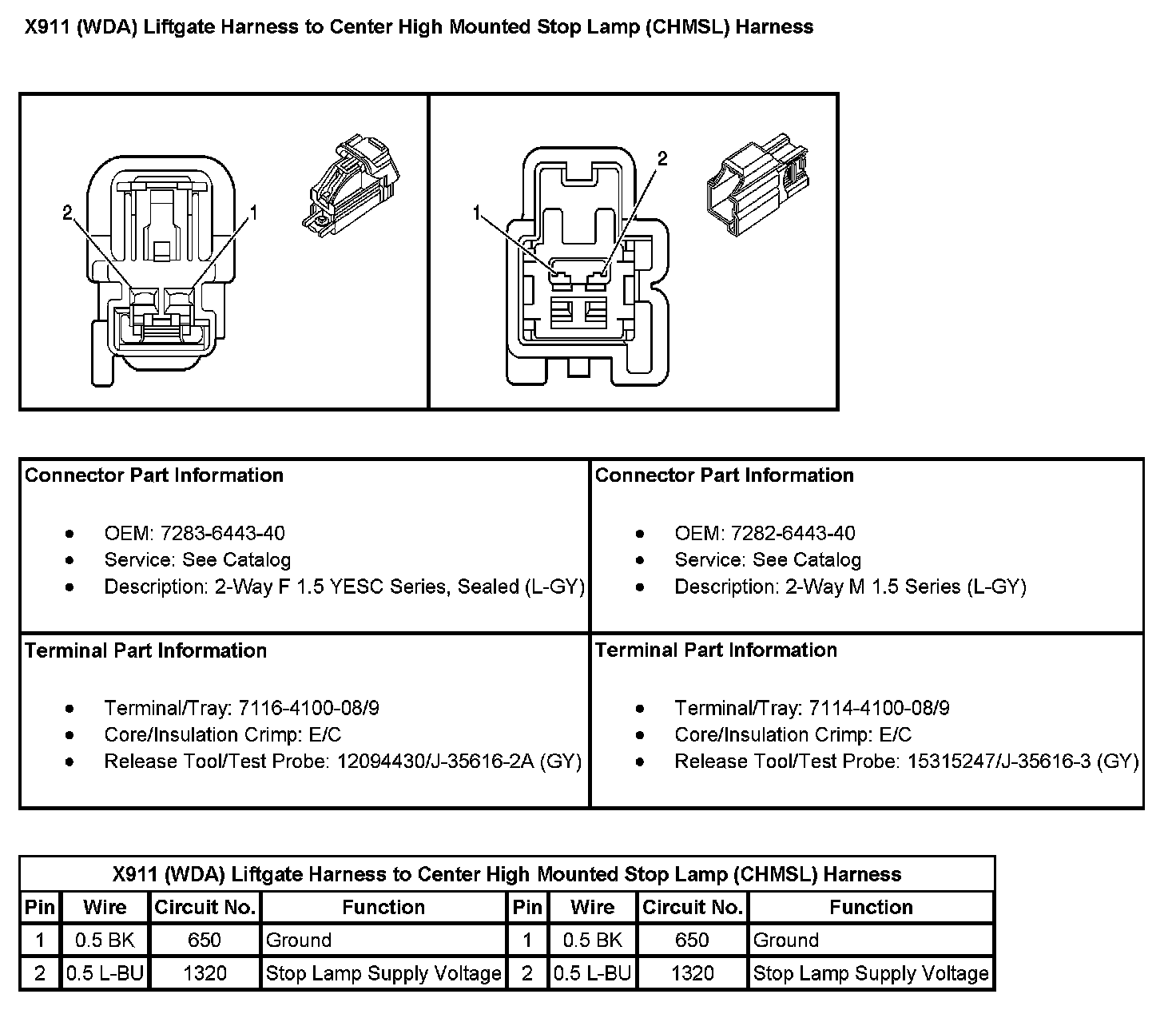

X911 (With RPO Code WDA) Liftgate Harness To Center High Mounted Stop Lamp (CHMSL) Harness (Pin 1 To 2):

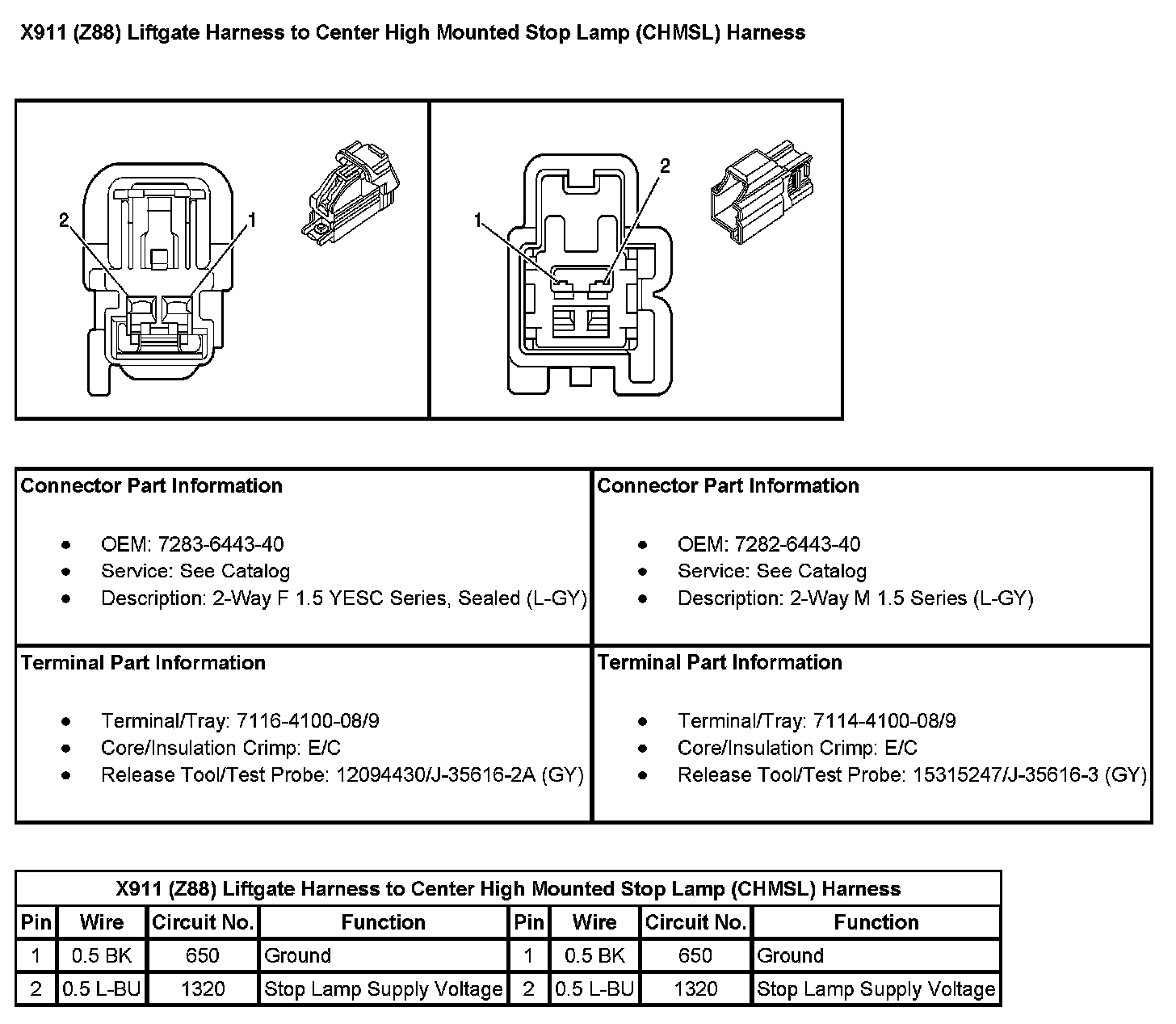

X911 (With RPO Code Z88) Liftgate Harness To Center High Mounted Stop Lamp (CHMSL) Harness (Pin 1 To 2):
