X700 - X799

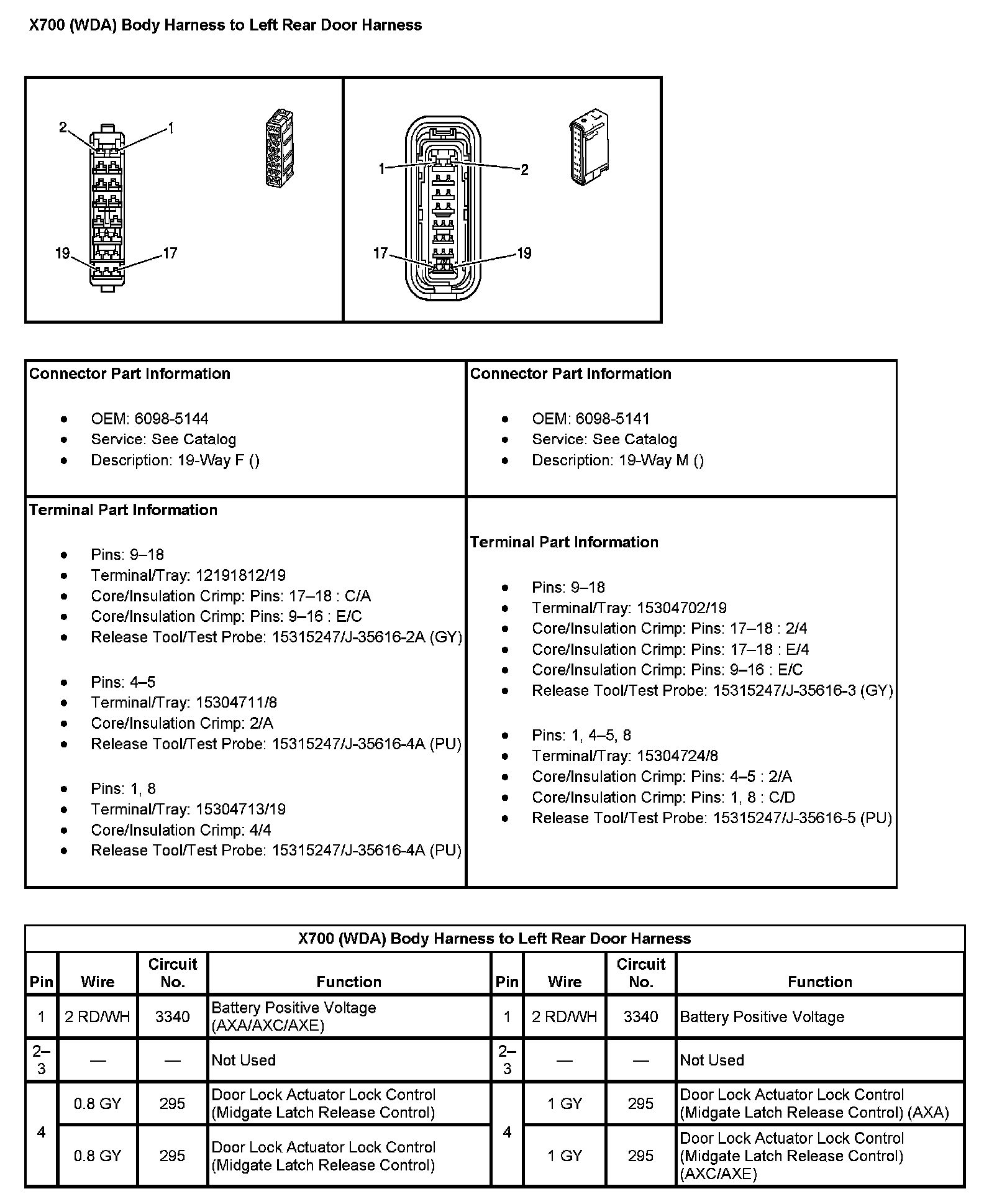

X700 (With RPO Code WDA) Body Harness To Left Rear Door Harness (Pin 1 To 4):

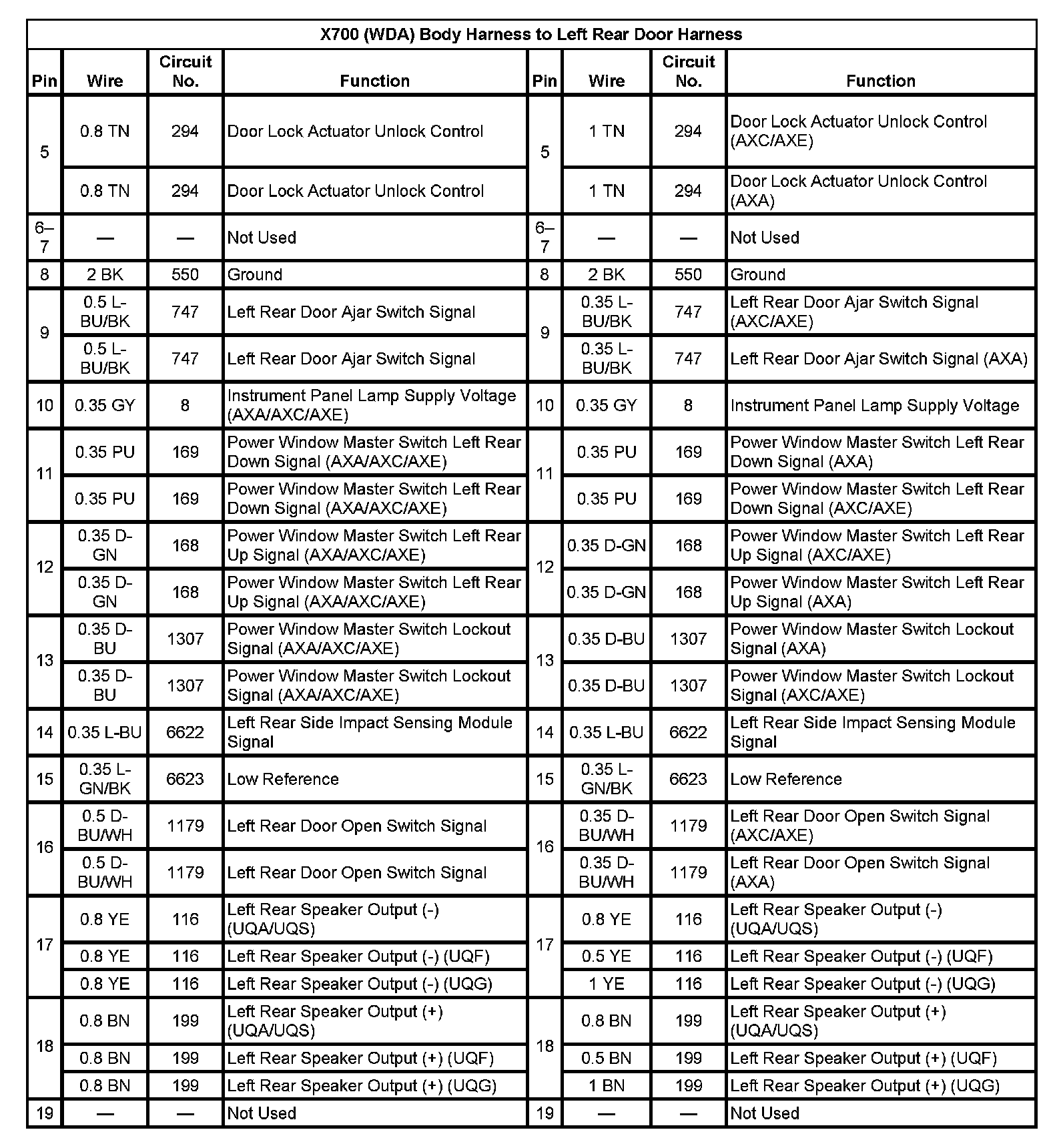

X700 (With RPO Code WDA) Body Harness To Left Rear Door Harness (Pin 5 To 19):

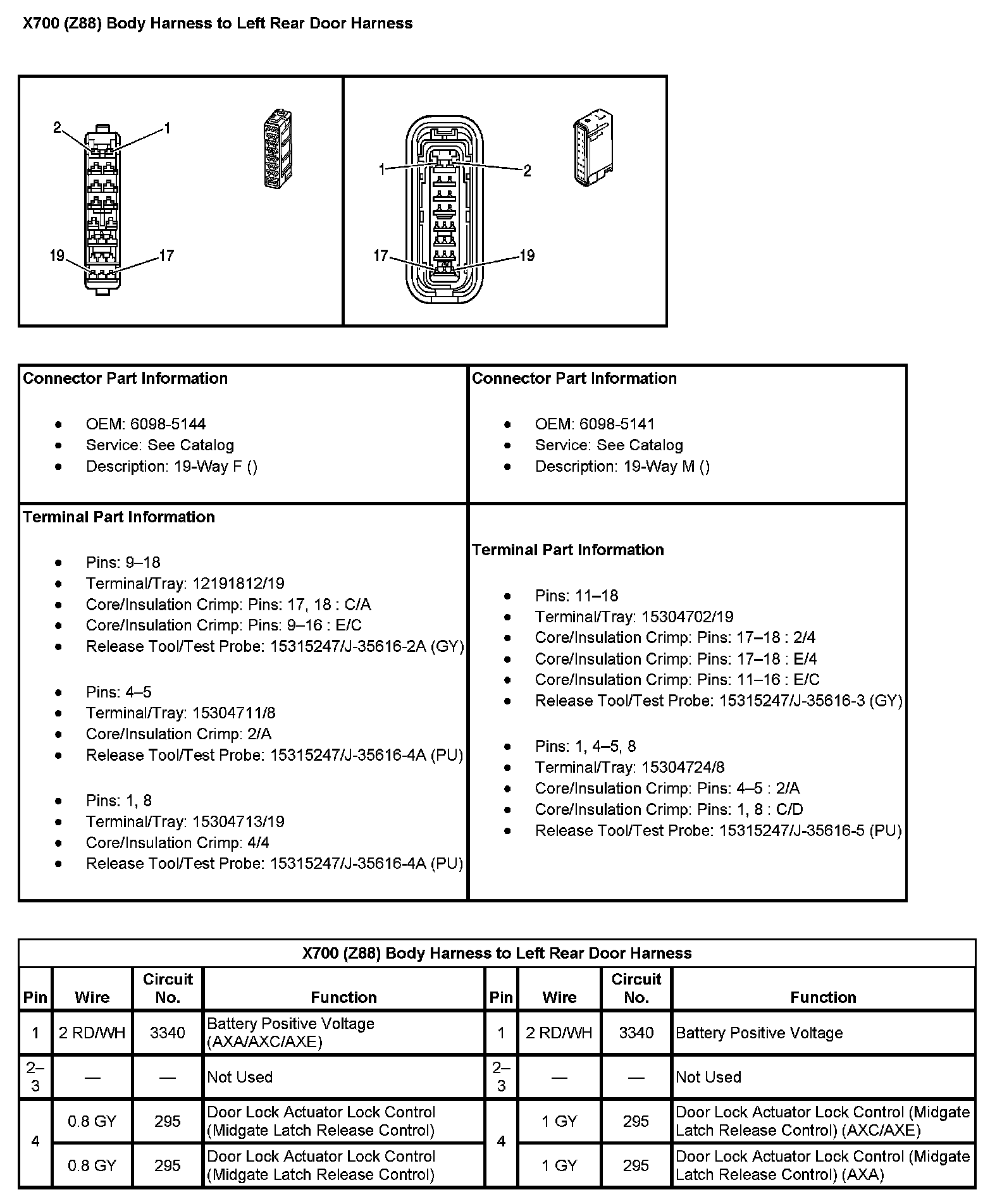

X700 (With RPO Code Z88) Body Harness To Left Rear Door Harness (Pin 1 To 4):

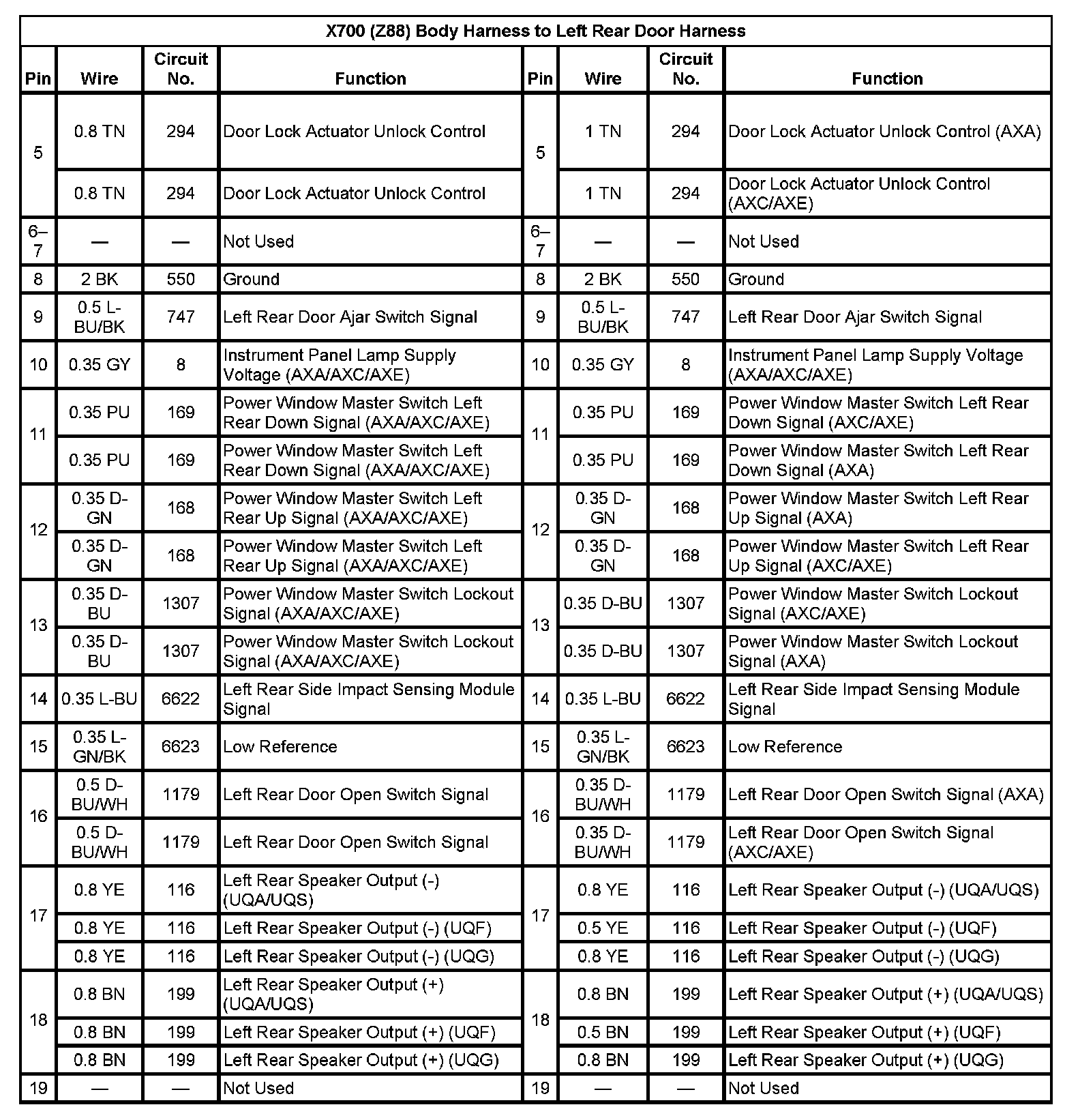

X700 (With RPO Code Z88) Body Harness To Left Rear Door Harness (Pin 5 To 19):
