X666

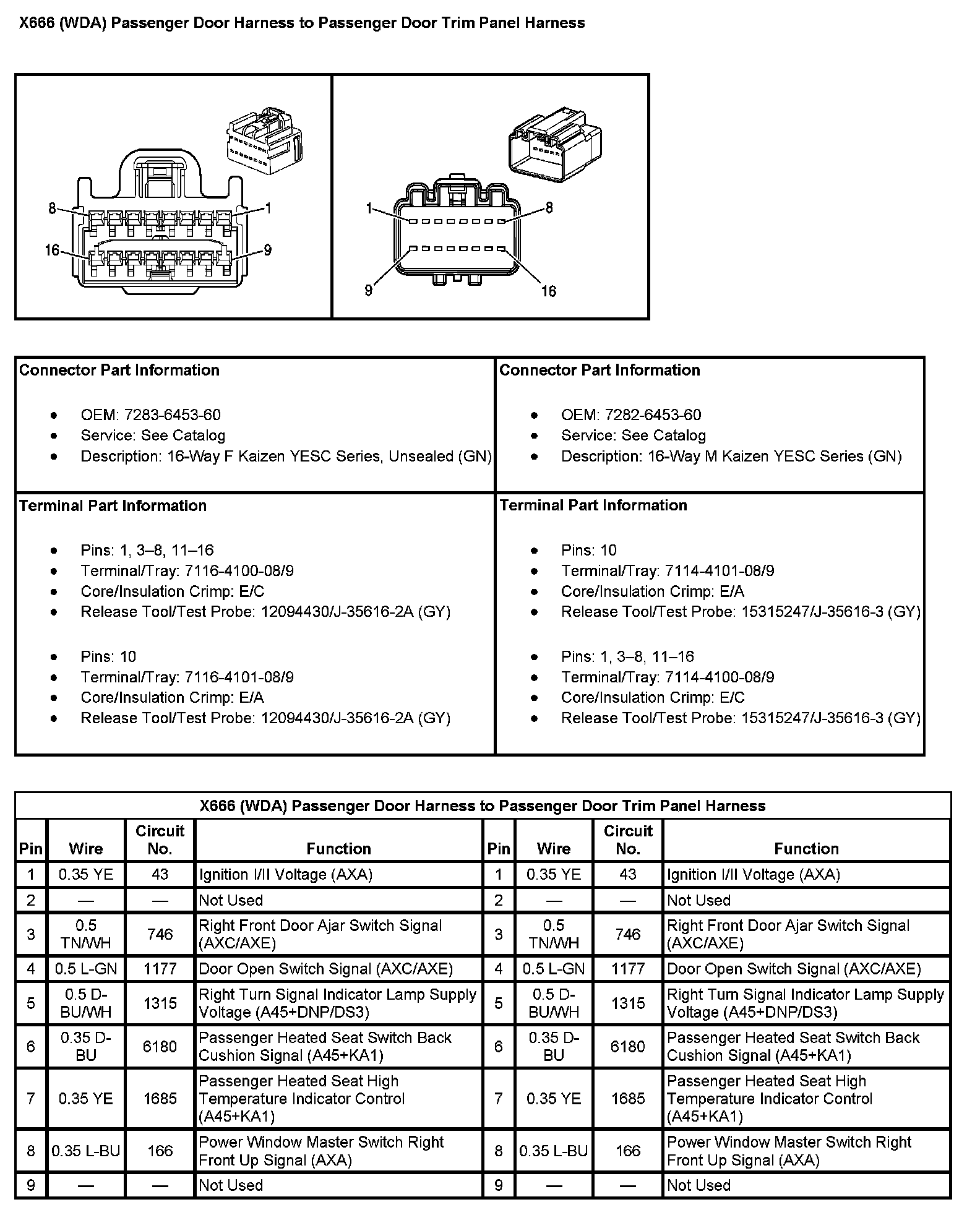

X666 (With RPO Code WDA) Passenger Door Harness To Passenger Door Trim Panel Harness (Pin 1 To 9):

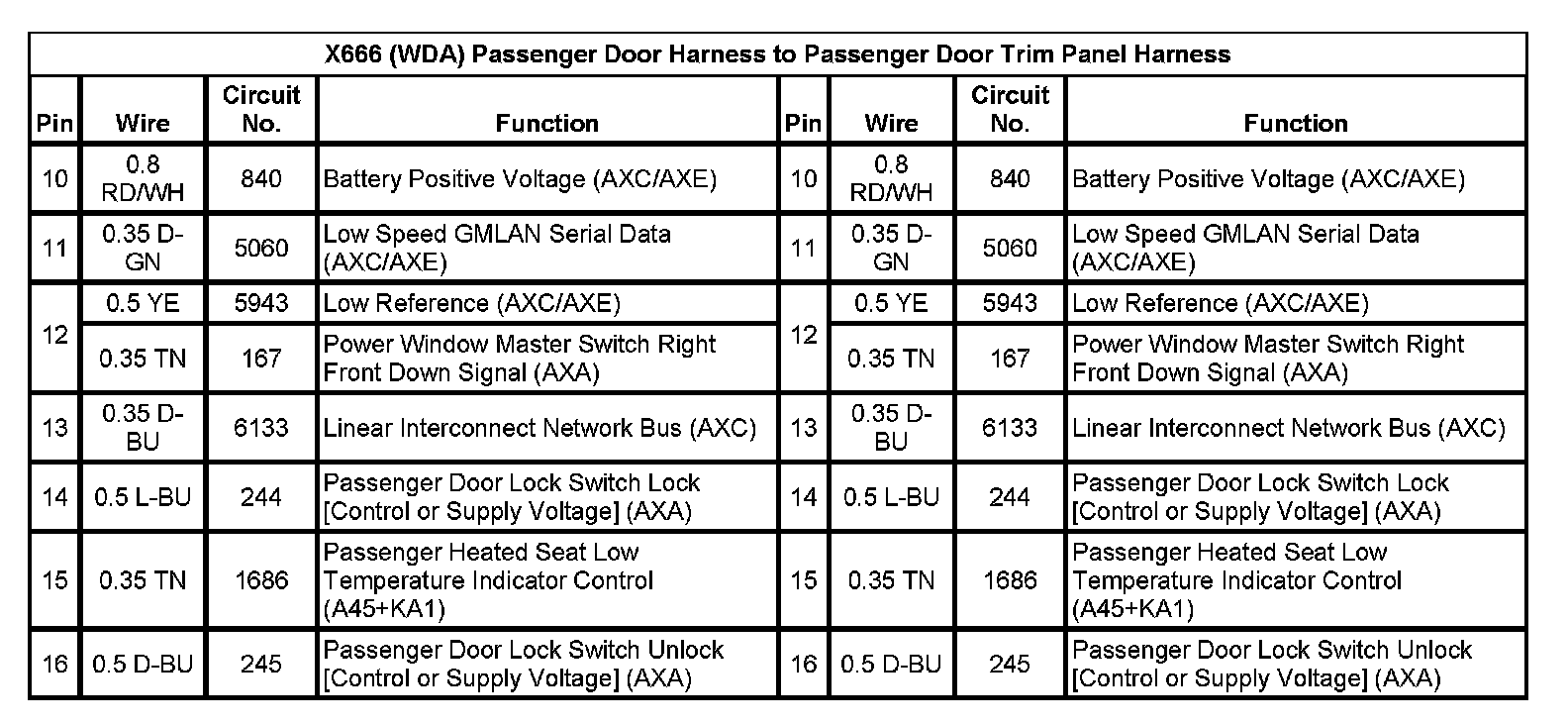

X666 (WDA) Passenger Door Harness To Passenger Door Trim Panel Harness (Pin 10 To 16):

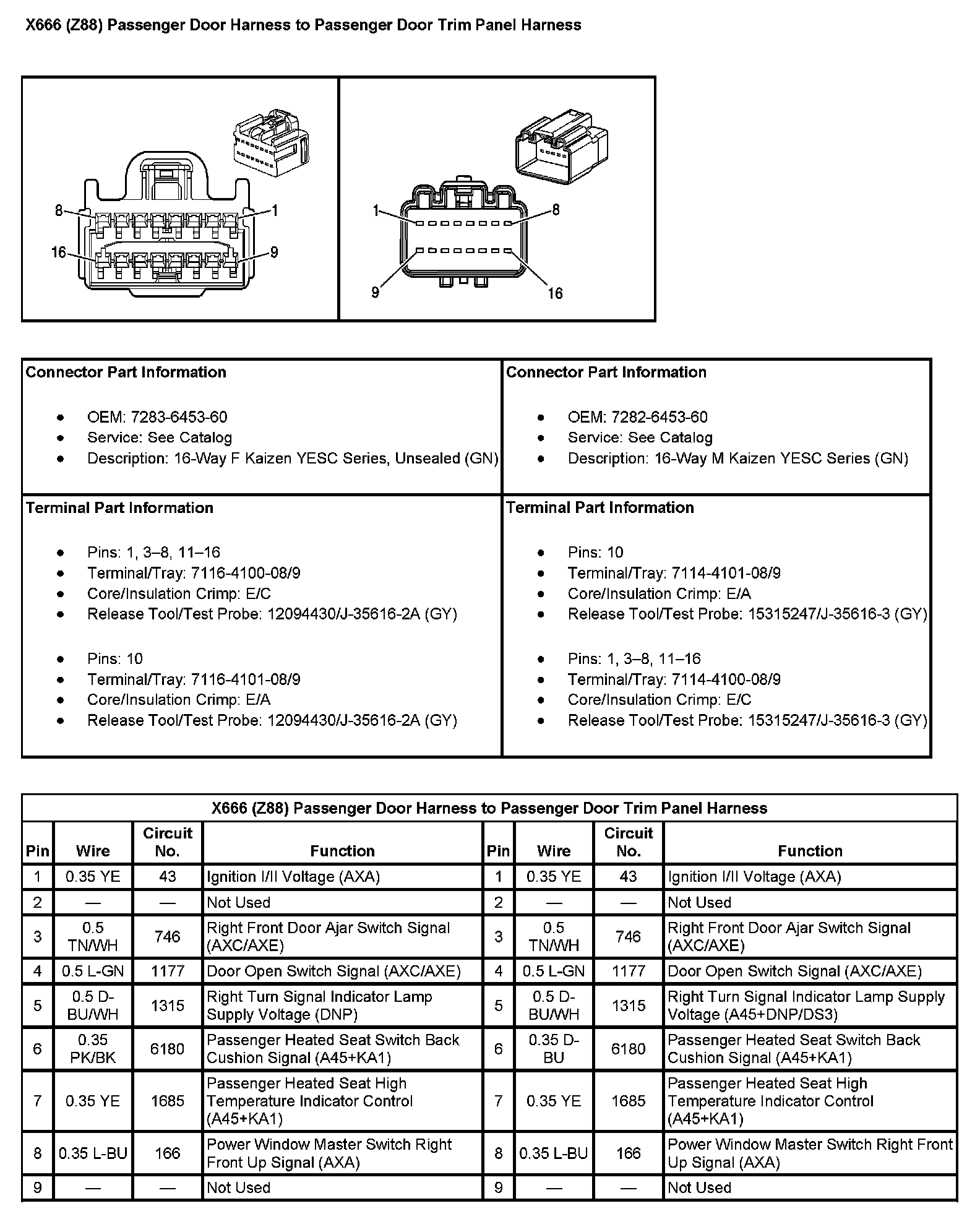

X666 (With RPO Code Z88) Passenger Door Harness To Passenger Door Trim Panel Harness (Pin 1 To 9):

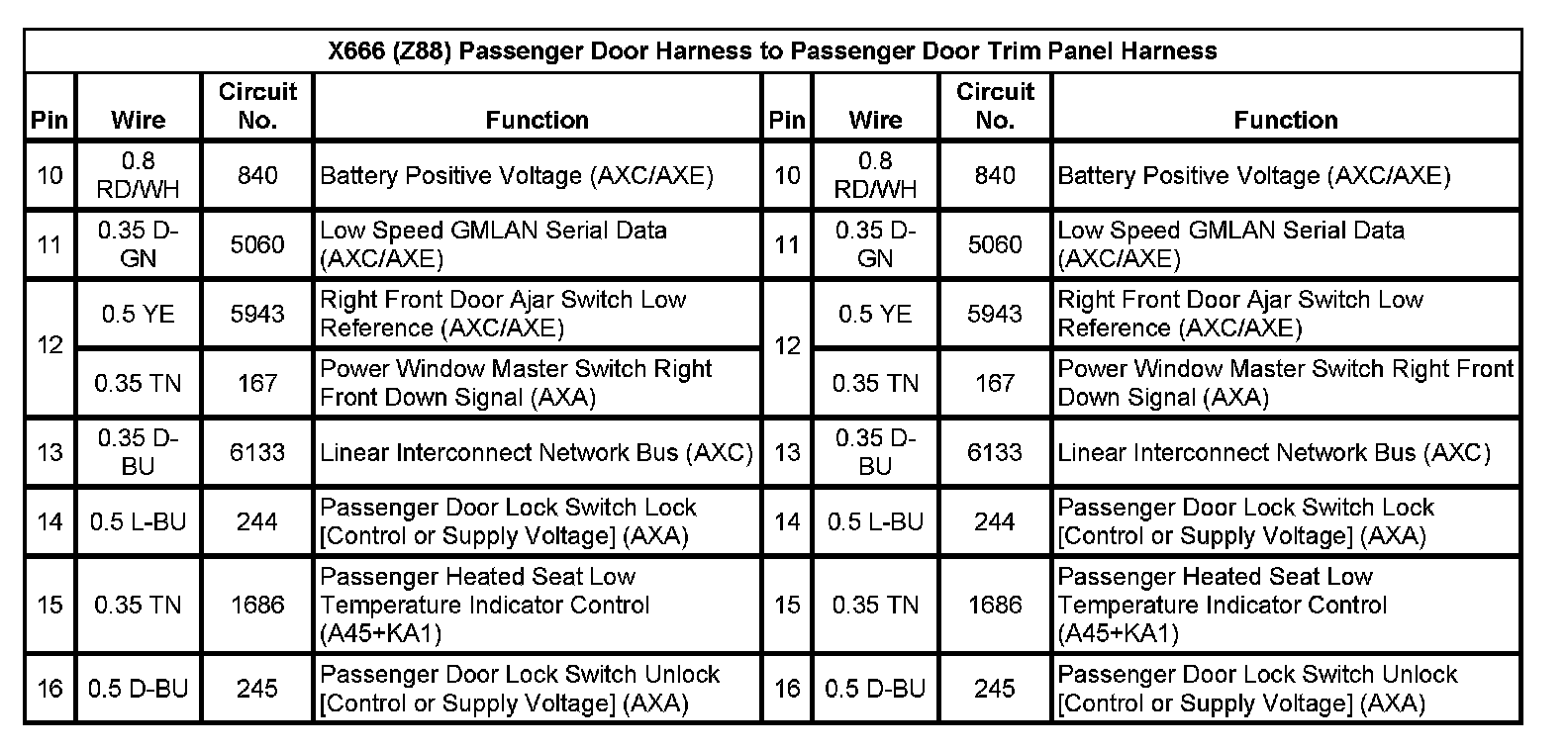

X666 (With RPO Code Z88) Passenger Door Harness To Passenger Door Trim Panel Harness (Pin 10 To 16):
