X600

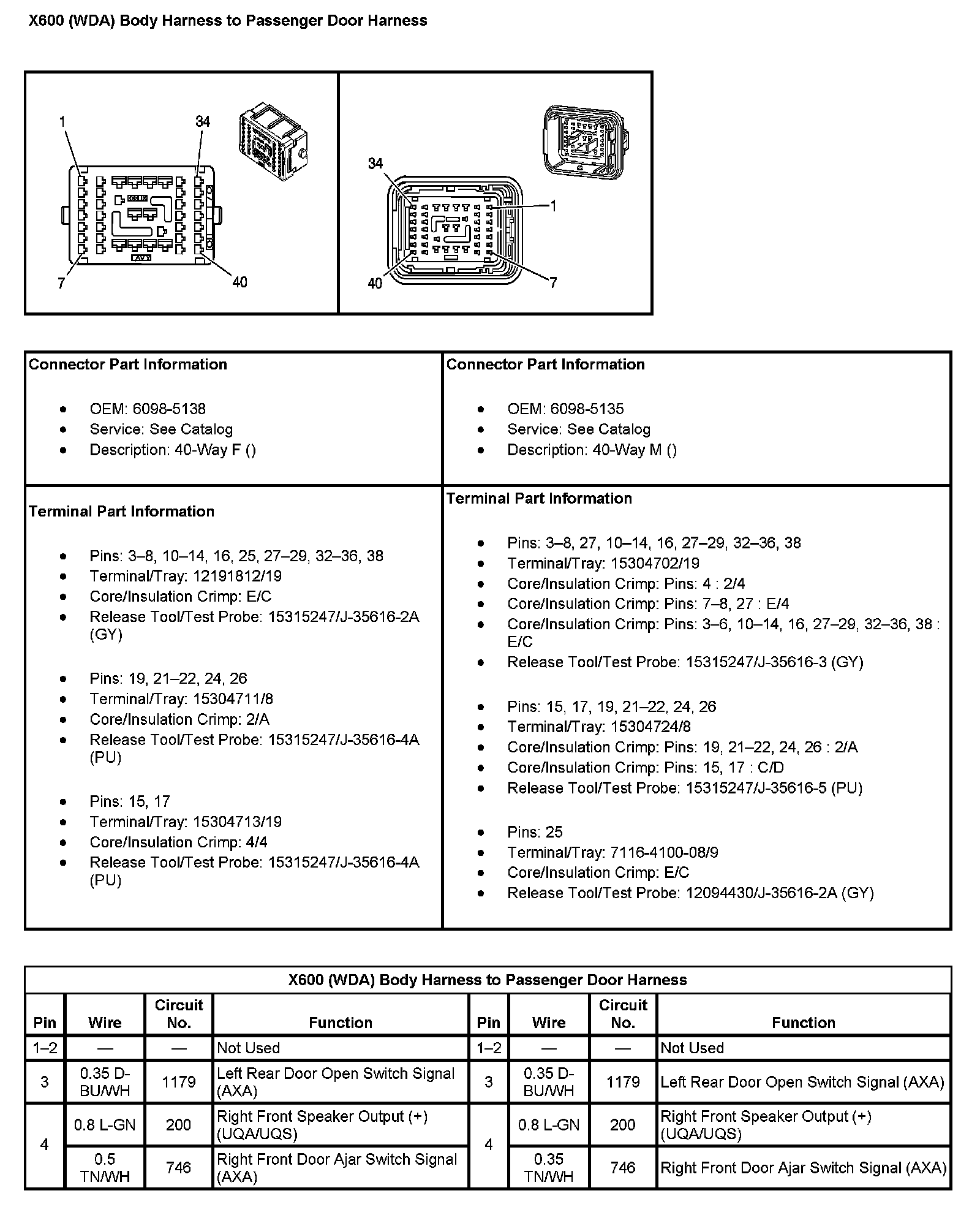

X600 (With RPO Code WDA) Body Harness To Passenger Door Harness (Pin 1 To 4):

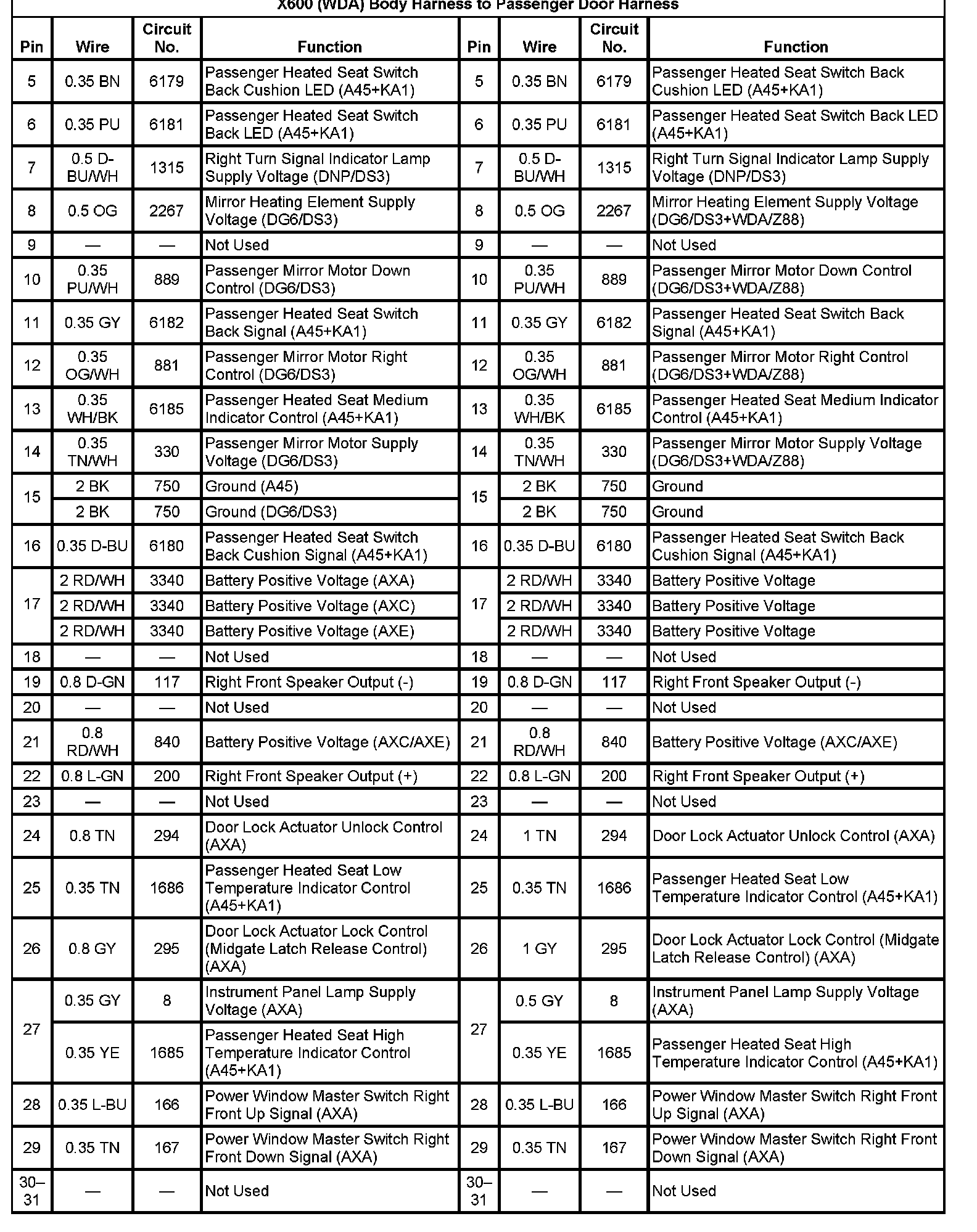

X600 (With RPO Code WDA) Body Harness To Passenger Door Harness (Pin 5 To 31):

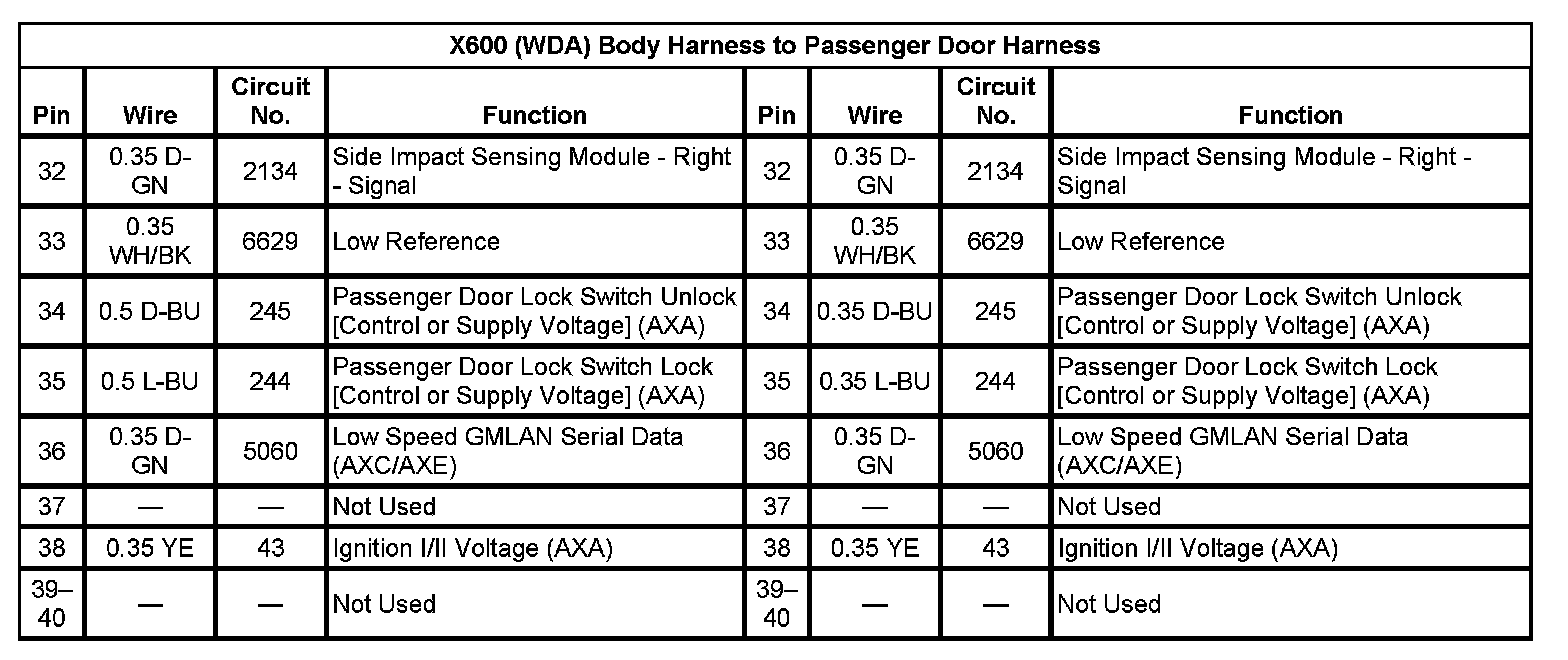

X600 (With RPO Code WDA) Body Harness To Passenger Door Harness (Pin 32 To 40):

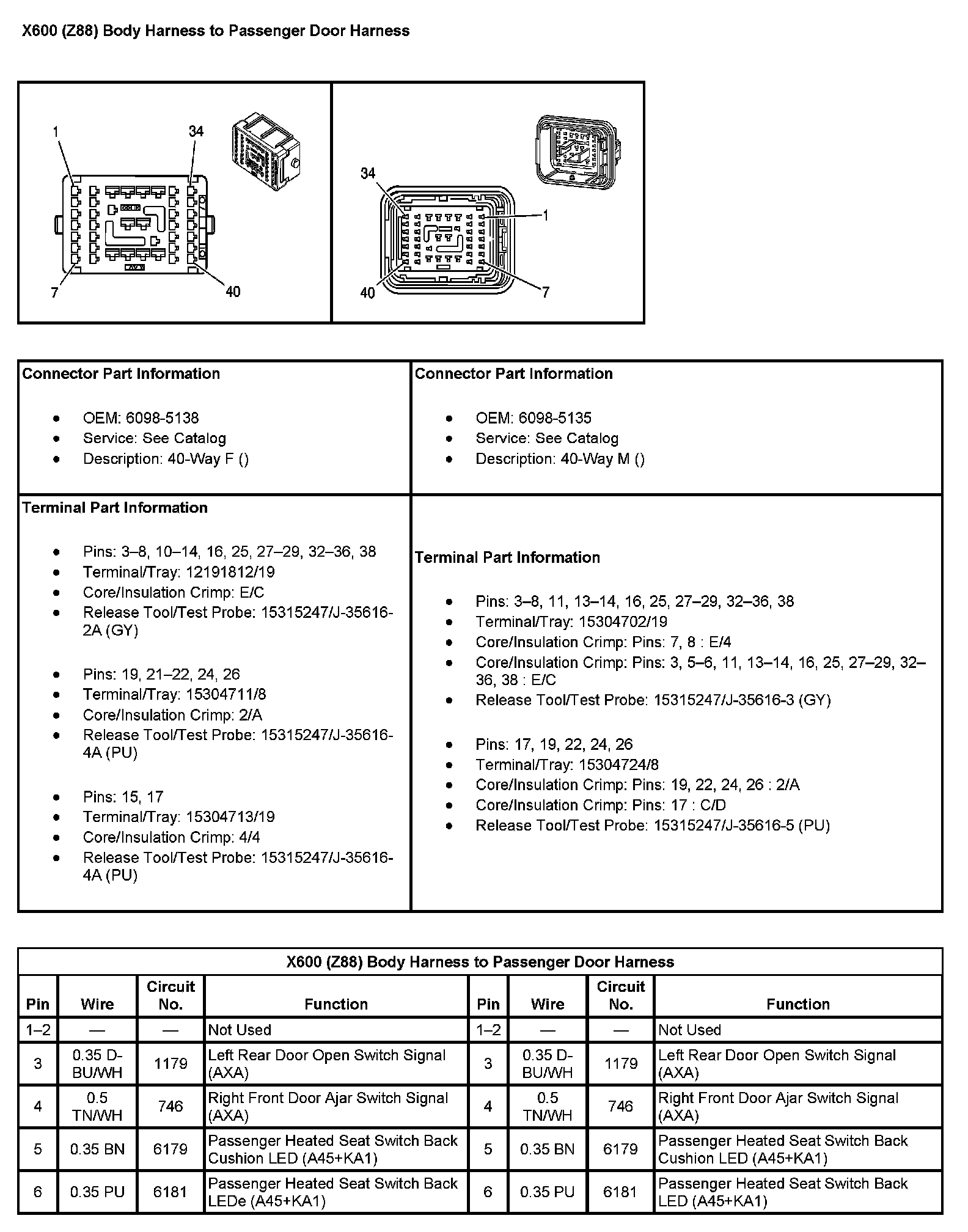

X600 (With RPO Code Z88) Body Harness To Passenger Door Harness (Pin 1 To 6):

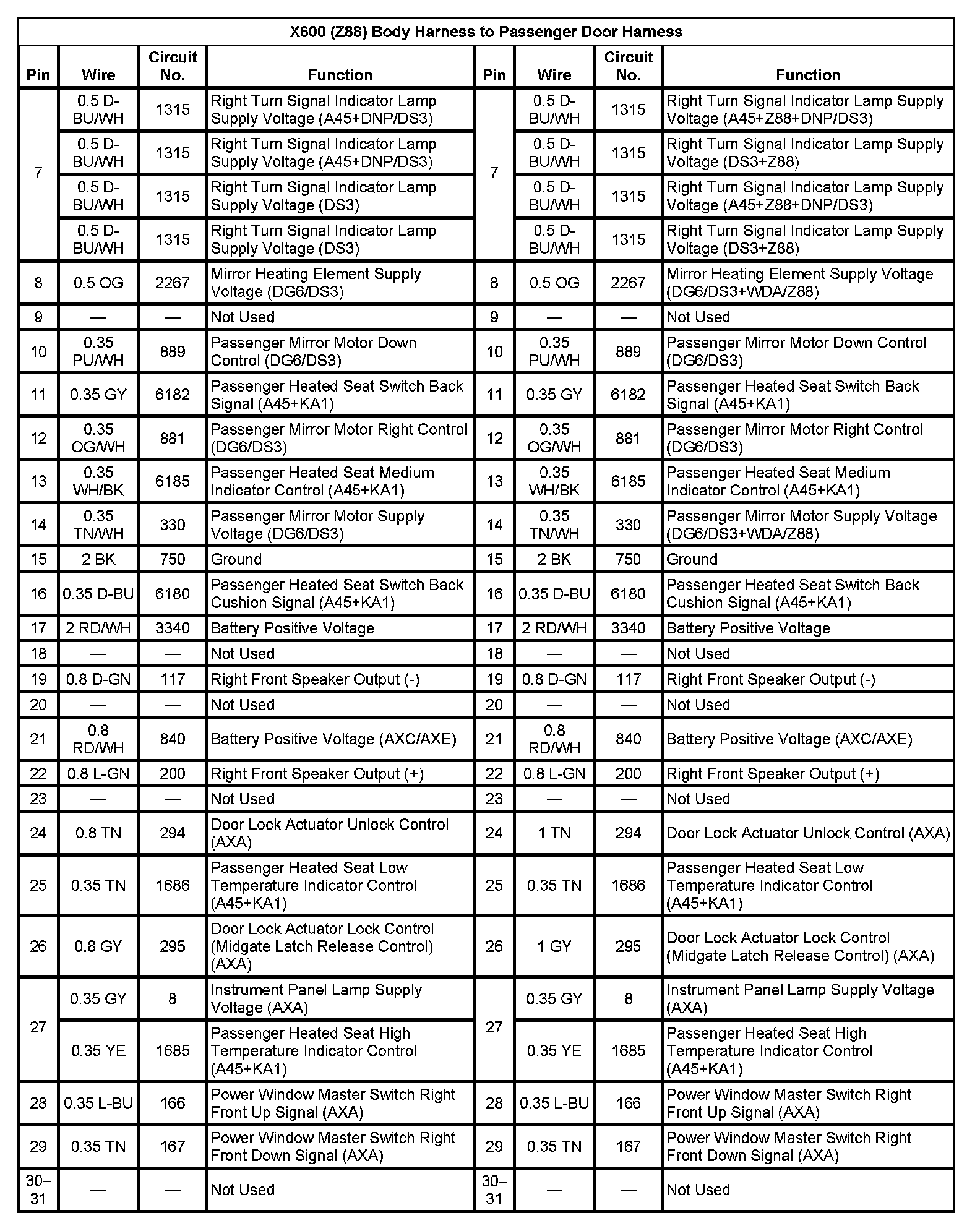

X600 (With RPO Code Z88) Body Harness To Passenger Door Harness (Pin 7 To 31):

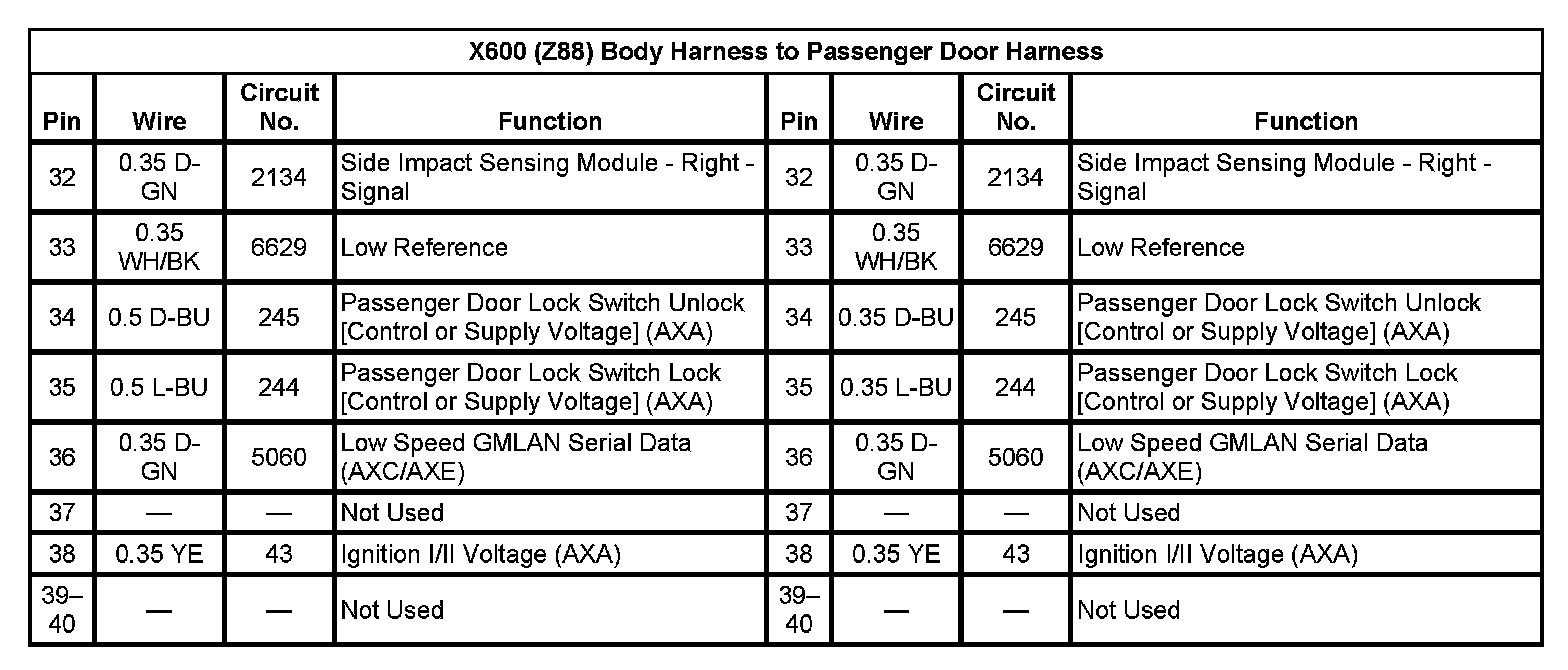

X600 (With RPO Code Z88) Body Harness To Passenger Door Harness (Pin 32 To 40):
