Home >> GMC >> 2007 >> Acadia AWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Starting and Charging >> Multiple Junction Connector >> X500 - X599 >> X500

X500

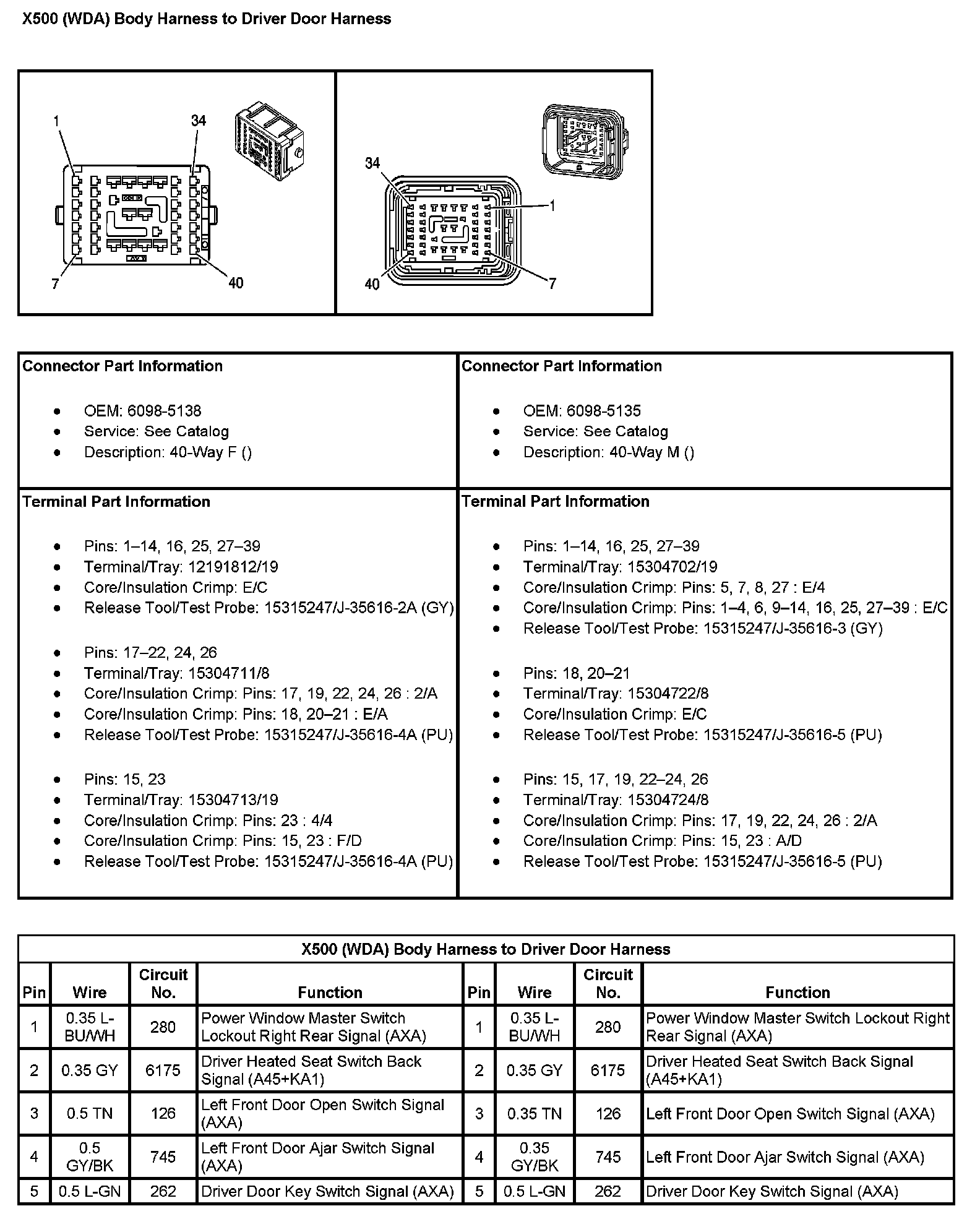

X500 (With RPO Code WDA) Body Harness To Driver Door Harness (Pin 1 To 5):

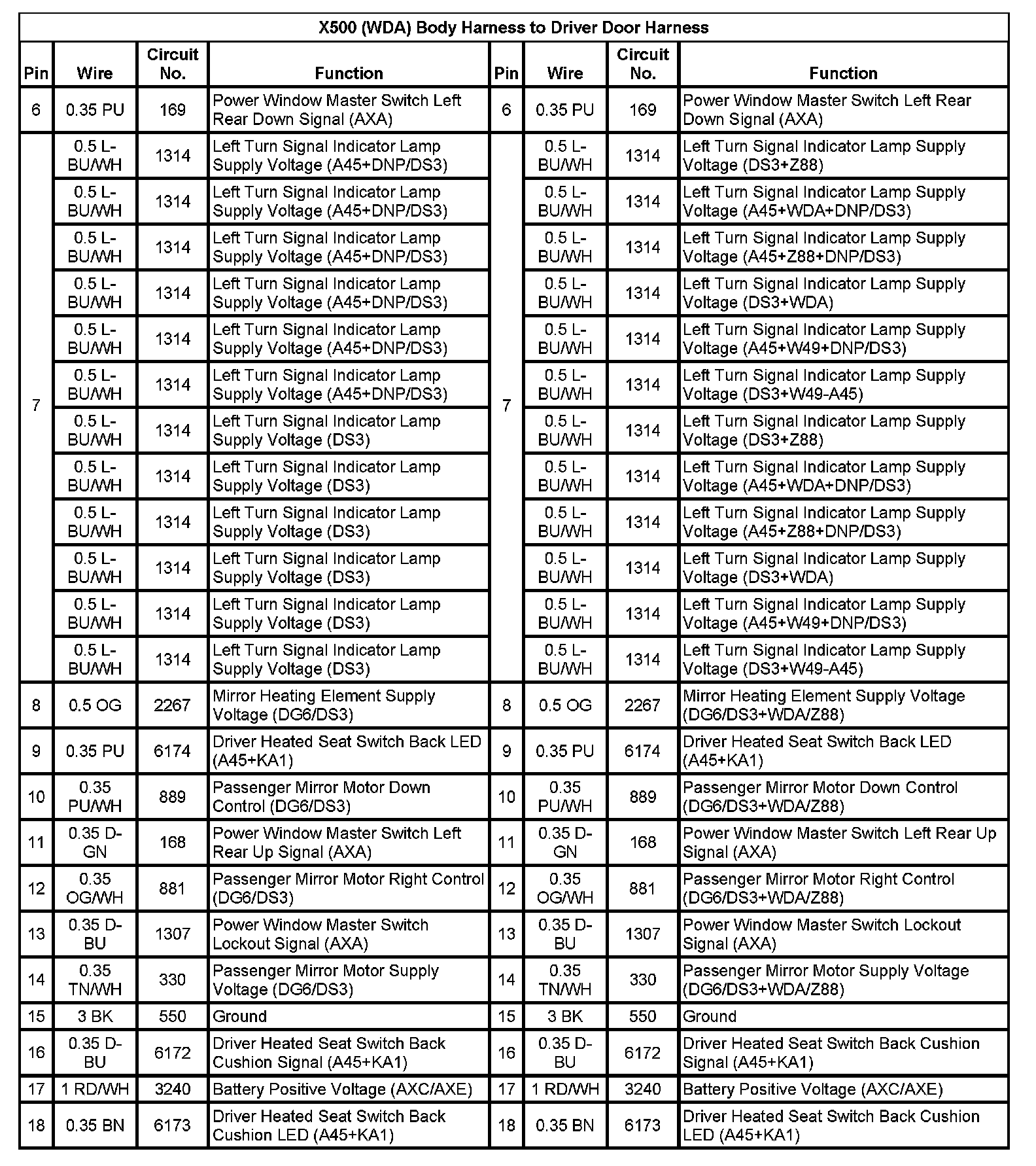

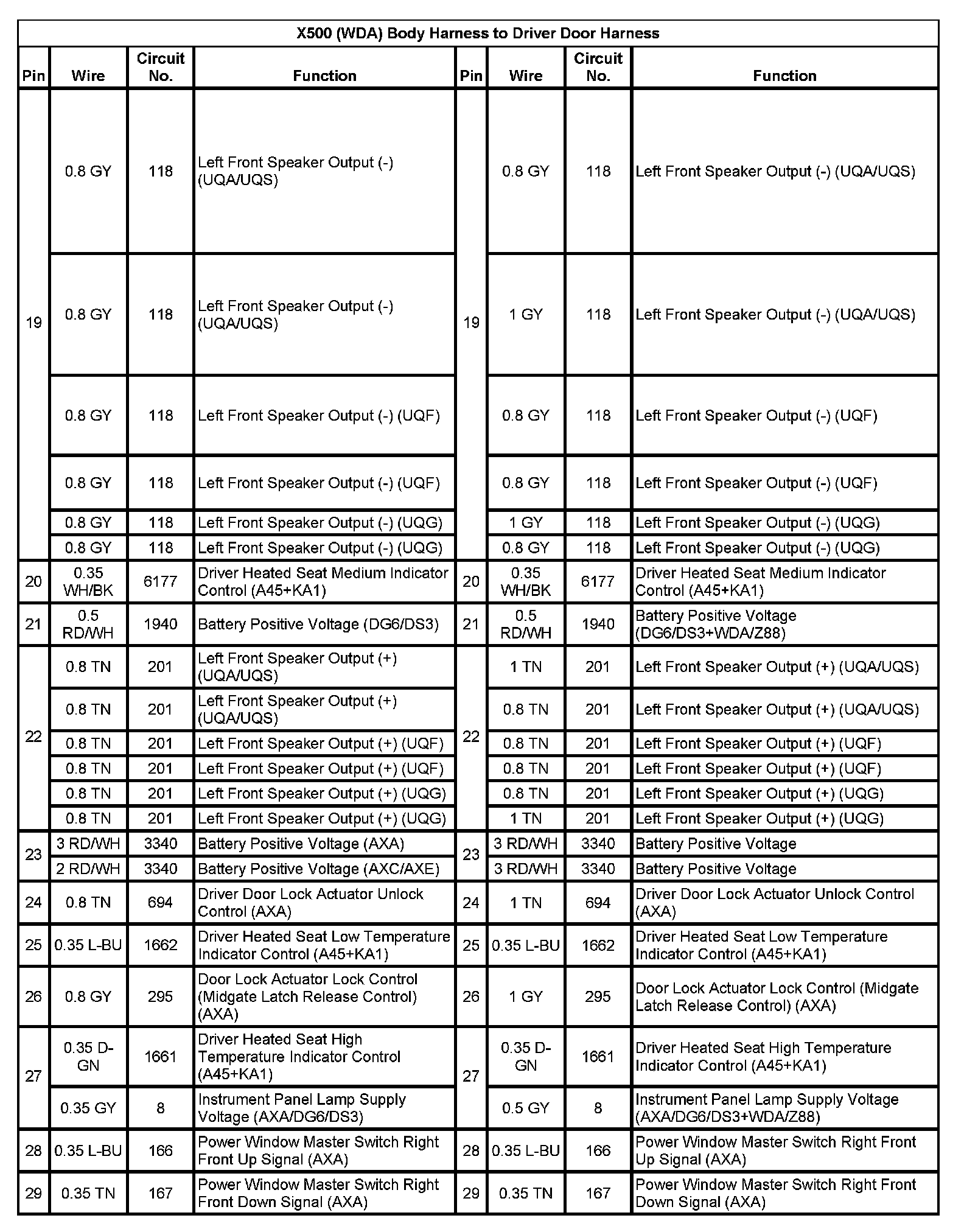

X500 (With RPO Code WDA) Body Harness To Driver Door Harness (Pin 6 To 18):




X500 (With RPO Code WDA) Body Harness To Driver Door Harness (Pin 19 To 29):

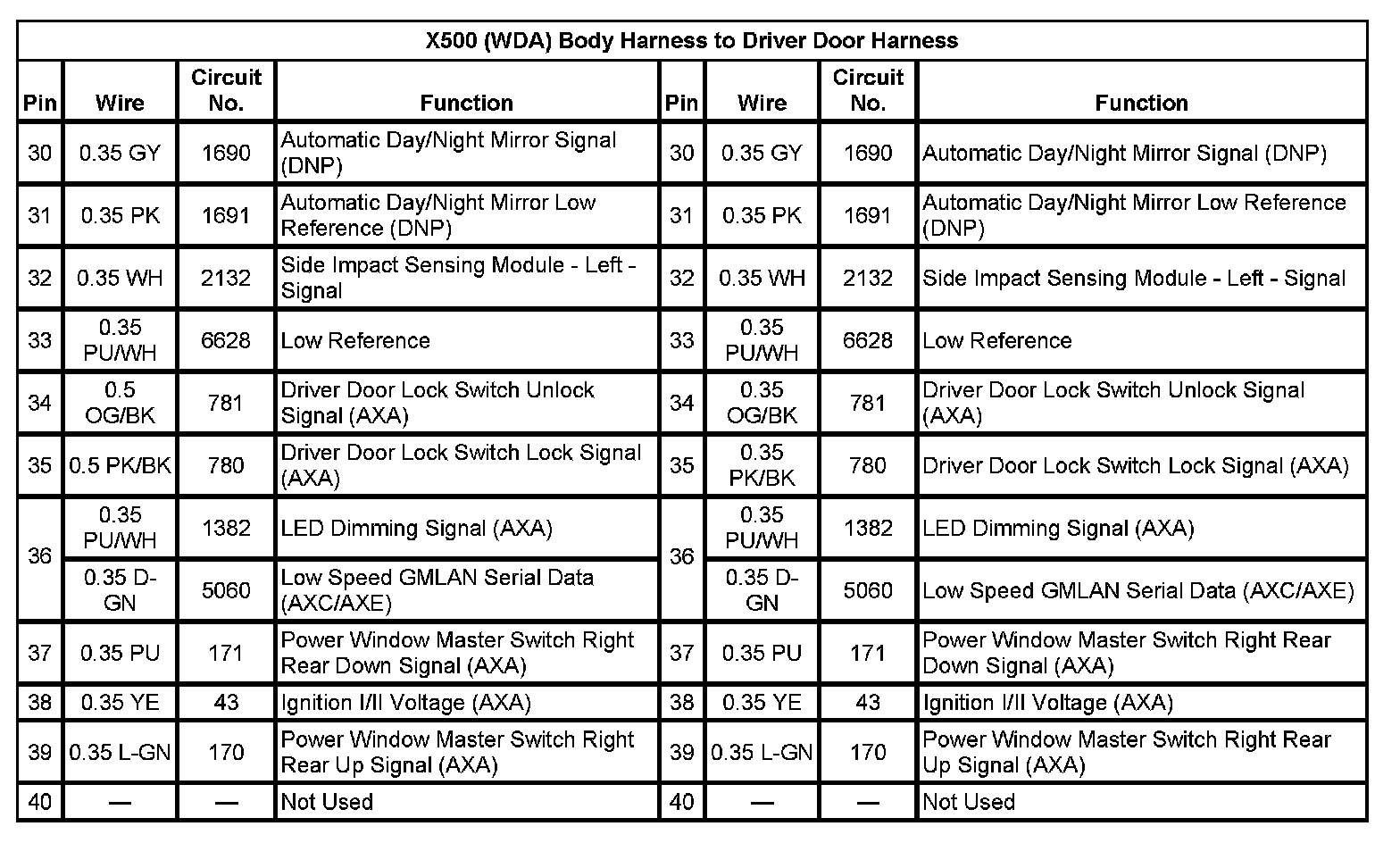

X500 (With RPO Code WDA) Body Harness To Driver Door Harness (Pin 30 To 40):

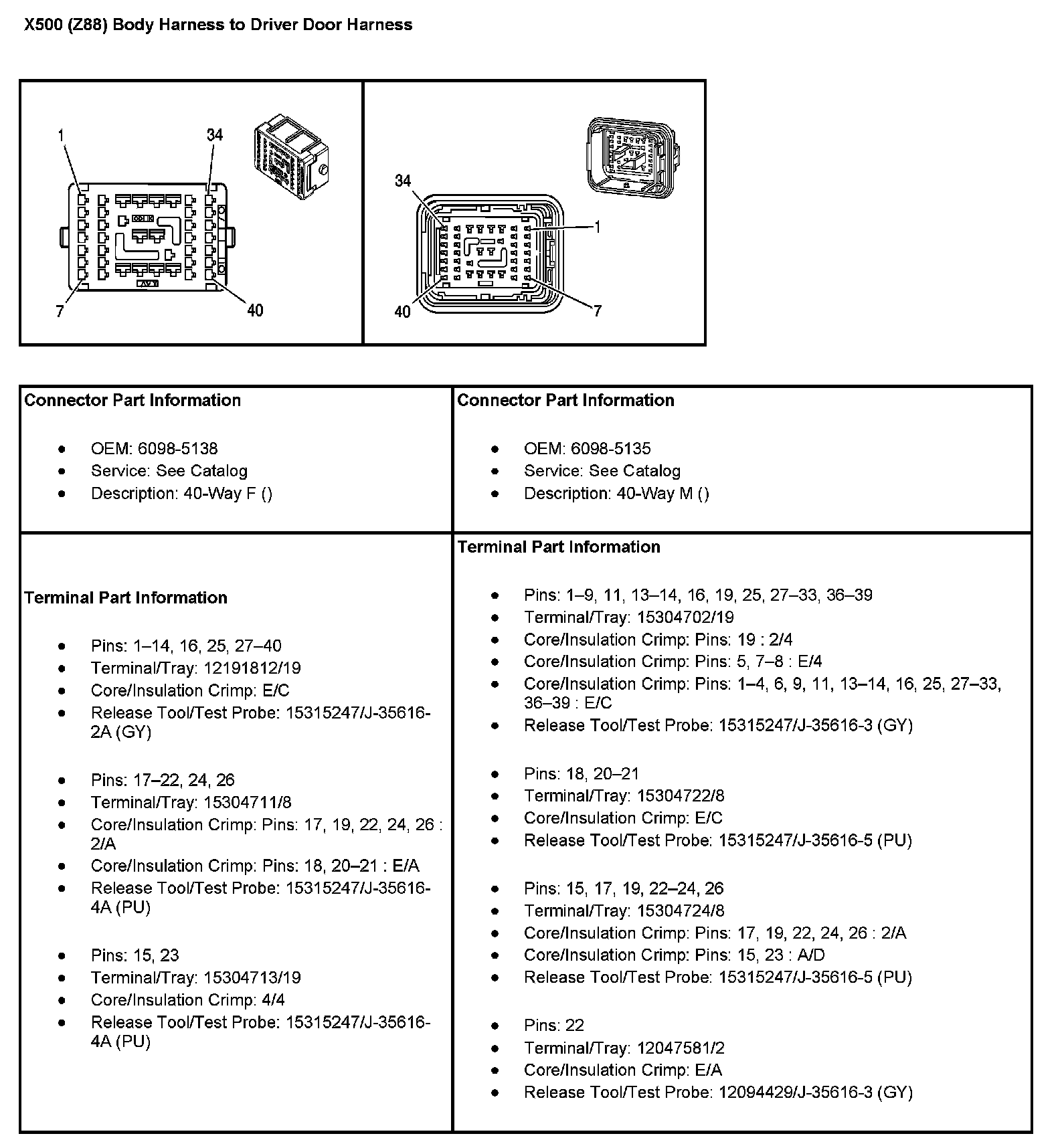

X500 (With RPO Code Z88) Body Harness To Driver Door Harness:

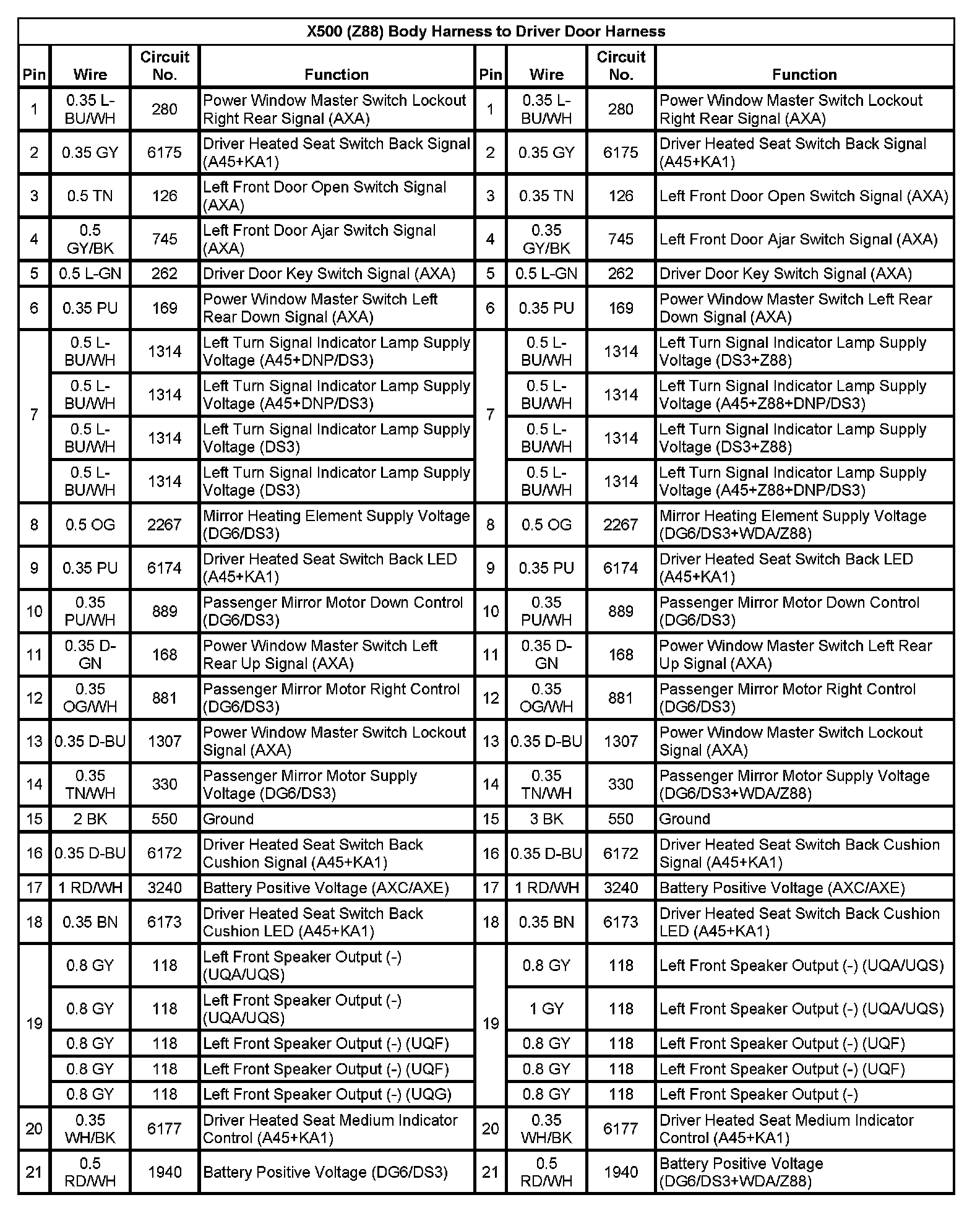

X500 (With RPO Code Z88) Body Harness To Driver Door Harness (Pin 1 To 21):

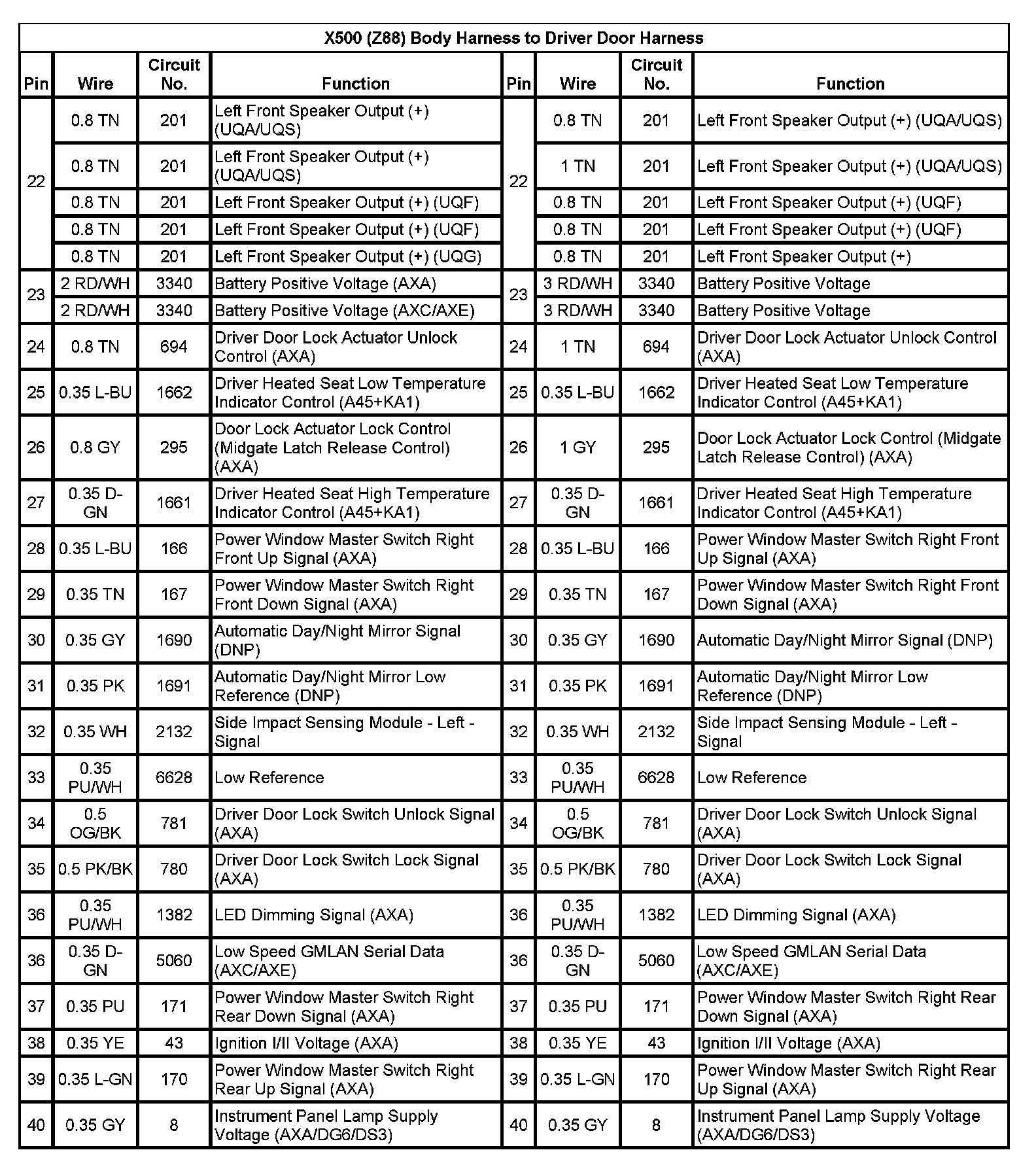

X500 (With RPO Code Z88) Body Harness To Driver Door Harness (Pin 22 To 40):
