X451
X451

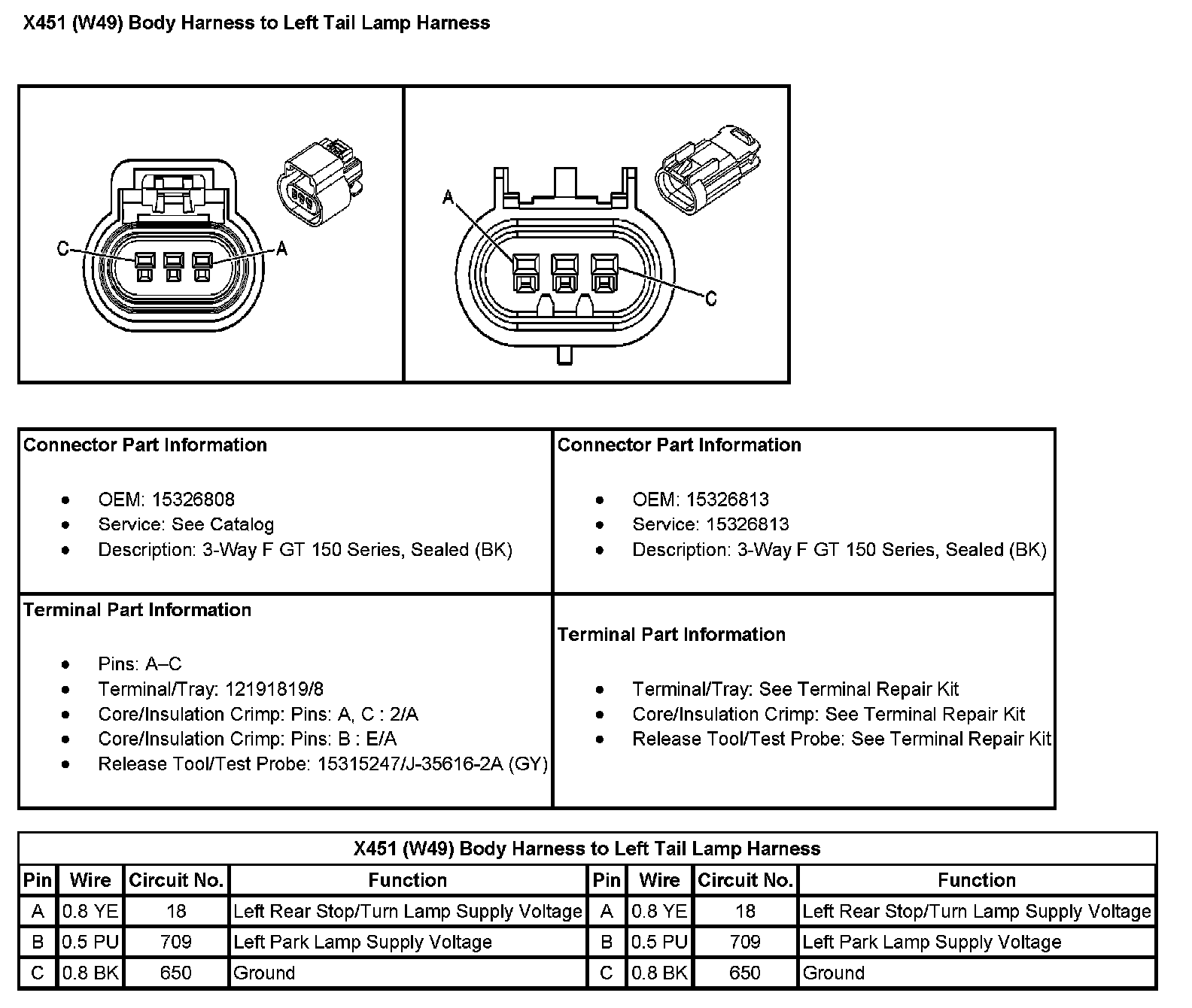

X451 (With RPO Code W49) Body Harness To Left Tail Lamp Harness (Pin A To C):

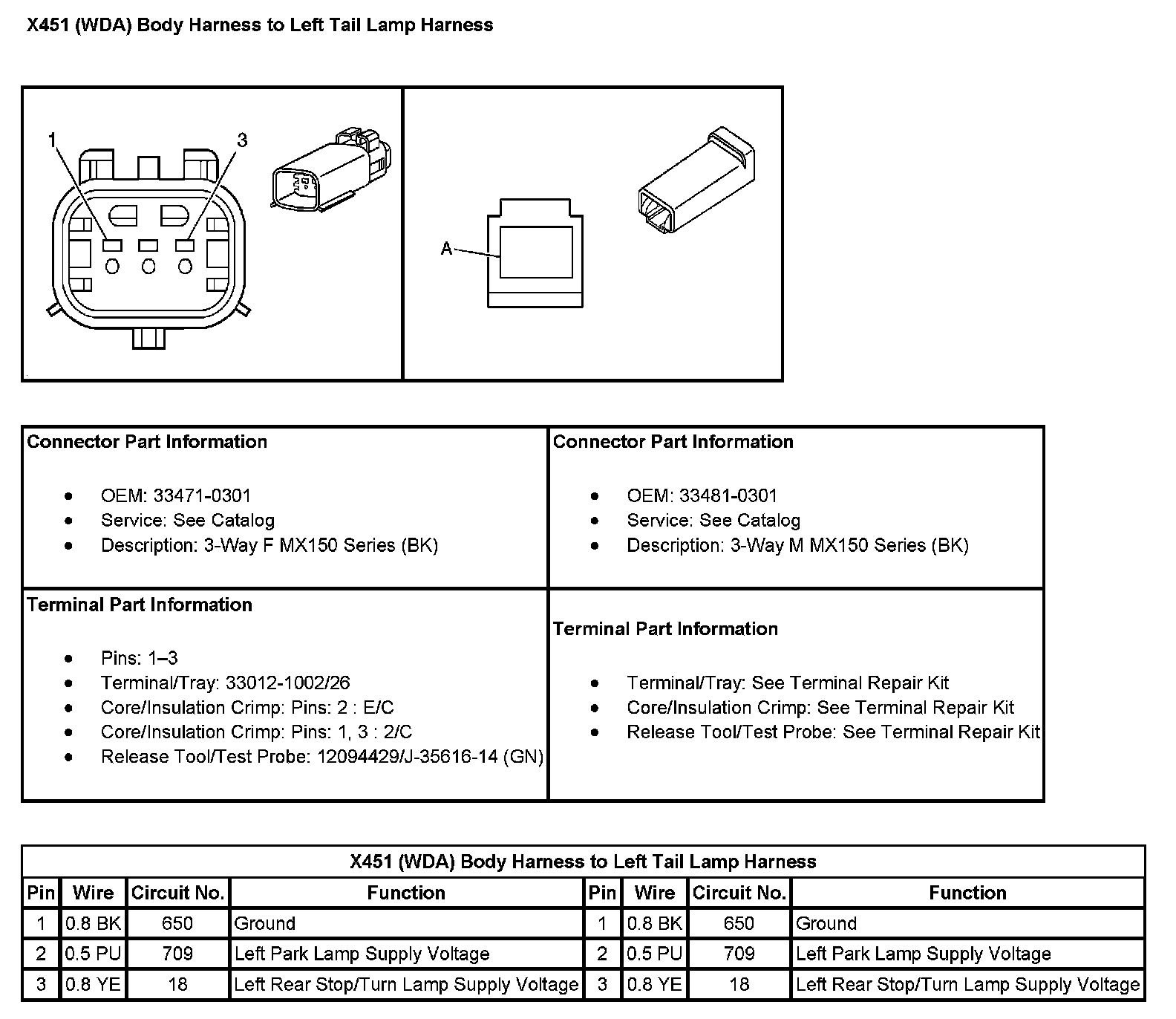

X451 (With RPO Code WDA) Body Harness To Left Tail Lamp Harness (Pin 1 To 3):
