X442

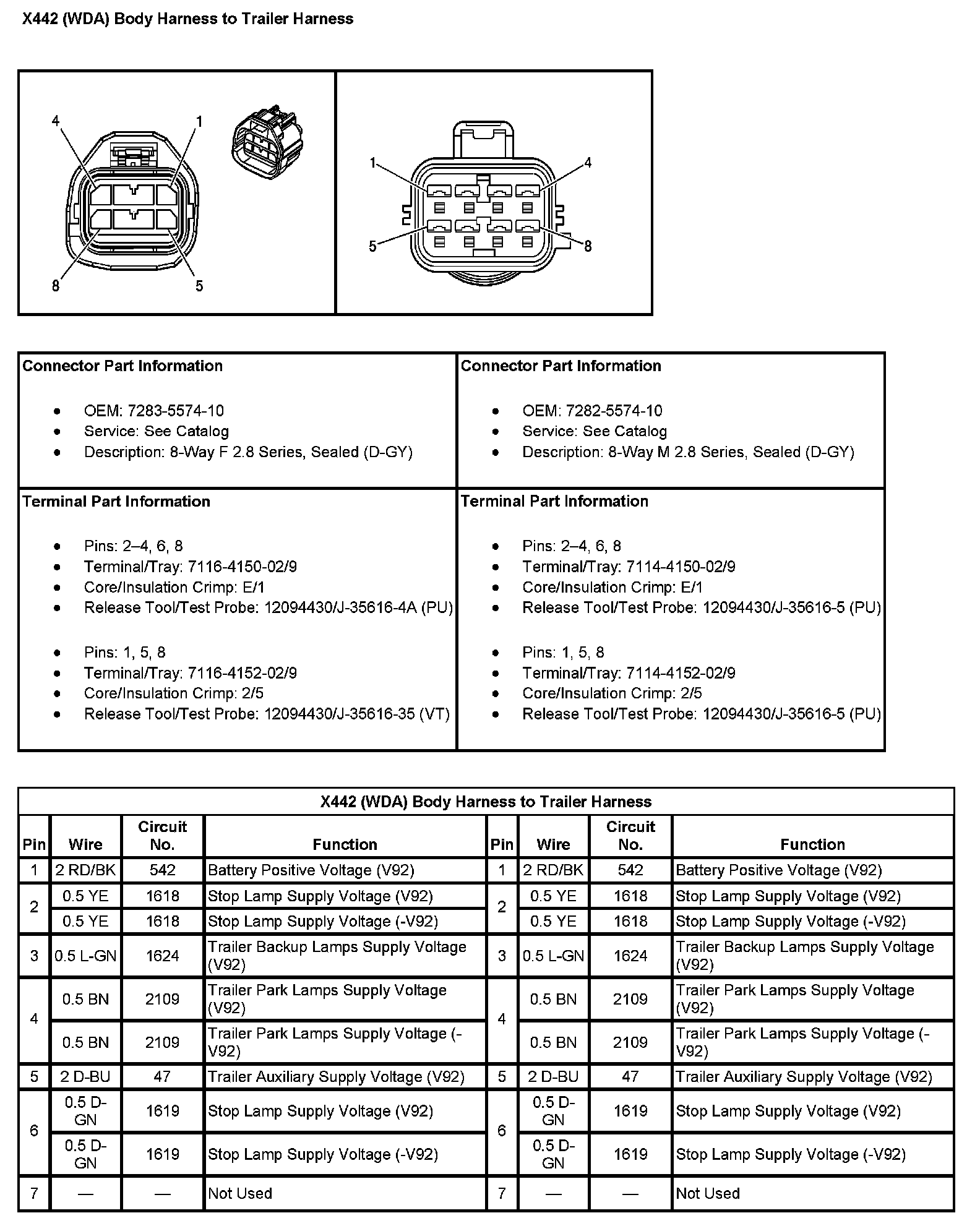

X442 (With RPO Code WDA) Body Harness To Trailer Harness (Pin 1 To 7):



X442 (With RPO Code WDA) Body Harness To Trailer Harness (Pin 8):

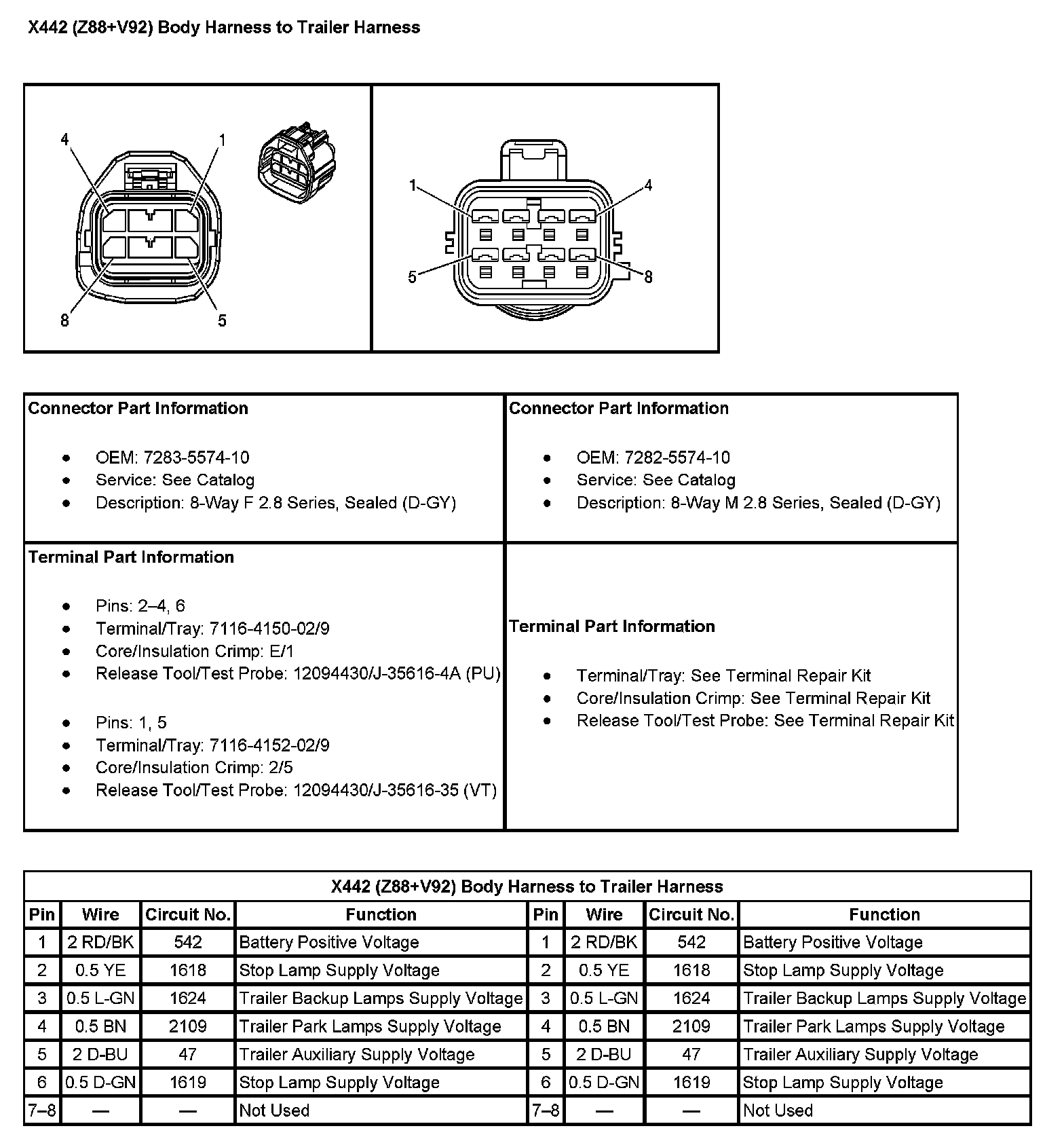

X442 (With RPO Code Z88+V92) Body Harness To Trailer Harness (Pin 1 To 8):
