X440
X440

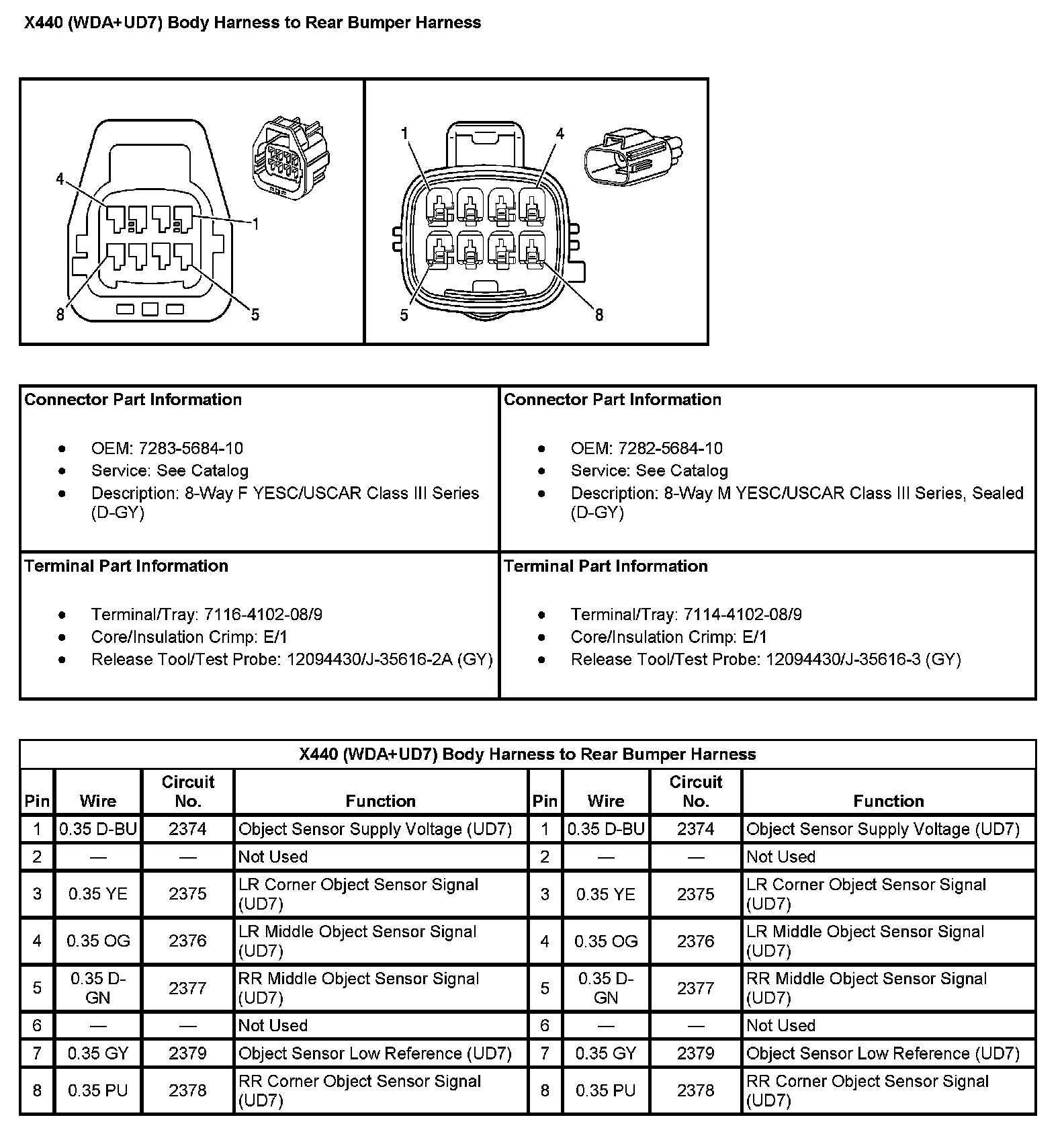

X440 (With RPO Code WDA+UD7) Body Harness To Rear Bumper Harness (Pin 1 To 8):

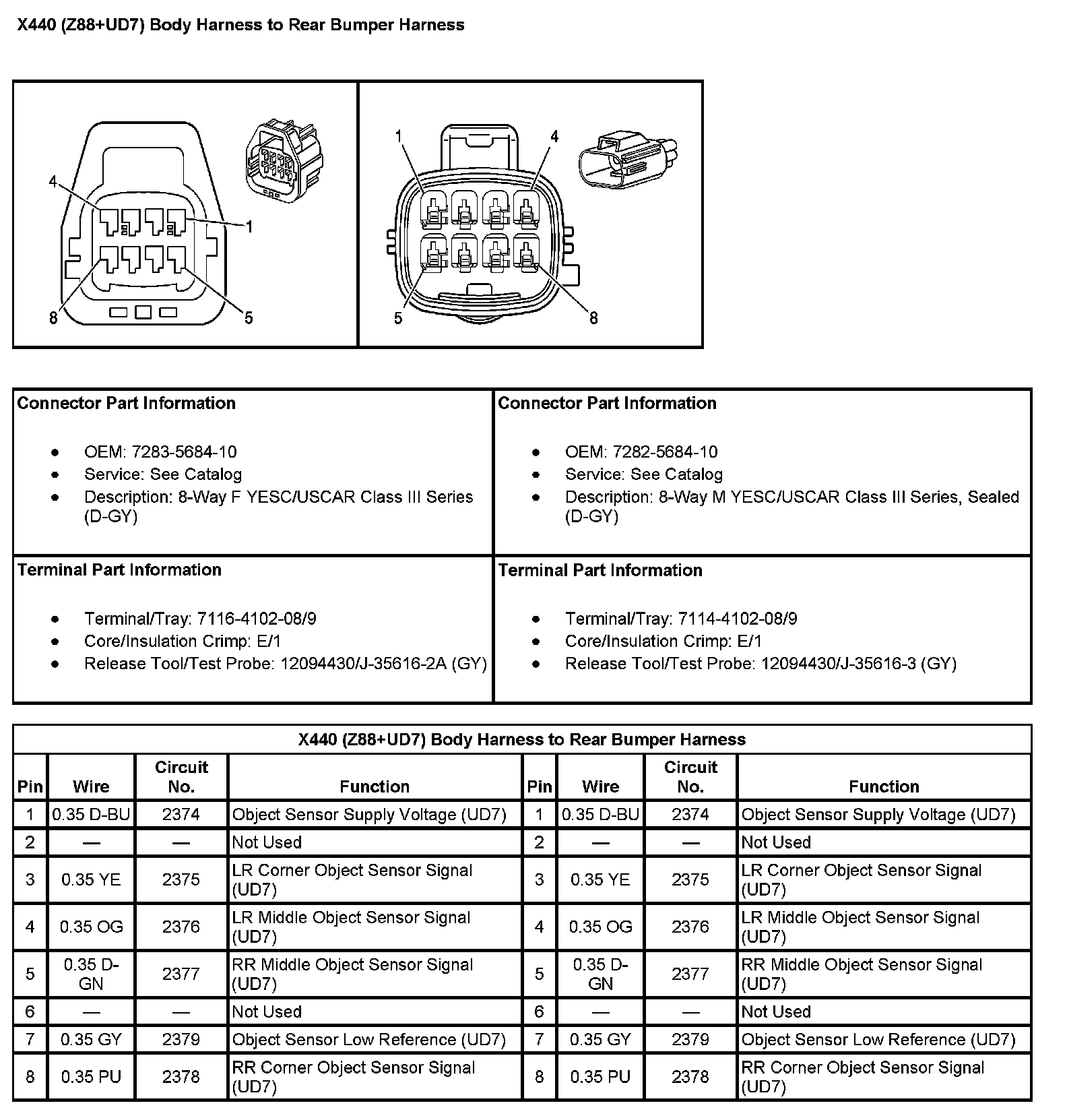

X440 (With RPO Code Z88+UD7) Body Harness To Rear Bumper Harness (Pin 1 To 8):
