X358

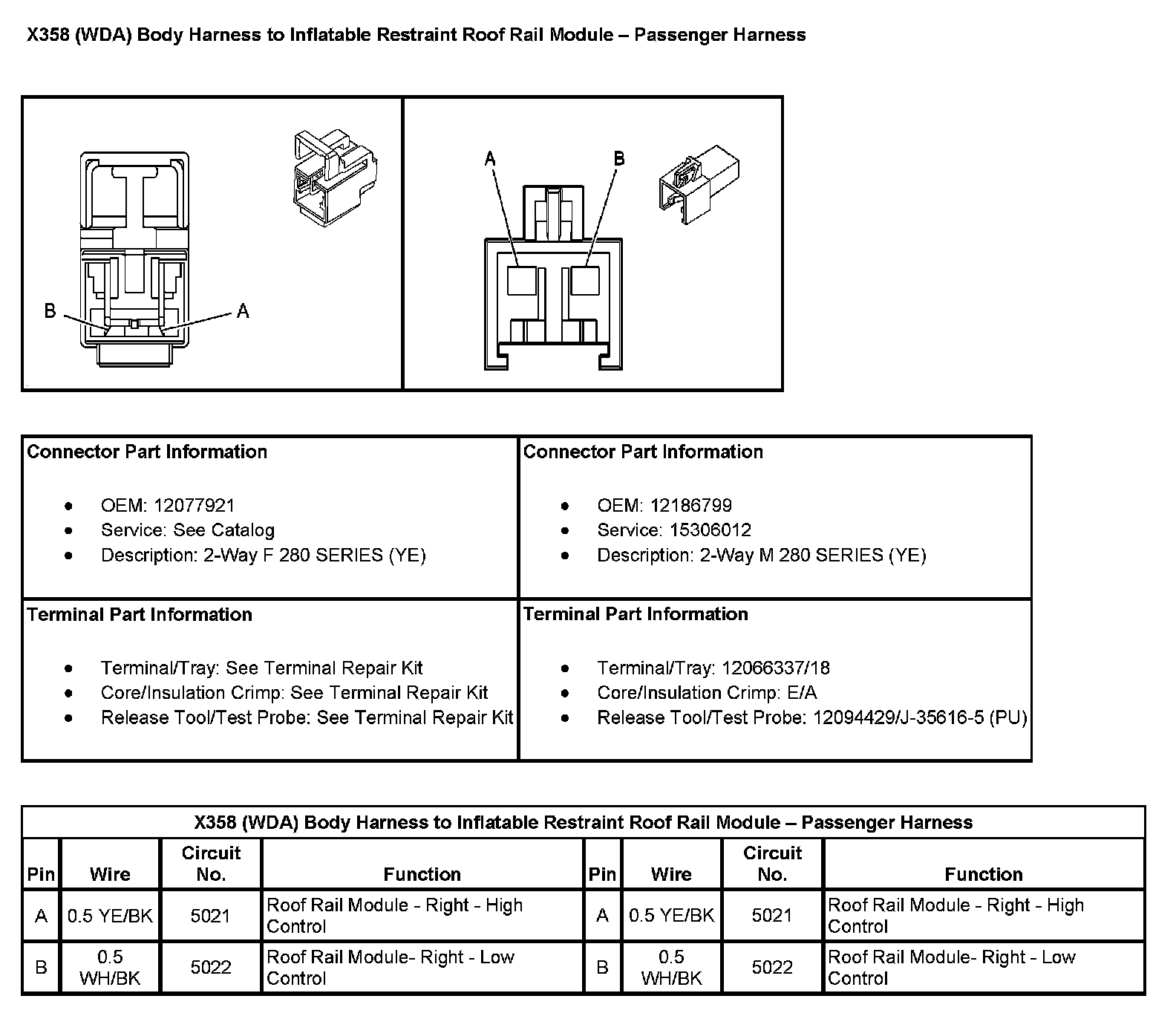

X358 (With RPO Code WDA) Body Harness To Inflatable Restraint Roof Rail Module - Passenger Harness (Pin A To B):

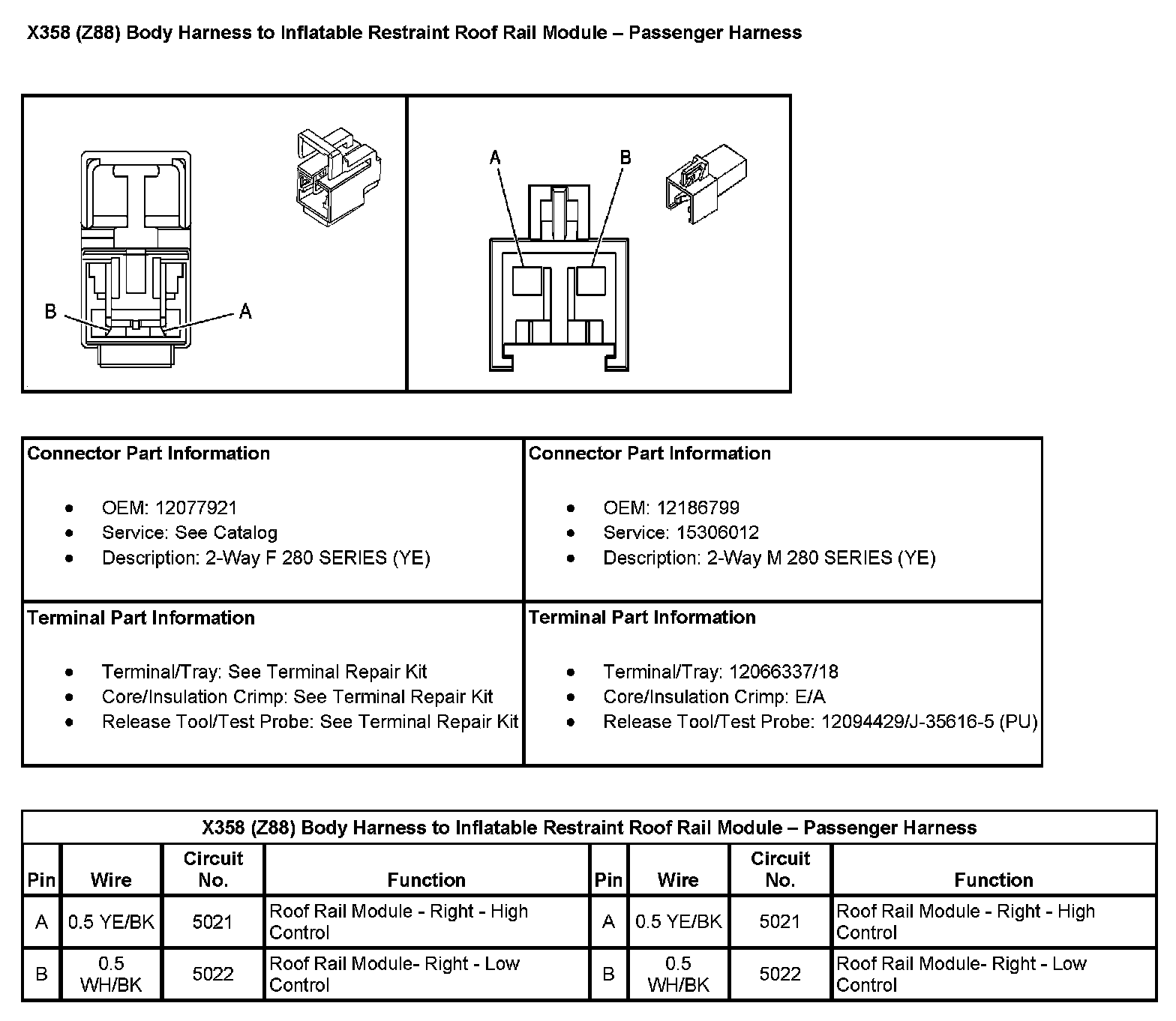

X358 (With RPO Code Z88) Body Harness To Inflatable Restraint Roof Rail Module - Passenger Harness (Pin A To B):
