X351

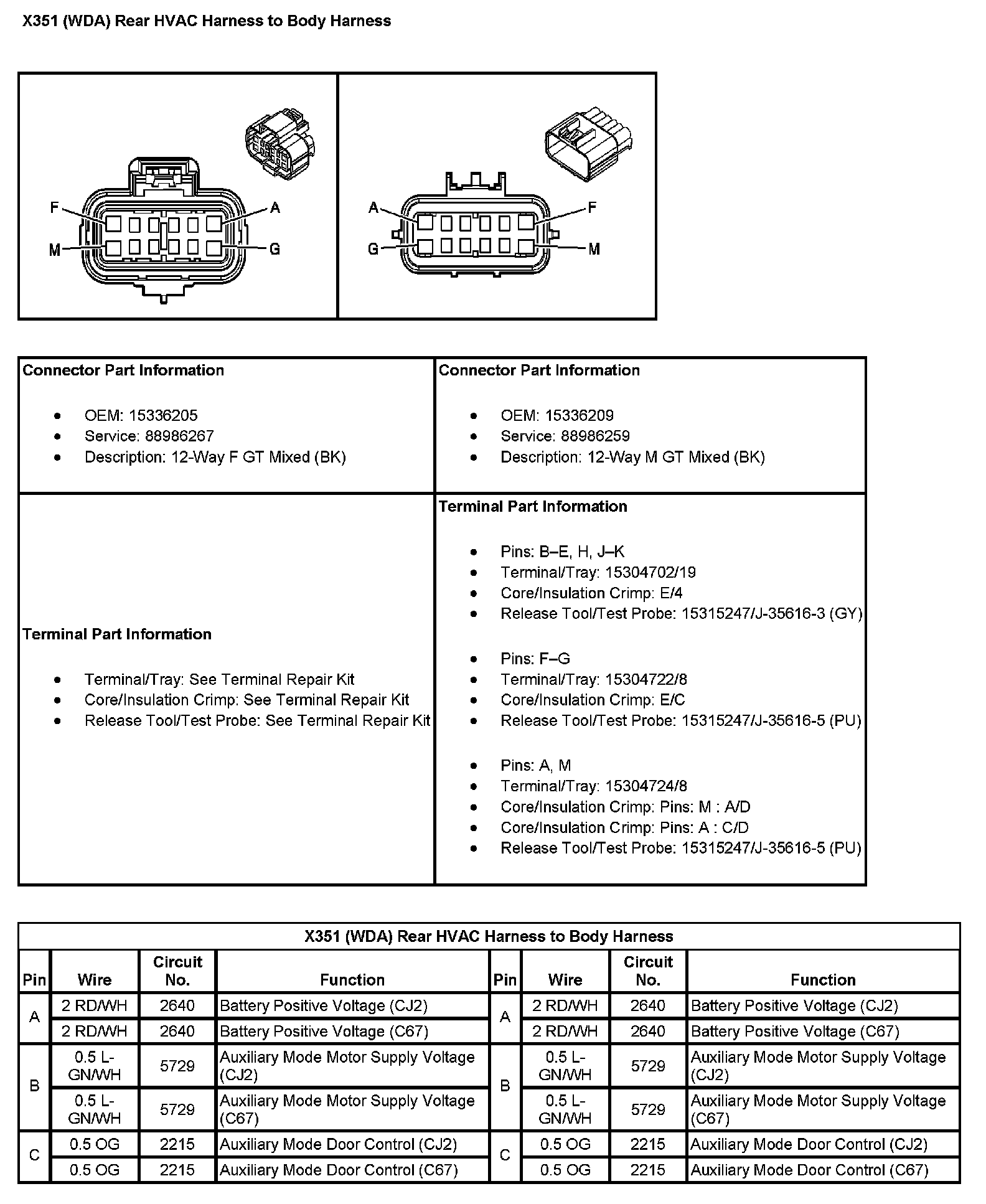

X351 (With RPO Code WDA) Rear HVAC Harness To Body Harness (Pin A To C):

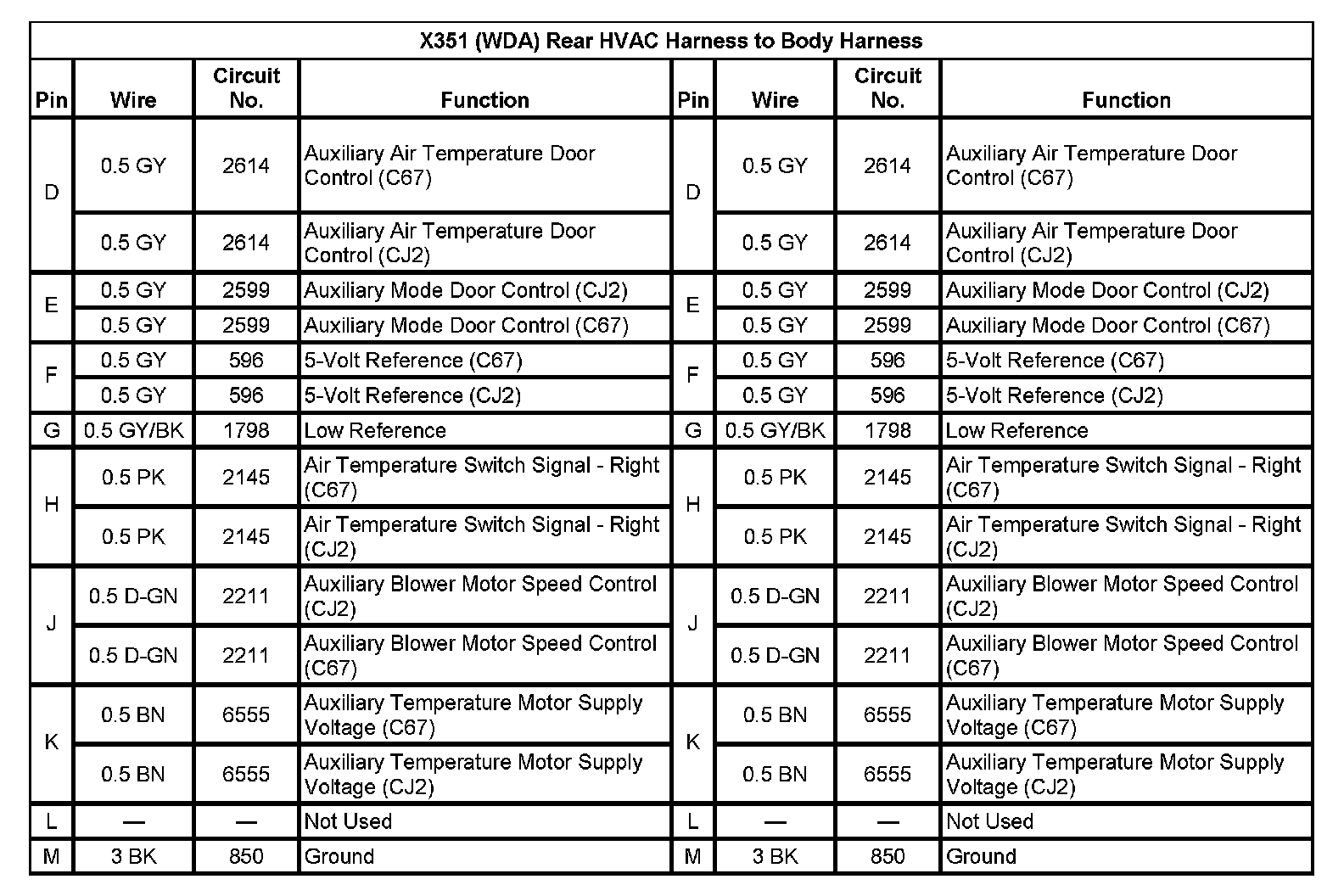

X351 (With RPO Code WDA) Rear HVAC Harness To Body Harness (Pin D To M):

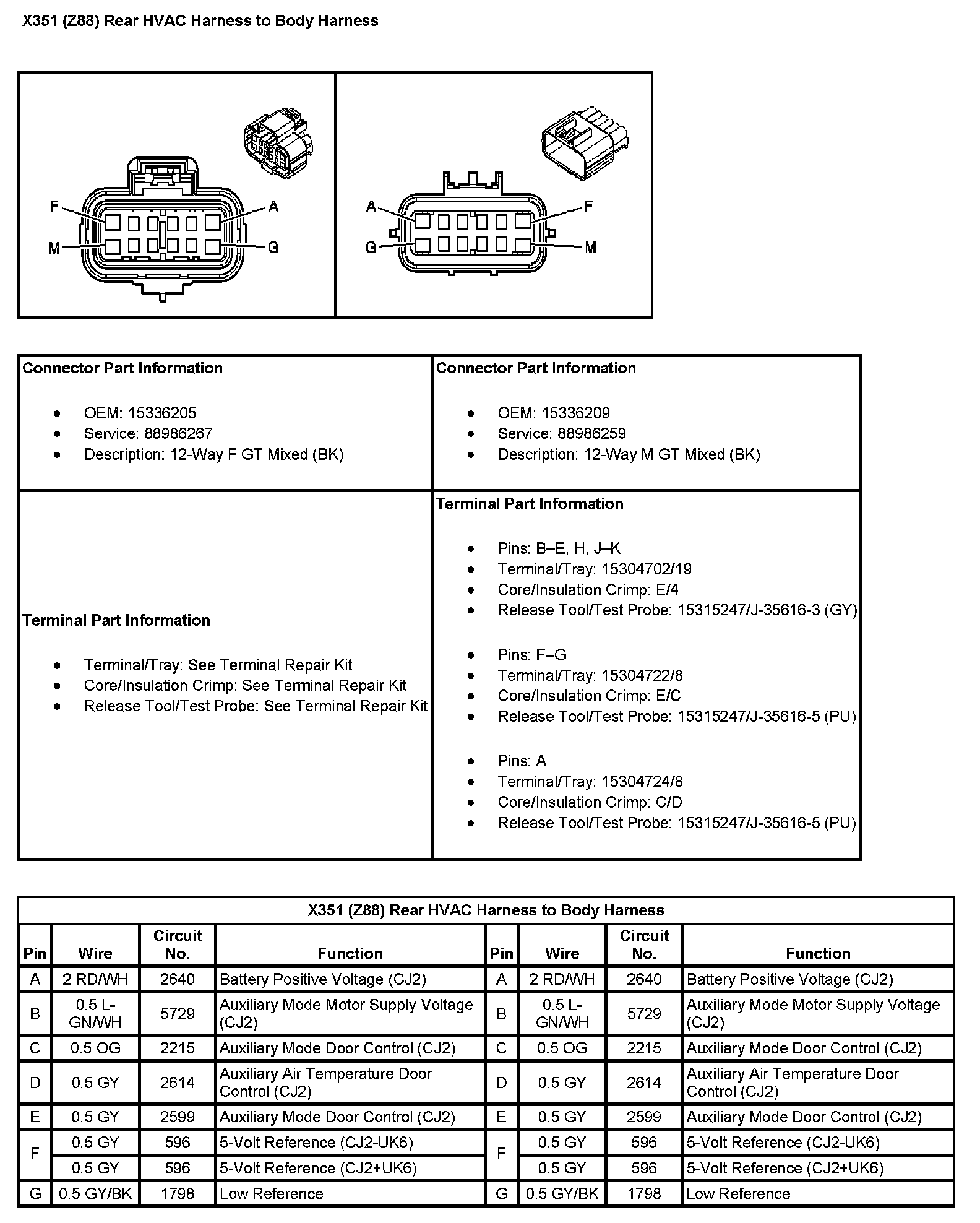

X351 (With RPO Code Z88) Rear HVAC Harness To Body Harness (Pin A To G):



X351 (With RPO Code Z88) Rear HVAC Harness To Body Harness (Pin H To M):
