X209
X209

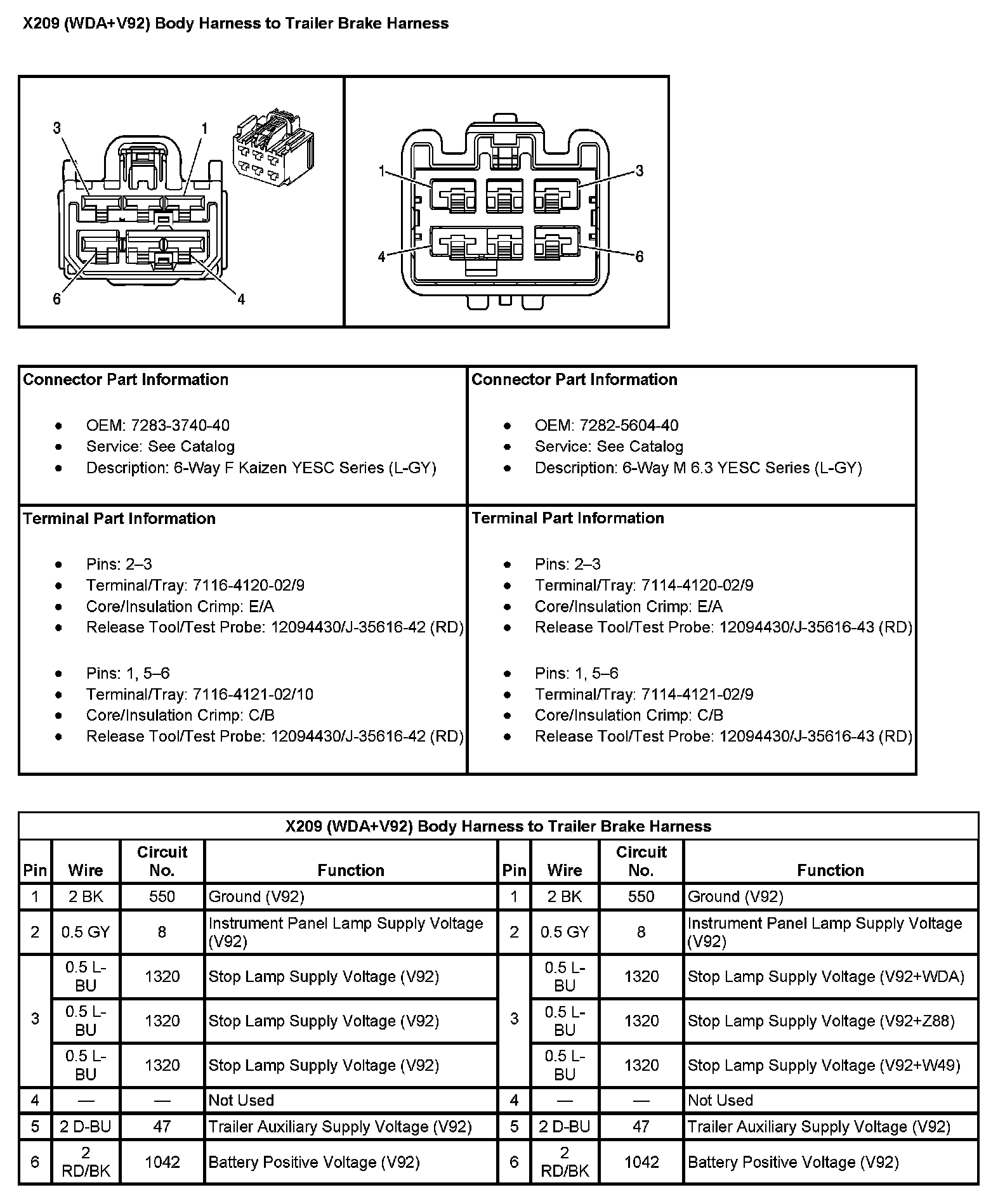

X209 (With RPO Code WDA+V92) Body Harness To Trailer Brake Harness:

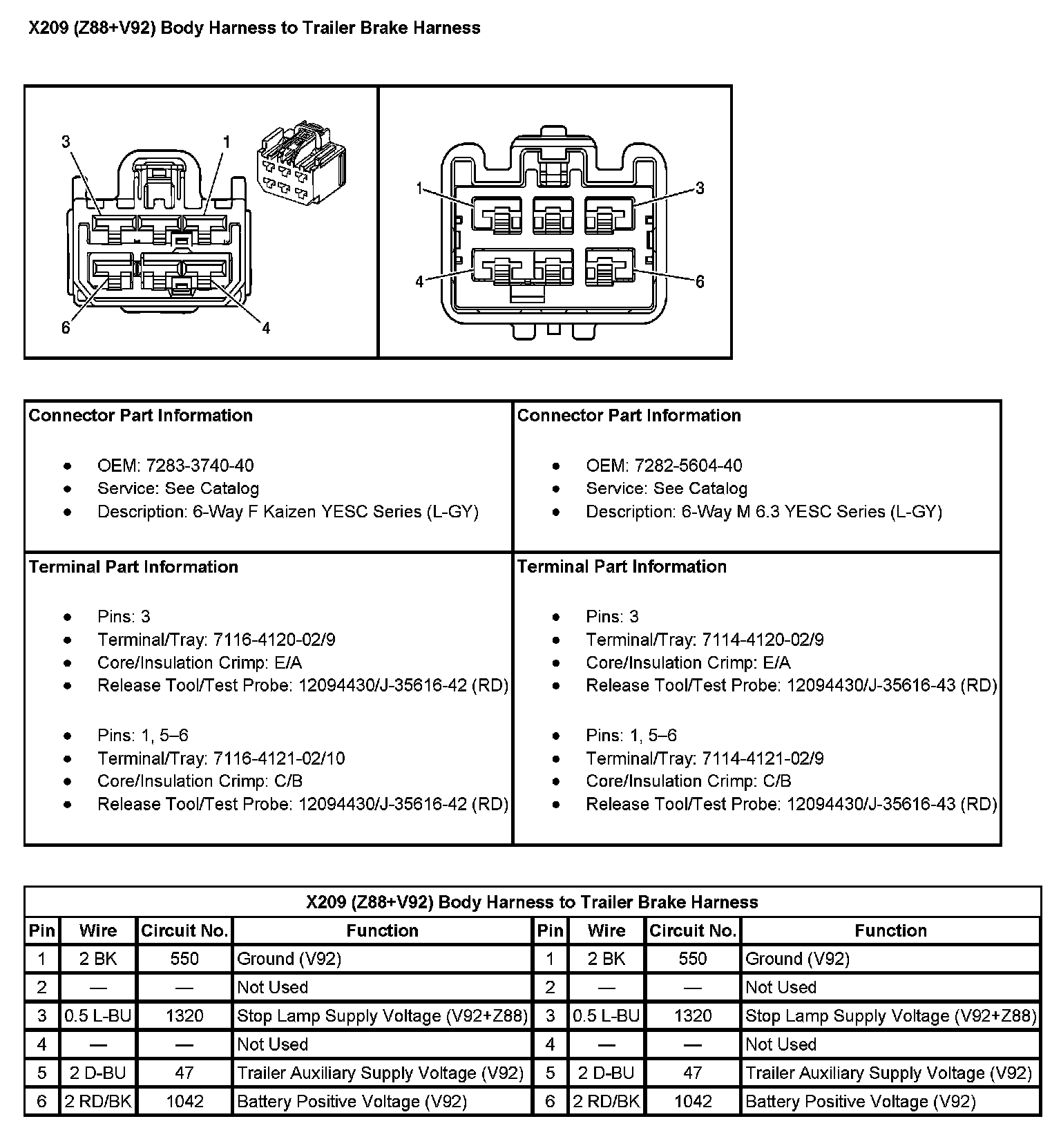

X209 (With RPO Code Z88+V92) Body Harness To Trailer Brake Harness (Pin 1 To 6):
