Home >> GMC >> 2007 >> Acadia AWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Starting and Charging >> Multiple Junction Connector >> X200 - X299 >> X205

X205

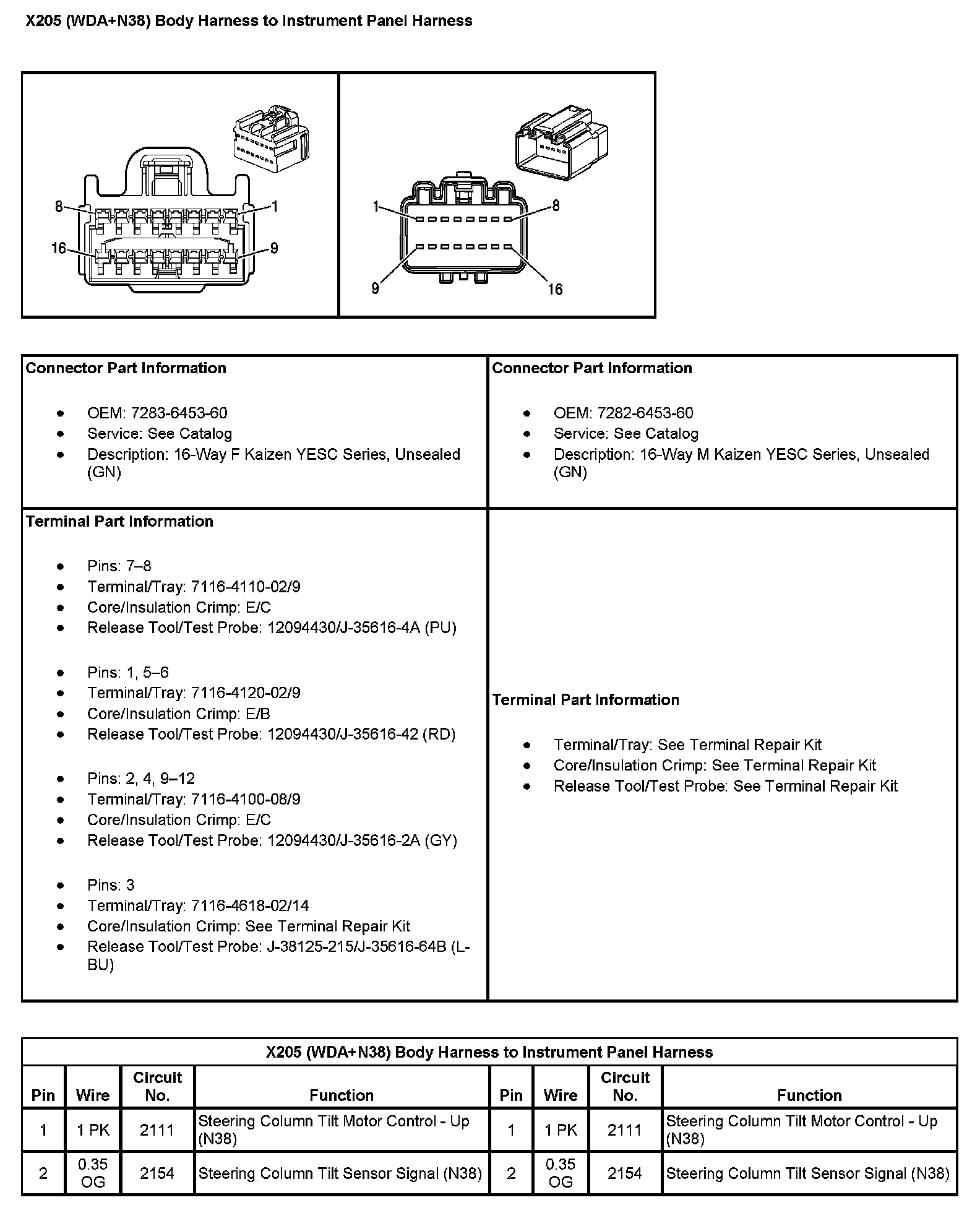

X205 (With RPO Code WDA+N38) Body Harness To Instrument Panel Harness:

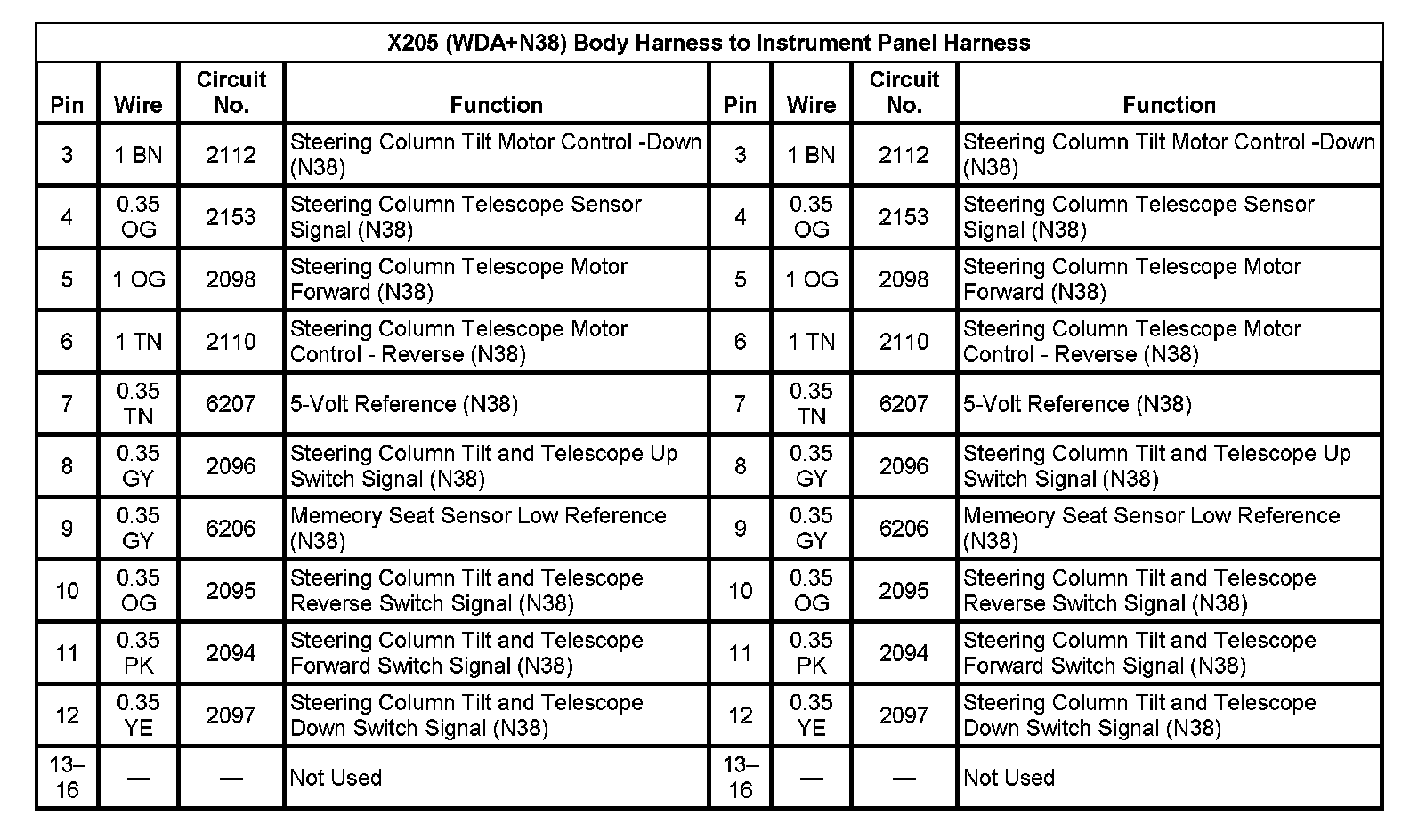

X205 (With RPO Code WDA+N38) Body Harness To Instrument Panel Harness (Pin 3 To 16):

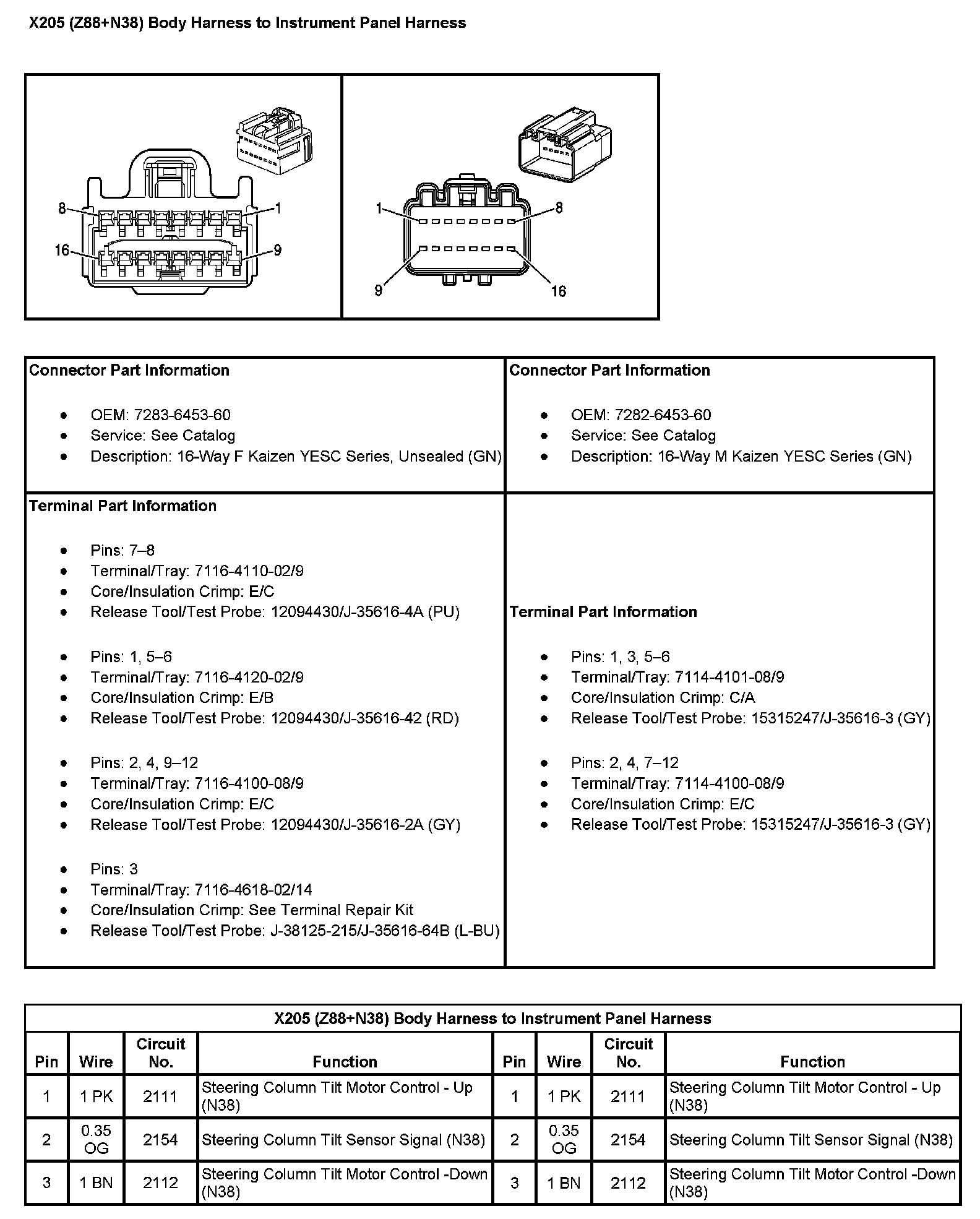

X205 (With RPO Code Z88+N38) Body Harness To Instrument Panel Harness:

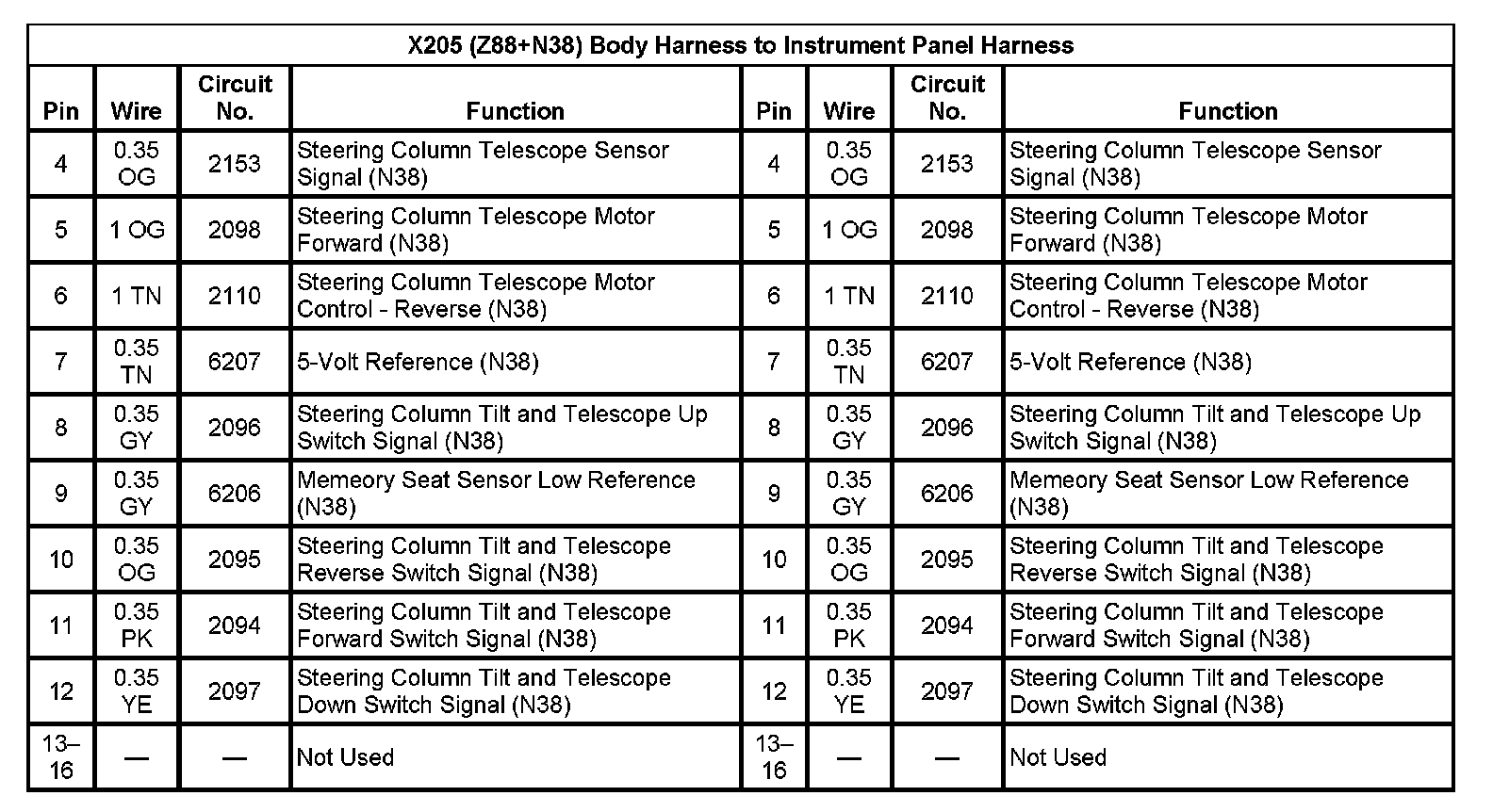

X205 (With RPO Code Z88+N38) Body Harness To Instrument Panel Harness (Pin 4 To 16):
