X202

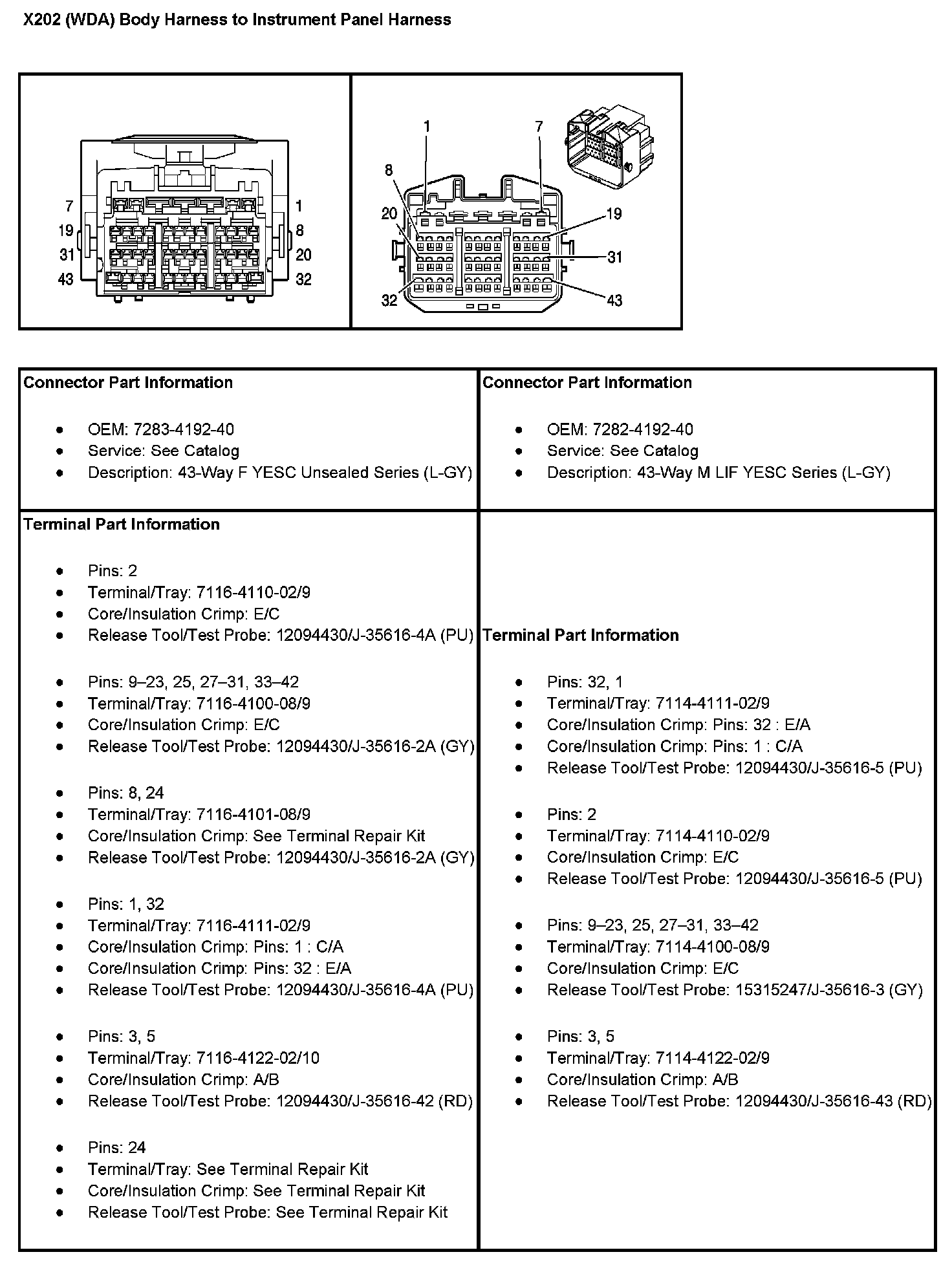

X202 (With RPO Code WDA) Body Harness To Instrument Panel Harness:

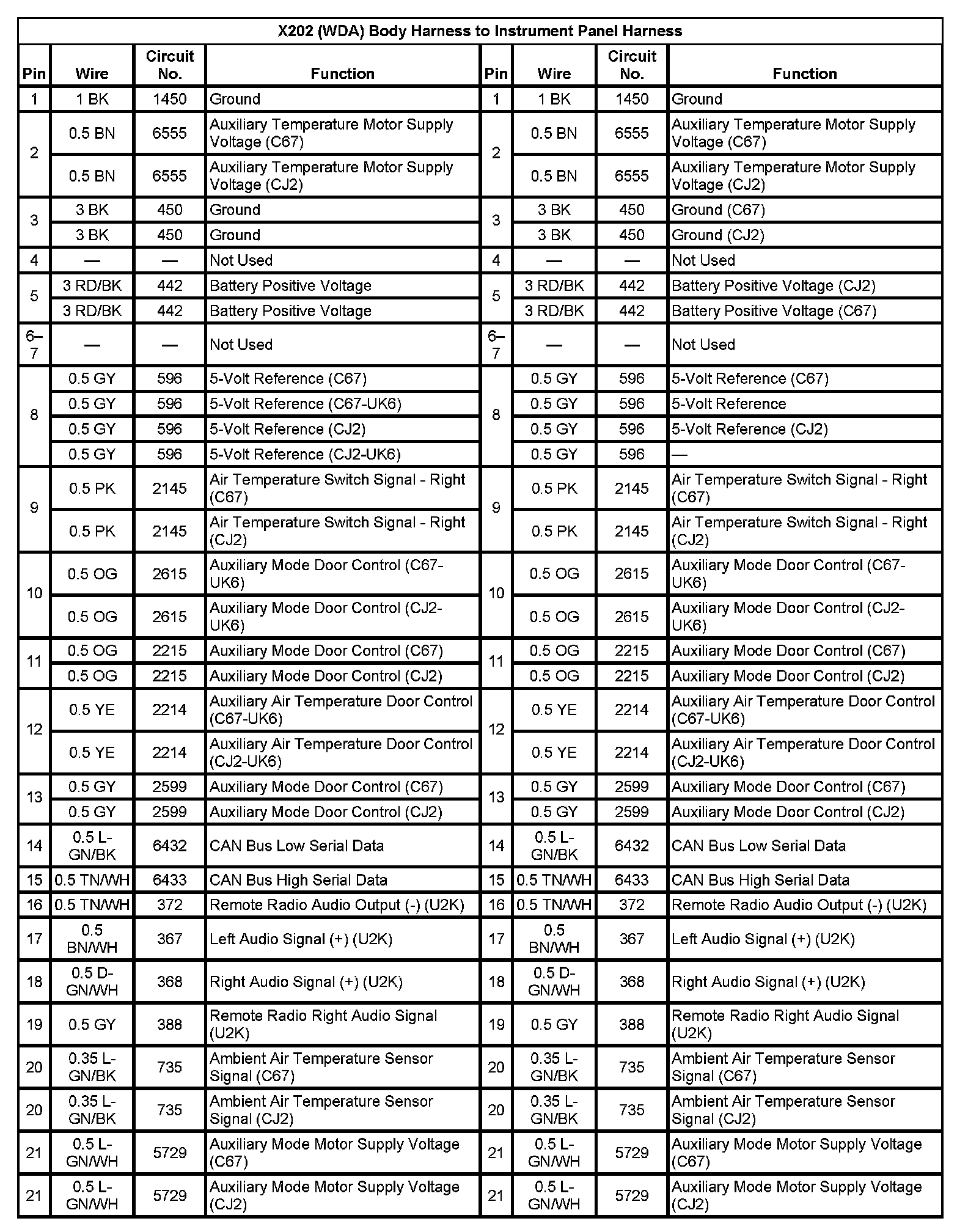

X202 (With RPO Code WDA) Body Harness To Instrument Panel Harness (Pin 1 To 21):

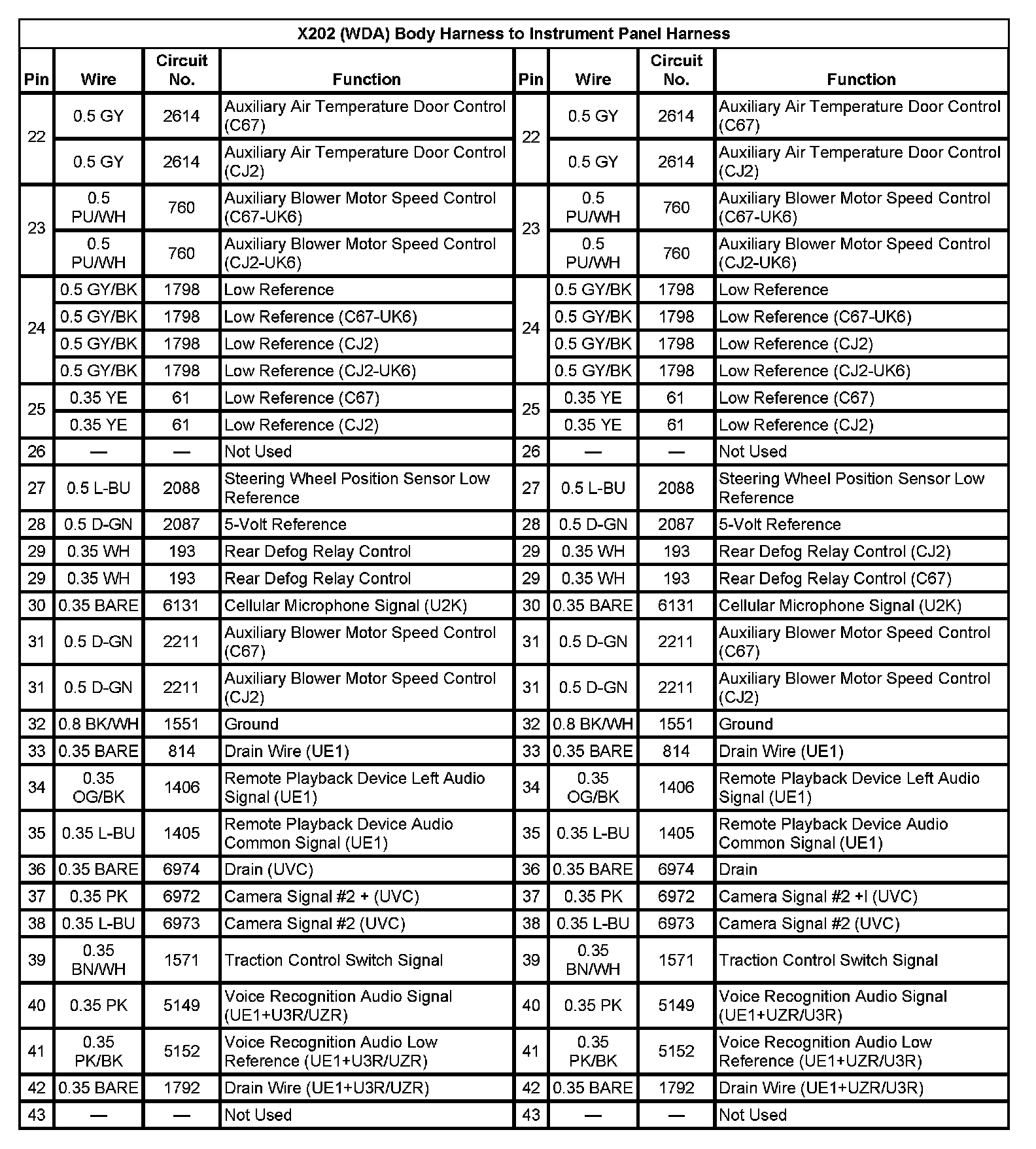

X202 (With RPO Code WDA) Body Harness To Instrument Panel Harness (Pin 22 To 43):

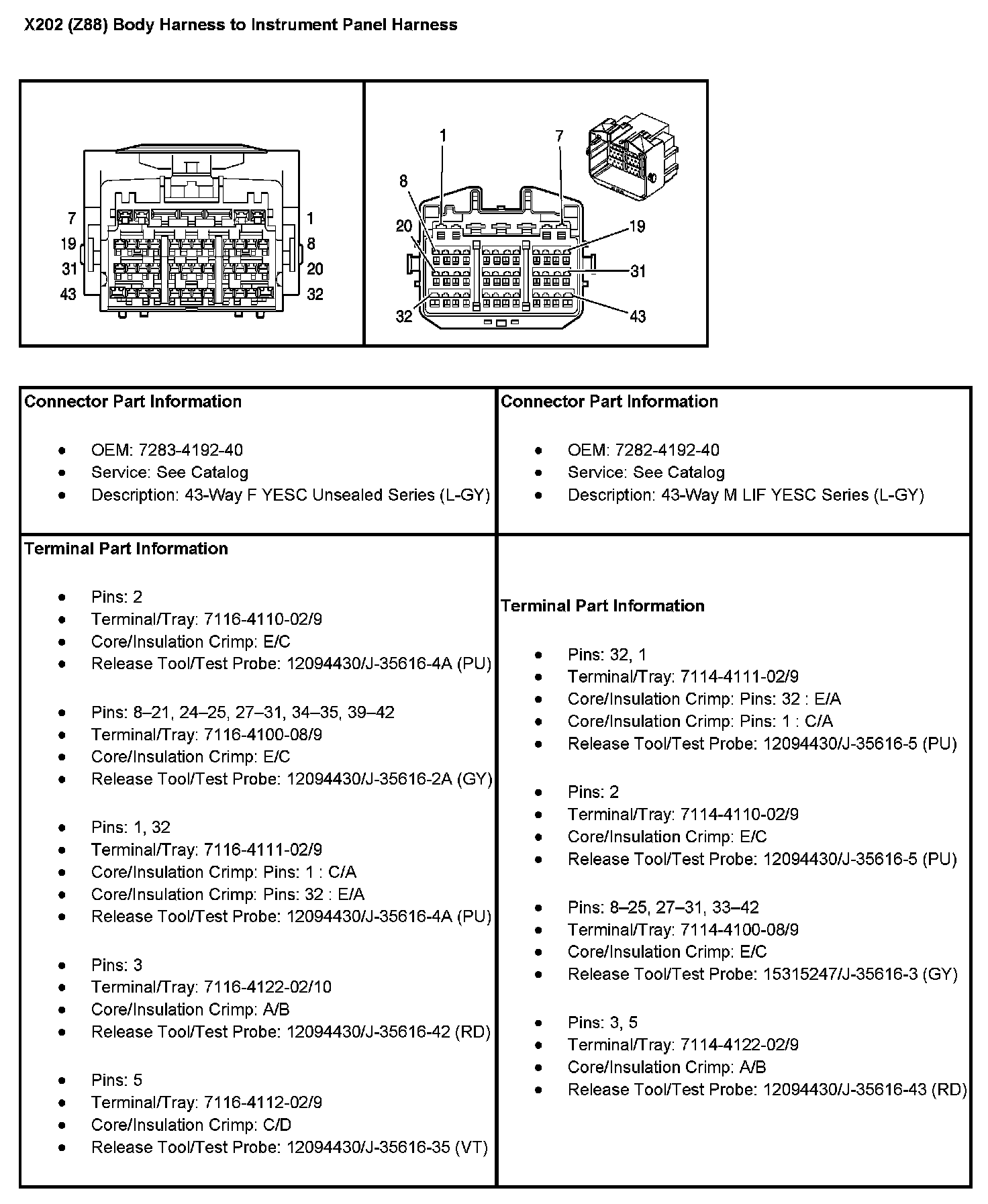

X202 (With RPO Code Z88) Body Harness To Instrument Panel Harness:

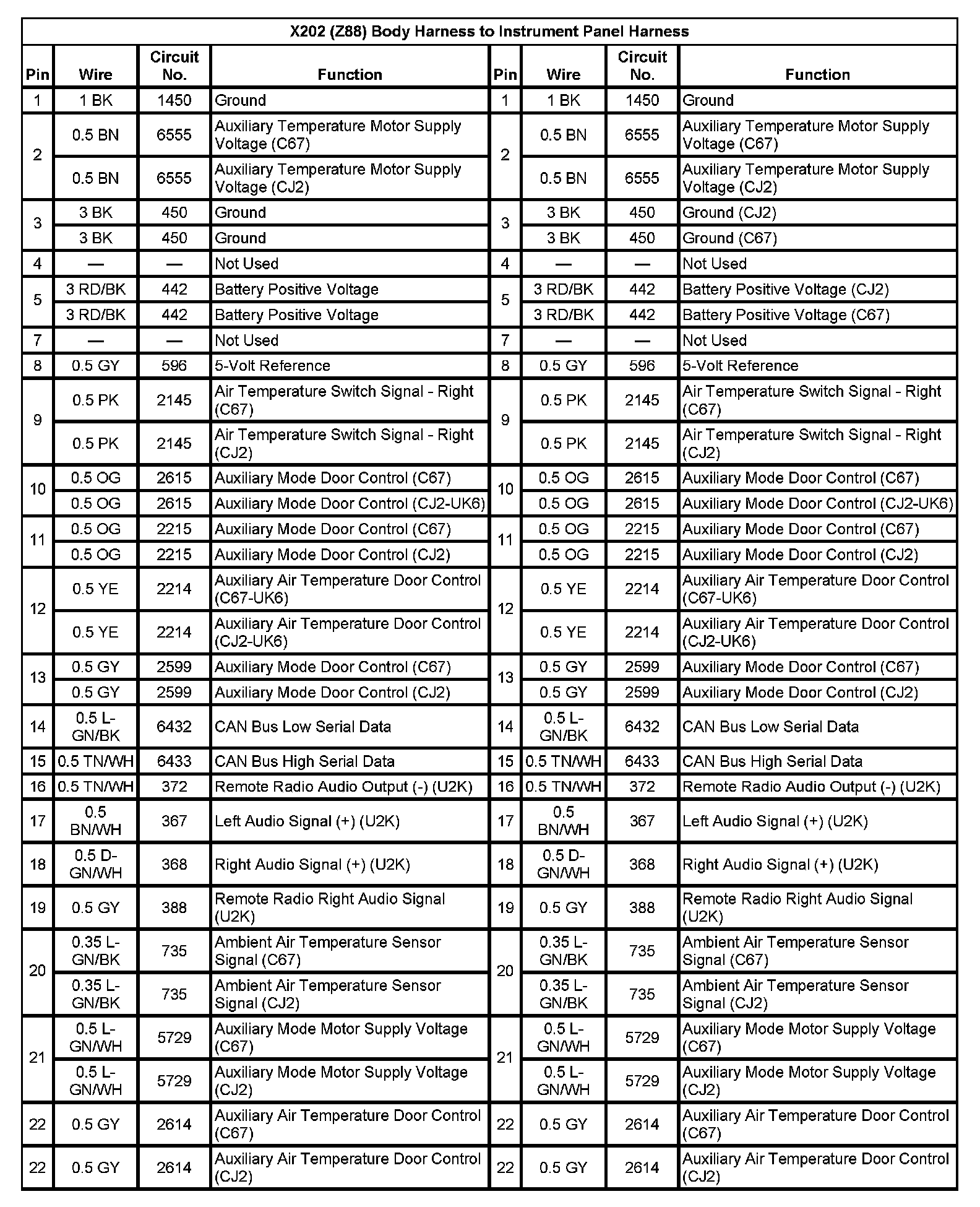

X202 (With RPO Code Z88) Body Harness To Instrument Panel Harness (Pin 1 To 22):

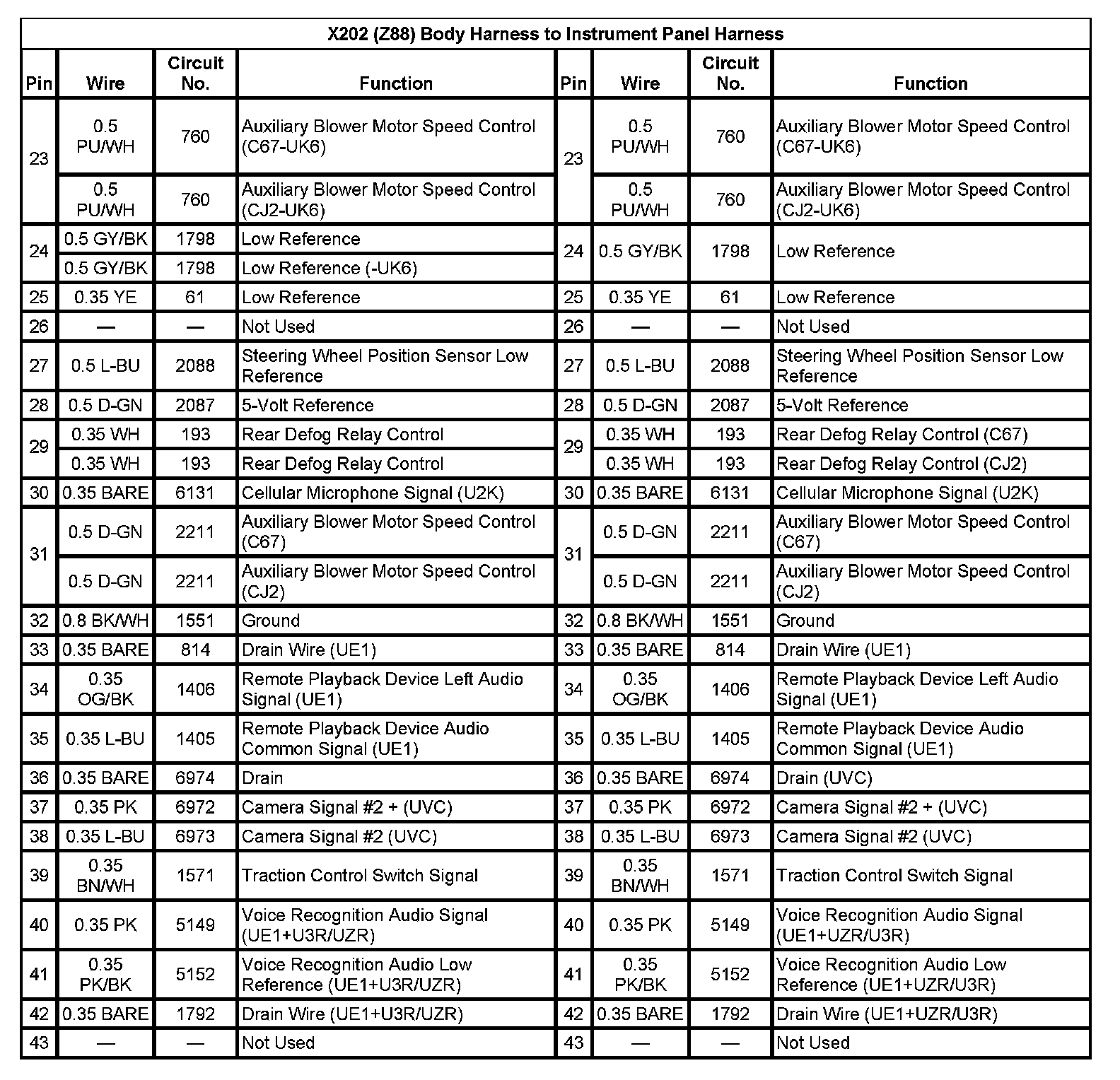

X202 (With RPO Code Z88) Body Harness To Instrument Panel Harness (Pin 23 To 43):
