X201

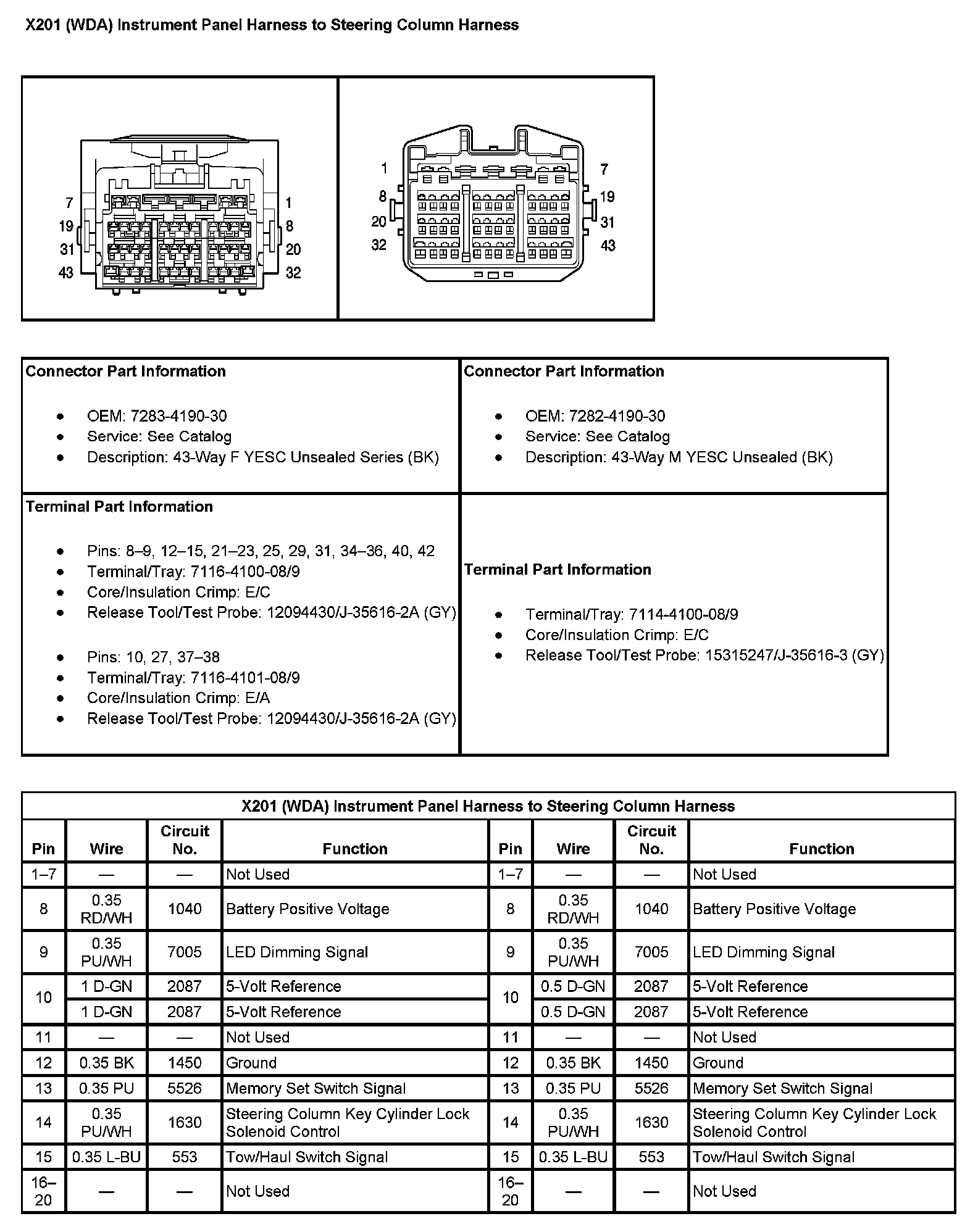

X201 (With RPO Code WDA) Instrument Panel Harness To Steering Column Harness:

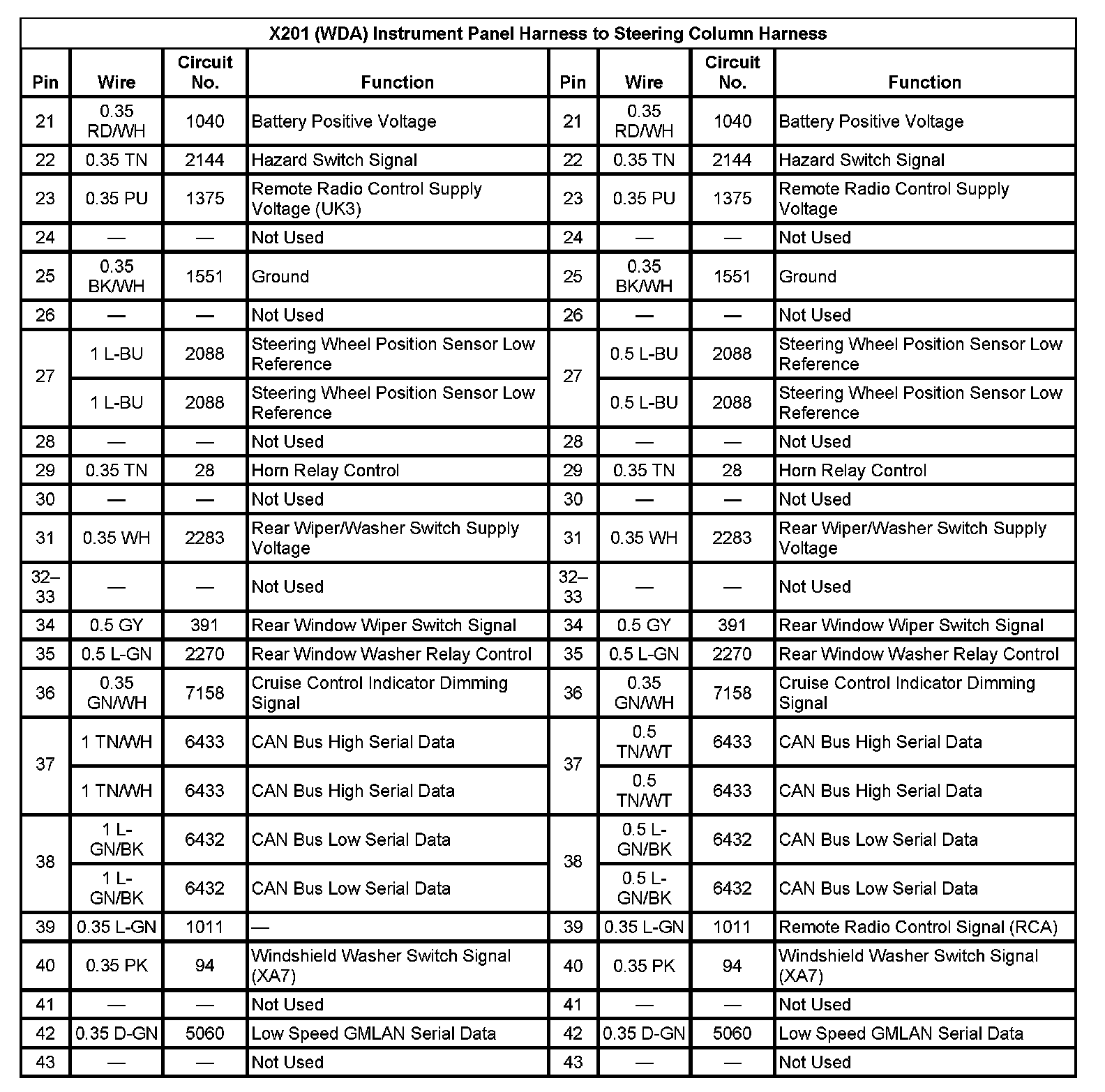

X201 (With RPO Code WDA) Instrument Panel Harness To Steering Column Harness (Pin 21 To 43):

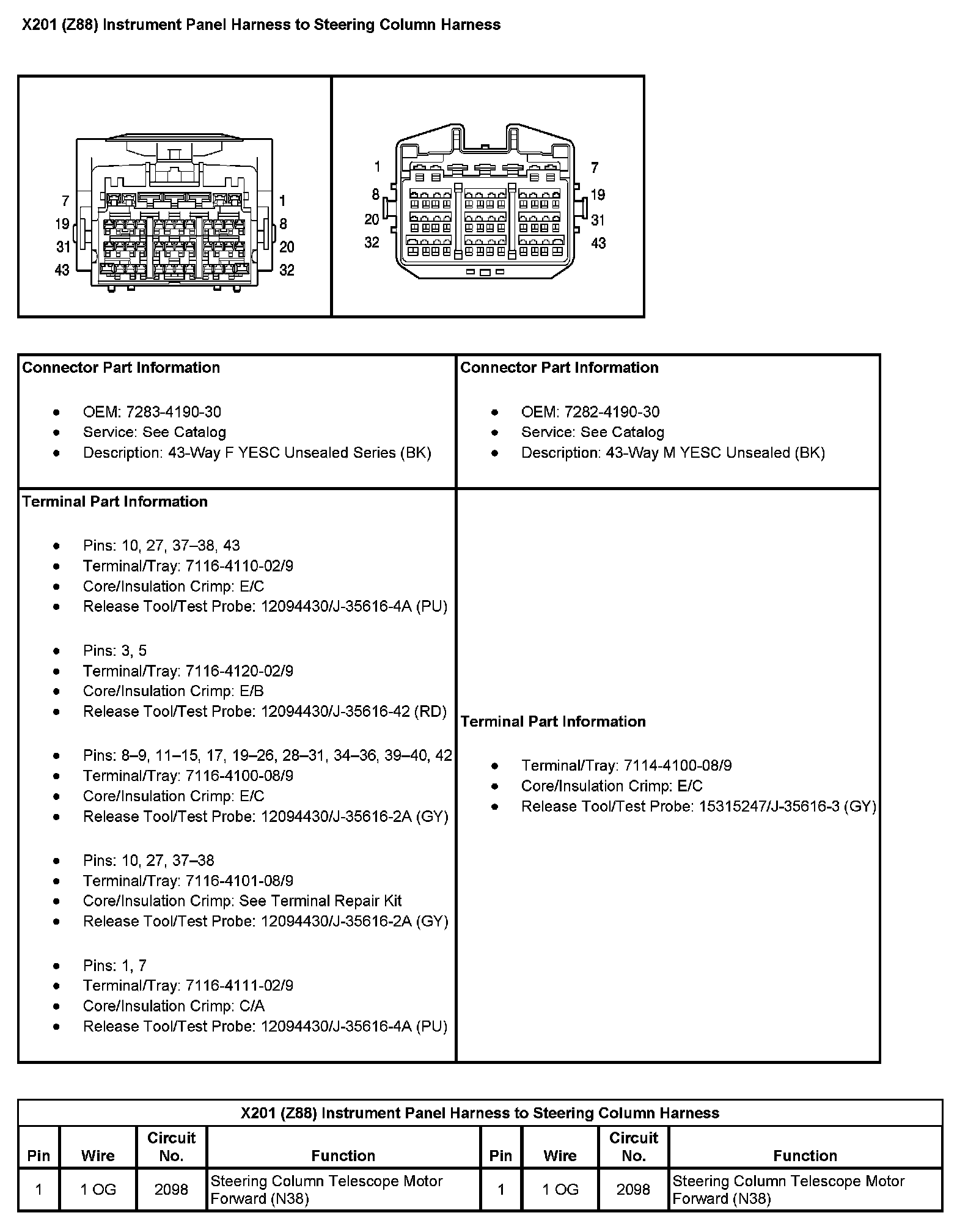

X201 (With RPO Code Z88) Instrument Panel Harness To Steering Column Harness:

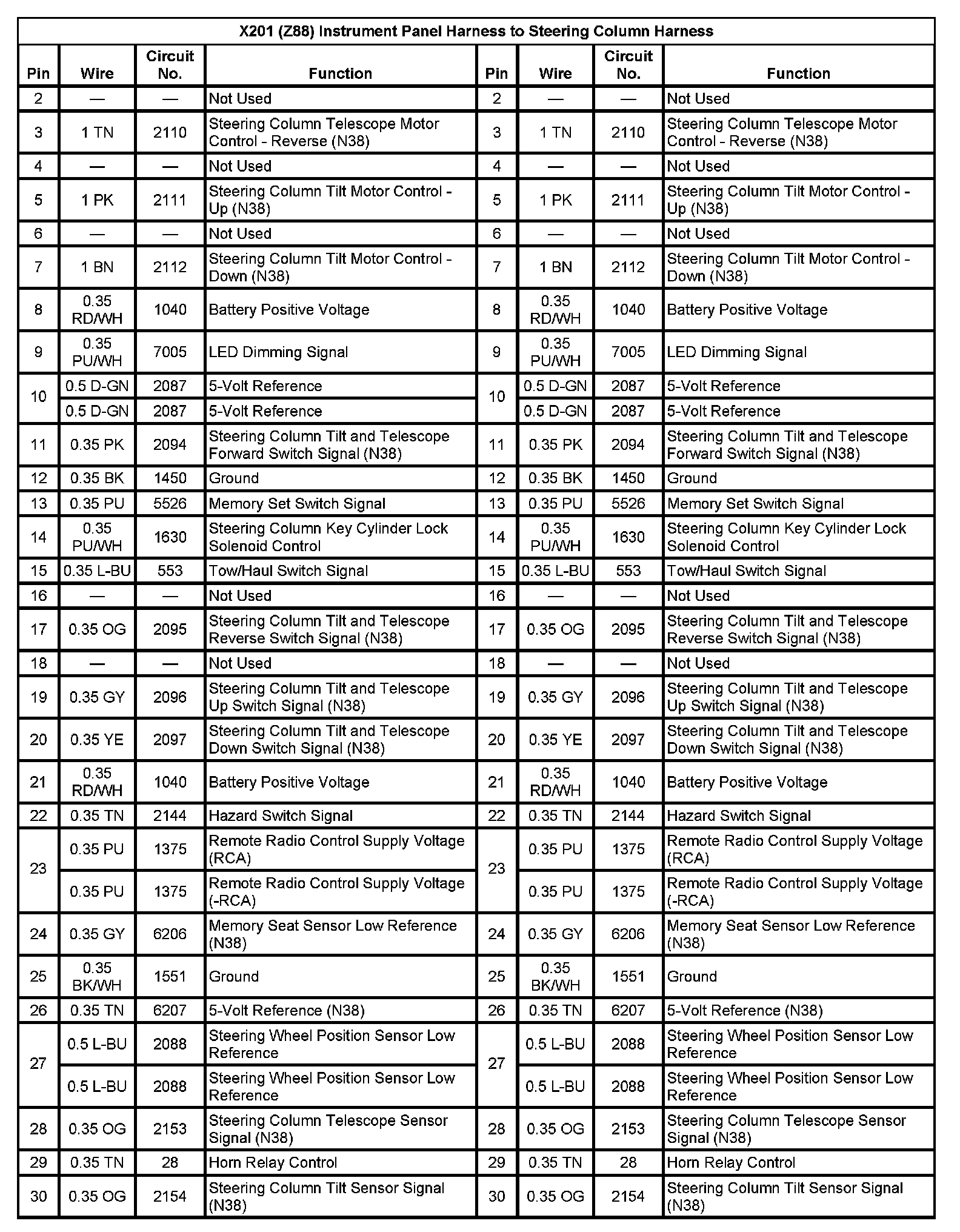

X201 (With RPO Code Z88) Instrument Panel Harness To Steering Column Harness (Pin 2 To 30):

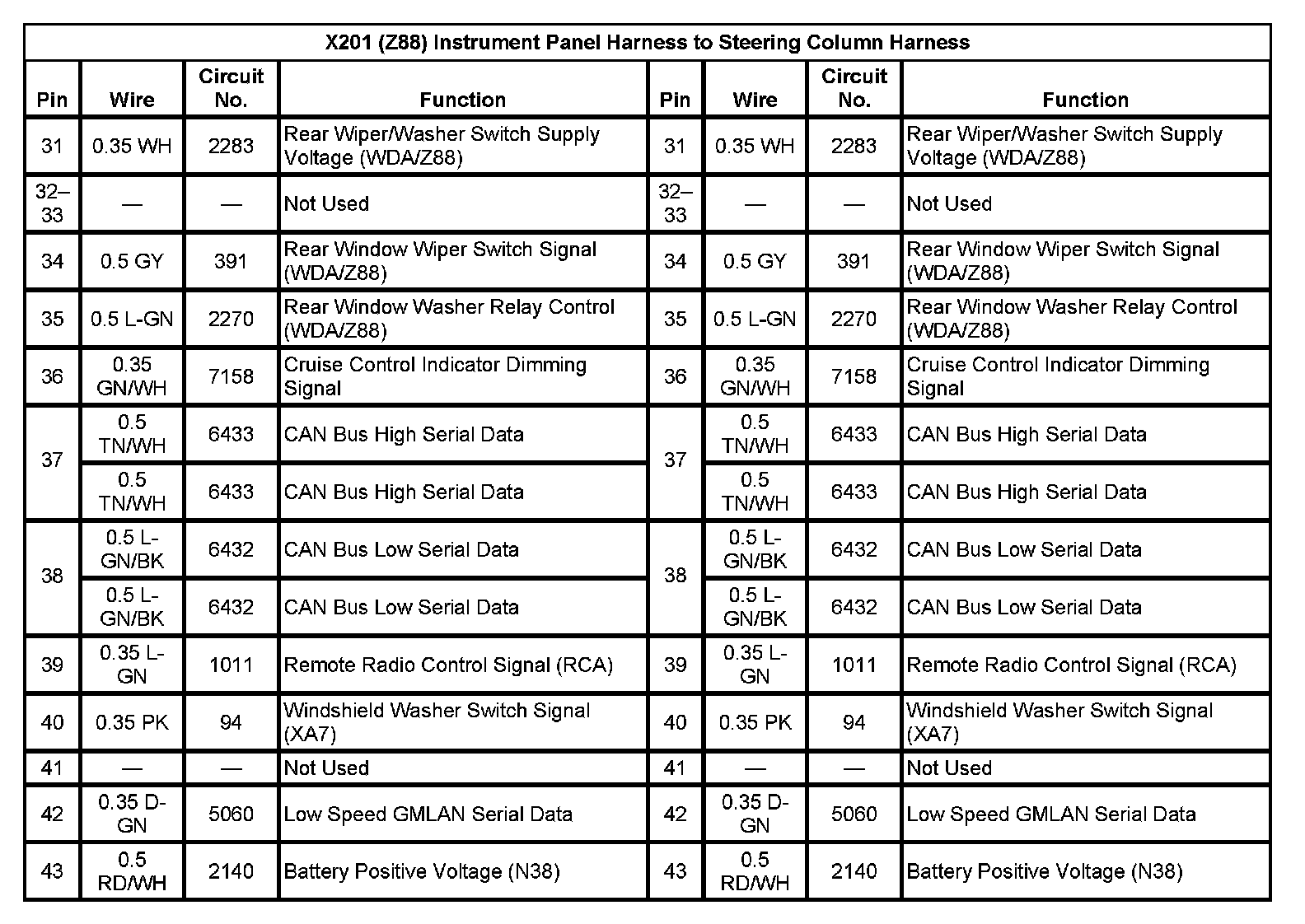

X201 (With RPO Code Z88) Instrument Panel Harness To Steering Column Harness (Pin 31 To 43):
