Home >> GMC >> 2007 >> Acadia AWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Starting and Charging >> Multiple Junction Connector >> X100 - X199 >> X151

X151

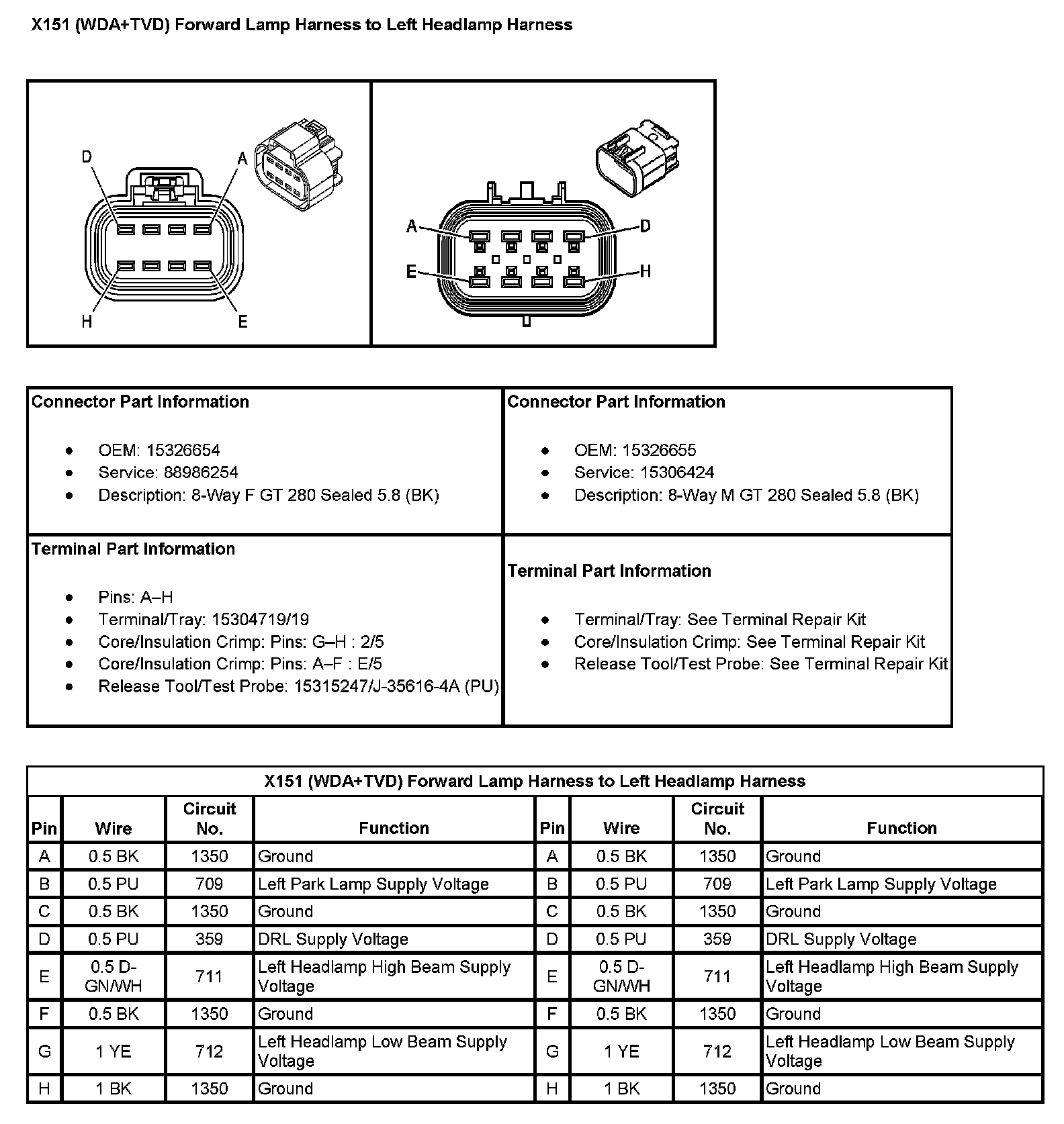

X151 (With RPO Code WDA+TVD) Forward Lamp Harness To Left Headlamp Harness:

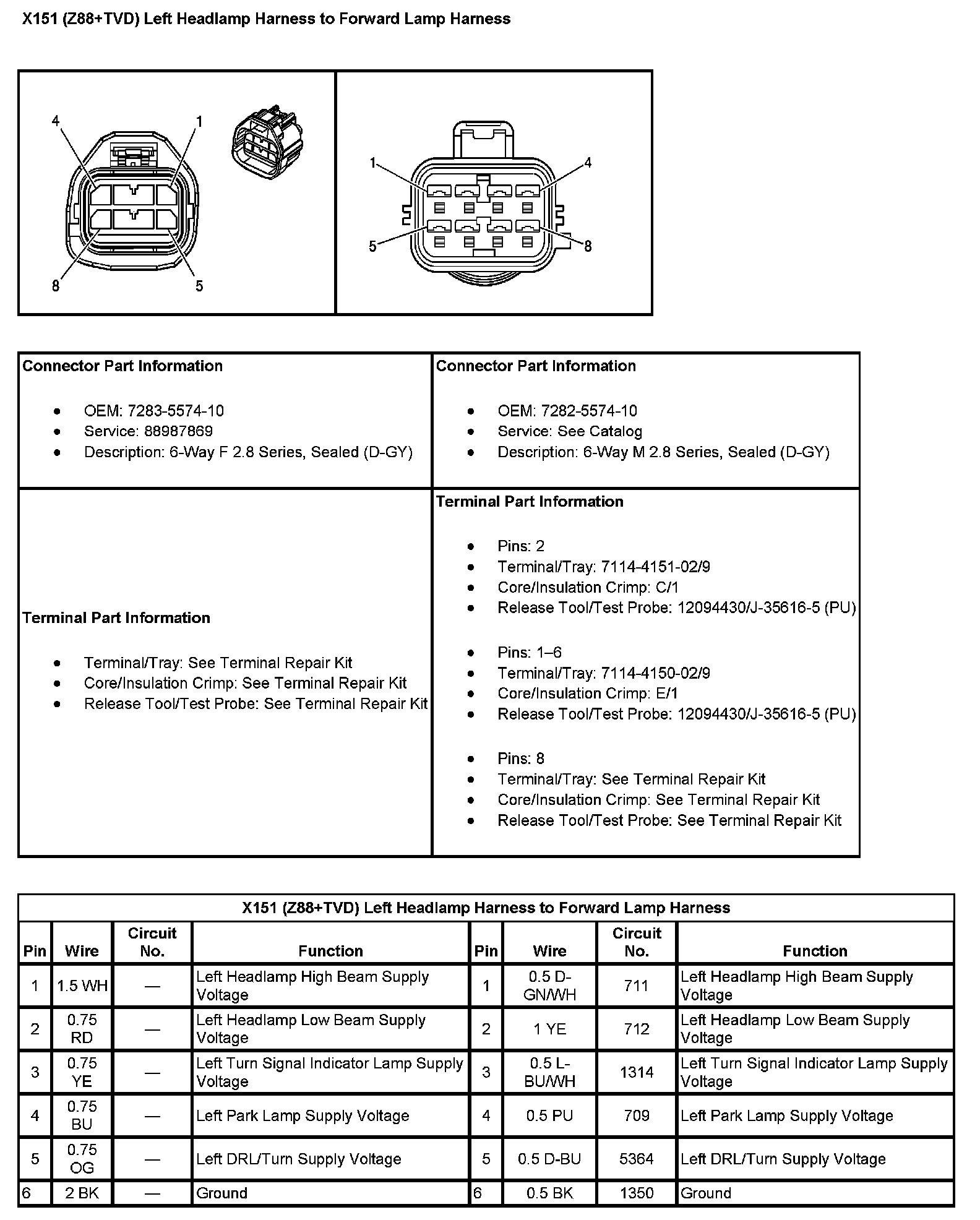

X151 (With RPO Code Z88+TVD) Left Headlamp Harness To Forward Lamp Harness:



X151 (With RPO Code Z88+TVD) Left Headlamp Harness To Forward Lamp Harness (Pin 7 To 8):

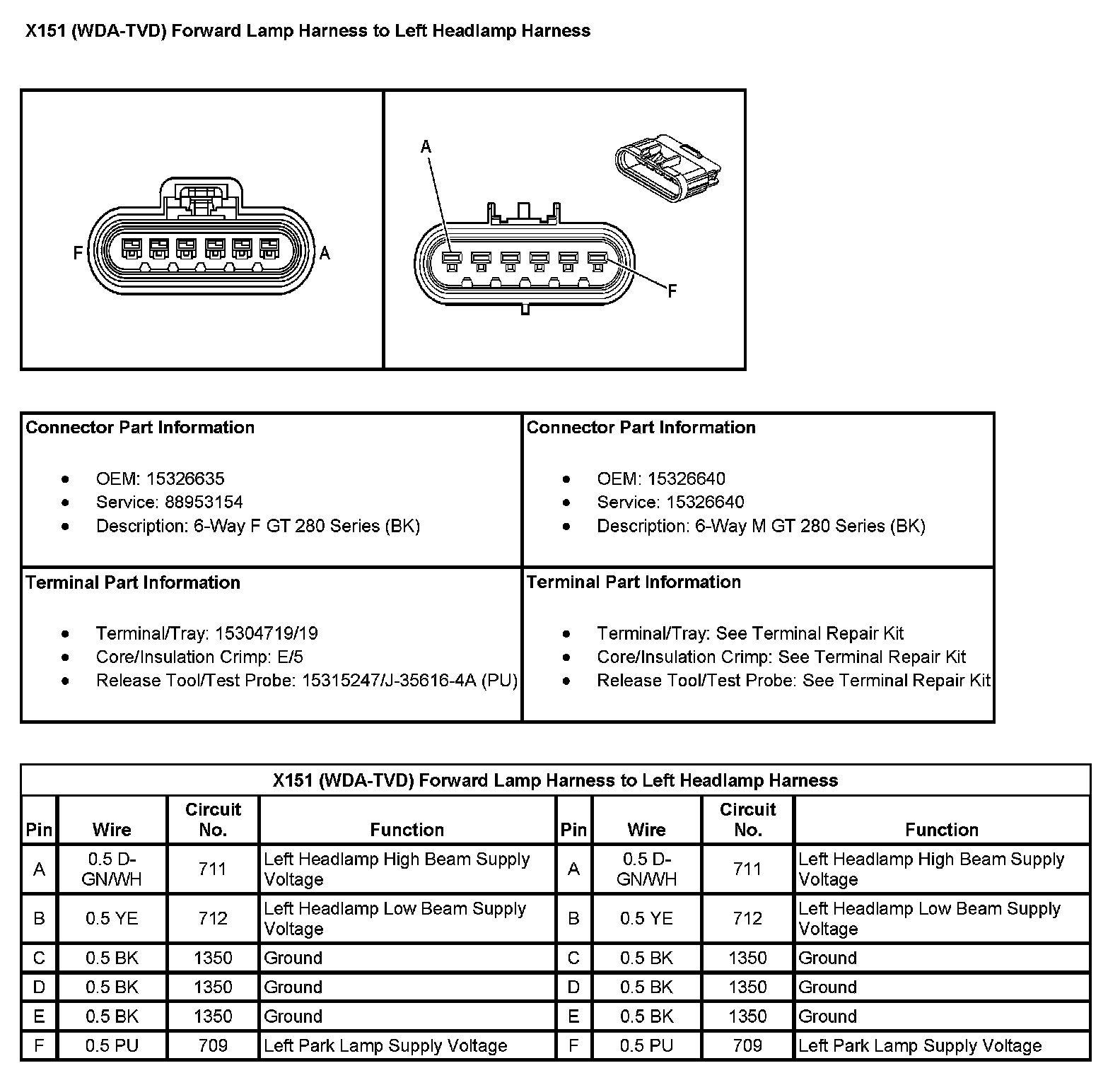

X151 (With RPO Code WDA-TVD) Forward Lamp Harness To Left Headlamp Harness:

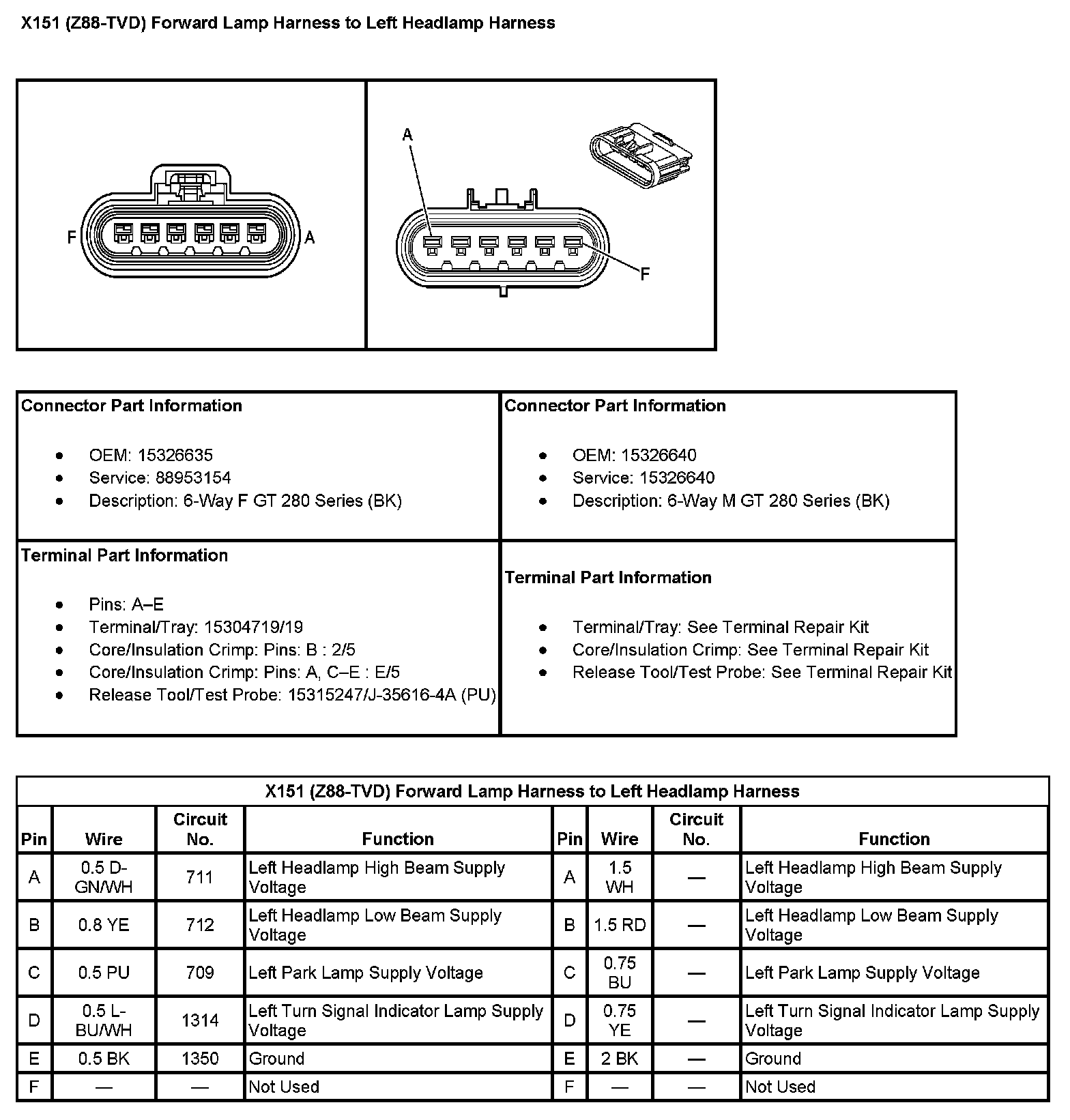

X151 (With RPO Code Z88-TVD) Forward Lamp Harness To Left Headlamp Harness:
