Home >> GMC >> 2007 >> Acadia AWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Starting and Charging >> Multiple Junction Connector >> X100 - X199 >> X111

X111

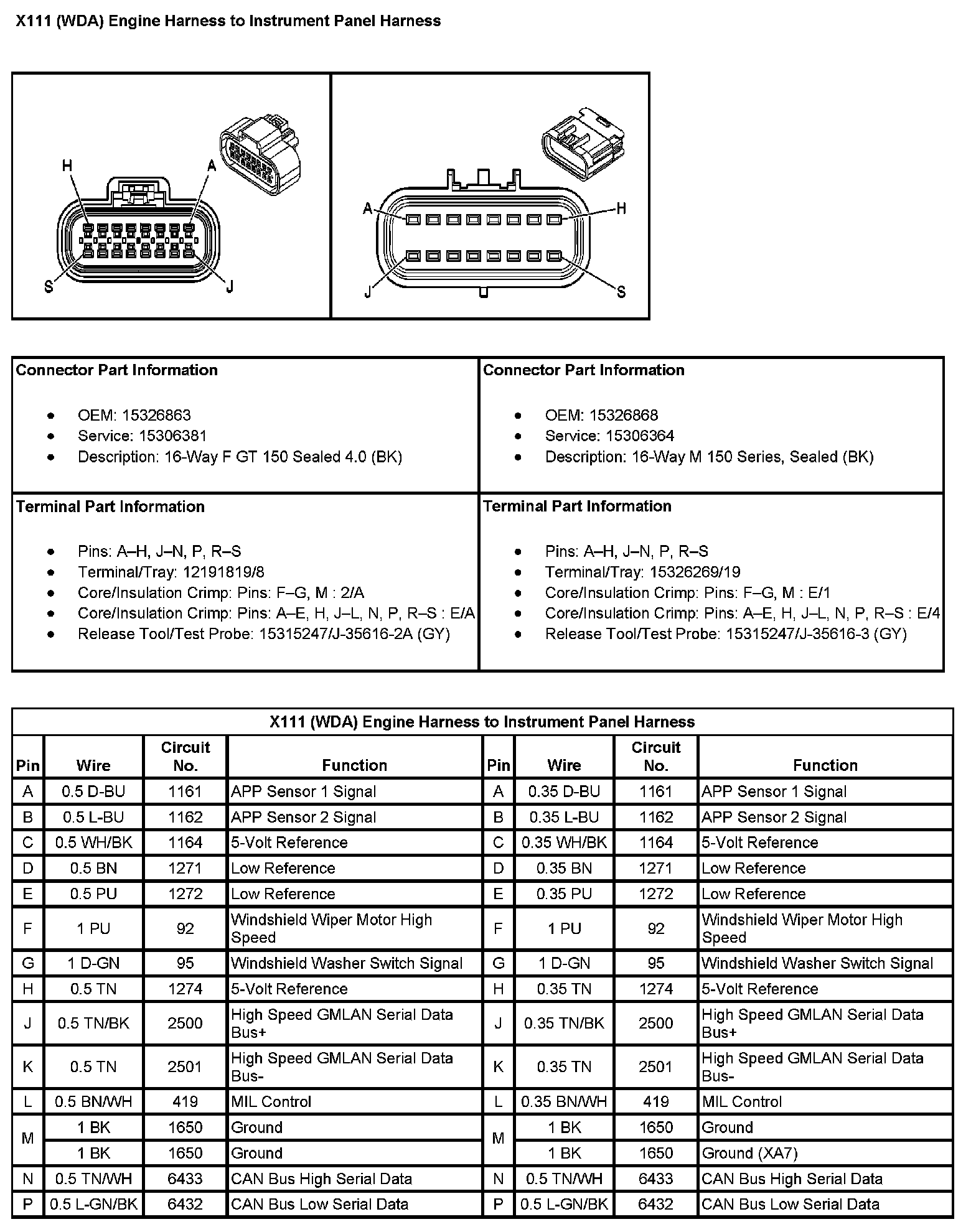

X111 (With RPO Code WDA) Engine Harness To Instrument Panel Harness:



X111 (With RPO Code WDA) Engine Harness To Instrument Panel Harness (Pin R To S):

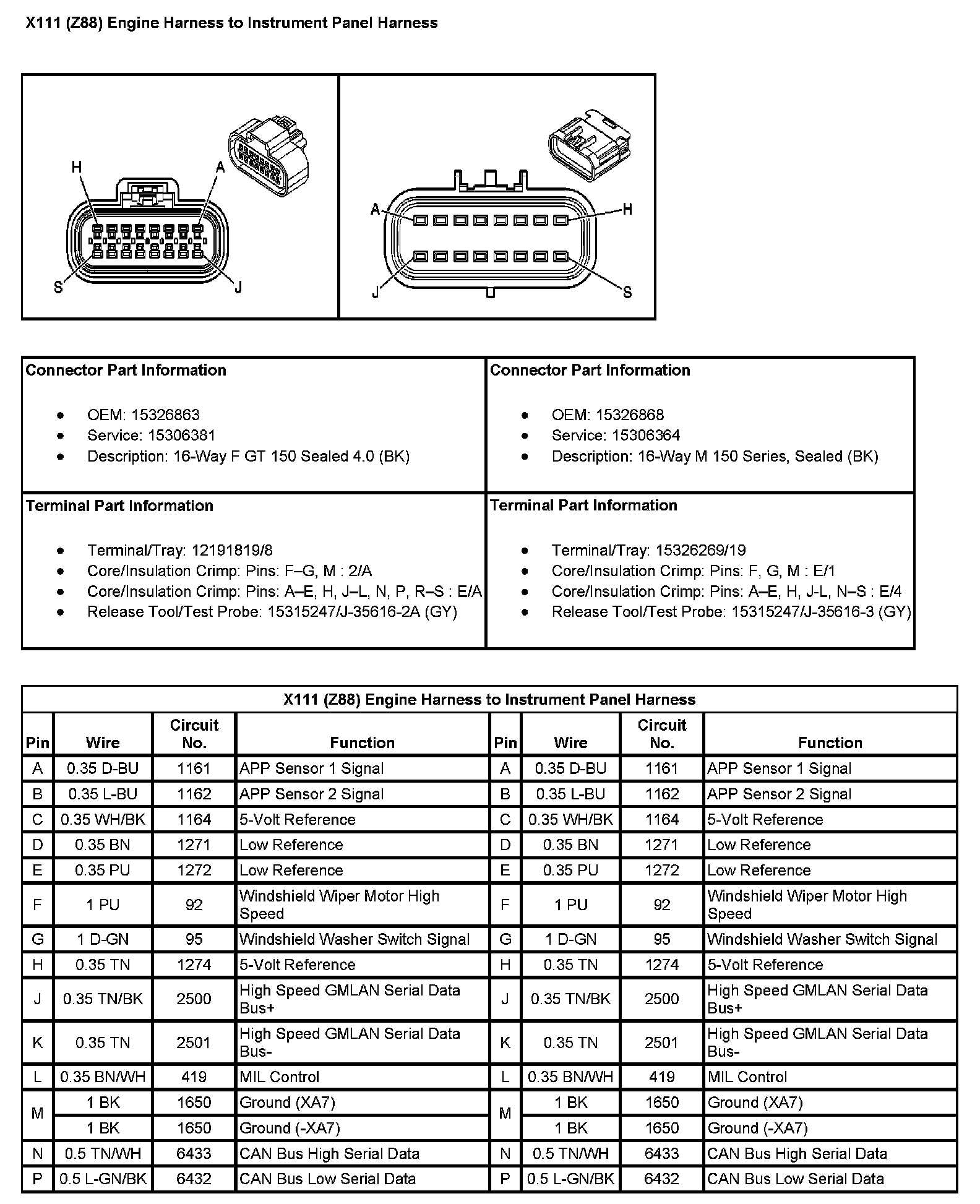

X111 (With RPO Code Z88) Engine Harness To Instrument Panel Harness:



X111 (With RPO Code Z88) Engine Harness To Instrument Panel Harness (Pin R To S):
