X104
X104

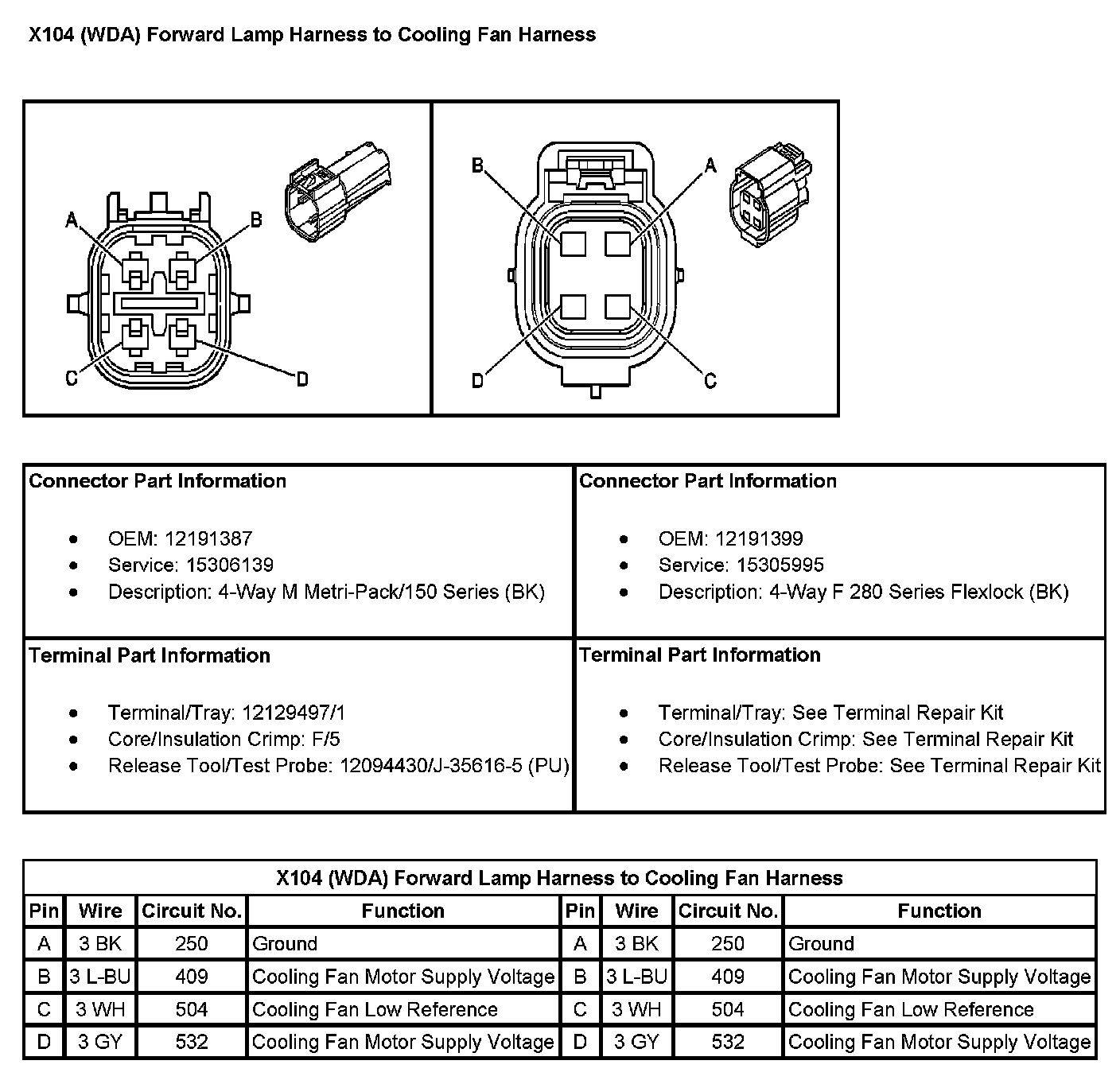

X104 (With RPO Code WDA) Forward Lamp Harness To Cooling Fan Harness:

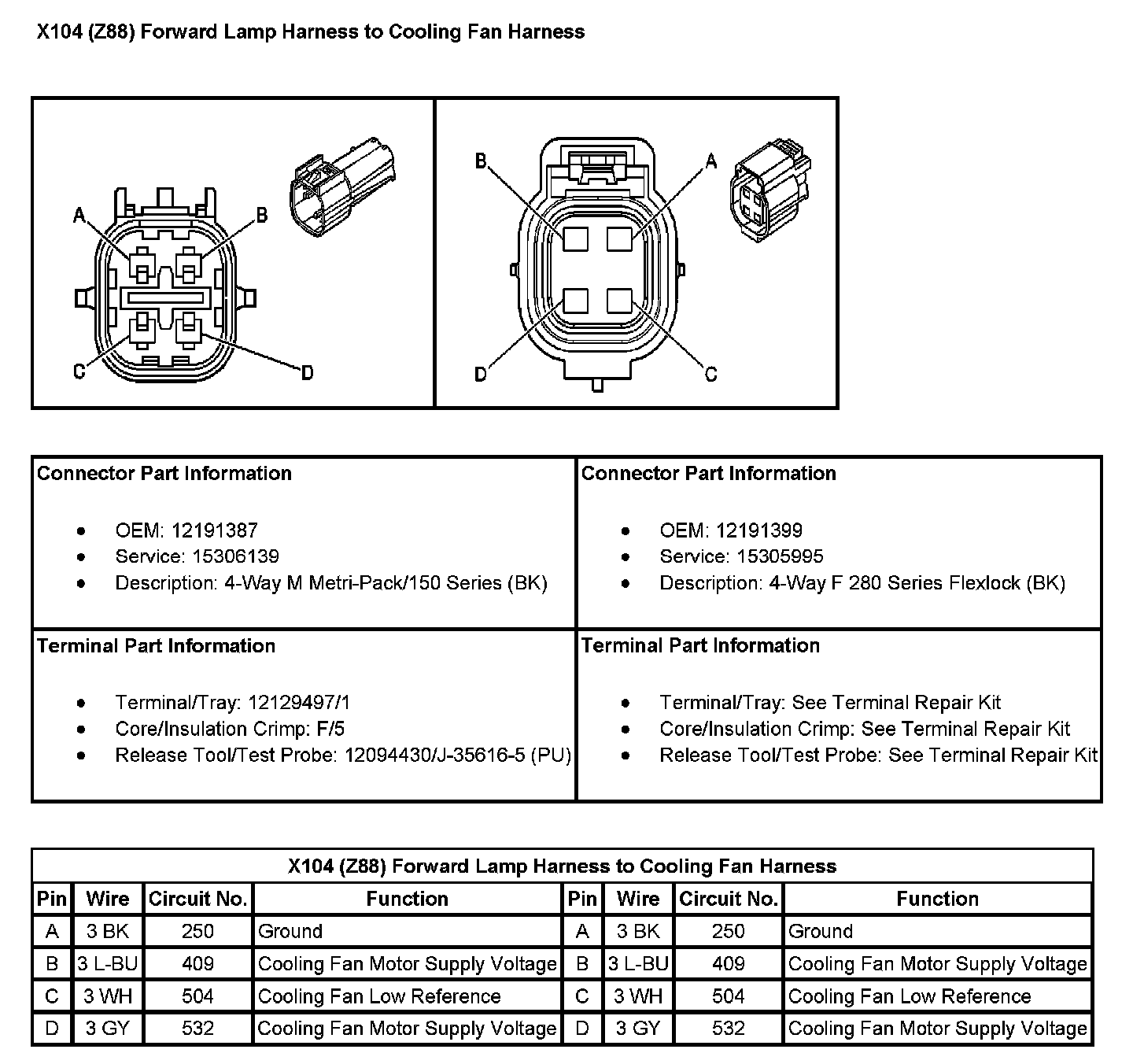

X104 (With RPO Code Z88) Forward Lamp Harness To Cooling Fan Harness:
