X103

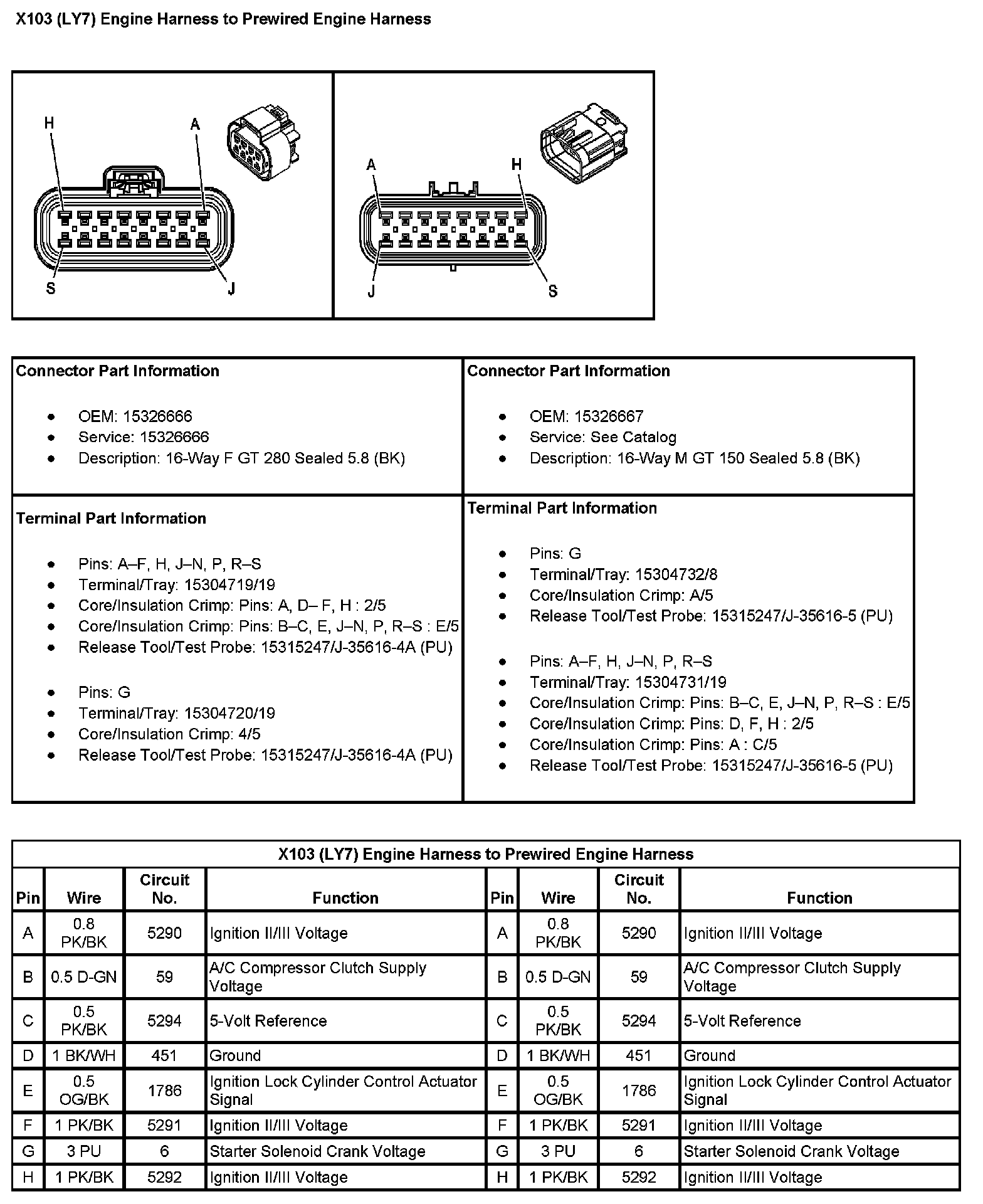

X103 Engine Harness To Prewired Engine Harness:

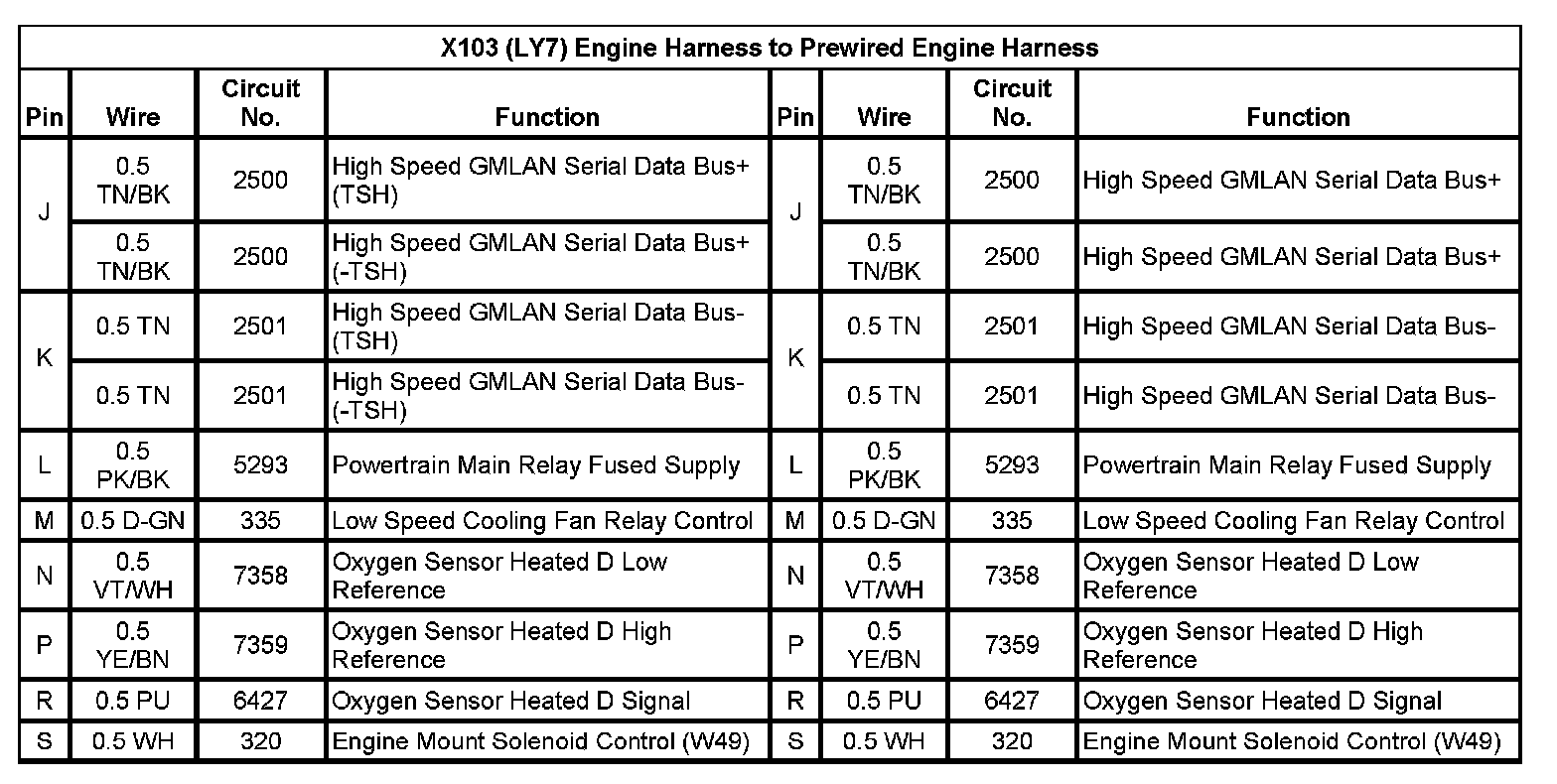

X103 Engine Harness To Prewired Engine Harness (Pin J To S):
